Product Description

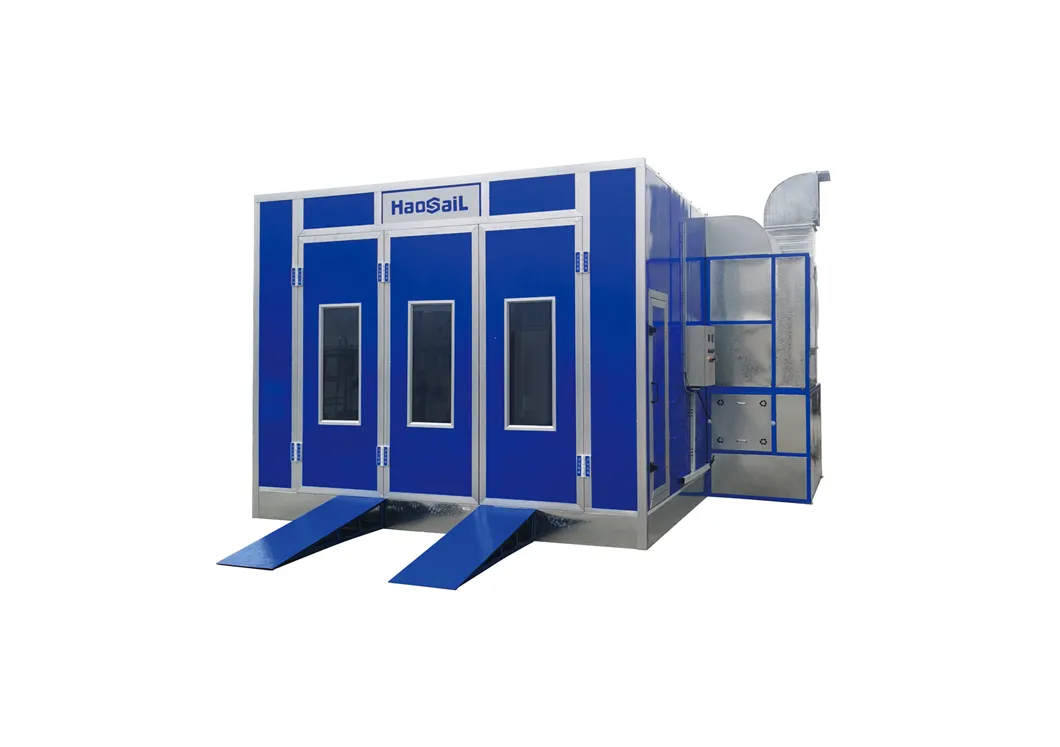

Auto Car Body Spray Paint Booth
Stock in Africa and UAE

Temperature	50-60^oC
Inner Dimension	6900×3900×2600mm(L×W×H)
Overall Dimension	7050×5200×3200mm (L×W×H)
Front Door	Single open, three doors,2800×2500mm(W×H), Aluminum alloy edging.
Working Door	One, 650×1800mm(W×H)
Platform	300mm, Steel plate pressing, Convex platform, All-terrain grille
Wall panel	Thickness 50mm, Width 950mm, Socket type, inside and outside, Color steel plate thickness 0.3m, Filler: EPS
Lighting	Inclined ceiling light 8 sets×3pcs=24pcs 36W, light tube, Lower row of lights (optional)
Cabinet device	Measuring the in-wind,Square tube frame, Spray mask
Exhaust system	Centrifugal blower 2 sets,power 3KW,Air Flow volume:20000m3/h

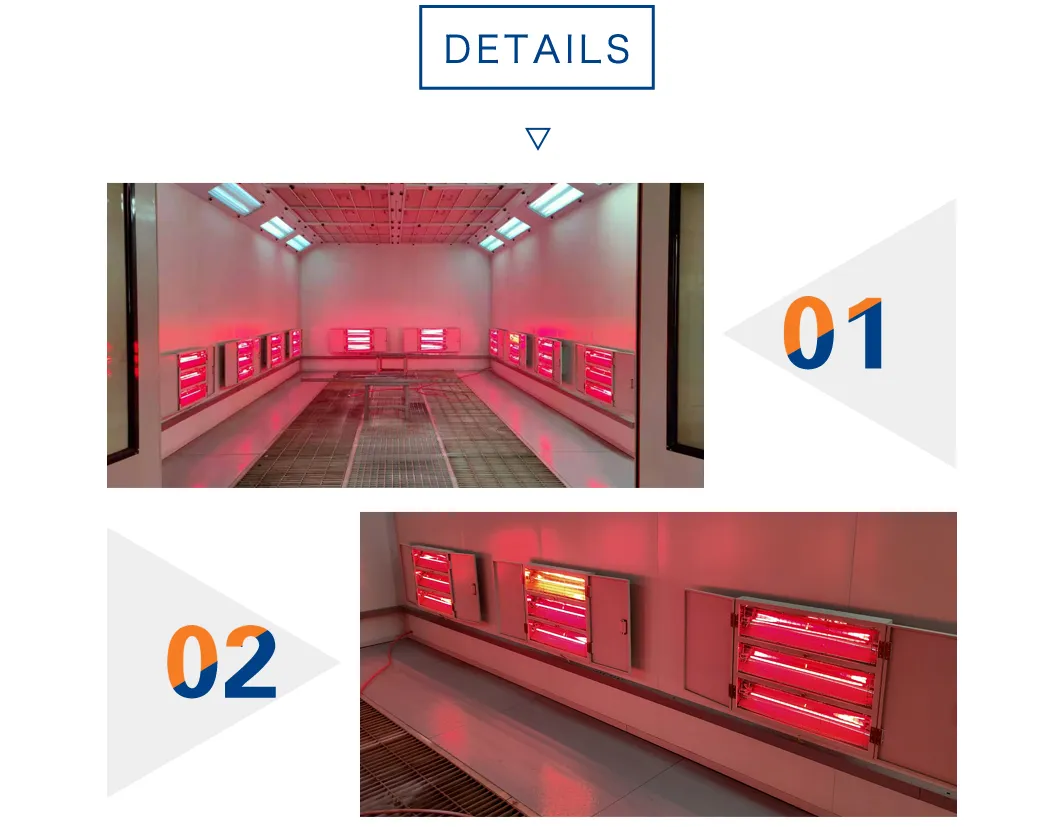

Heating system	24sets Luxury Infrared heating tube
Filtering system	Inlet filter cotton is high quality cotton with effective filtering dust above 10 mm, high effective filter cotton on the top is 600G, which can filter dust above 5 mm
Electric control system	Lighting switch, painting and baking temperature, timer control, malfunction indicator light
Note: If the above data is different from the actual product, please refer to the actual product.

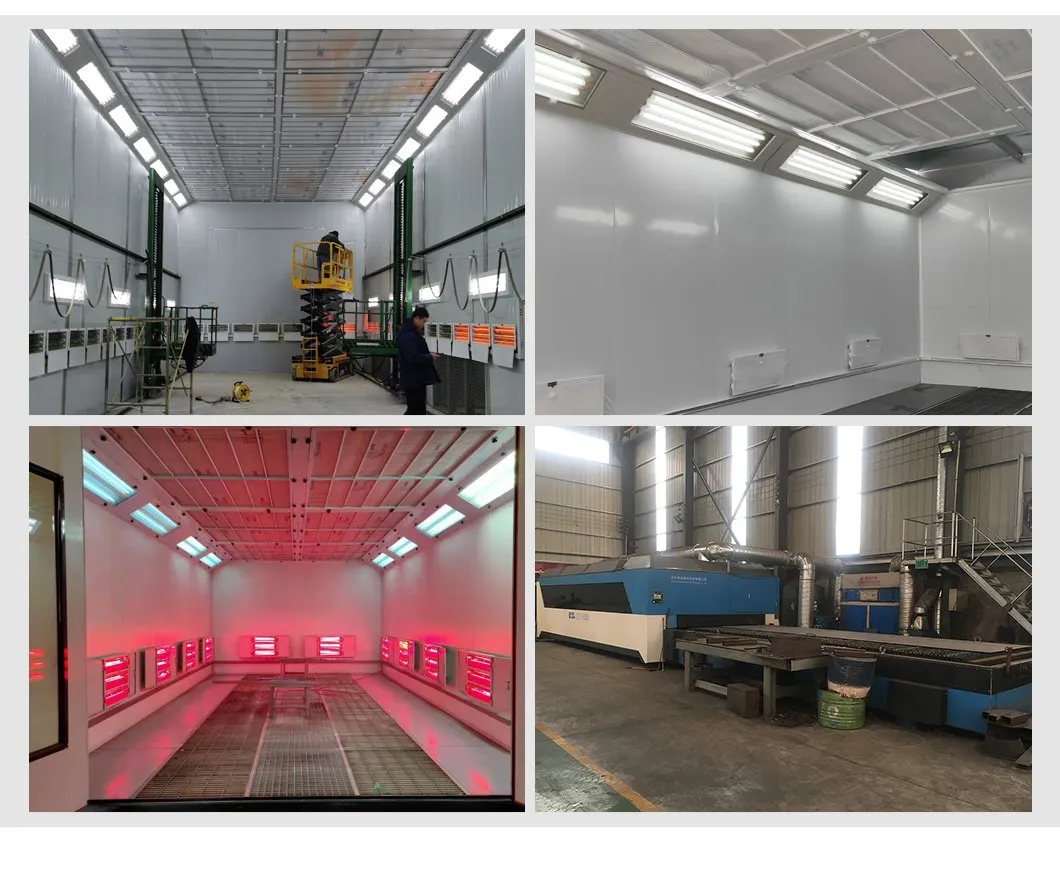

Car Spray Paint Booth is used for painting and baking the paint on the car. It could provide a closed clear painting environment for painting operators.

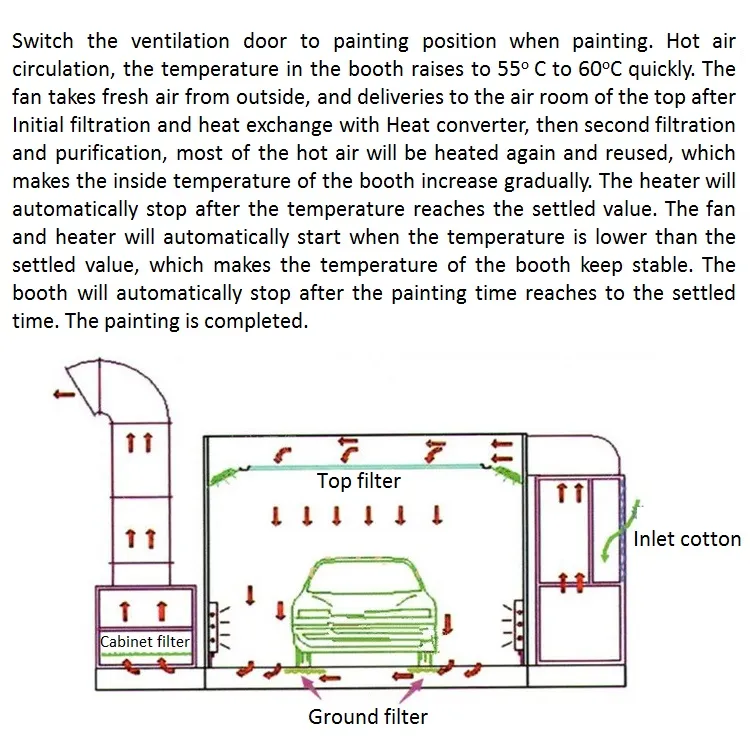

1. Painting Mode: The fresh air comes into the plenum after filtering by air intake filter system. Then will be pressure averaged by the ceiling filter, and flow down to the cabin at the speed of 0.2~0.3m/s. The air flow could take the painting mist out of the cabin by exhaust fan.

2. Baking Mode: The air damp will adjust to baking position. The air exhaust fan stops running, only the air intake fan is running at this time. The hot air will flow up to the roof and flow down to be a circle process. Generally the baking temperature is 40~60ºC.
