Ce Approved Infitech Industrial Painting Room with Electric Heating System (IT SUPER L8W5)
CE APPROVED INFITECH INDUSTRIAL PAINTING ROOM WITH ELECTRIC HEATING SYSTEM (IT SUPER L8W5)Product DesignProduct DescriptionProduct name:Customized industrial spray boothDESIGN STANDARDBS EN 13355:2004+A1:2009BS EN 60204:2006+A1:2009AIRFLOWSide downdraft for painting and bakingINTERNAL DIMENSIONS8000......
Send Inquiry
Product Description
CE APPROVED INFITECH INDUSTRIAL PAINTING ROOM WITH ELECTRIC HEATING SYSTEM (IT SUPER L8W5)

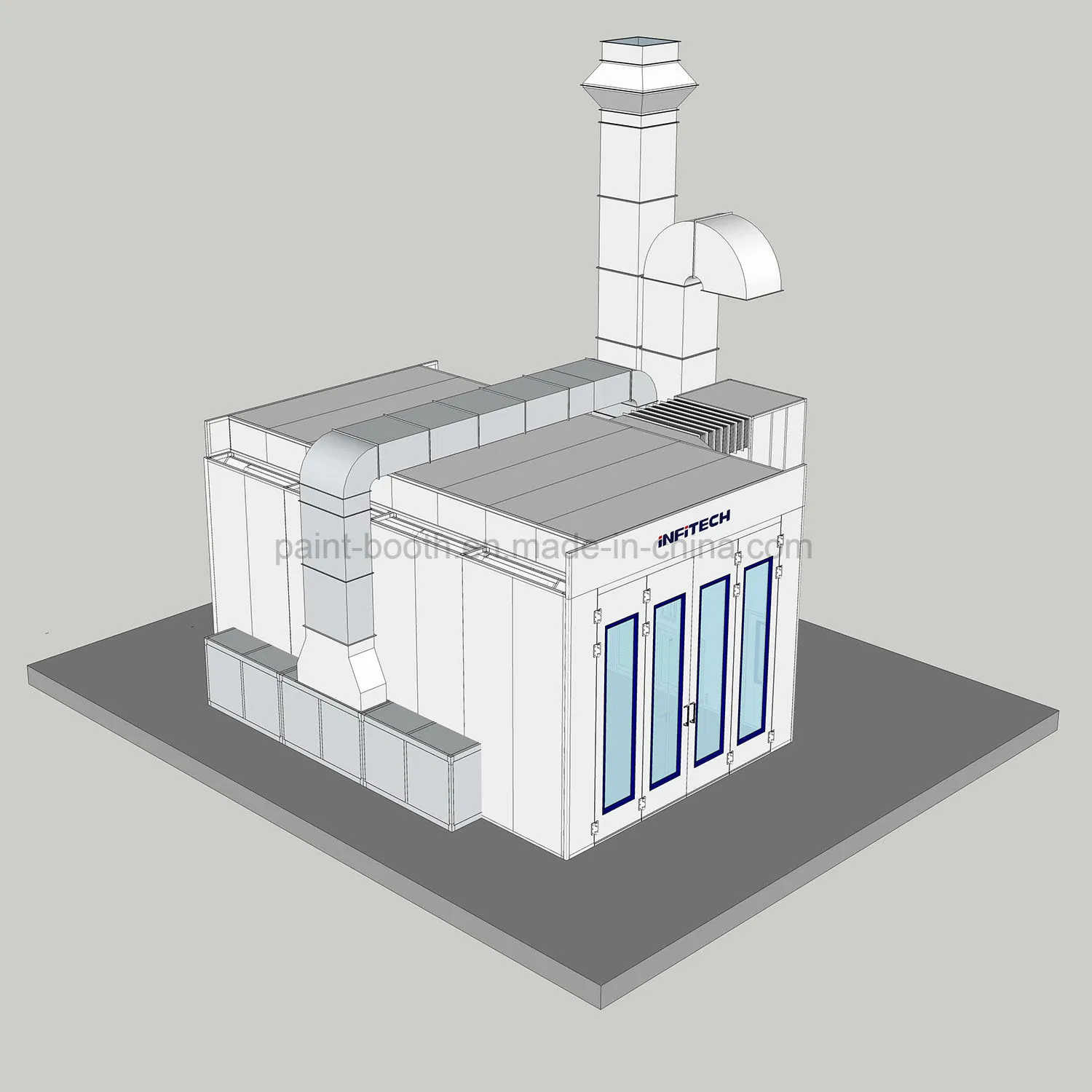

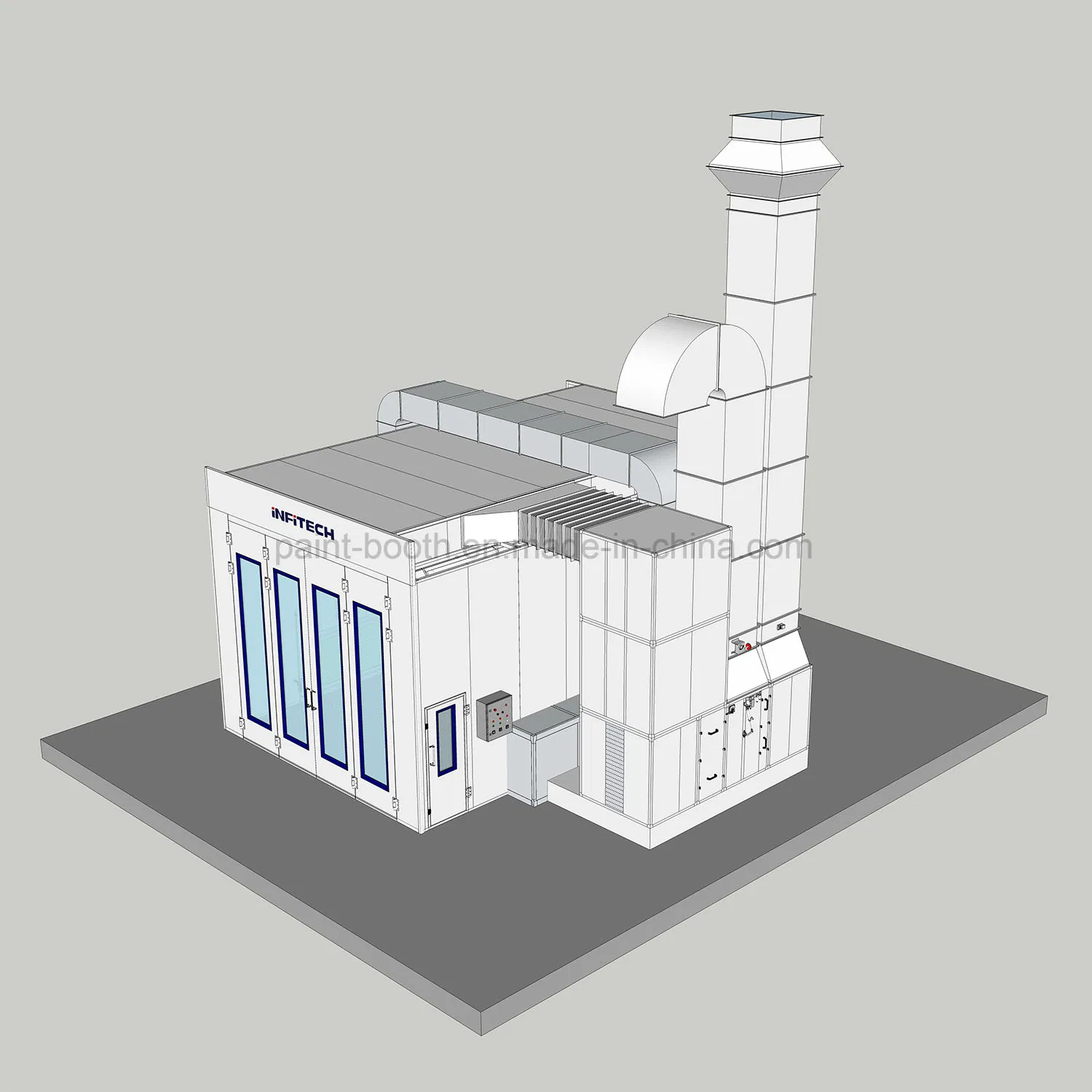

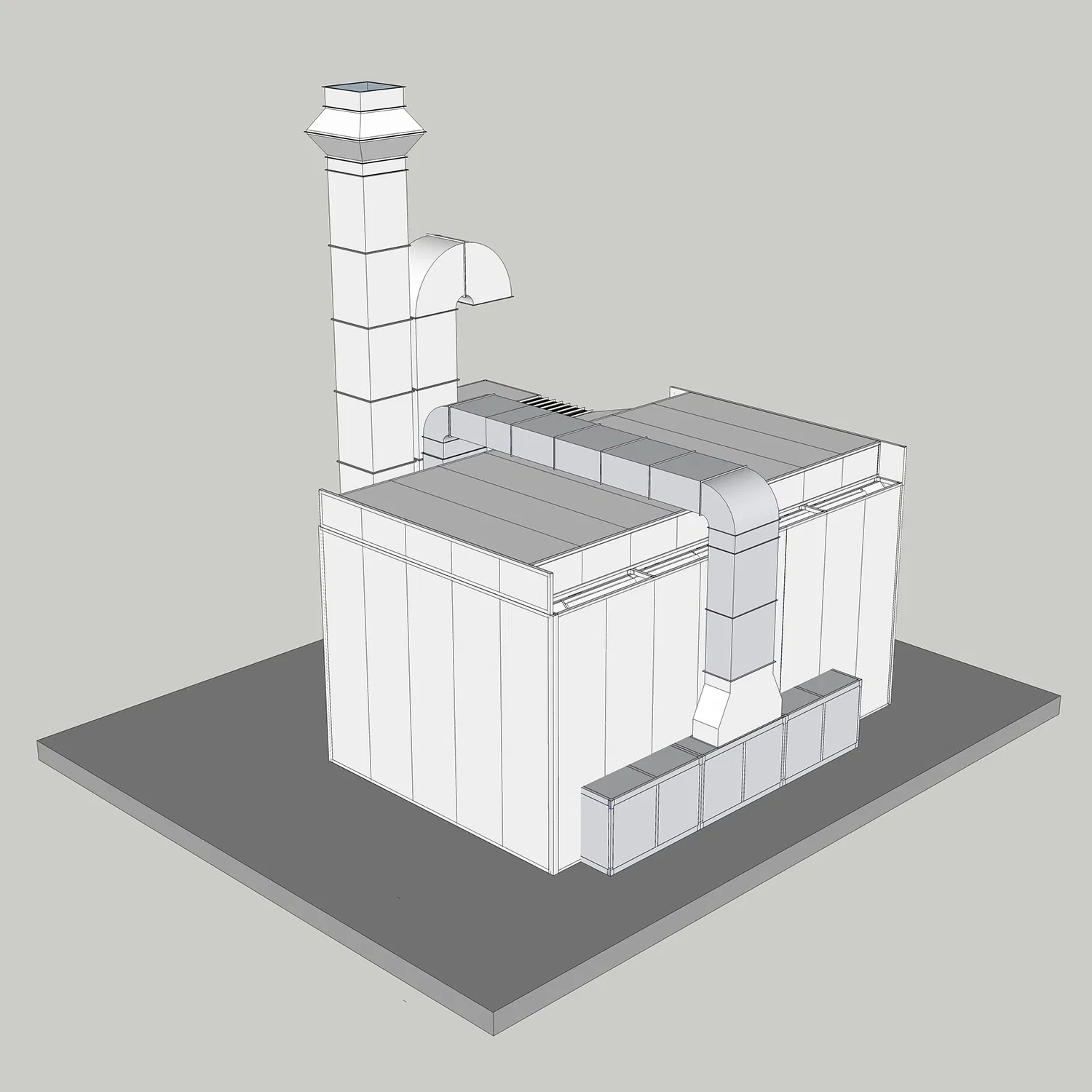

Product Design
Product Description
| Product name:Customized industrial spray booth | |
| DESIGN STANDARD | BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009 |
| AIRFLOW | Side downdraft for painting and baking |
| INTERNAL DIMENSIONS | 8000*5000*4000mm(L*W*H) |
| EXTERNAL DIMENSIONS | 8160*8520*4660mm(L*W*H) |
| BASE DESIGN | No base,with exhaust plenum chambers on both sides |
| PLENUM HEIGHT | 600mm |
| WALL PANEL | 75mm dual-skin insulated panels filled with heat resistant rock wool |
| TOP PANEL | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| ENTRANCE DOOR | 1 set,Manual door,4 wing entry door(2+2 structure),4000*3800mm(W*H) |
| PERSONNEL DOOR | 2 sets,800*2000mm(W*H),With safety glass observation window |
| CEILING LIGHTING | LED lamp,10 sets of light fixtures,each 4*18W,720W total |
| SIDEWALL LIGHTING | LED lamp, 8 sets of light fixtures,each 4*18W,576W total |
| BRIGHTNESS | >900 Lux |
| FILTRATION SYSTEM | Pre-filter, Ceiling filter, Floor filter, Exhaust filter |
| INTAKE SYSTEM | 1 set, Driect-type turbine fan, 11KW, 970rpm, 380V, 50Hz,CE, 35,000m3/h, 600pa |
| EXHAUST SYSTEM | 1 set, Driect-type turbine fan, 11KW, 970rpm, 380V, 50Hz,CE, 35,000m3/h, 600pa |
| EMPTY LOADED AIR SPEED | 0.24m/s |
| NOISE | <78db |
| HEATING SYSTEM | Electric heating |
| CONTROL SYSTEM | Painting, heating painting, flash-off, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor overload and over-current, fan and heating system interlock |
| RATED POWER | 276KW |
Features

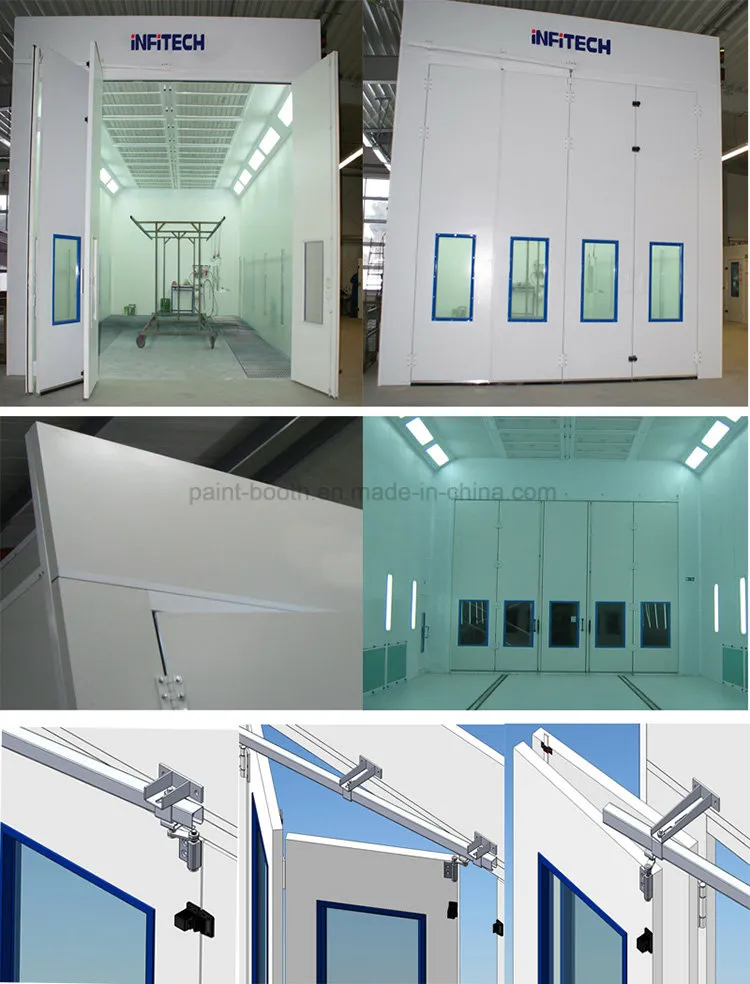

Entrance door
• 4-wing entry doors with durable rubber for airtight seal
• With device preventing the doors from falling off

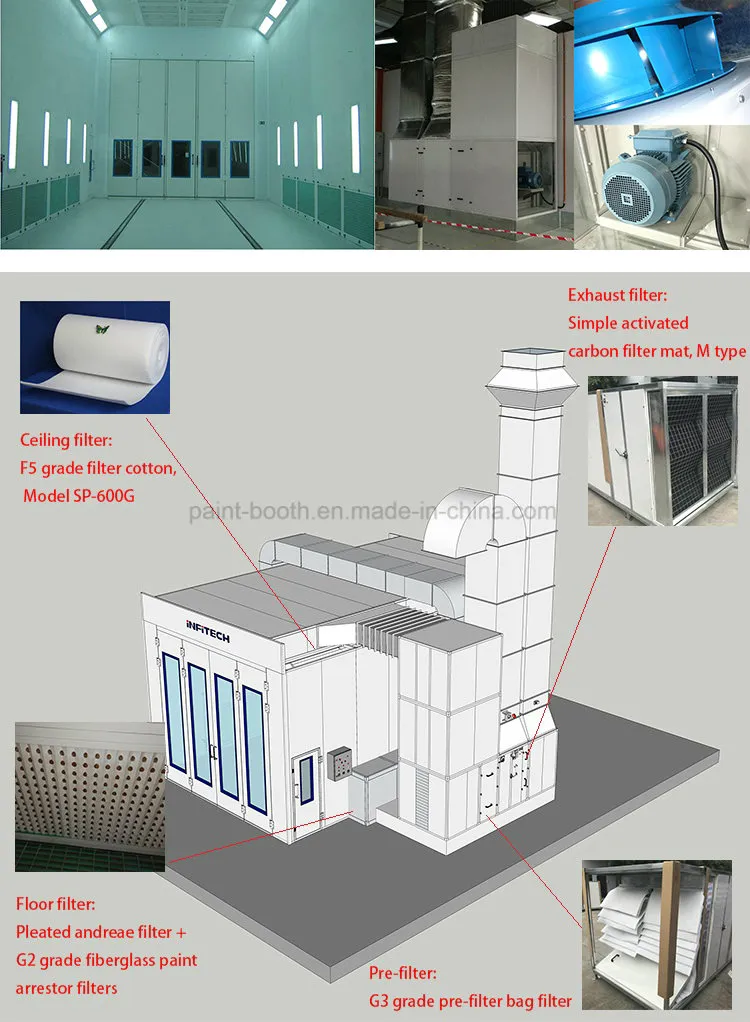

Airflow / Intake & Exhaust system / Filtration system
• Side downdraft for painting and baking
• Air exhaust plenums on both sides of the cabin
• Non-spark fan design
• Motor and fan are completely separated
• With cylinder-drive paint-bake conversion damper, more quickly and accurately.
• Direct-drive fans, virtually maintenance-free

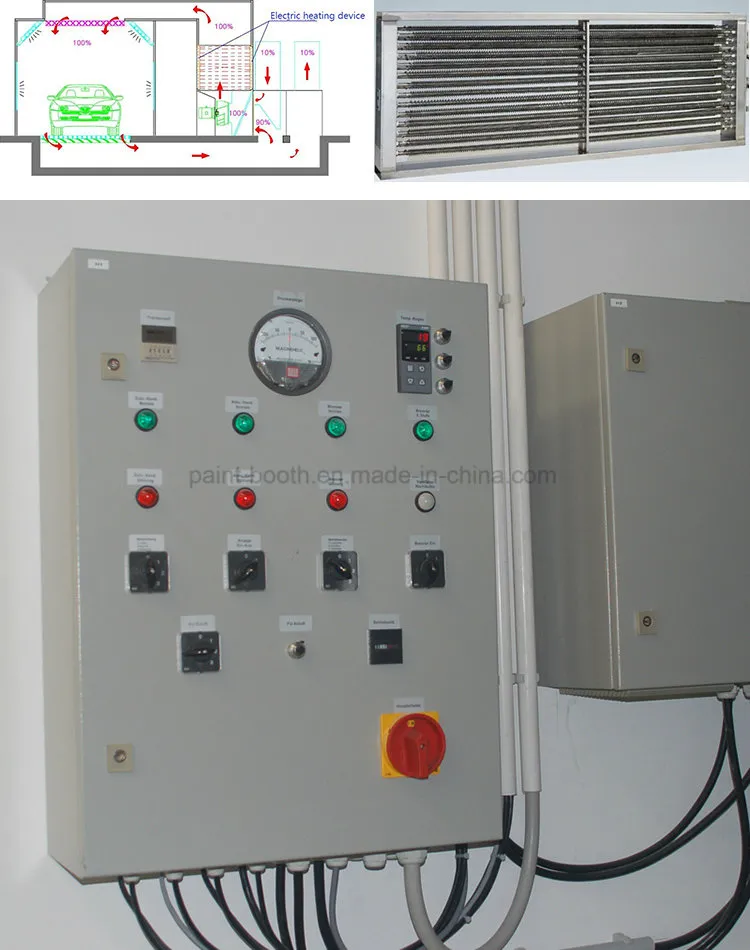

Electric Heating system / Controls
•252kw electric heater consists of 3 modules.
•It heats the fresh air section by section. The electric circuit is completely isolated from the airflow, which ensures the safety of the circuit and the convenient replacement of the heater.

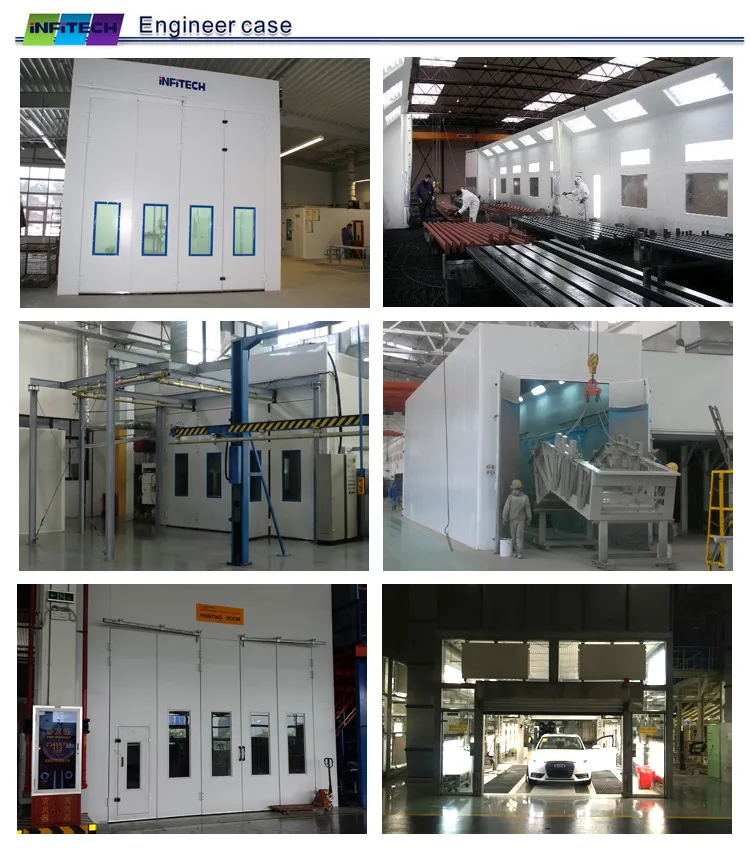

Engineering Case

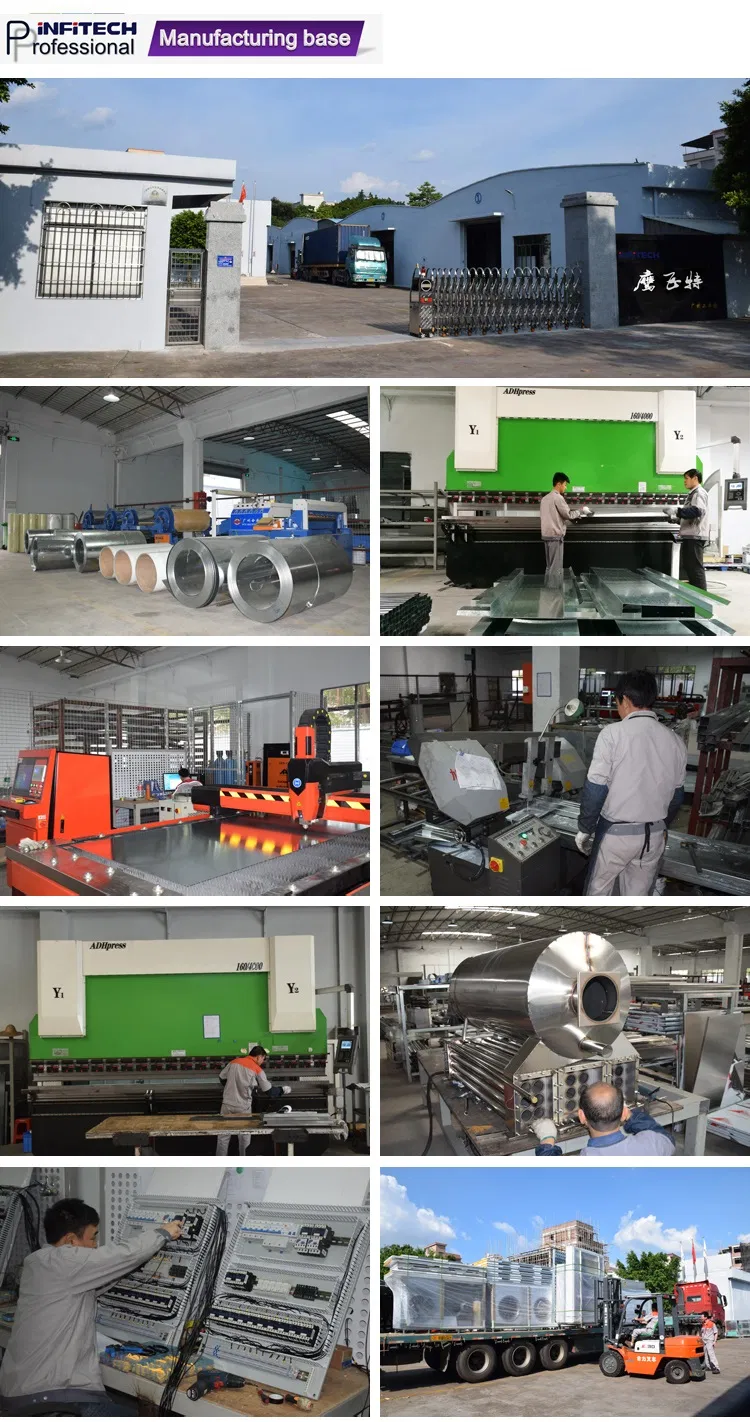

Company Information
Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.
