              Energy Saving Automotive Car Spray Booth Paint Booth

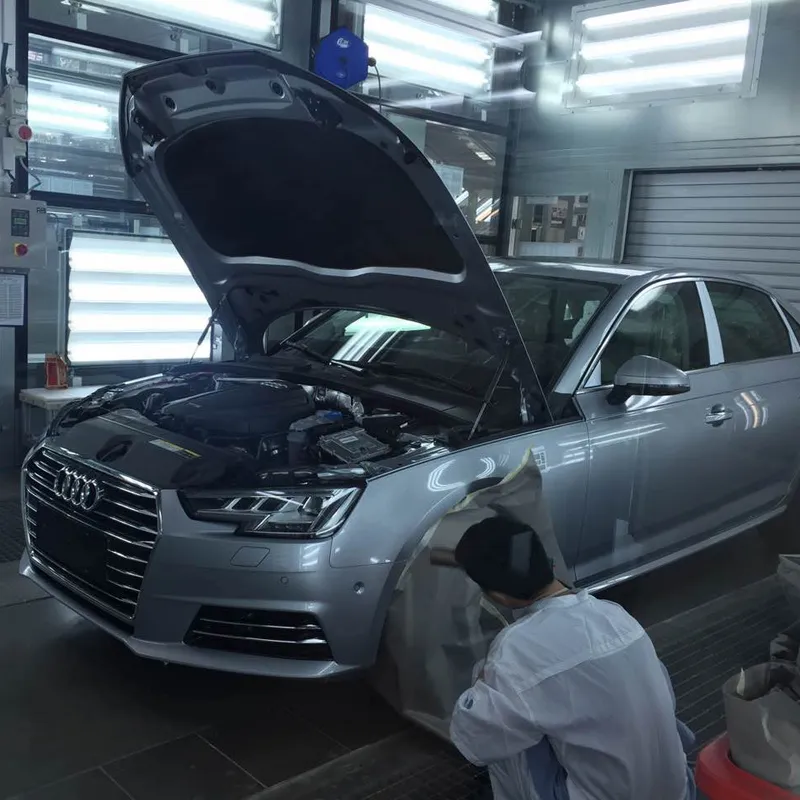

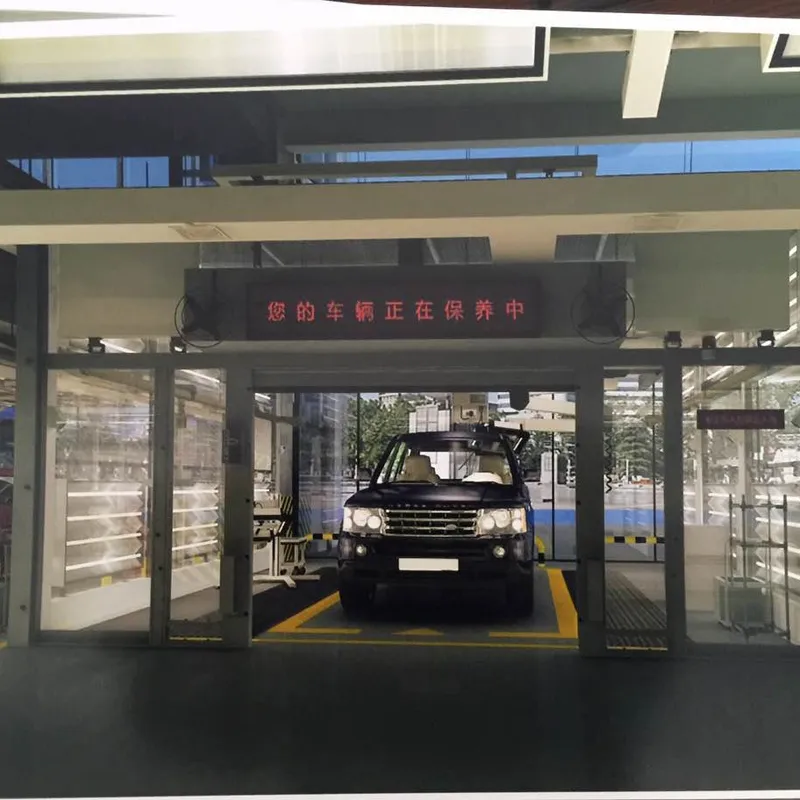

              • Energy Saving Automotive Car Spray Booth Paint BoothEnergy Saving Automotive Car Spray Booth Paint Booth
              • Energy Saving Automotive Car Spray Booth Paint BoothEnergy Saving Automotive Car Spray Booth Paint Booth
              • Energy Saving Automotive Car Spray Booth Paint BoothEnergy Saving Automotive Car Spray Booth Paint Booth
              • Energy Saving Automotive Car Spray Booth Paint BoothEnergy Saving Automotive Car Spray Booth Paint Booth

              Energy Saving Automotive Car Spray Booth Paint Booth

              Energy Saving Automotive Car Spray Booth Paint Booth Specification(European design)BOOTH DEMENSION Inside size7000×6000×3500mm(L×W×H)Outside size7350×7400×5760mm(L×W×H)BASE Base designGalvanized sheet bending form, ful......

              Send Inquiry

              Product Description

              Energy Saving Automotive Car Spray Booth Paint Booth

              Specification(European design)
              BOOTH DEMENSION
              Inside  size7000×6000×3500mm(L×W×H)
              Outside size7350×7400×5760mm(L×W×H)

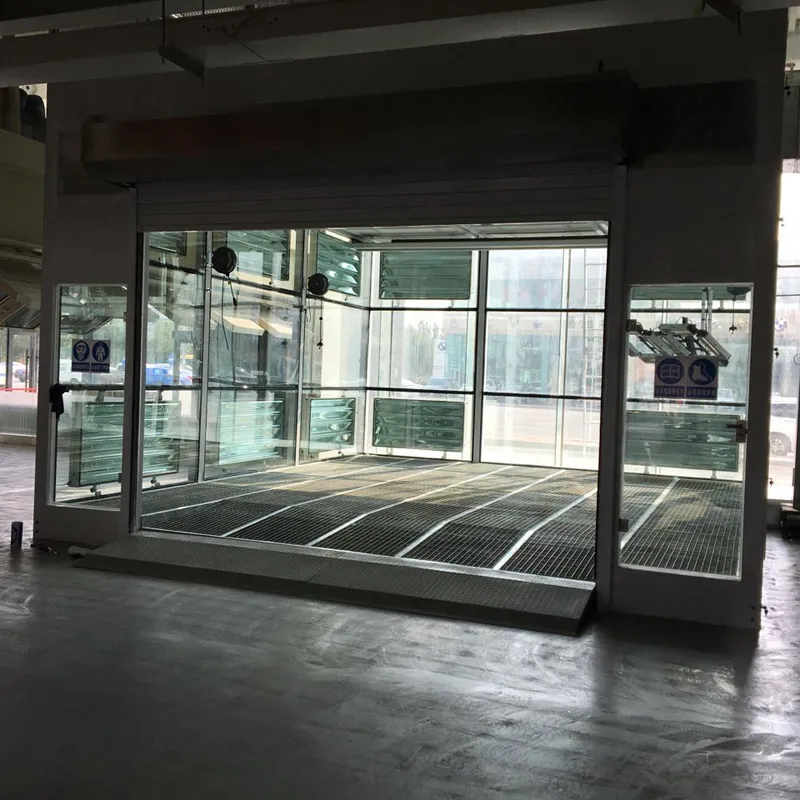

              BASE
              Base designGalvanized sheet bending form, full grid ,floor height 350mm and adjustable.
              Capacity of grids700 kg/single round
              Filter area42m2
              Drive-in- rampsX3 pcs ,Adopt galvanized bending forming ,grids struture, used in most sports cars.
              Grid descriptionAdopt galvanized bending forming,more durable and strong .Full grid ,the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating .The biggest features for it are beautiful ,durable and better force bearing.
              CABIN
              Cabin strutureSheet metal column structure, double layer vacuum thermal insulation glass.
              Plenum height400mm.
              DOOR
              Door formElectrical roller shutter.
              Door size3980×2700 mm (W×H).
              Power550W, maximum lifting weight 800kg, lifting speed 0.2m/s.
              Door arrangement and numberParts of door: 1 set.
              Door descriptionGalvanized sheet, filled with aluminum silicate cotton inside and outside, inside and outside controlled, configuration safety protection device.
              WORKING DOOR
              Door size2000×800 mm (W×H)
              Door arrangement and numberParts of door: 2 set.
              Door descriptionTemper glass door, door closer
              LIGHTING
              Quantity and power16 sets of boxes, each 4X 36W, 2304W total
              Lighting arrange wayon both sides
              Lighting descriptionprotection class IP55, CE certified electronic ballasts, OSRAM lamp
              FILTRATION SYSTEM
              Pre-filtersEU3 grade pocket filter, filter effect is much better
              Ceiling filterEU5 grade high efficient filter
              Bottom filter and exhaust filterFibreglass paint-stop filters, G2 grade
              INLET VENTILATION SYSTEM
              Inlet fanDirect-type turbine fan
              Inlet fan power and motor description11KW,970 rpm, 380 V, 50 Hz
              Parameter inlet ventilator35000 m3 / h, 650pa
              EXHAUST VENTILATOR
              Exhaust fanDirect-type turbine fan
              Exhaust fan power and motor description11KW,970 rpm, 380 V, 50 Hz
              Exhaust fan parameter35000 m3 / h, 650pa
              EQUIPMENT EMPTY LOAD+/- 0.23m/s
              NOISE<78dB
              HEATING SYSTEM
              Heat exchangerStainless steel 1Gr18Ni9Ti (SUS304)
              Heat power232KW
              T temperature capability20° C (from 0°C to 20°C under painting state)
              The maximun operating temperature80°C
              Heating time5-8 minutes (from 20°to 60°C under baking state)
              Model diesel burnerRG5S diesel burner
              CONTROL SYSTEM
              Control systemInverter control system
              PLC controllerYes, PLC control, more reliable, lower breakdown rate
              Human-computer interface touching screen control systemYes, touching screen control, easier to operate
              Ceiling and floor filter change reminder functionCeiling filter and floor filter install differentiate pressure transmitter, when the ceiling and floor filter suck dust and paints to certain level, the control system will remind user to change filter humanely.
              Inverter controlInverter control , more energy-saving, more economic
              FunctionPainting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, failure indication, over-temperature alarm indication, baking delay stop protection
              SPECILA ITEMRated power: 28KW
              OPOTIONAL
              Three dimensional infrared baking lampBy using German technology and high quality IRA infrared shortwave heating international special light source laboratory identification tube (total power: 8X1KW), the longitudinal and transverse guide rail on top of the barn, can make the lamp move at all directions, two variable angle swing arm can make the lamp body in the barn any position, the lamp body lifting the gas spring full power.

              Product Details

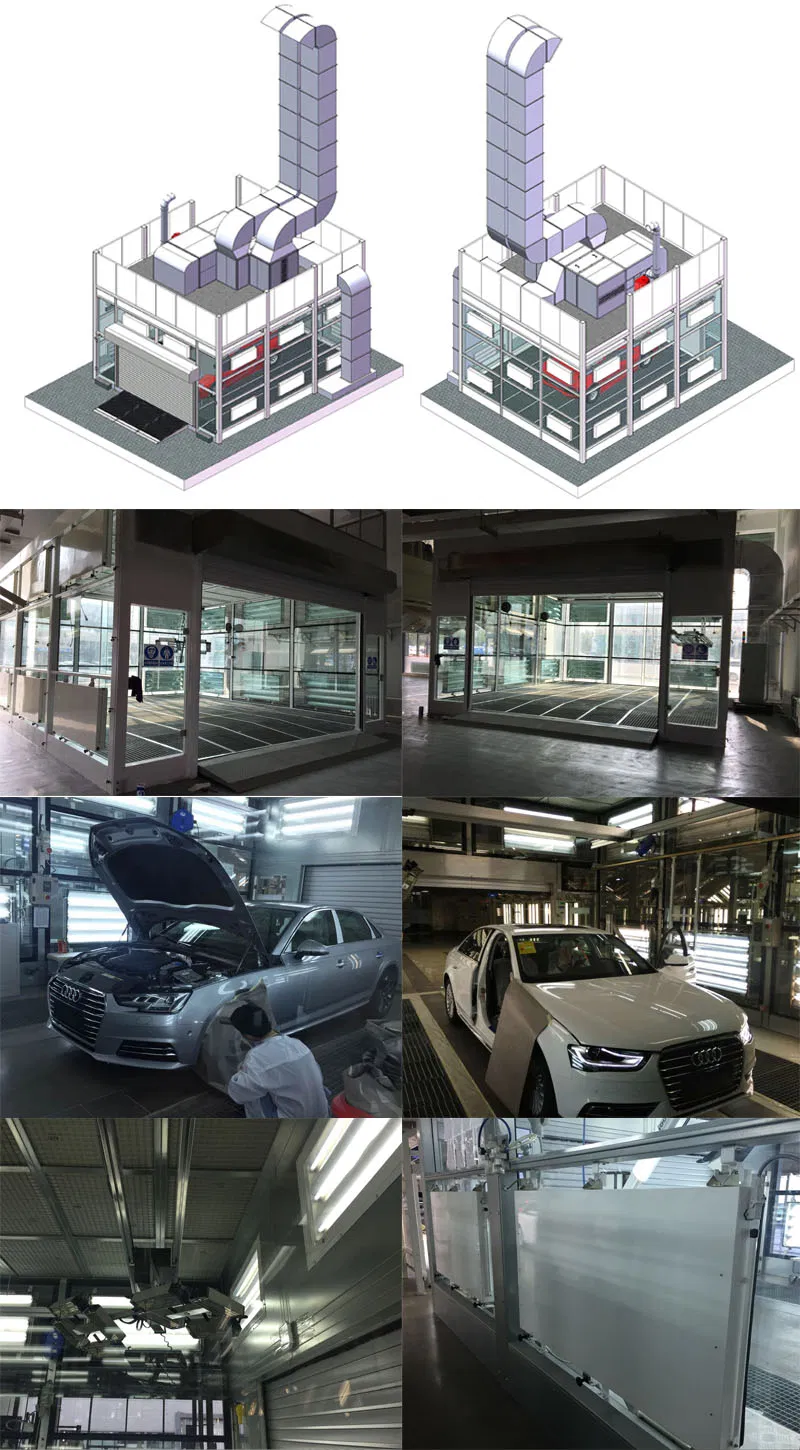

              Energy Saving Automotive Car Spray Booth Paint Booth




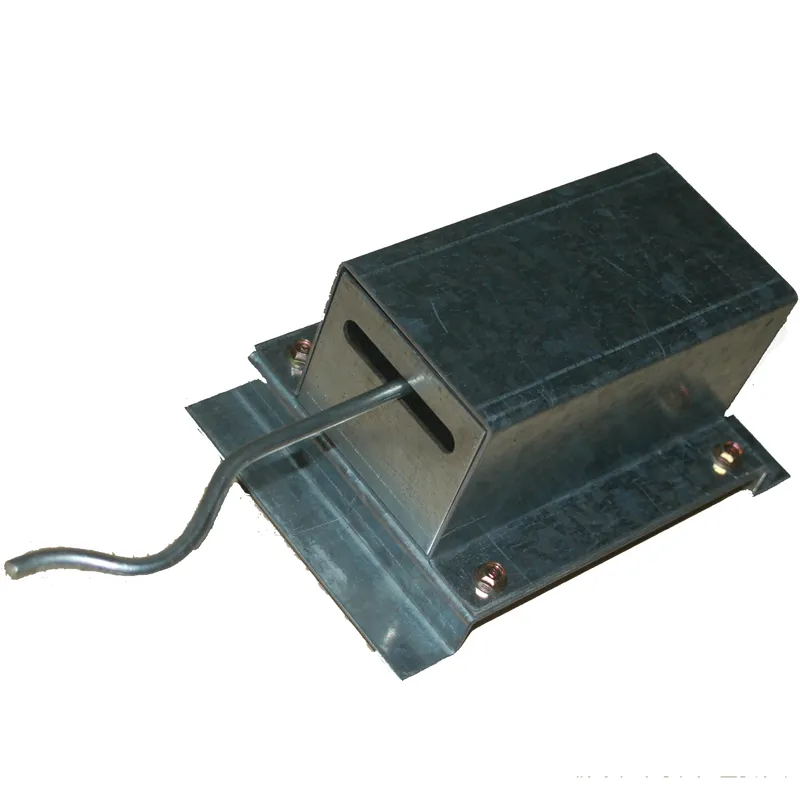

              Energy-saving device

              When the spray gun is hung on the hook,a pneumatic cylinder throttles down the adjustment damper to reduce the amount of air exhausted. Consequently the air flow rate is significantly reduced. This saves electric and thermal energy.

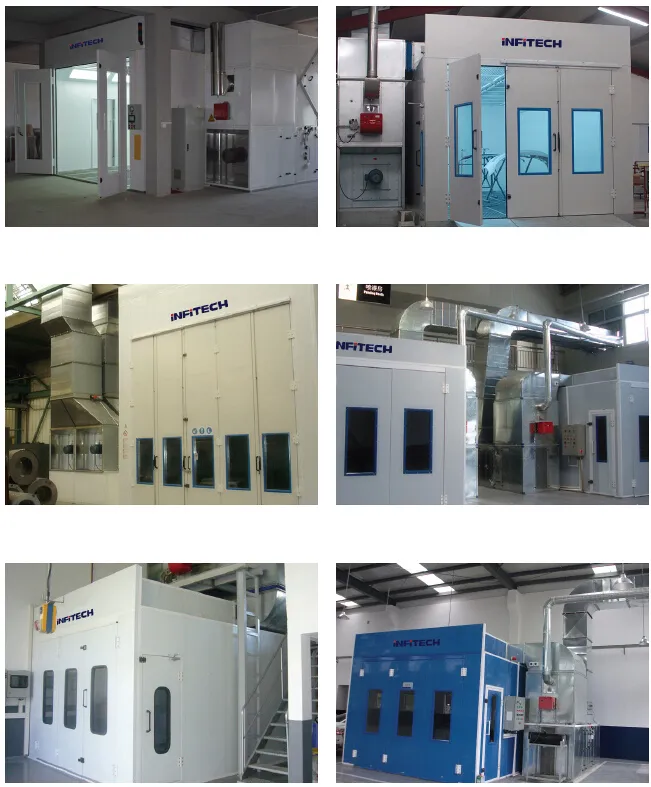

              Energy Saving Automotive Car Spray Booth Paint Booth

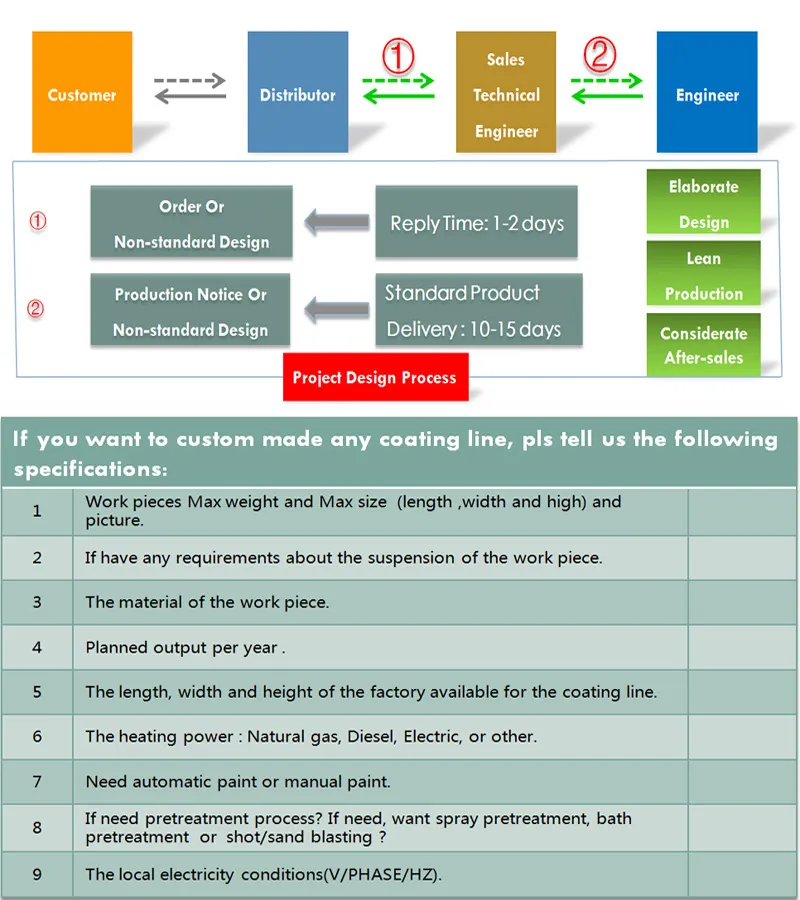

              Project Design Process
