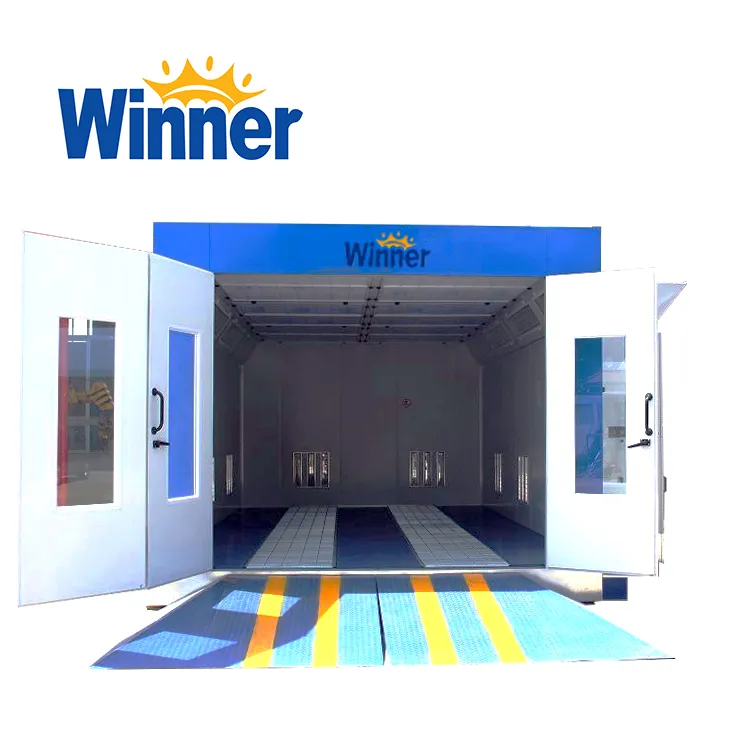

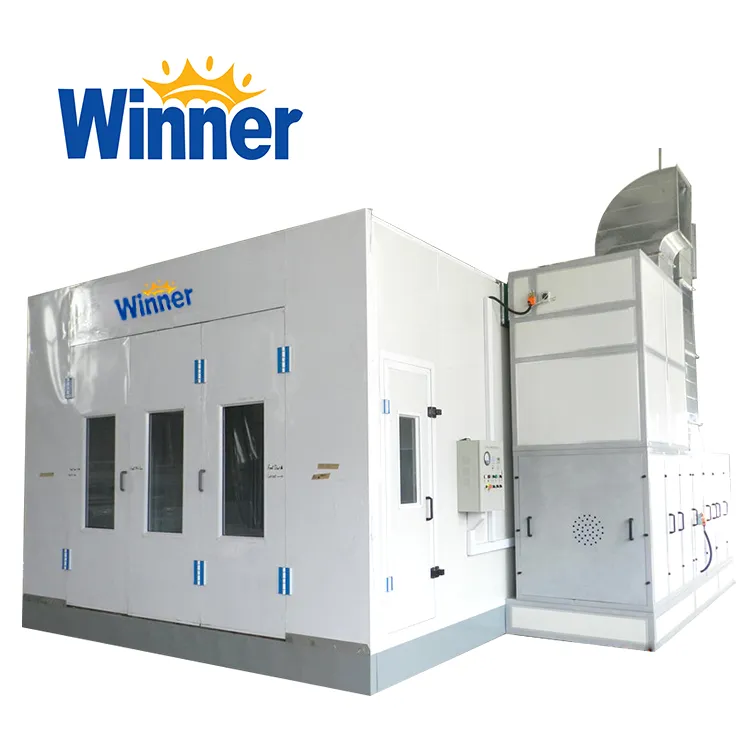

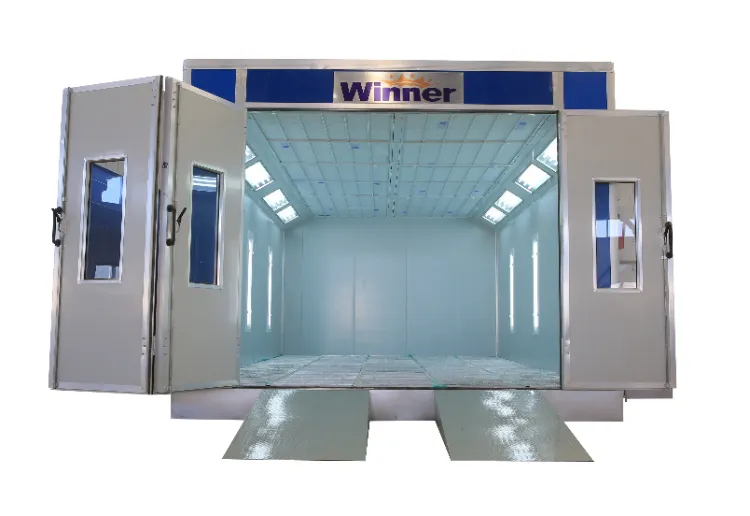

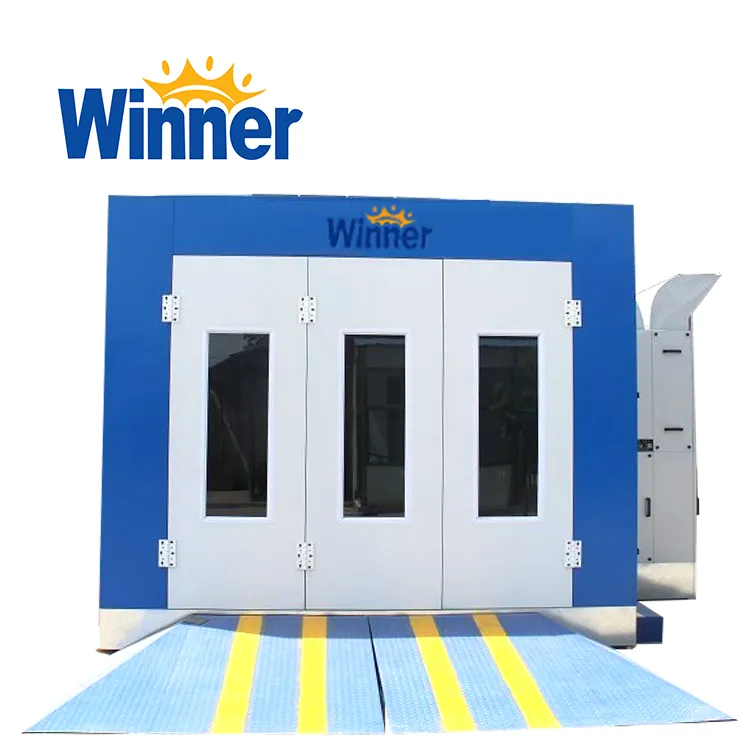

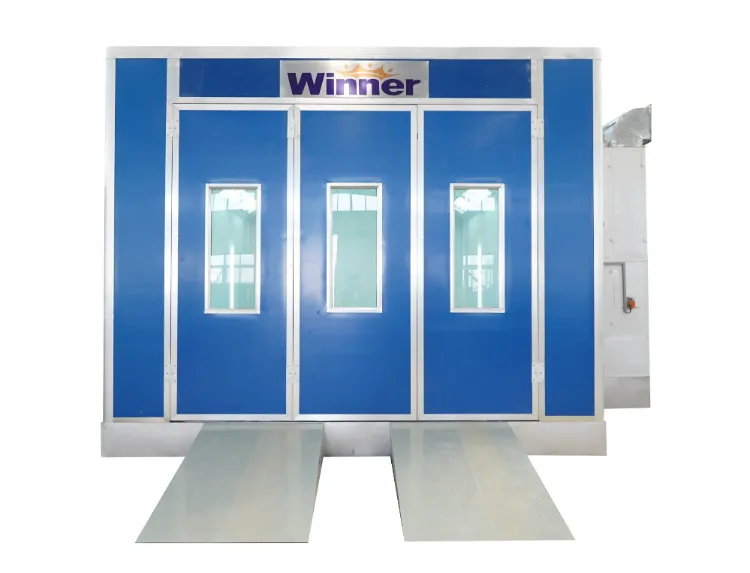

Winner M-3200A Professional Factory Auto Workshop Equipment Car Spray Paint Booth
Product DescriptionWinner M-3200A Spray Paint Booth with full downdraft design, which is used for painting and drying vehicles in auto repair workshops.Outside Size(mm)9050*4050*3500 (L*W*H)Front Door(mm)3000*2700(W*H)Inside Size(mm)8900*3900*2800 (L*W*H)Total Power(KW)20 KW for diesel burner / 40 K......
Send Inquiry
Product Description
Product Description

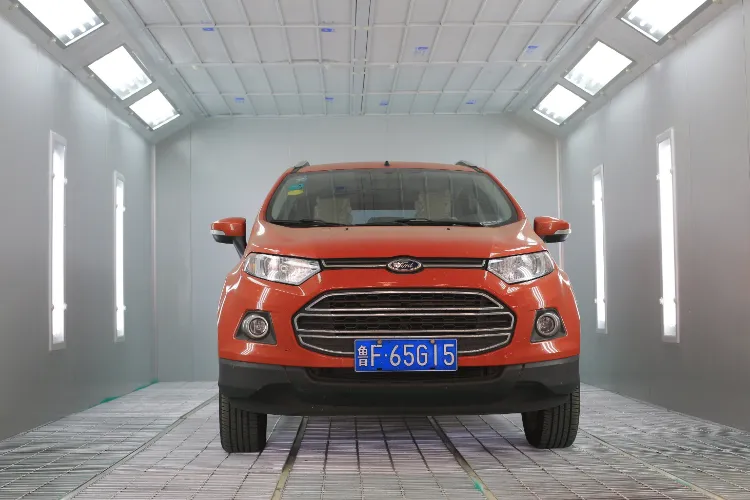

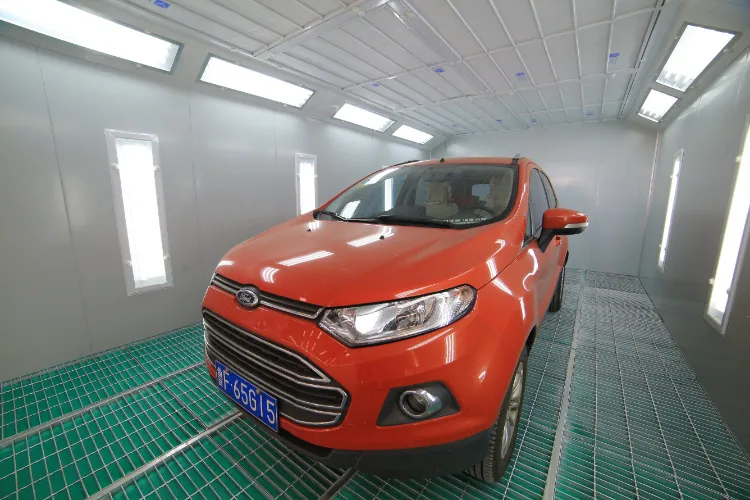

Winner M-3200A Spray Paint Booth with full downdraft design, which is used for painting and drying vehicles in auto repair workshops.

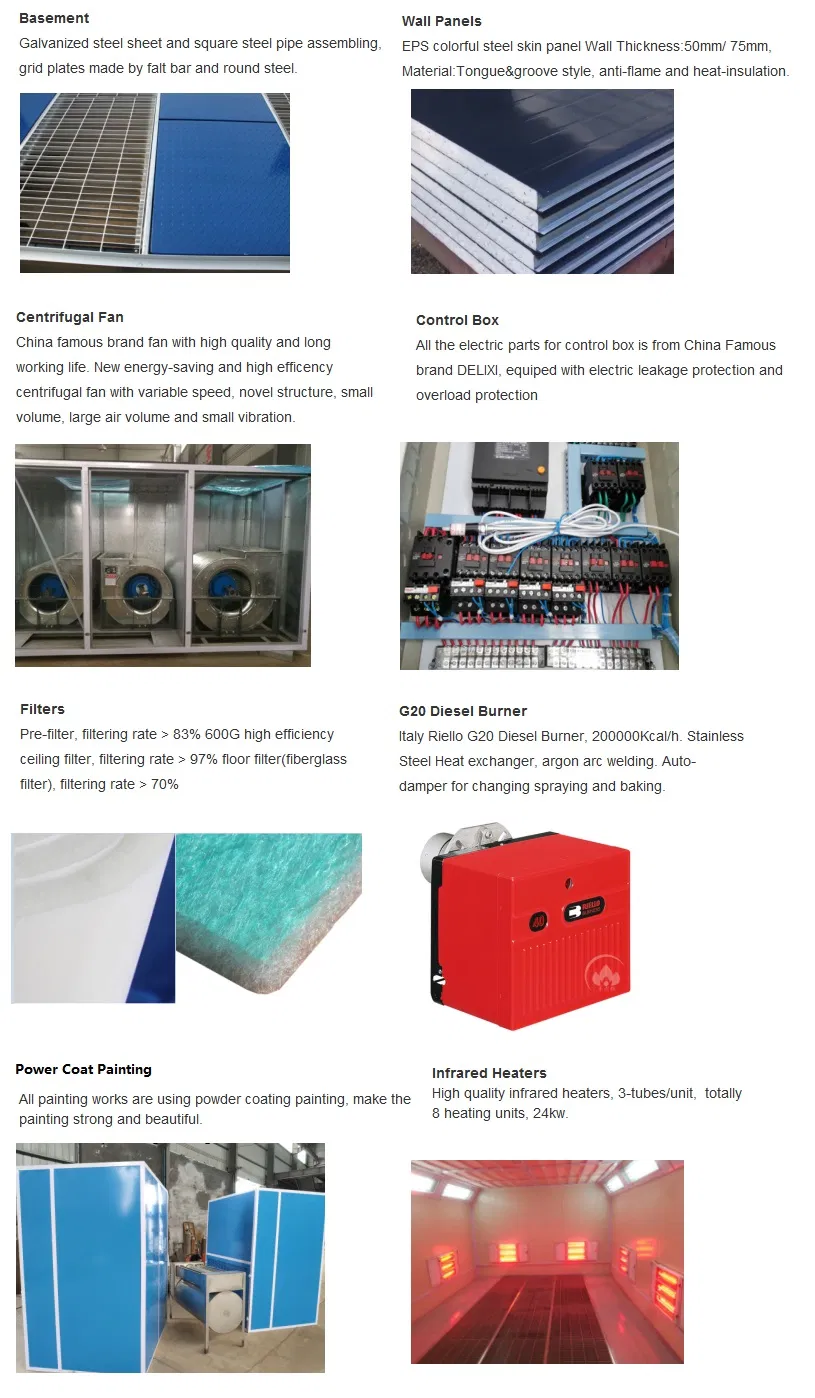

Product Features and Advantages

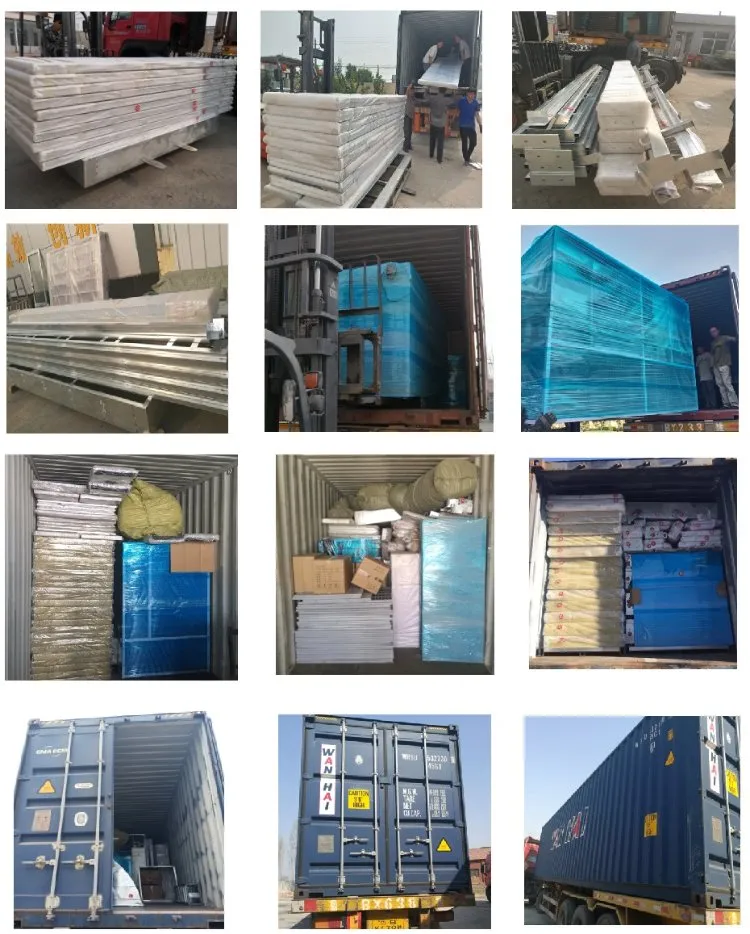

Packing&Shipping
Safe and careful package and shipment for the spray booth

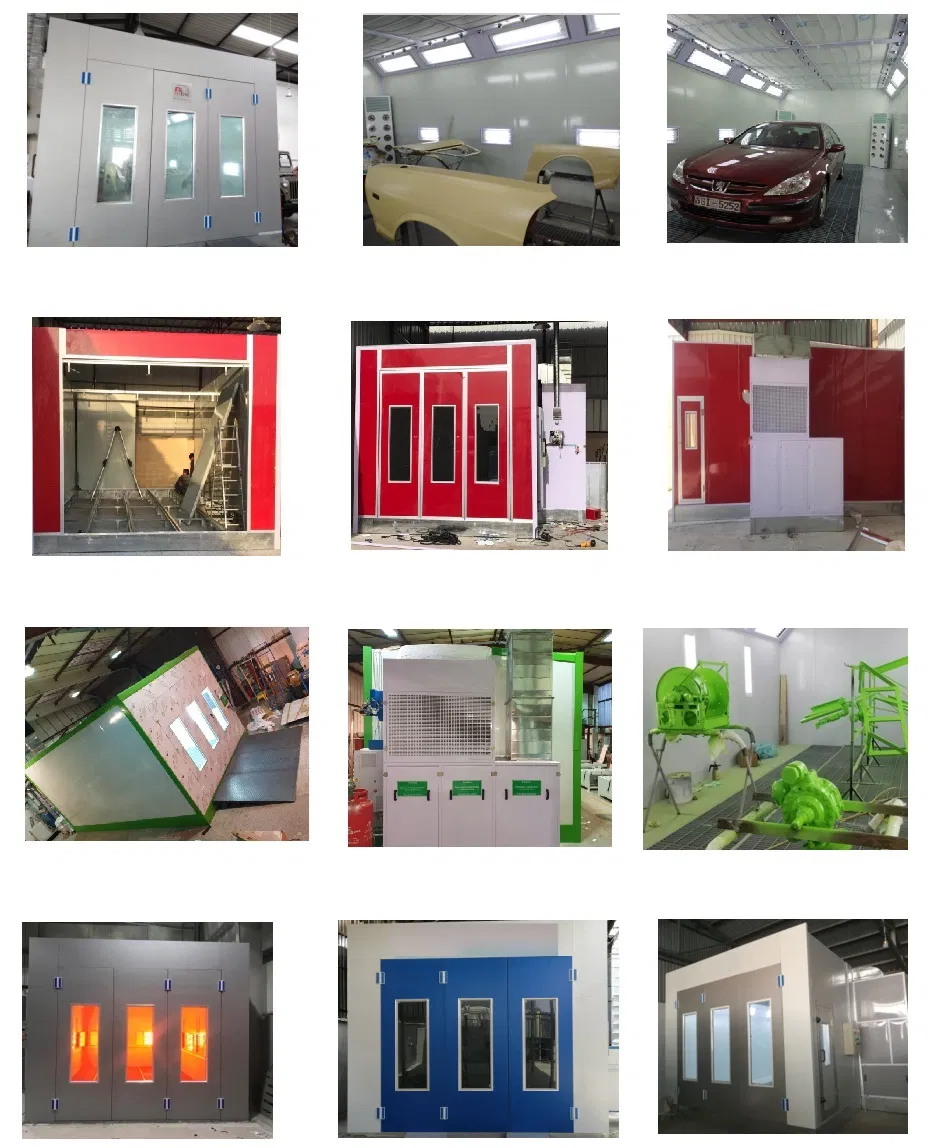

Winner Spray Booth Installation Cases

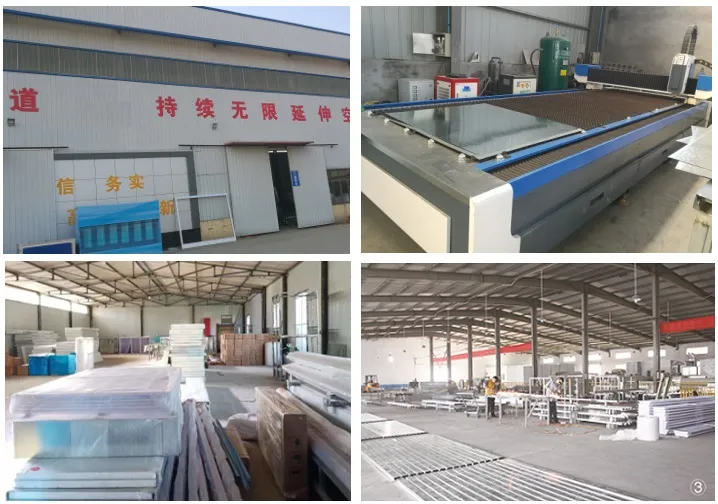

Company Introduction
Yantai Winner Electronic&Mechanical Technology, Co., Ltd, focus on providing complete equipment solution for car maintenance and repairing workshop. Now our main products are car spray booth, car body collision bench, truck/cab repair bench, car lift, spray/paint booth, wheel alignment, welding machine, hose reels, etc. Our products are used in many 4S workshop all over the world such as Toyota, BMW, Ford and Suzuki, etc.
With over 10 years' rich experience, we manufacture, we select, we collect. We always are ready to listen, to make solution according to our client's special requirements and supply equipment with good quality but reasonable prices.
With rich experience R&D department, we are professional in customized spray booth, all the specificaions and size of the booth can be designed as client's request.
Winner M-3200A Spray Paint Booth with full downdraft design, which is used for painting and drying vehicles in auto repair workshops.
| Outside Size(mm) | 9050*4050*3500 (L*W*H) | Front Door(mm) | 3000*2700(W*H) |
| Inside Size(mm) | 8900*3900*2800 (L*W*H) | Total Power(KW) | 20 KW for diesel burner / 40 KW for infrared heating |
| Wall Panel | EPS colorful steel skin panel, 75mm thick; Steel plate thickness 0.5mm; Tongue & groove style, anti-flame and heat-insulation. | ||
| Basement | Galvanized steel sheet and square steel pipe assembling. 5 rows of grid plates made by flat bar and round steel. With full ramps. | ||
| Intake Fans | Two sets of 5.5KW fan for intaking air, air capacity 30000m3/h | ||
| Exhaust Fans | One set of 7.5KW fan for exhausting air, air capacity 20000m3/h | ||
| Purification system | Pre-filter, 600G high efficiency ceiling filter, Fiberglass floor filter | ||
| Heating System (Diesel burner or Infrared heating) | Italy Riello RG5S Diesel Burner, 260000Kcal/h. Stainless steel heat exchanger, argon arc welding. Electric-damper for changing spraying and baking | ||
| Infrared heating system, 3-tubes/unit, totally 8 heating units, 24KW | |||
| Lighting System | For diesel burner heating system. Ceiling Lights: 8Units×4Pcs=32Pcs×18W. Side Lights: 6Units×4Pcs=24Pcs×14W | ||
| For infrared heating system. Ceiling Lights: 8Units×4Pcs=32Pcs×18W | |||
| Controlling system | Power switch, Spray/baking switch, Light switch, Temperature Setup, Emergency stop, etc. | ||
Product Features and Advantages
Packing&Shipping
Safe and careful package and shipment for the spray booth
Winner Spray Booth Installation Cases
Company Introduction
Yantai Winner Electronic&Mechanical Technology, Co., Ltd, focus on providing complete equipment solution for car maintenance and repairing workshop. Now our main products are car spray booth, car body collision bench, truck/cab repair bench, car lift, spray/paint booth, wheel alignment, welding machine, hose reels, etc. Our products are used in many 4S workshop all over the world such as Toyota, BMW, Ford and Suzuki, etc.
With over 10 years' rich experience, we manufacture, we select, we collect. We always are ready to listen, to make solution according to our client's special requirements and supply equipment with good quality but reasonable prices.
With rich experience R&D department, we are professional in customized spray booth, all the specificaions and size of the booth can be designed as client's request.
