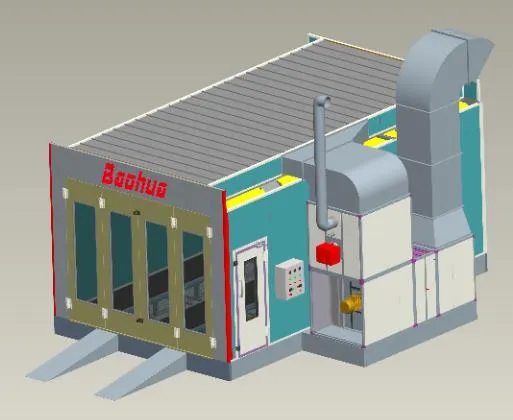

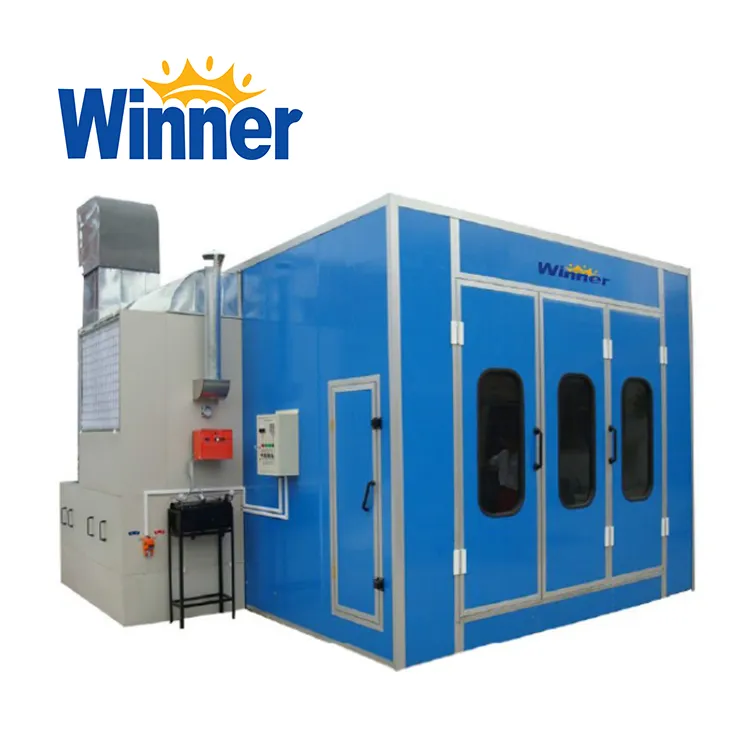

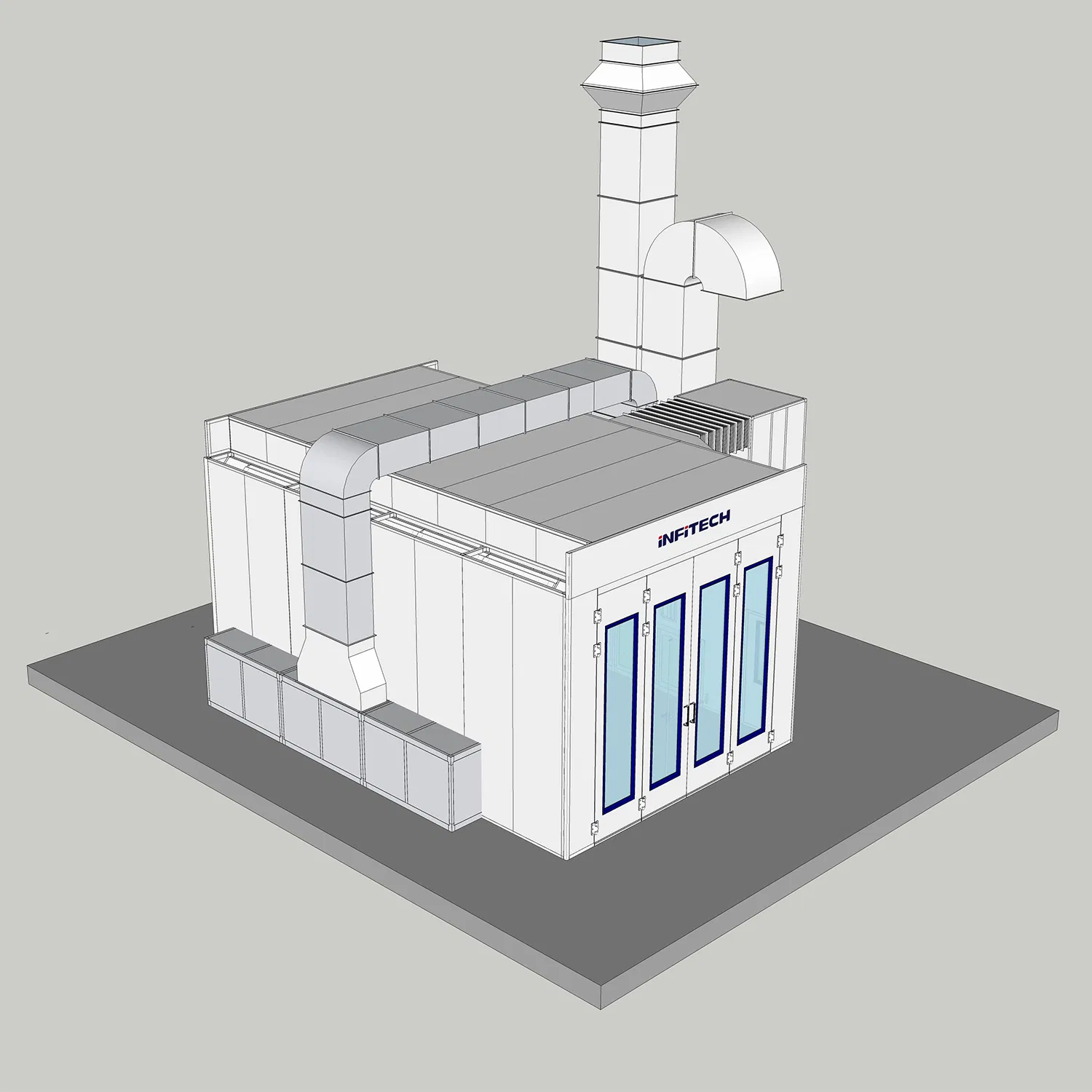

CE Approved Diesel Heating System Car Spray Paint Booth

Product Description

TOTAL POWER:49.5KW

Booth Dimensions
-Internal Size(L×B×H):6900 x4000 x 2800 mm
-External Size(L×B×H):7000 x 5560 x 3610 mm

Foundation and Floor
Loading Capacity of Galvanized Grating :700Kg/each wheel
- Surface Area of Rear Exhaust Box :27.6M² road grille

-Metal Basement:350mm galvanize high metal basement
-Drive-in Ramps:Two embossed steel ramp, 2000X1030mm

Wall and Door
-Steel Wall :EPS (Epispastics Polystyrene) colorful steel skin board,
wall panel: 50mm (min) thick, 0.42mm (min) steel, tongue & groove style
compound construction,Anti-flame and heat-insulation

-Roof Panal :galvanized steel roof panel .
- 4Folded Entrance Door With Safety Glass Window :3 Unit 3200x2700 mm(B x H)
- Operator's Door With Safety Glass Window :1unit 800x2000mm(B x H)
Movable curing lamp:(optional) Remark before order

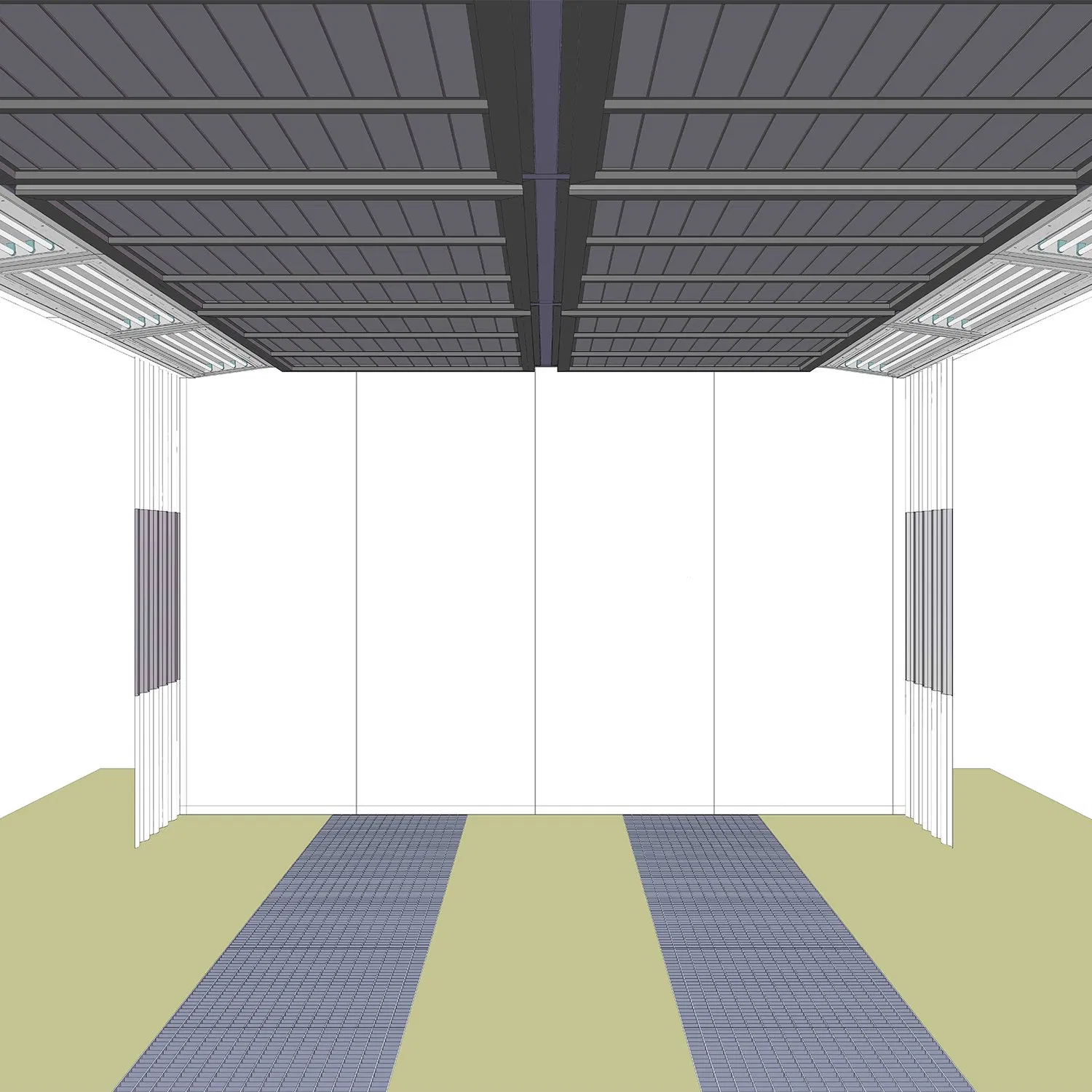

Lighting
Ceiling Lightings:8 group Omron Infrared lamp,each group 4 x 36 W , Total 1152W
Side Lightings:8 group Omron Infrared lamp,each group 2x 36 W , Total 576W
Brightness:≥1000 LUX

Filtration
Prefilters:G4 level filter,can capture granules larger than 5um,filter
efficiency reach to 90>E≥70%(USA L6 Standard)
F7 belt-filter can heat-resistant to 90ºC,is EUR DIN53438-F1 & USA UL900-Class2 standard.

Ceiling Filters:EU5 high efficiency filters
Exhaust Filters:Glass fiber cotton barrier filter

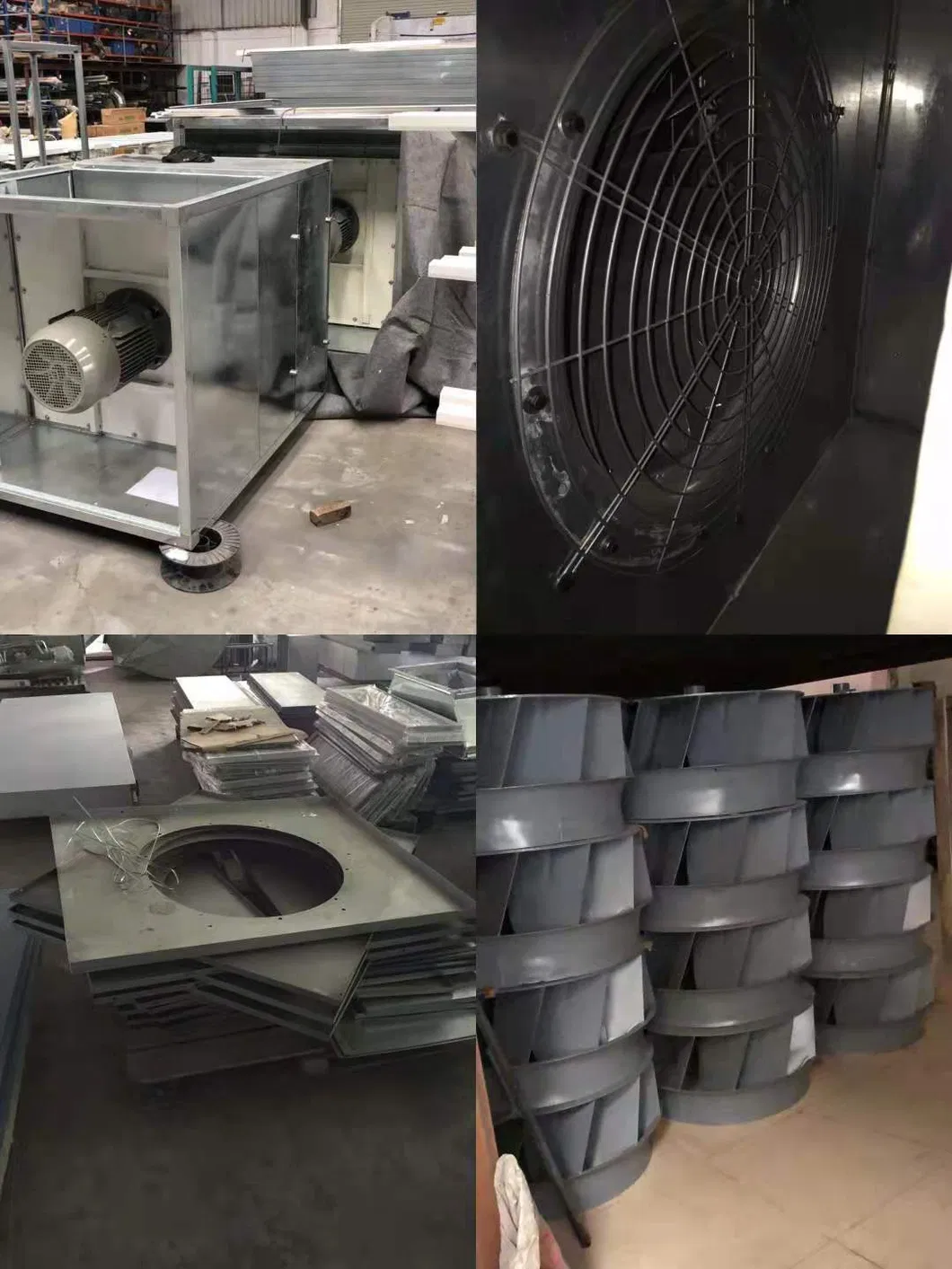

Ventilation System

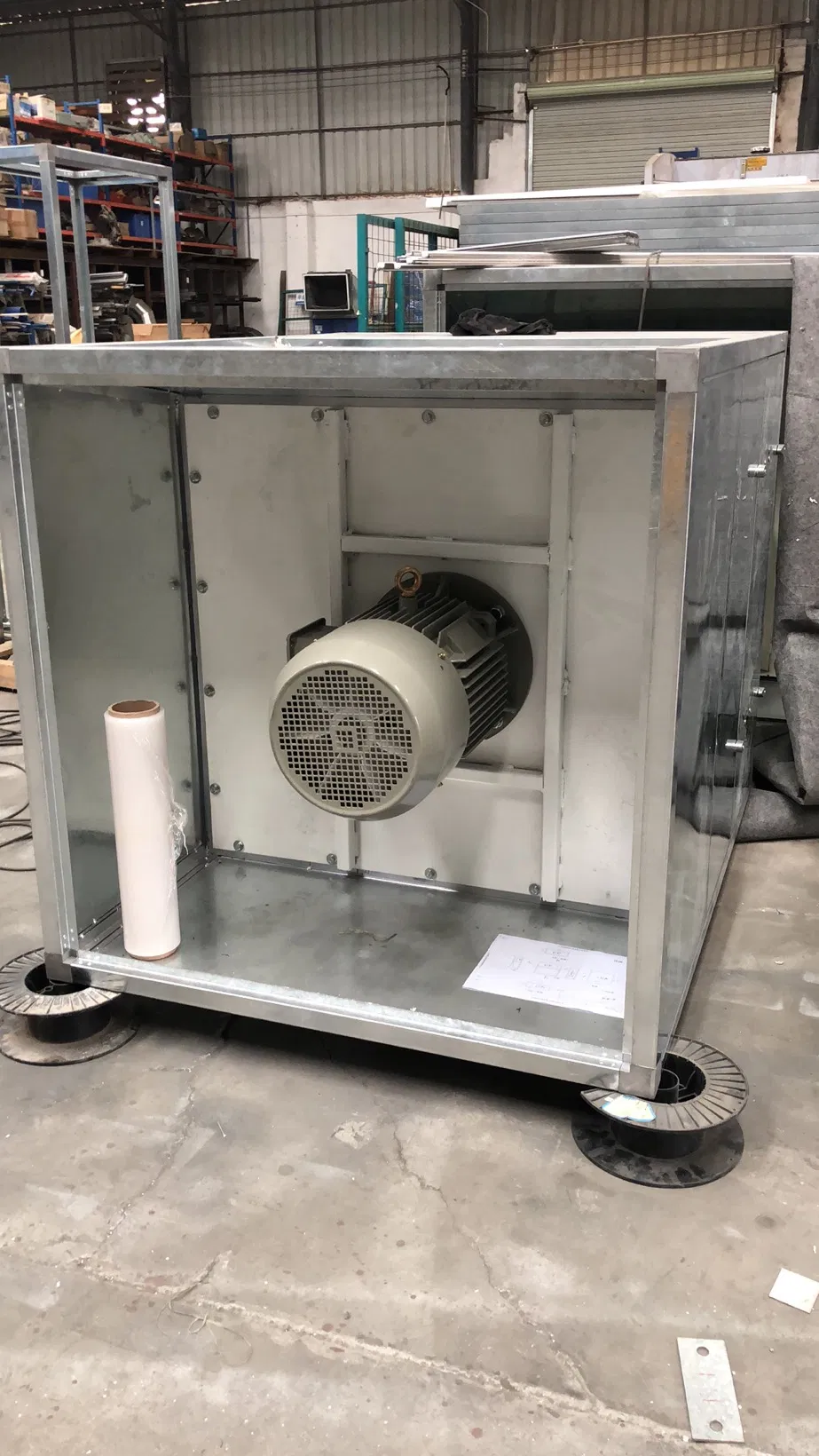

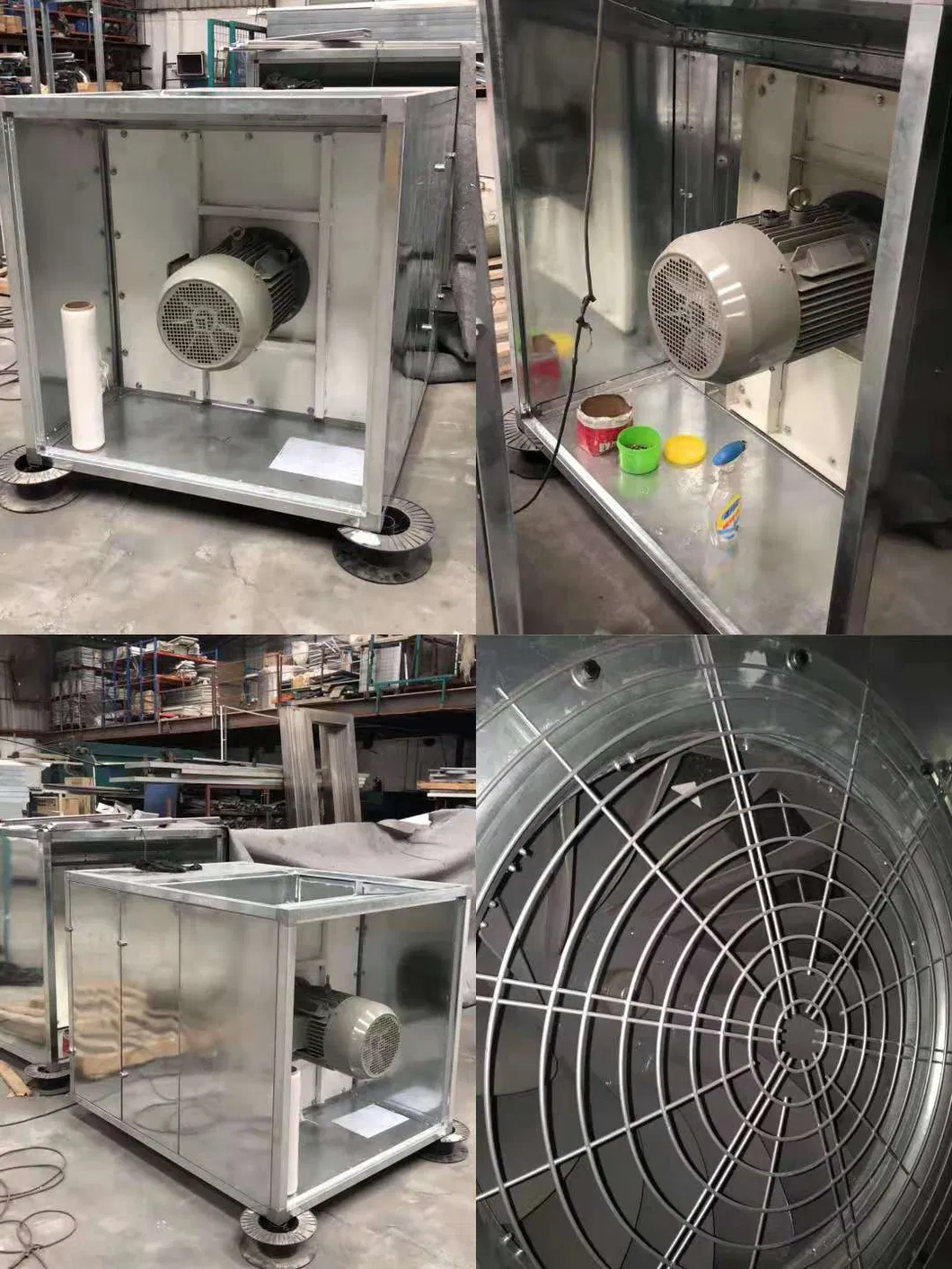

Direct Drive Motor (Fresh Air):Siemens electrical component. German Reitz fan blade .
1×7.5 kW, 970rpm, 380V, 50Hz CE Certification.

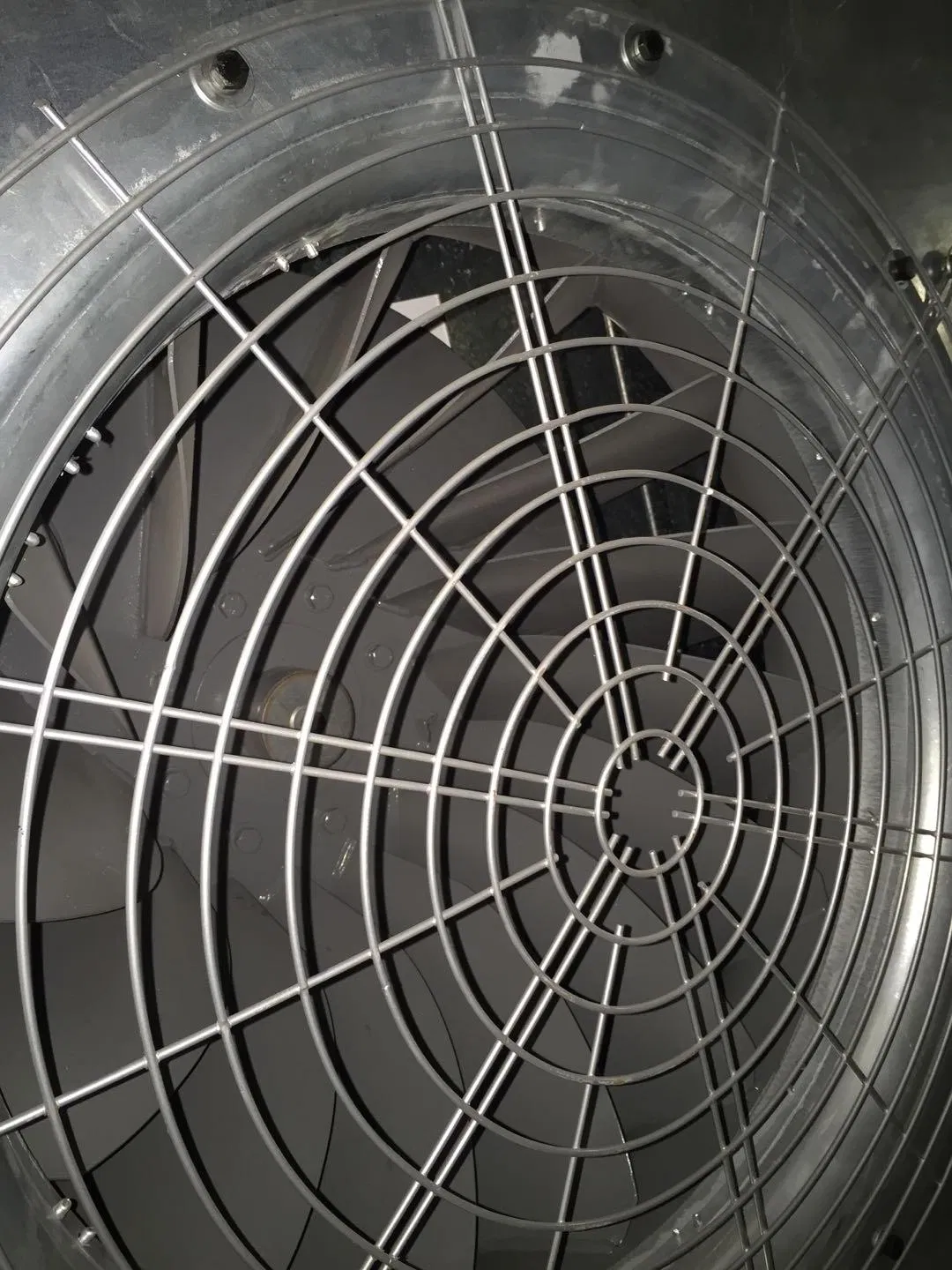

Explosion -proof fan , large blade .

Direct Drive Motor (Exhaust Air):Siemens electrical component. German Reitz fan blade .
.1×7.5 kW, 970rpm, 380V, 50Hz CE Certification. Explosion -proof fan , large blade .

Duct configuration:2m straight pipe,1pcs bend, 1pcs 45°bend
Paint & Spray sys. :solenoid valve + pressure control sys. for transfrom cylinder device fan
Fan Capacity:28,000m³/h
Air Flow Speed :No-load Air Speed:0.23m/s,On-load Air Speed 0.25-0.35m/s

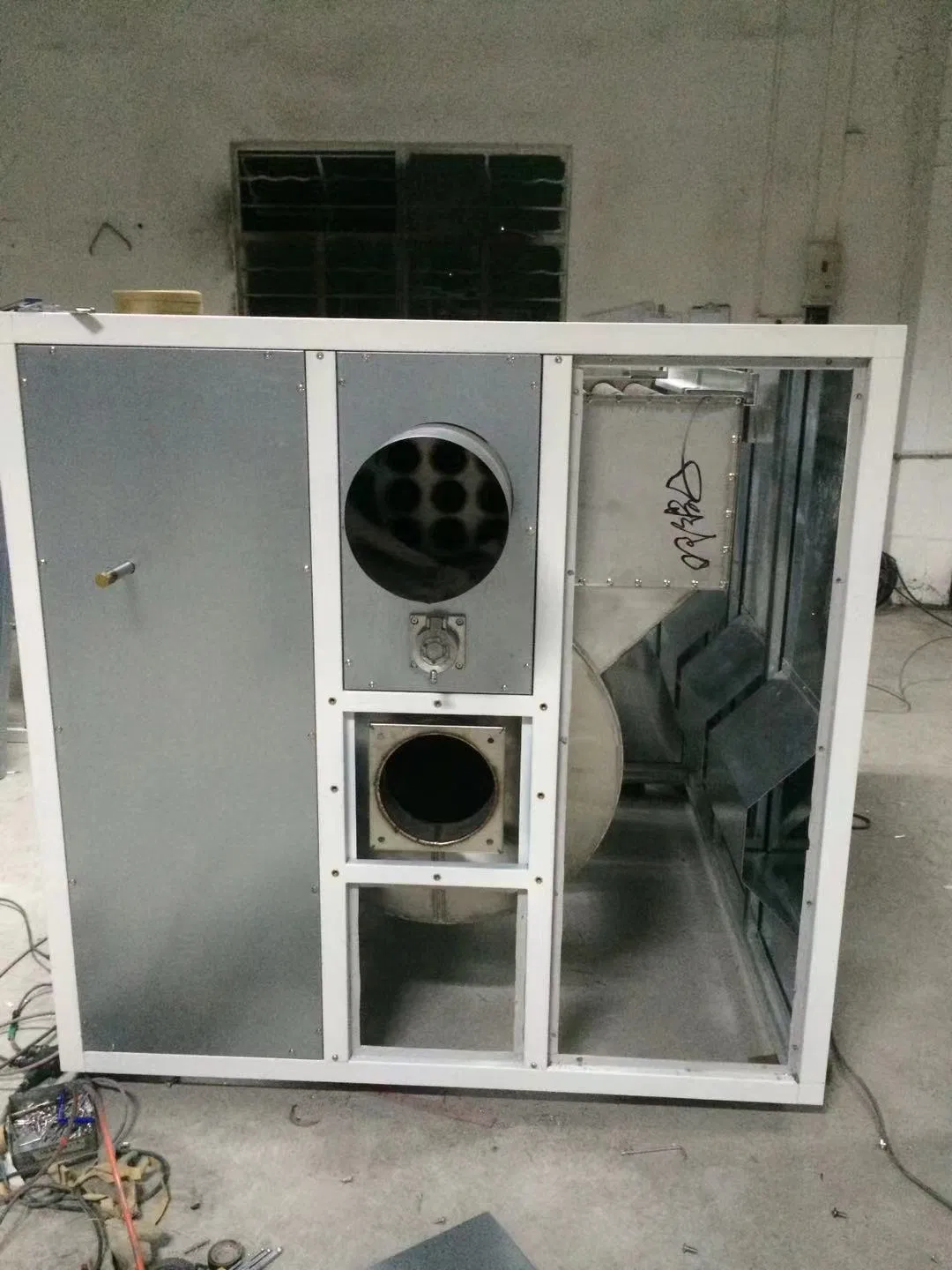

Heating System

Installation position: left side
Heating Exchanger :use high-efficiency heat-resistant stainless steel as circulating heat exchanger
Heating Exchange Capacity:200kw(2200000Kcal/H)
Max.drying temperature:80ºC
Heating time :3-6mins,(from 20-60ºC),Max Working temp.

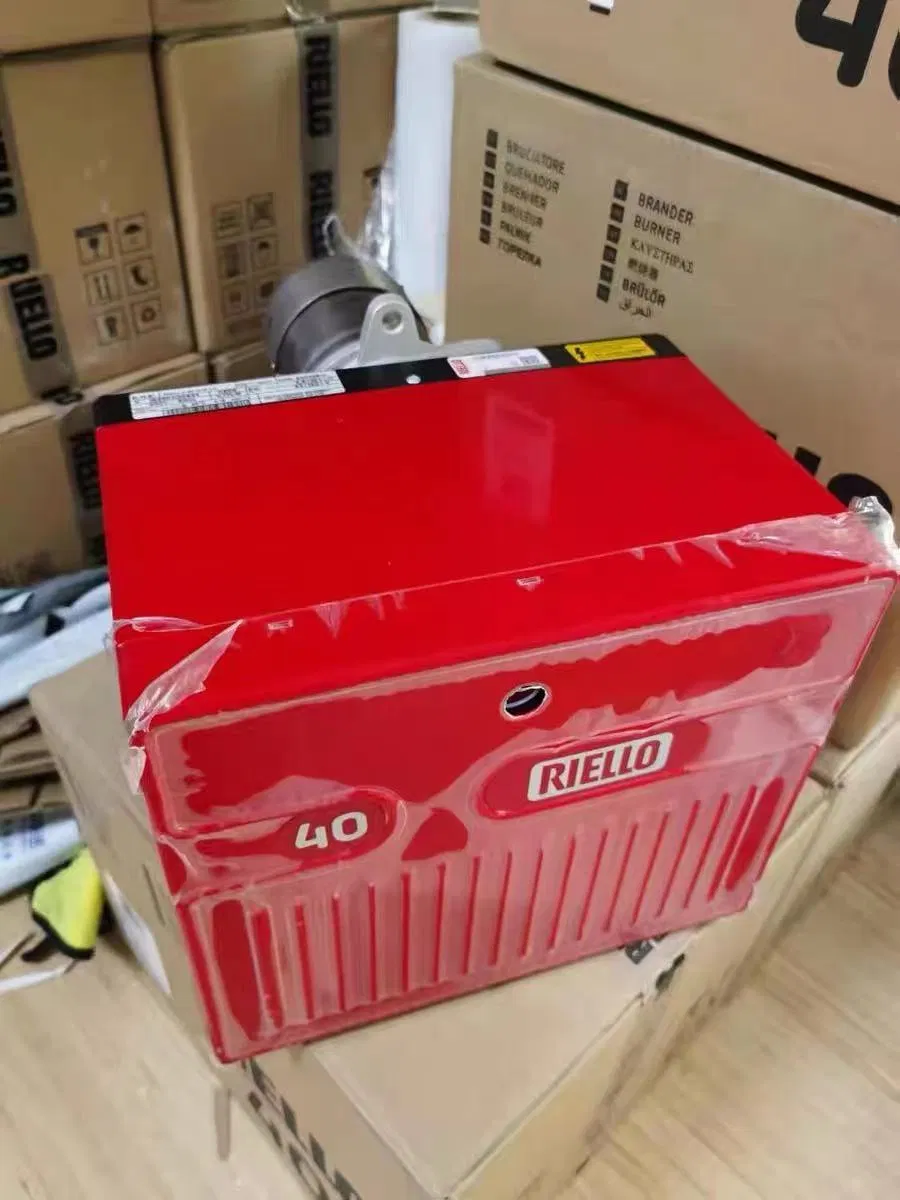

Heating tape:G20 Italy riello burner

Control Box
Control system:Equipped with light switch ,temperature, time settings, painting, spray paint,
paint up thermostat gateway .fault alarm ect.

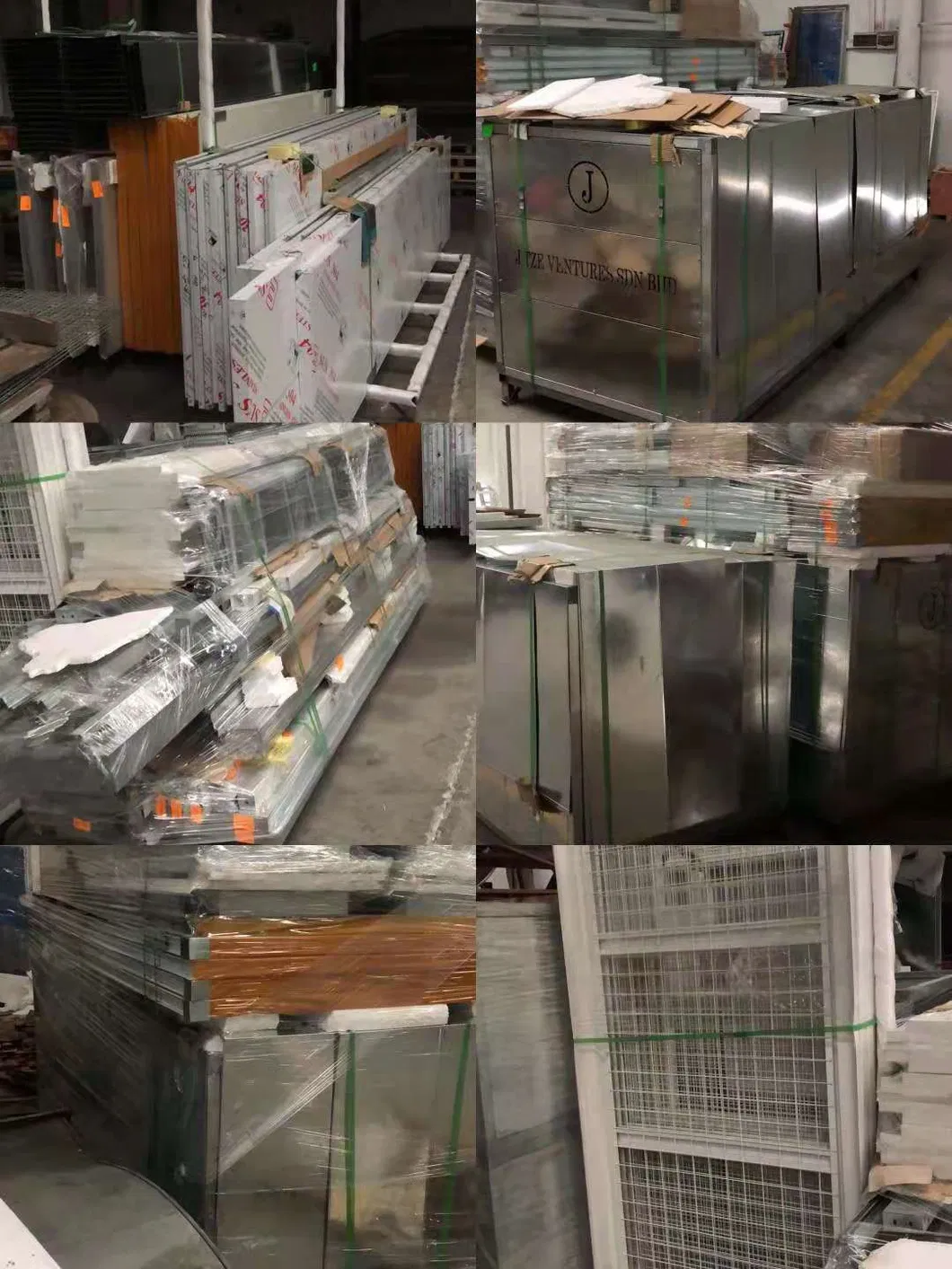

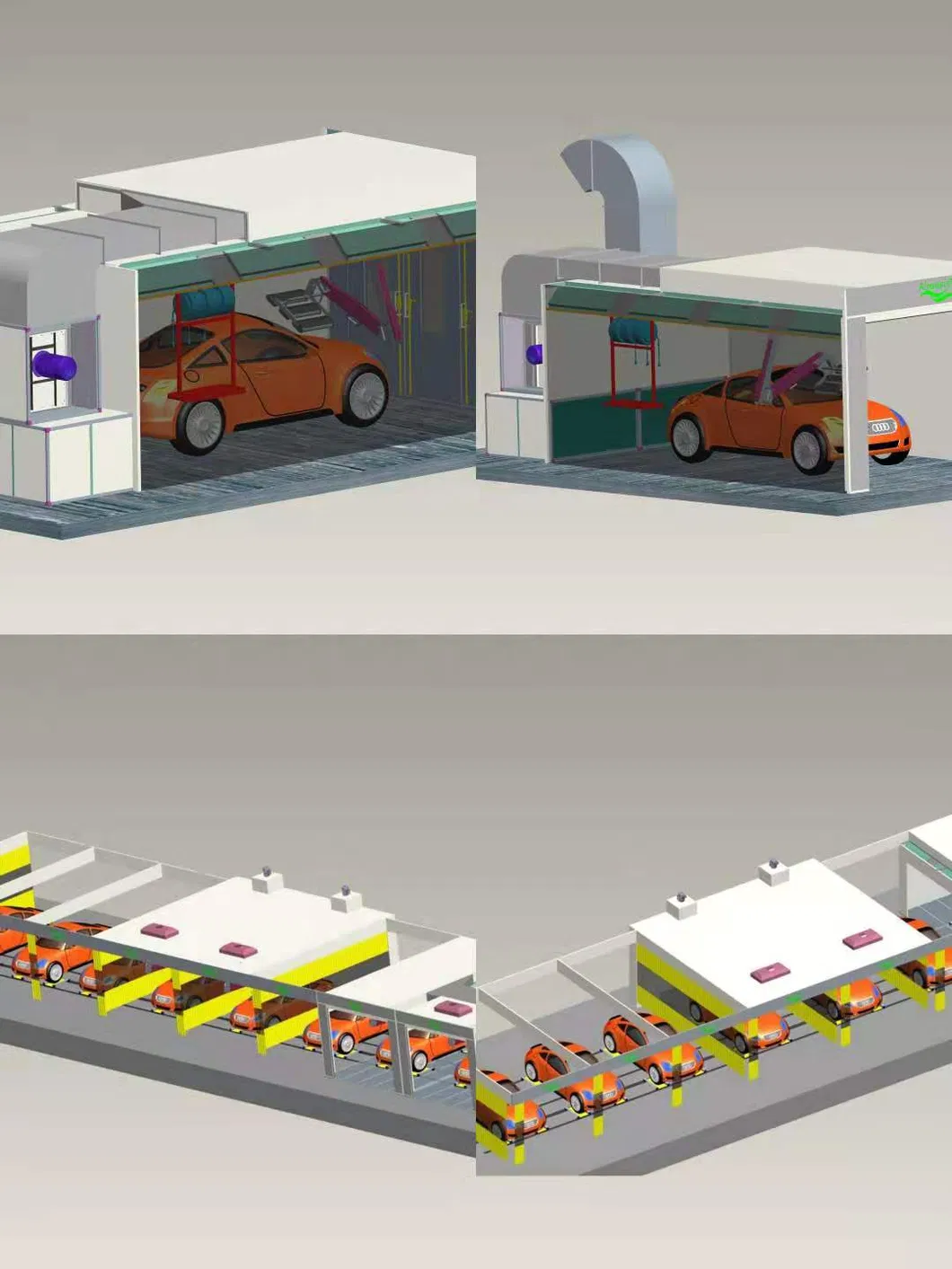

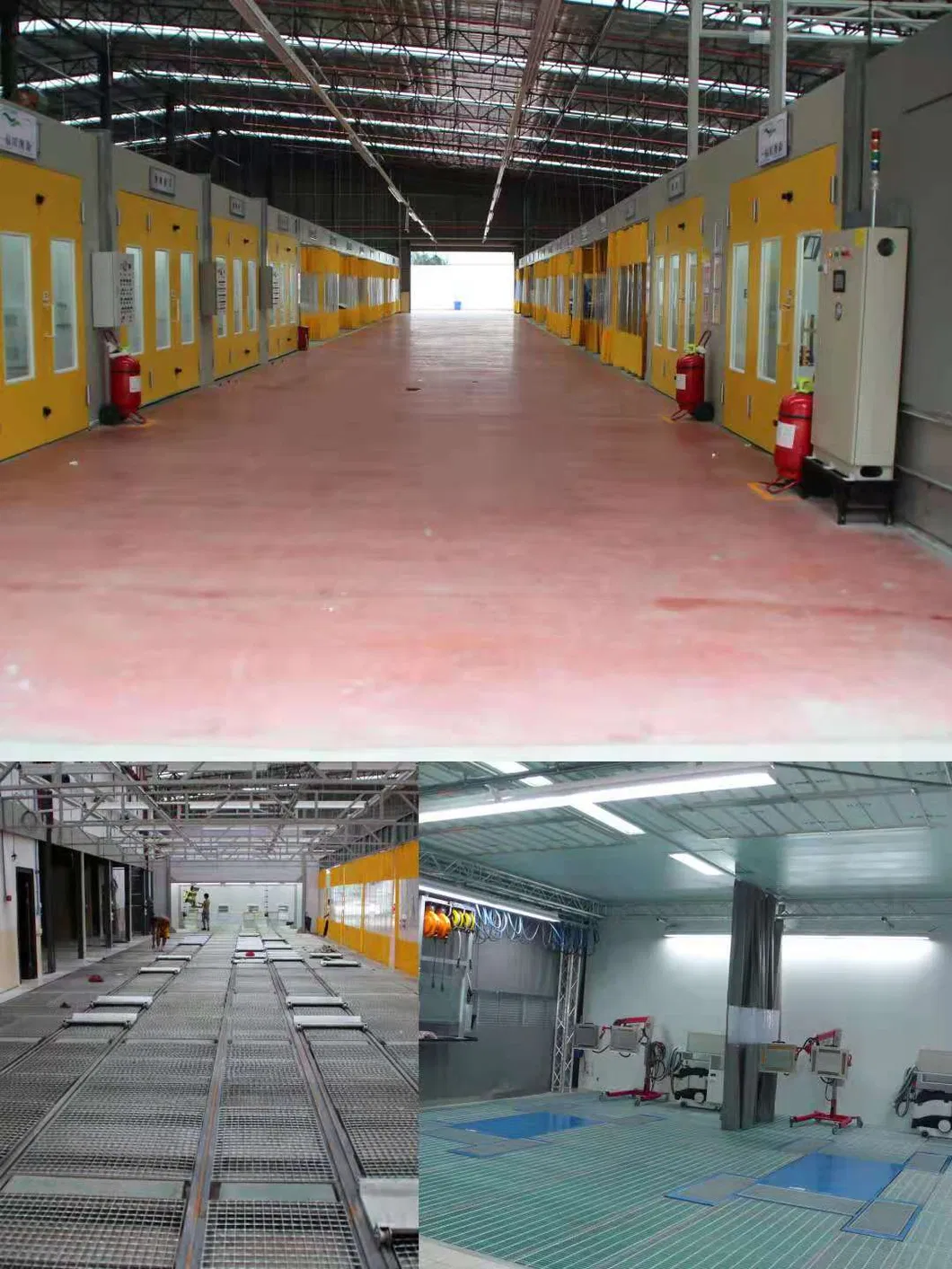

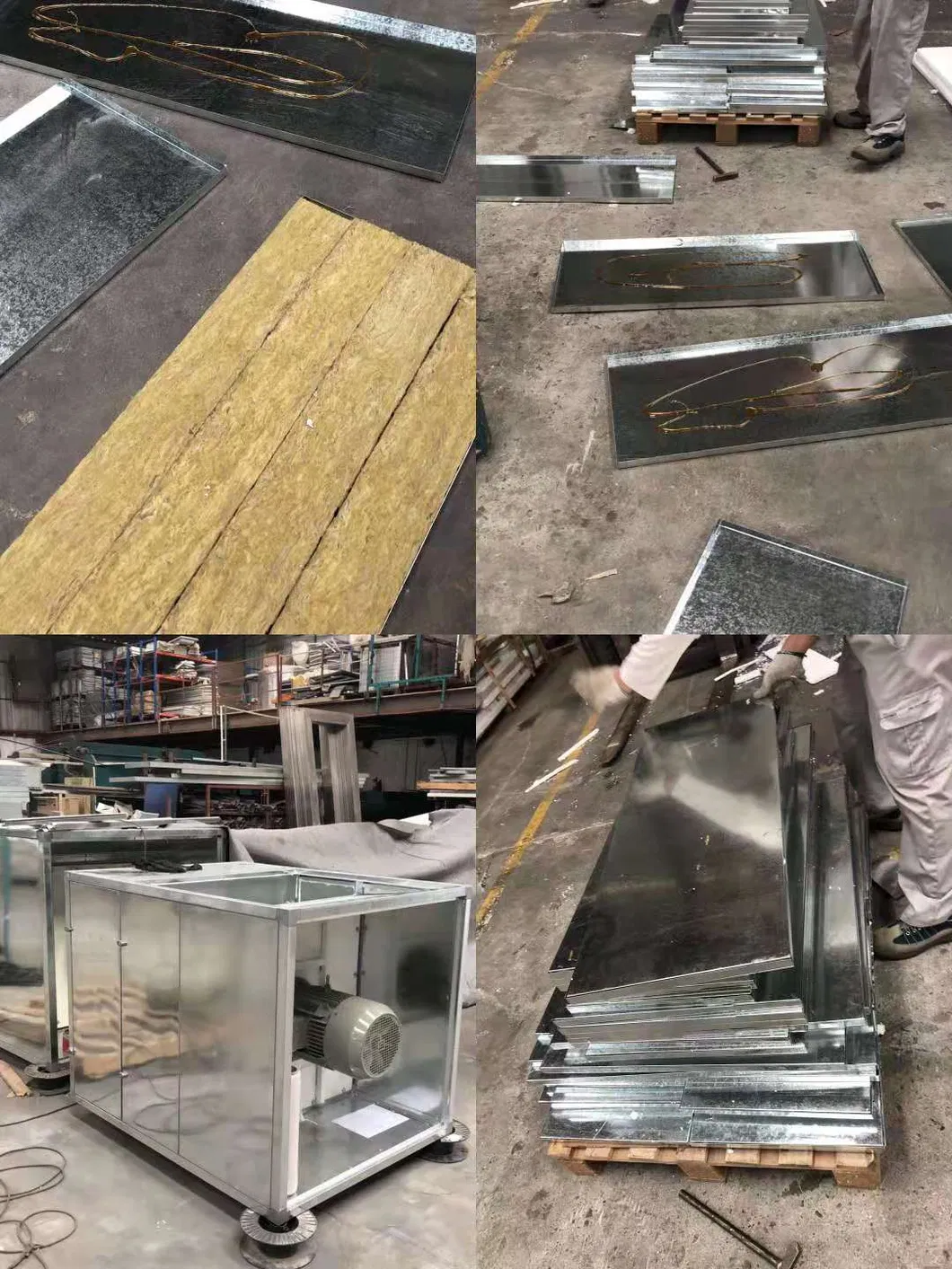

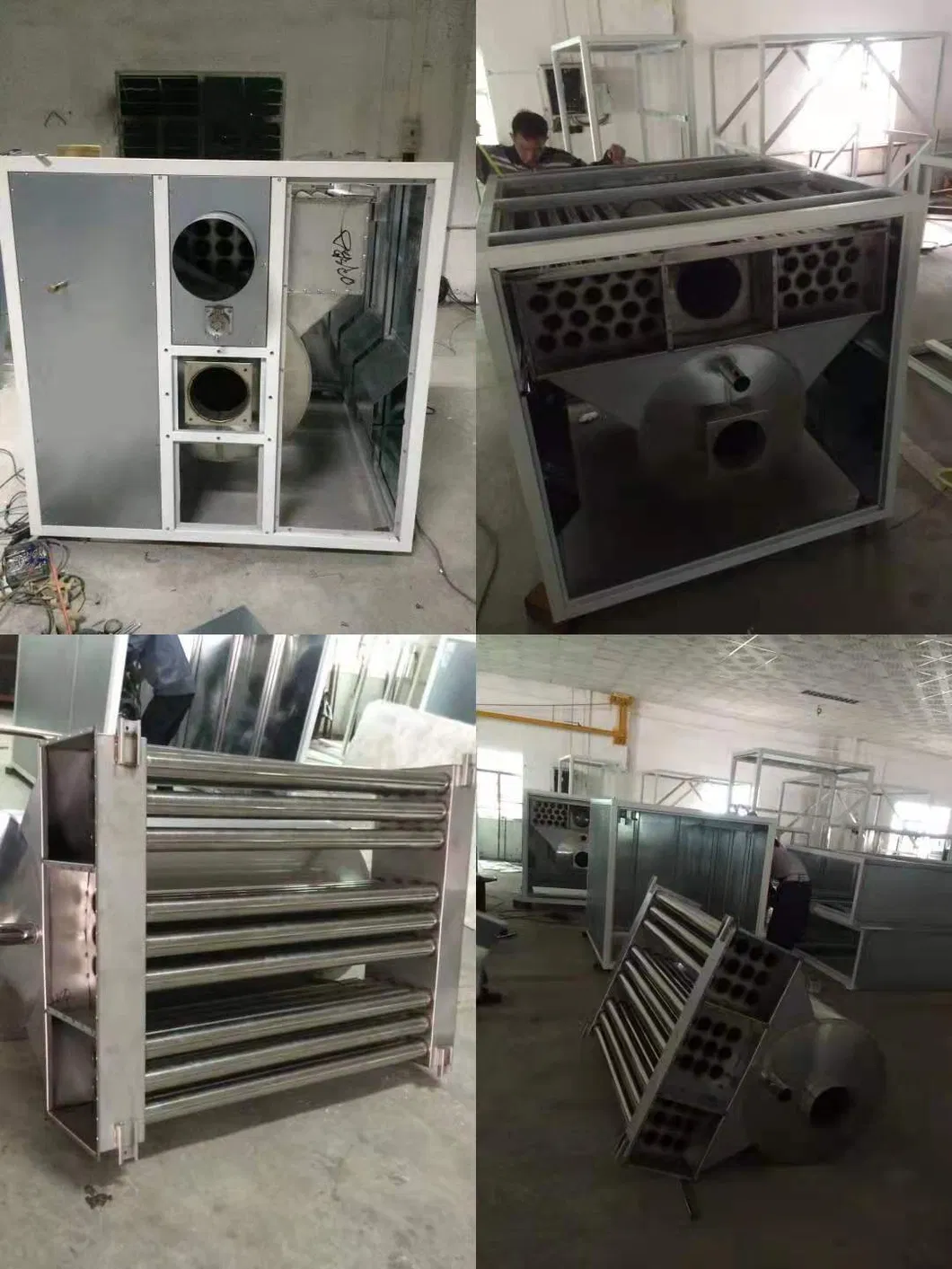

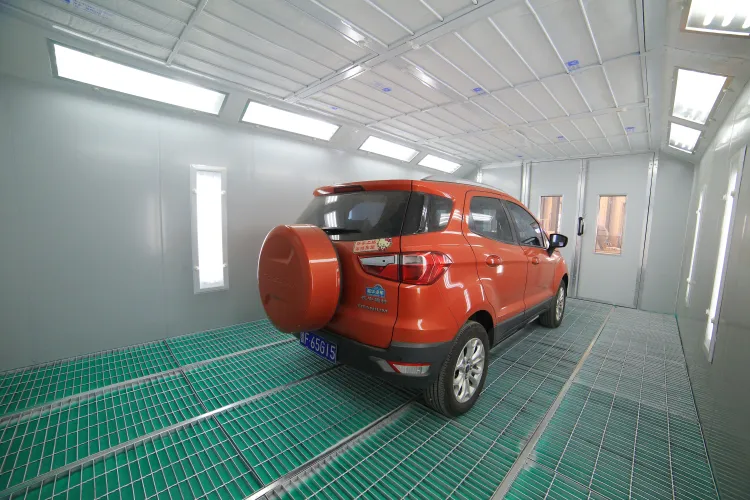

Details image
