High Qualtity Captain Spray Painting Booth
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .......
Send Inquiry
Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
This model is our luxury model for 4S repair shop,it's popular for Australia and Europe,please check the details,aslo we can design the booth according to your needs,so just tell me your requirements,we will give you the best solution.

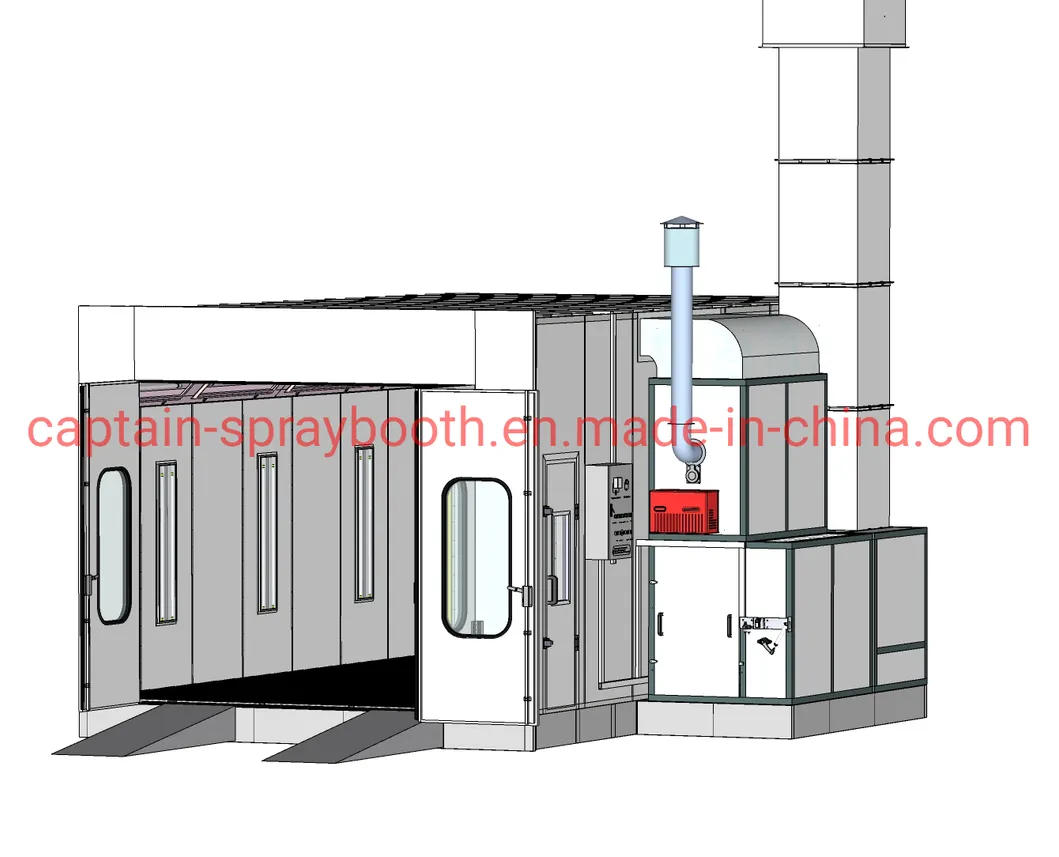

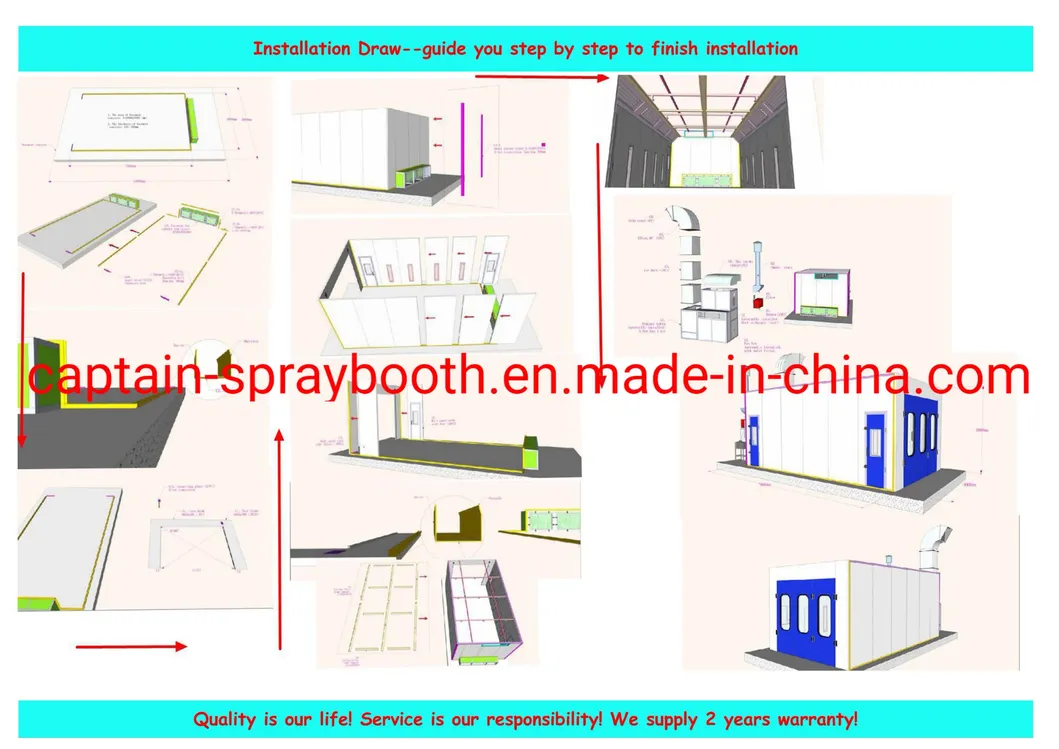

Basic Draw :

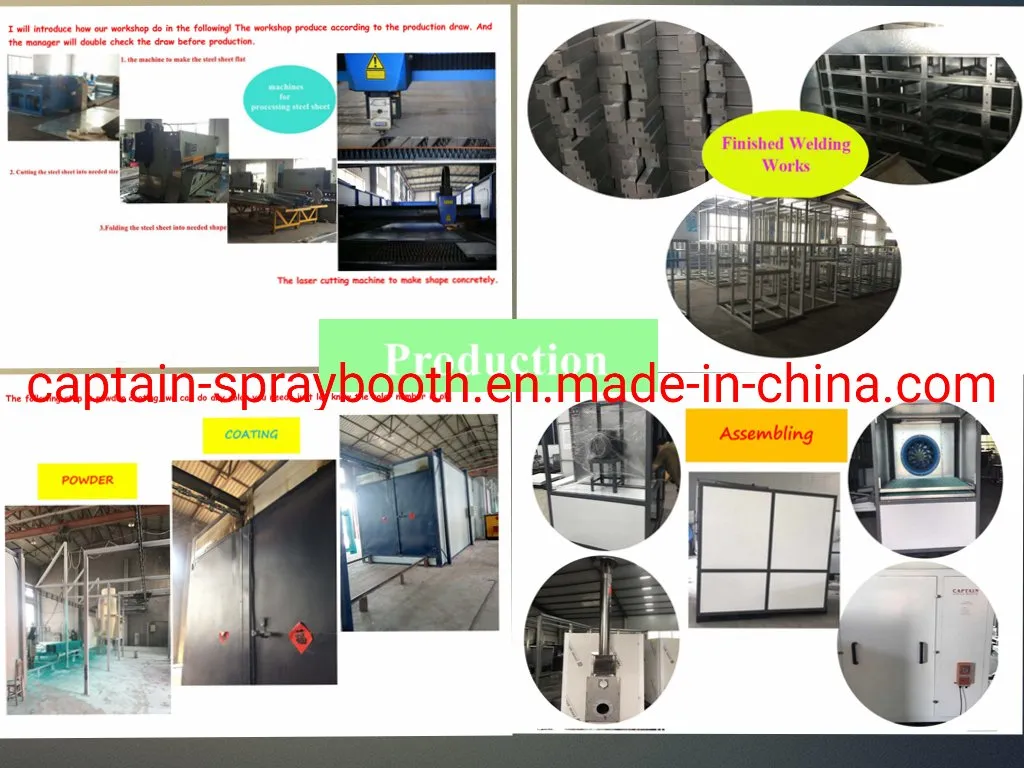

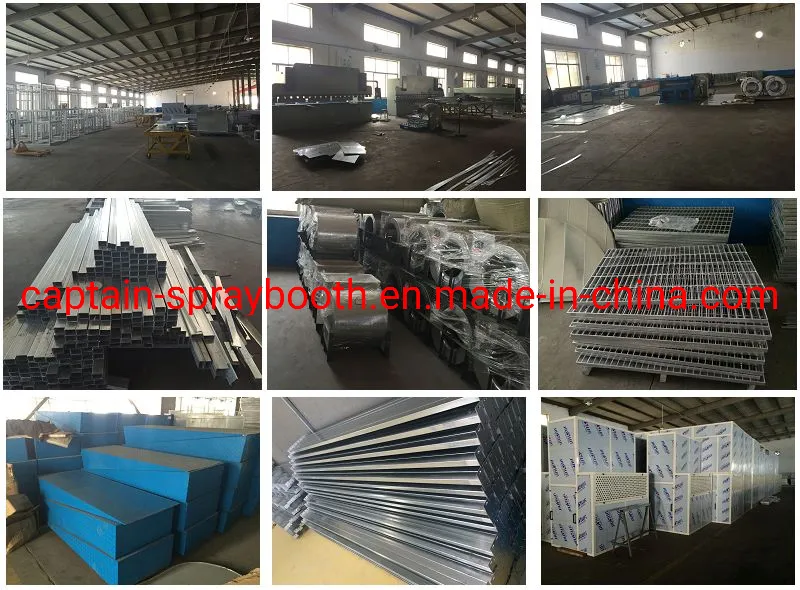

Production

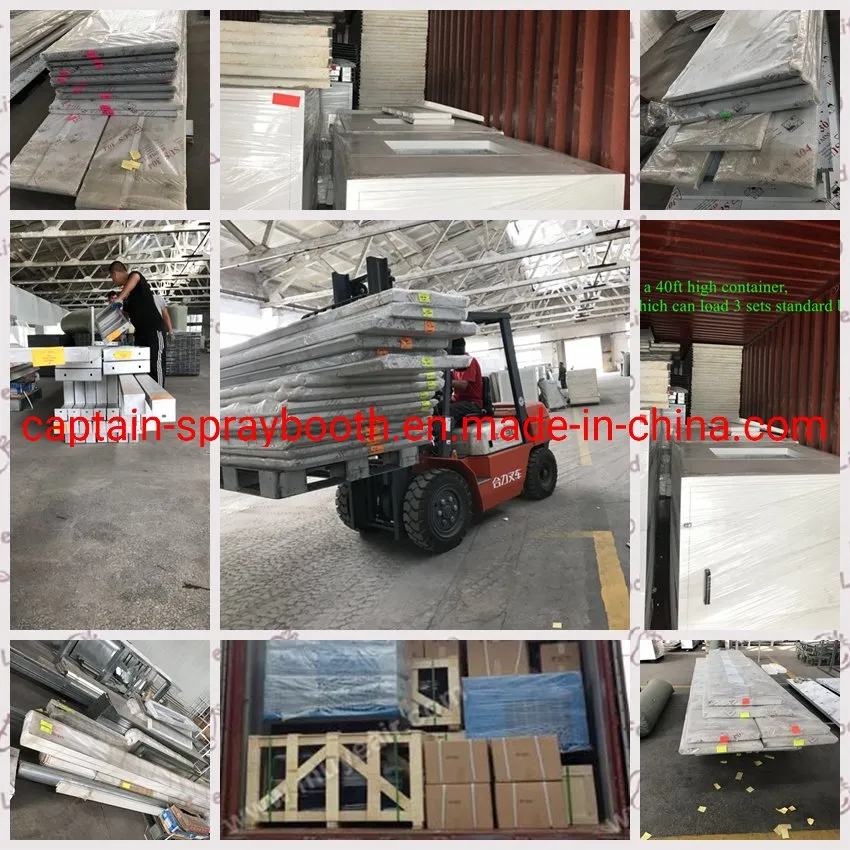

Package and Delivery

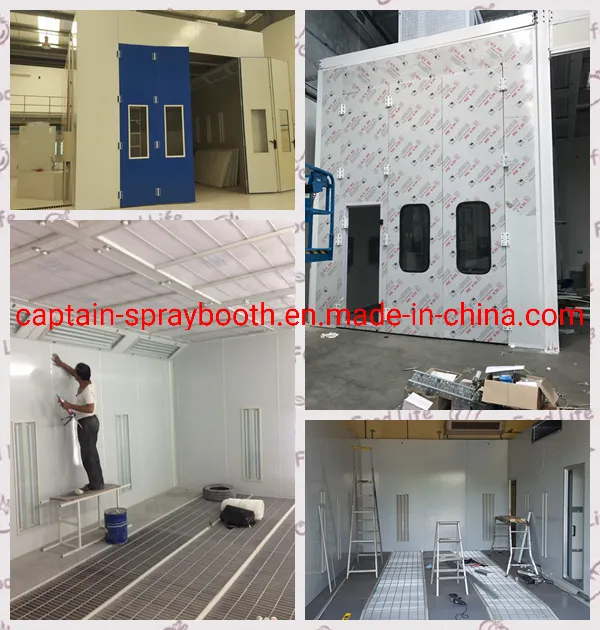

Installation

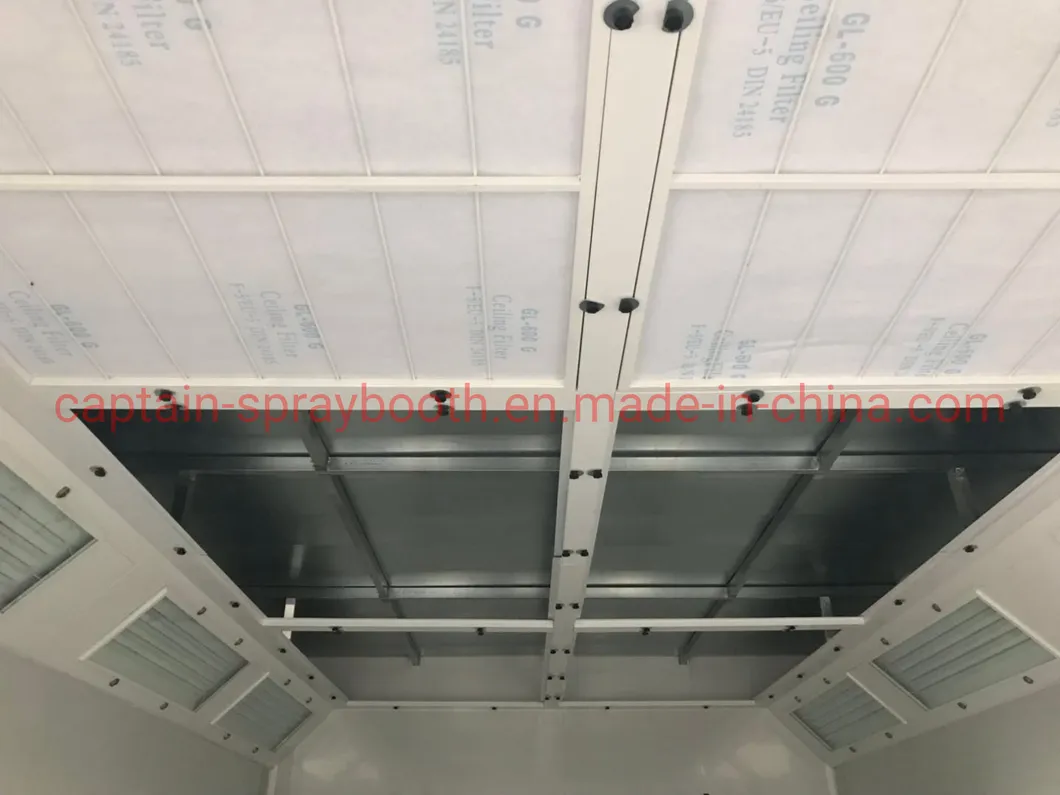

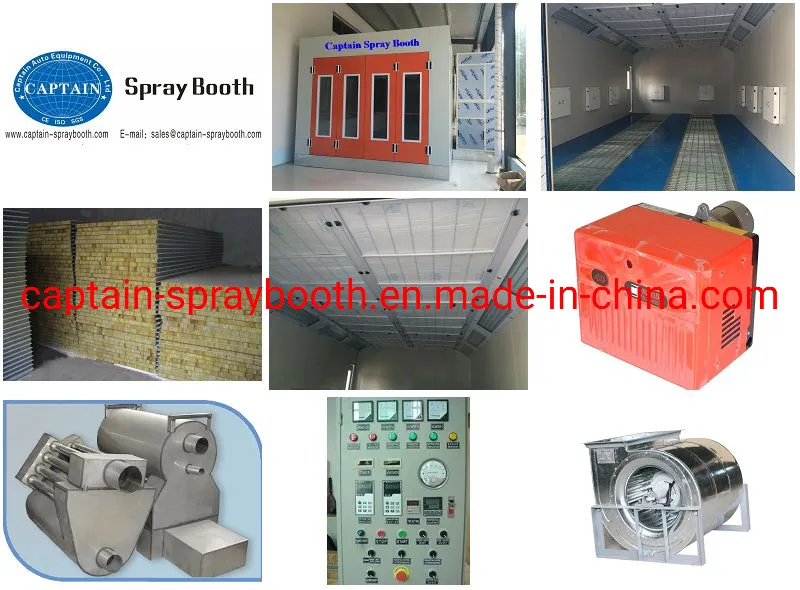

Parts

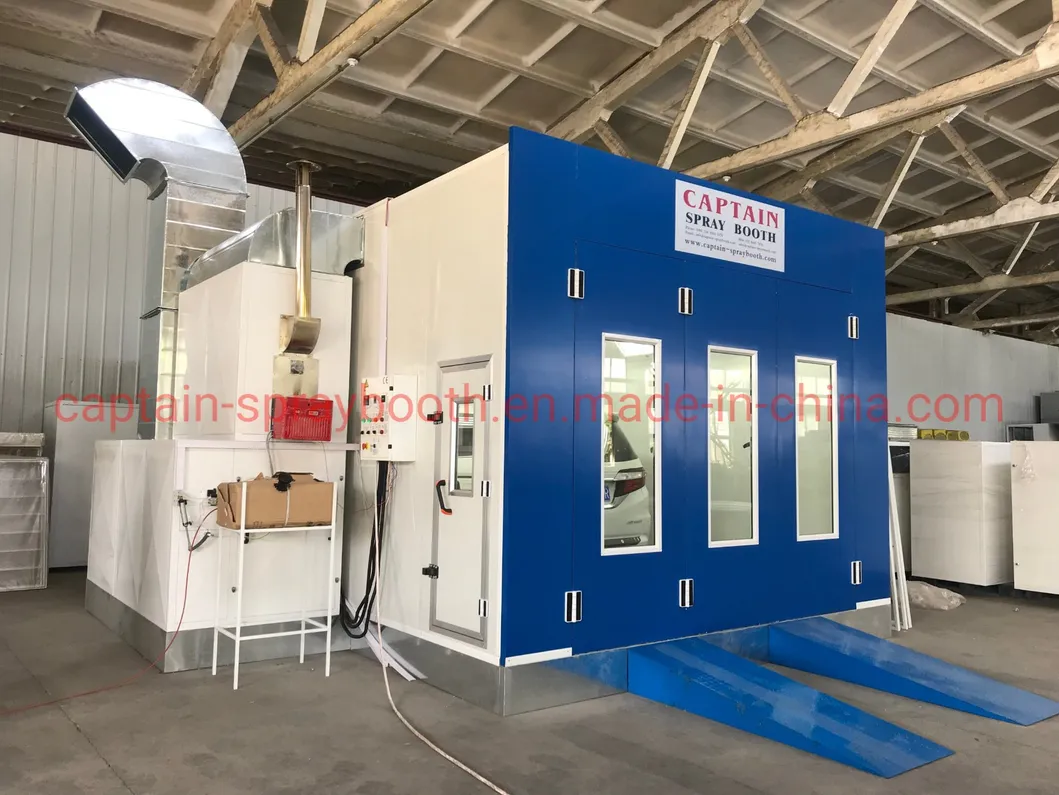

Real pictures of installed model

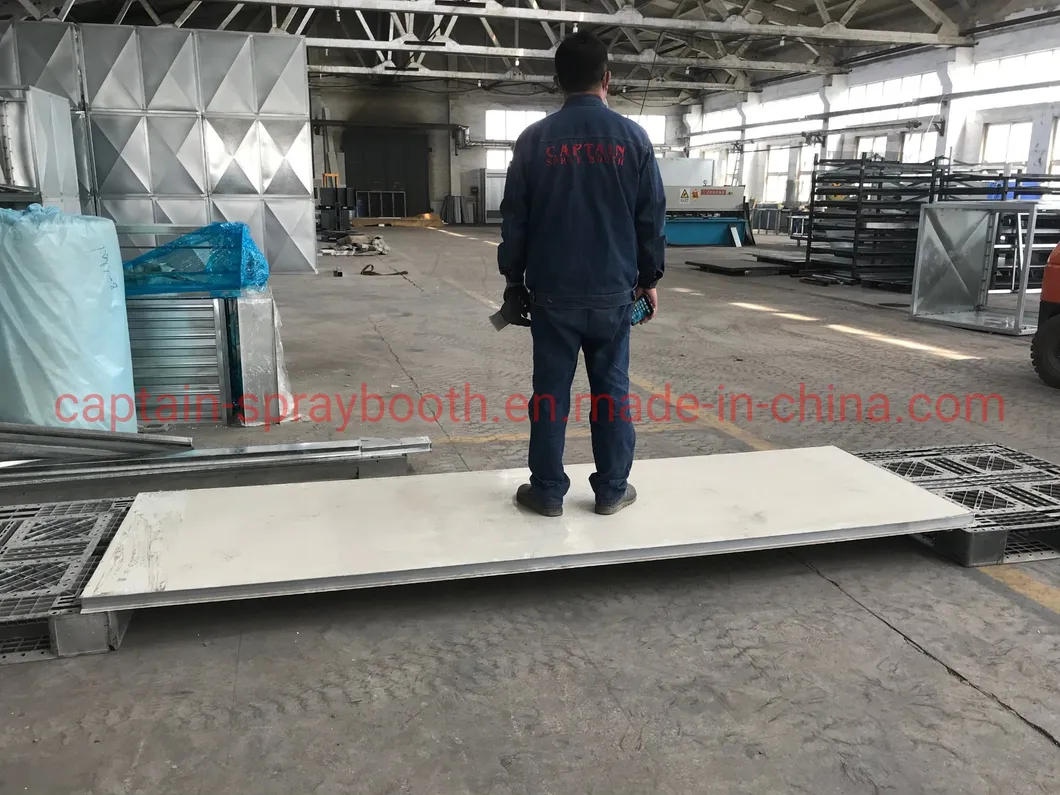

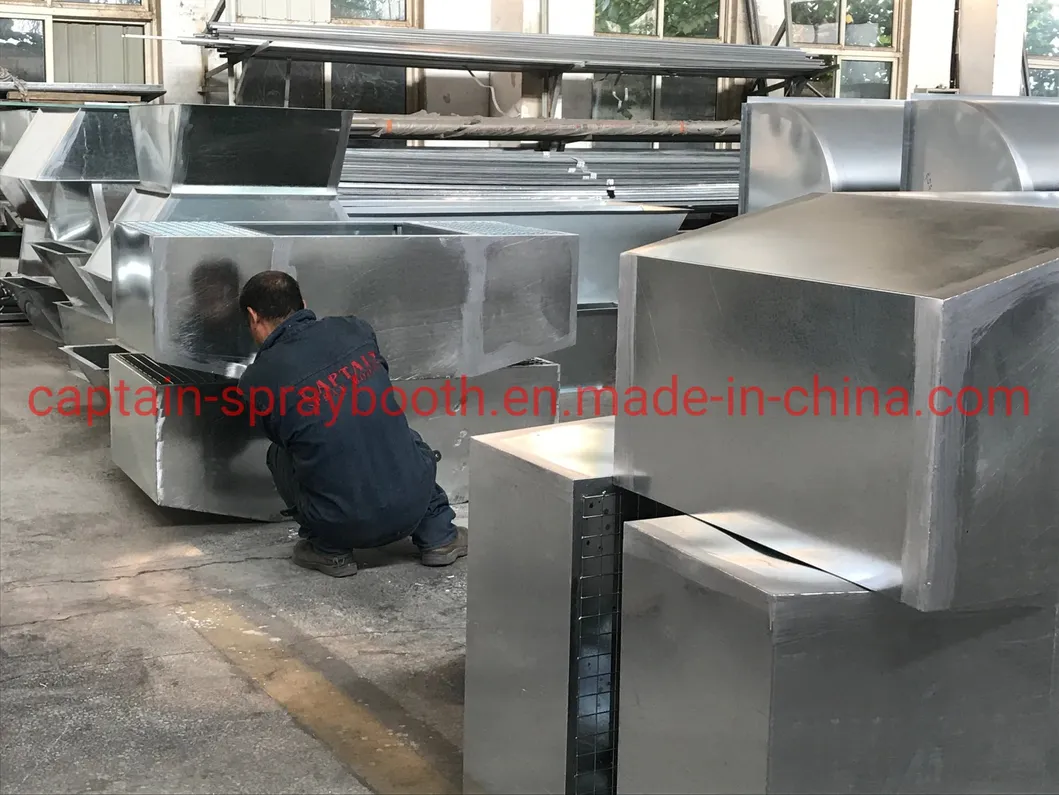

Workshop

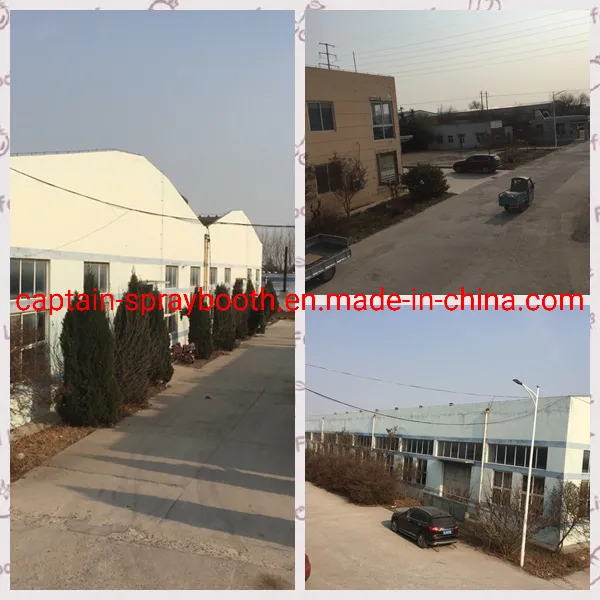

Factory View
Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
This model is our luxury model for 4S repair shop,it's popular for Australia and Europe,please check the details,aslo we can design the booth according to your needs,so just tell me your requirements,we will give you the best solution.
| Items | Specifications |
| Outside Dimension | 7000×5350×3400mm(L×W×H) |
| Inside Dimension | 6900×3900×2700mm(L×W×H) |
| Main Door | 3-folds: 3000×2600mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 750×2000mm (W×H),aluminium alloy door frame |
| Wall panel | EPS colorful steel skin panel,50mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
| Basement & Floor | Complete steel assemble, height is 300mm, 5 rows grilles on the metal basement, 2 Pcs ramps: 630×1800mm (W×L)/pc |
| Lighting System | Ceiling Lights: 8Units×4Pcs=24Pcs×40W, with electronic ballasts,power-coated light box. Optional : Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2 sets of double-intake centrifugal fans for intake air, direct drive,4kw each,air capacity 12500m3/h in total. |
| Extract Fan | 1 set of double-intake centrifugal fan for exhaust air, direct drive,5.5kw, air flow 15000m3/h in . |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |
| Heating System | 1set Riello G20 brand diesel oil burner, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle . |
| Maximum Working Temperature | 80 |
| Heating Rate(/min 20--60) | 4-6 |
| Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white,Orange, Grey |
| Total power(Kw) | 16KW |
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
Production
Package and Delivery
Installation
Parts
Real pictures of installed model
Workshop
Factory View
Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
