Product Description

We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems.
We can also design a suitable spary booth for you according to your actual site.Contact us and you'll be pleasantly surprised.

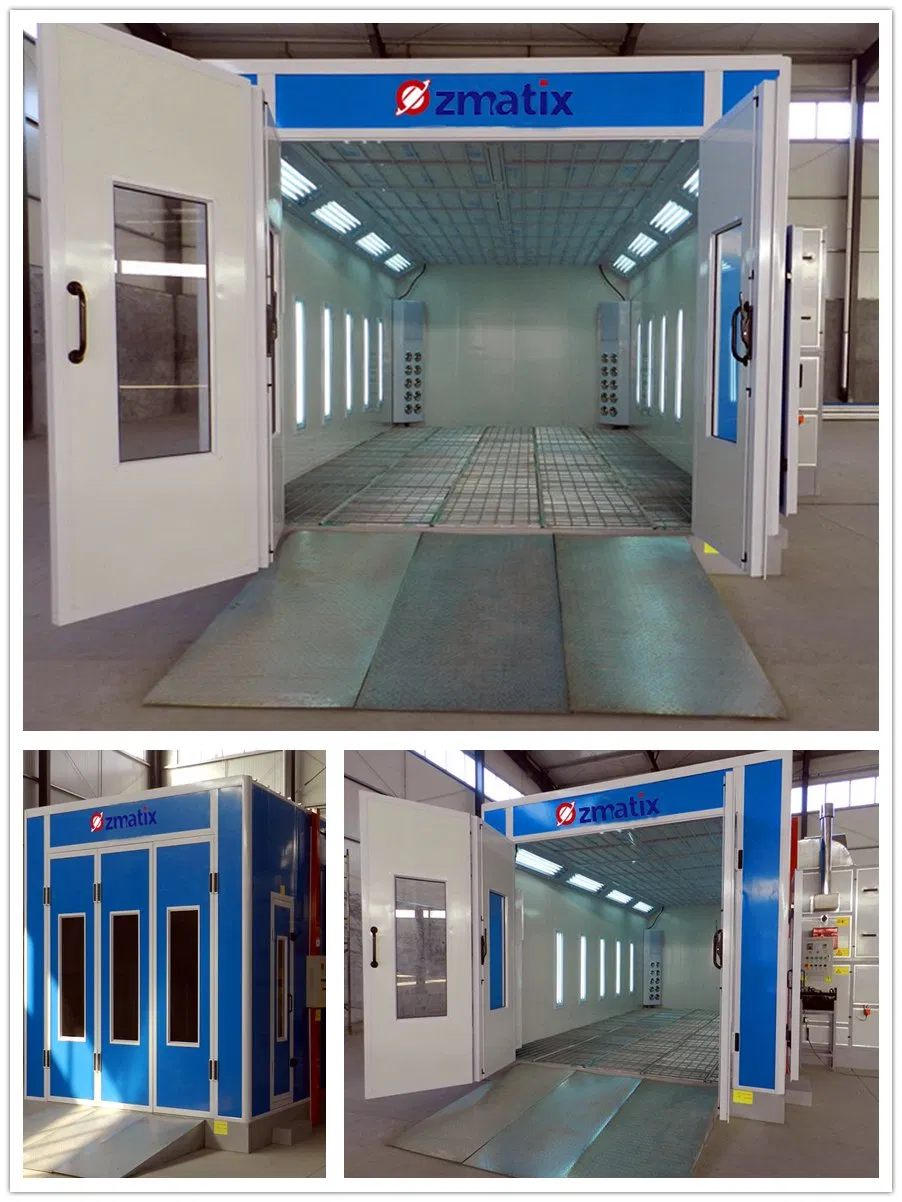

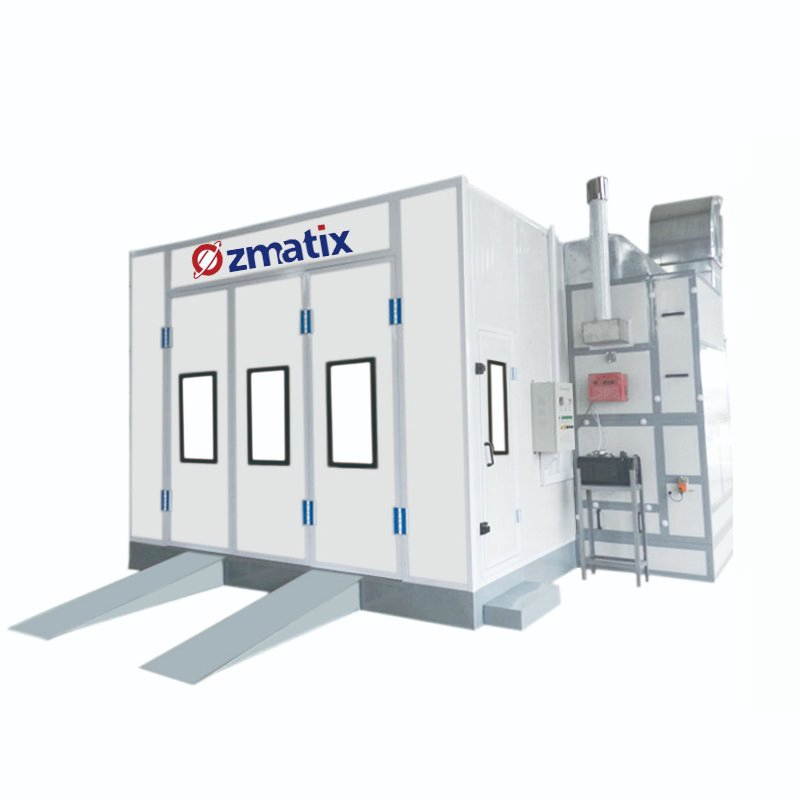

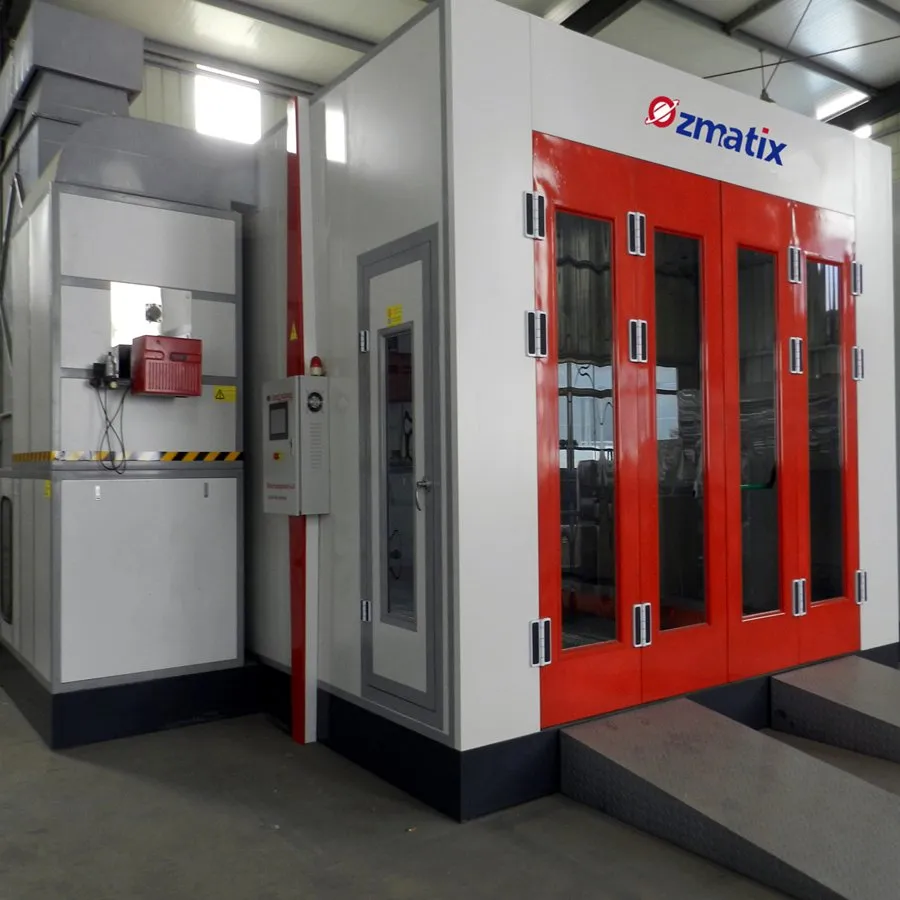

High Quality Cabina De Pintura Spray Booth Paint Booths Car Baking Oven Spraying Oven Room Bus Painting Booth Price

Model No.:OZM-9500
Inside Dimension	6900×3900×2700 mm(L×W×H)	Outside Dimension	7000X5350X3400mm(LxWxH)
Front Door	3000×2600 mm(W×H), 3 folds color: White, blue, red, orange
Service Door	650×1800mm(W×H), 1 unit with 2 sets pressure lock
Basement	Galvanized steel, 300mm high, 5 rows grids ; 2 PCS painted ramps.
Wall Panel	50mm thick EPS, 950mm wide, density is 14kgs/m2. The panel with double sides 0.4mm steels, Tongue and groove interlock structure.
Ceiling Panel	0.8mm galvanized steel
Intake&Exhaust System	2 sets 4kw centrifugal fan for air intaking, air capacity is 26000 m3/h; 1x5.5kw for exhausting, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. Standard air duct is 3m.
Lighting System	Ceiling Lights: 8units×4PCS=32PCS×16W LED lights, Side Lights: 10 units×2PCS=20 PCS×16PCS LED lights Illumination≥1000Lux.
Heating System	Italy Riello G20 diesel burner, 200000Kcal/h. Stainless steel heat exchanger, max temperature: 80ºC. The burner need the diesel as resource to heat air and then the hot air go throught heat exchanger to the room.

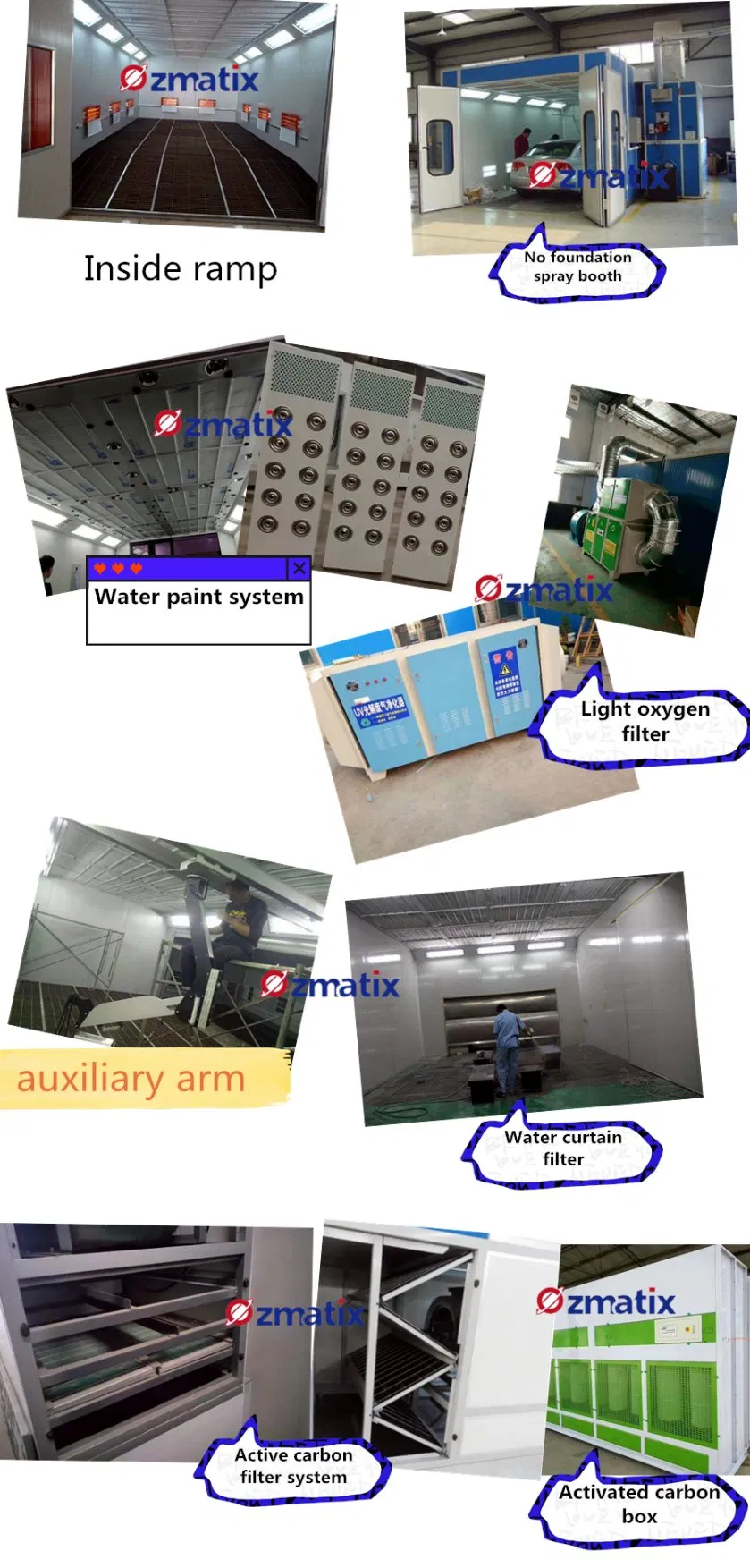

Purification System	Pre-filter: On the air inlet to prevent large dust and other impurities; Ceiling filter: On the ceiling frame to prevent much smaller dust, make sure the air is clean. Fiberglass floor filter: Under grilles. To prevent paint mist go outside. Activated carbon filter: On air outlet. To absorb paint smell 4 kinds of flters to protect workers and environment. We also put activated carbon particle to help absorbing paint smell.
Controlling System	Computer control, screen touch. Editted program can be according to requiremment. Spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, Emergency stop, breakdown alarm, etc.
Power	16 KW

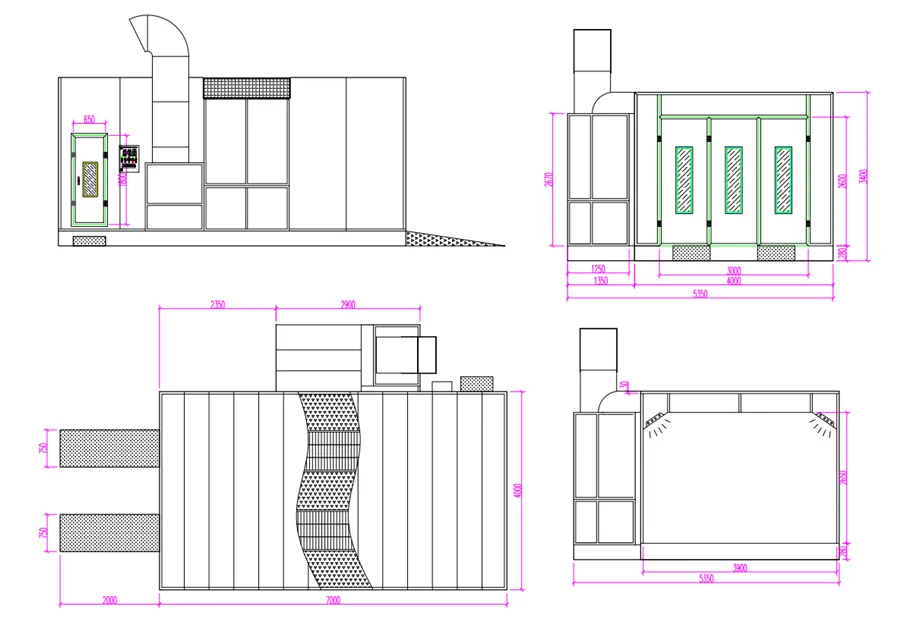

Basic drawing: before placing order, we will give you draw for your confirmation
High Quality Cabina De Pintura Spray Booth Paint Booths Car Baking Oven Spraying Oven Room Bus Painting Booth Price

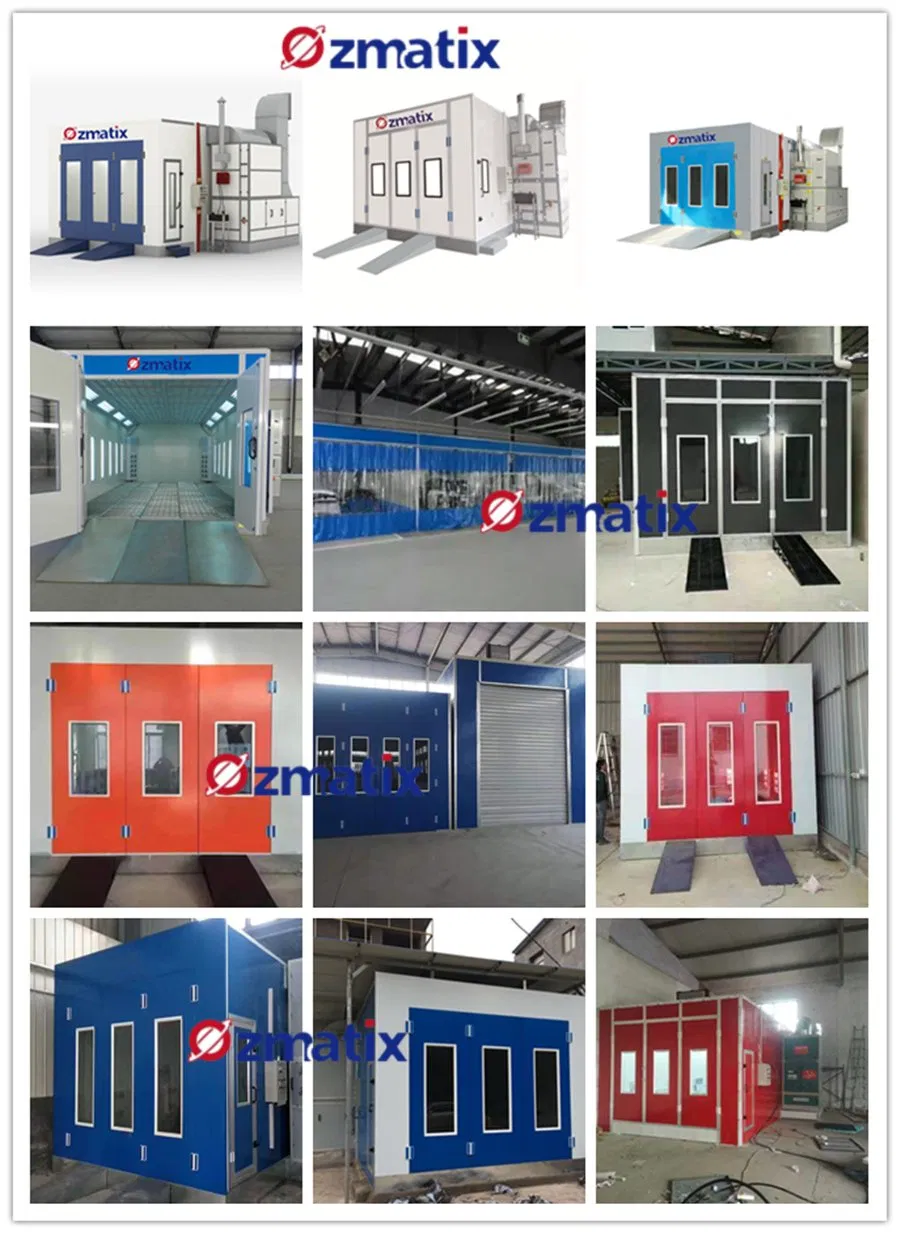

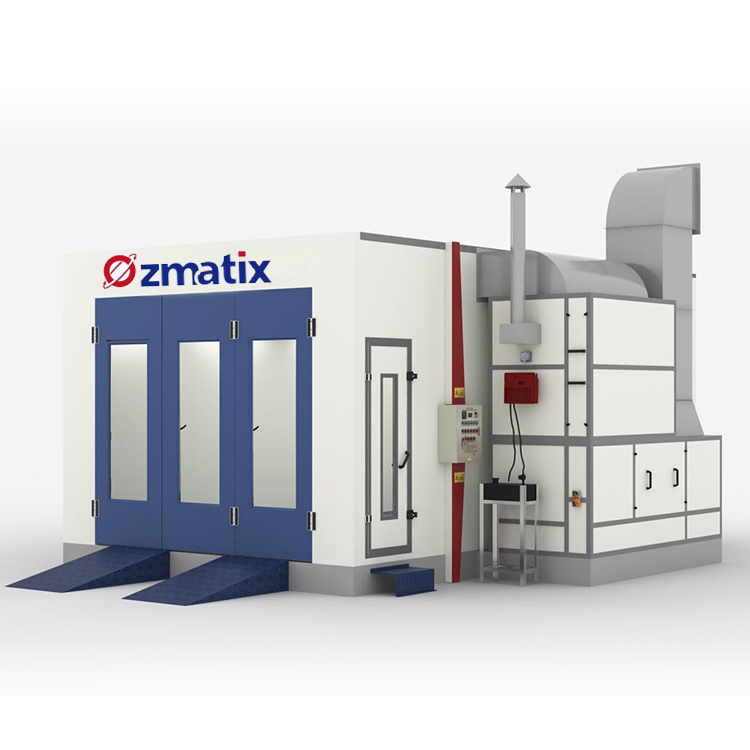

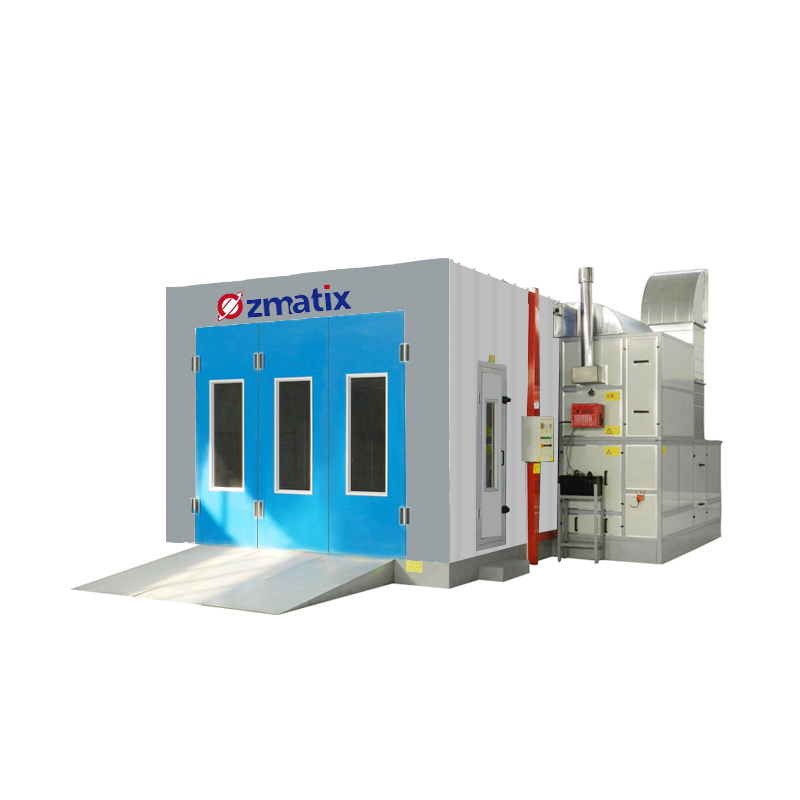

different colors different configuration for your choice
High Quality Cabina De Pintura Spray Booth Paint Booths Car Baking Oven Spraying Oven Room Bus Painting Booth Price

Company Introduction

Qingdao Ozmatix Co., Ltd. is a company co-founded by senior automotive equipment practitioners. We combine the advantages of nearly 20 years in the automotive industry to form a one-stop shopping service company with high-quality products in the automotive repair and maintenance industry.
We are committed to changing the existing business model of automobile repair and maintenance industry, and will make great efforts to create its "Ozmatix" brand products. We are committed to providing global agents and users with standardized services such as quality standardization, installation, training and after-sales service of automobile insurance products.

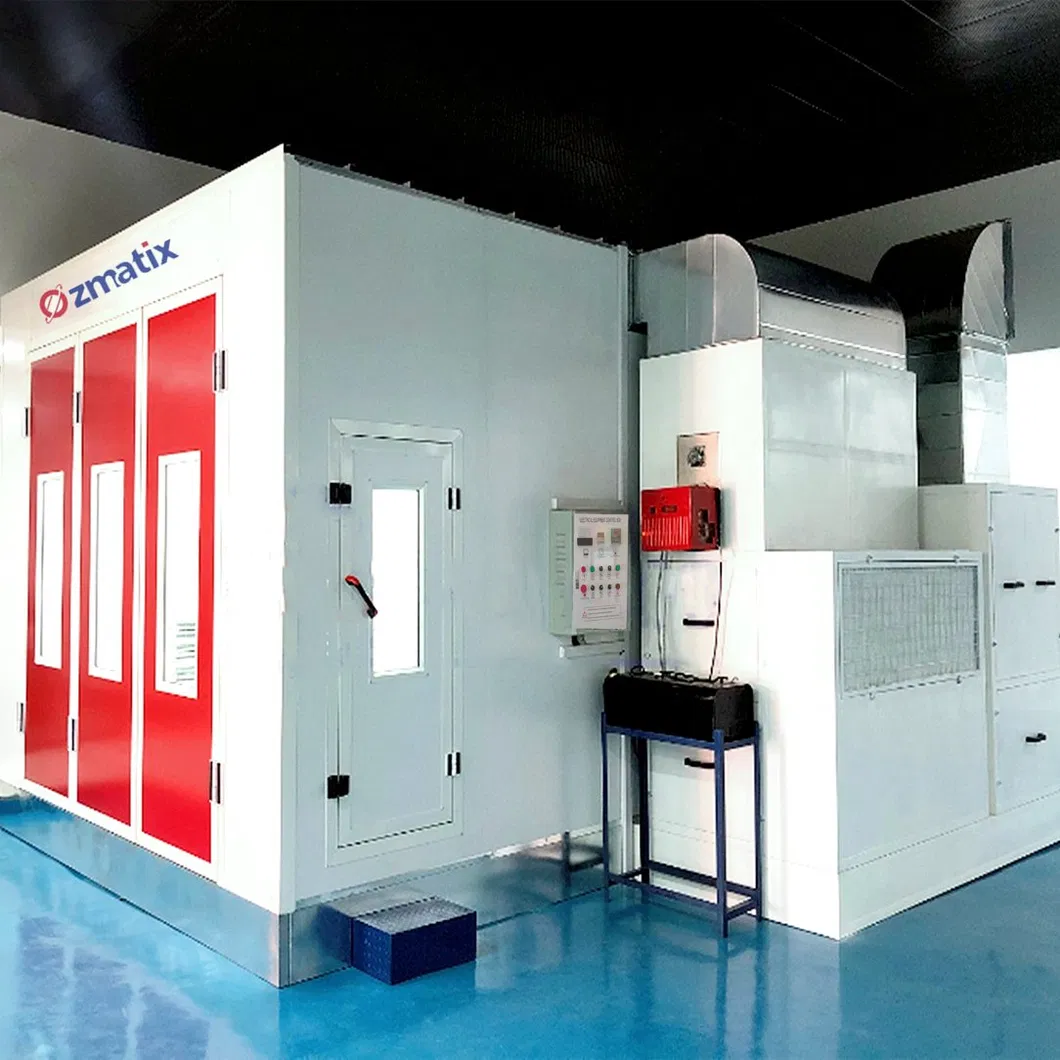

Customer actual picture display

1.Water-soluble paint Spray Booth
High Quality Cabina De Pintura Spray Booth Paint Booths Car Baking Oven Spraying Oven Room Bus Painting Booth Price

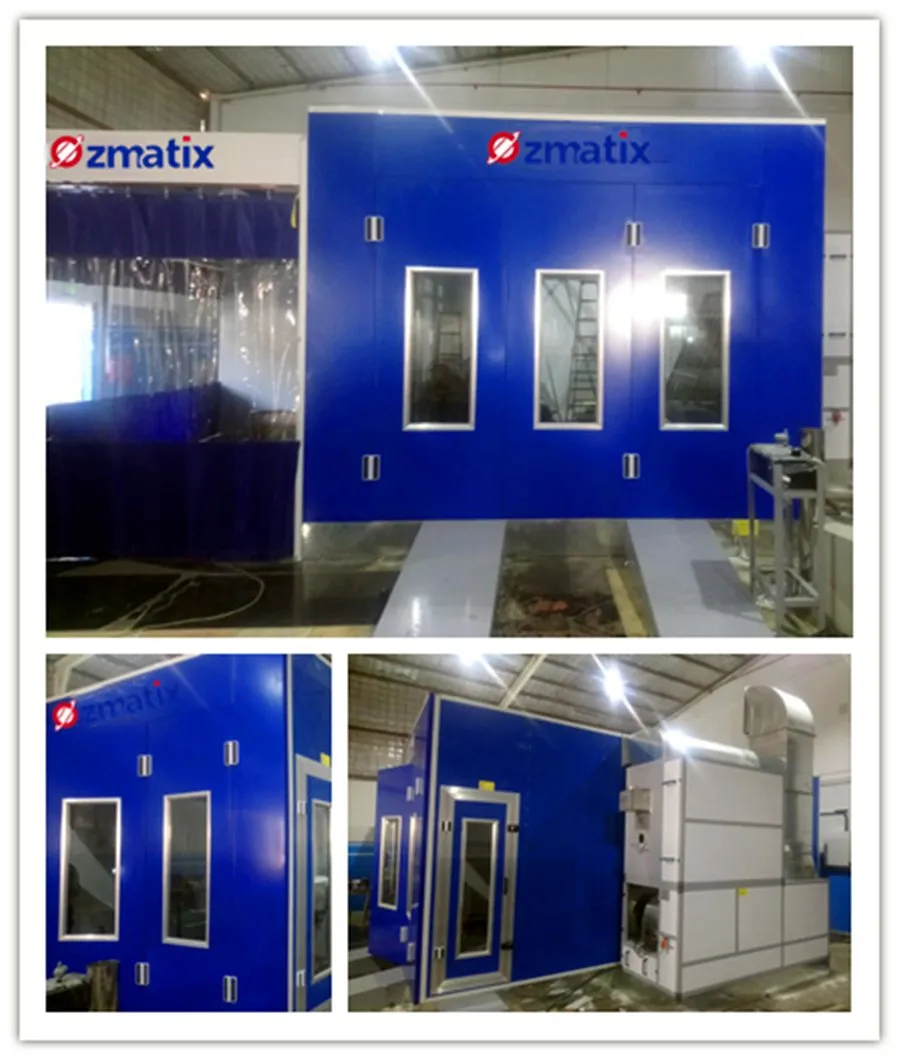

2.Angola-prepair station and OZM-9300 SPRAY BOOTH
High Quality Cabina De Pintura Spray Booth Paint Booths Car Baking Oven Spraying Oven Room Bus Painting Booth Price

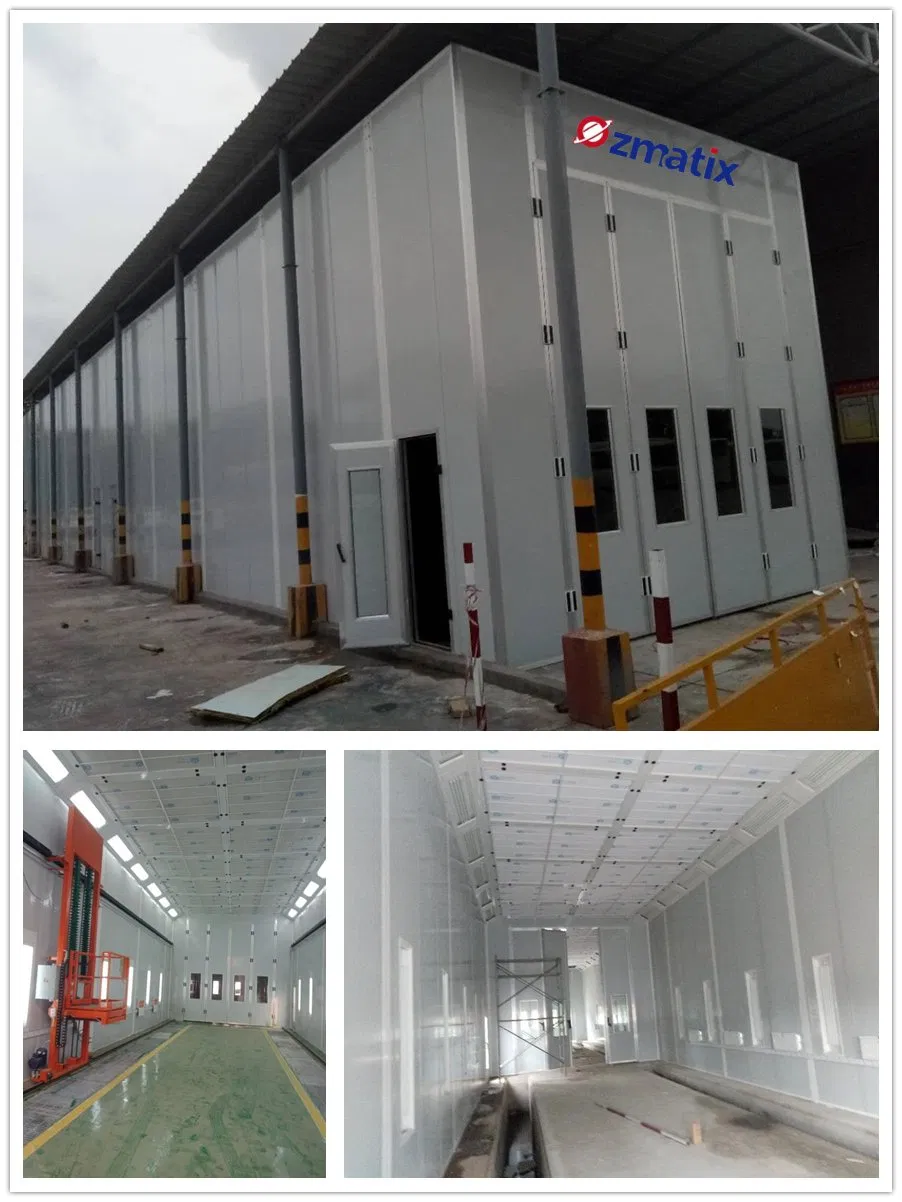

3. 16 meters long spray booth High Quality Cabina De Pintura Spray Booth Paint Booths Car Baking Oven Spraying Oven Room Bus Painting Booth Price

FAQ

1,As for auto spray booth,what kind of heating system do you have?
It has electric heating system,diesel heating system.You are suggested to choose one heating method.It depends on whether electricity or diesel is more expensive in your local.
2,What is the thickness of wall panels metal sheets?
The thickness of EPS is 50mm,75mm,Rock wool board 50mm,75mm,the thickness of metal sheets is 0.4-0.5mm
3,What is the roof material?
Galvanized steel roof panel.
4,What is the relate of outside height and inside height of auto spray booth?
The height of basement is 280mm,the height of roof is 490mm,so 3470mm-280mm-420mm=2700mm
5,As for auto spray booth,what is the height requirement of vehicles which will be sprayed and baked?
Height of vehicles should be less than or equal to 1900mm,because there should be 800mm from car roof to inside booth roof.Be convenient to spray paint on the top of vehicles.
6,What is the main purpose of flat steel grilles?
There is filtration system under flat steel grilles.
7,What is the advantages of inlet fans and exhaust fans?
With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as
possible.Pollution is small,it will be comfortable when people are working in the booth.
8,What kind of fans used in your auto spray booth?
YDW European turbofan,high air volume,low noise,low pressure,it's ideal fans in automobile spray cabinet.
9,What kinds of color of main door I can choose?
As for main door,you can choose grey,white,red,blue,reddish orange,silver grey.
10,What kinds of color of OZM-9500 auto spray booth I can choose?
Generally speaking,we have grey,blue etc.You also can tell us the color you like.We will make sure whether it is available according to color card.
11,How do you determine fans on the left or right of spray booth?
When you stand in front of auto spray booth looking at it,the fans will be on the left or right.
12,Where is the temperature sensor installed in spray booth?
Temperature sensor should be installed at the middle of top roof.It is both beautiful and effective.
13,Can I open the ventilator and heating system at the same time?
When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating system and ventilator can not work at the same time when baking.
14,Besides OZM-9500,do you have other types of spray booth?
Yes,we have a series of spray booths.
15,How about your after-sales service?
Our after-sales service is very good.Each kind of spare parts of spray booth will be marked by number before delivery,and packing list,installation drawing,circuit diagram will come with auto spray booth.Besides,we have installation videos of spray booth in Youtube.If you have any question during the process of installation,you can also consult our machine expert.
