European Standard Automotive Refinish Bus Truck Spray Paint Booths
European Standard Automobile Refinish Bus Truck Spray Paint BoothsGuangLi Truck Spray Paint Booths Feature1.Body--Wall panel :sandwich style,δ=75mm,polystyrene.(Rock wool as optional)--Basement:Concrete Structure made by customers.2rows of grids. Personnel Lift as optional.--Ramps:NO.--Doo......
Send Inquiry
Product Description
GuangLi Truck Spray Paint Booths Feature
1.Body--Wall panel :sandwich style,δ=75mm,polystyrene.(Rock wool as optional)
--Basement:Concrete Structure made by customers.2rows of grids. Personnel Lift as optional.
--Ramps:NO.
--Door:4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
2.Air System(two sets),collocation of each set as below:
--Frame:steel,powder coated.
--One 11kw intake fan.One 11kw exhaust fan.
--5m straight intake ducts,one 90° bend,and one 60°bend, 5m straight exhaust ducts,one 90° bend,and one 60°bend.
--5m straight chimney and 2 small bends.
--1manual VCD exhaust damper.(Electrical VCD as optional)
--1manual VCD intake damper.(Electrical VCD as optional )
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
3.Filtration system
--Roof filter:16pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 2pc of air mouth filter.M style filtration per sets.(Bag style is optional)
4.Light System
--Upper light:20sets,4*40w per set.
--Side light:16sets,4*40w per set.(32sets,4*40w per set)
5.Electric System
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.
-- 50kw power.
| Model | GL10-CE |
| External size (m)(LxWxH) | 15.2x6.7x5.0 |
| Internal size (m)(LxWxH) | 15.0x5.0x4.4 |
| Entrance width(m) | 4.0 |
| Entrance height(m) | 4.0 |
| Fan capacity( m 3 /h ) | 72000 |
| Air velocity (m/s) | 0.3-0.5 |
| Drying Temperature | 20-80 |
| Oil consumption (L/unit) | 6-8 |
| Water Paint Device | As option |
| Power (kw) | 50 |
| Suitable Automobile Type | Truck |

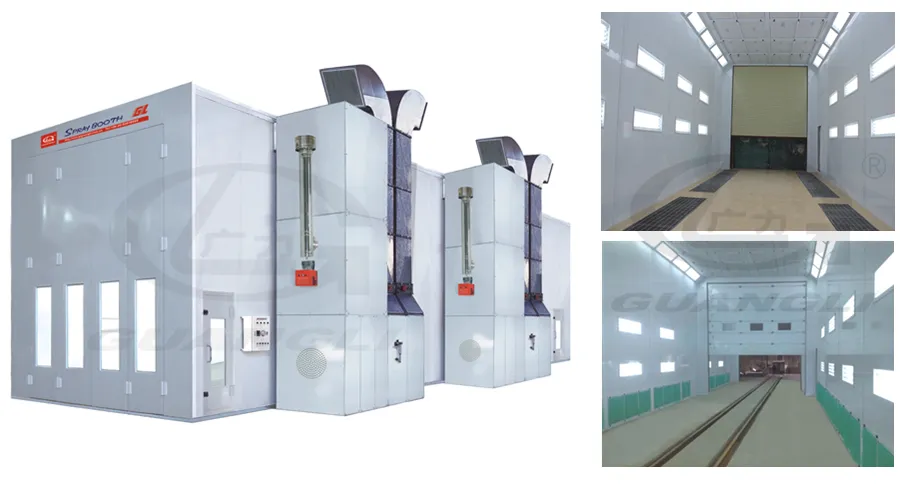

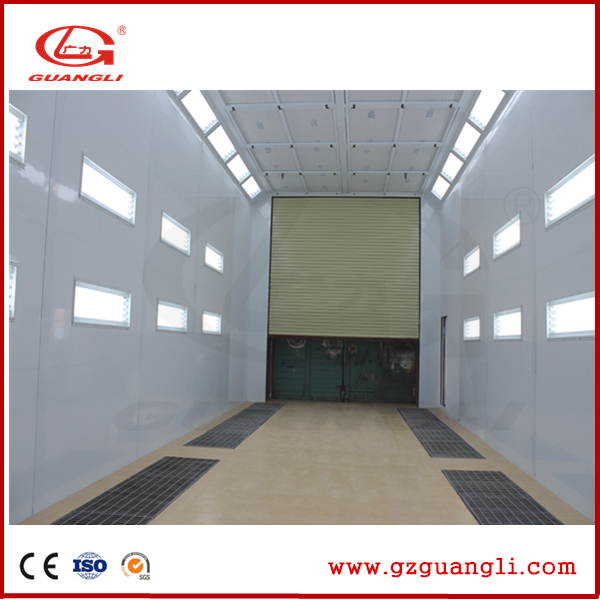

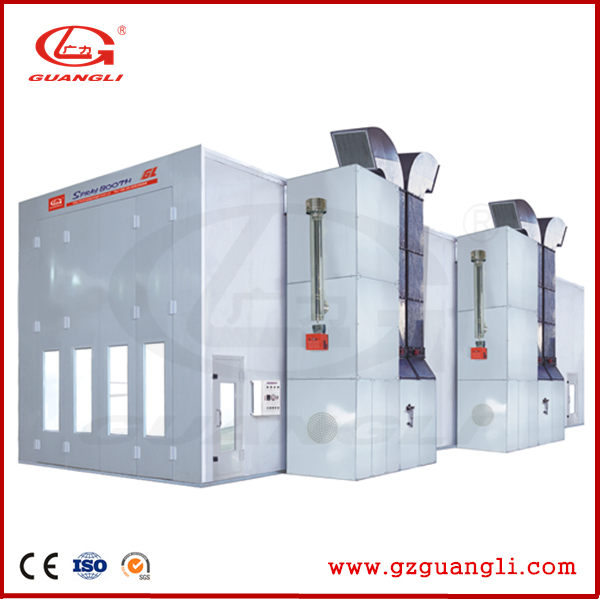

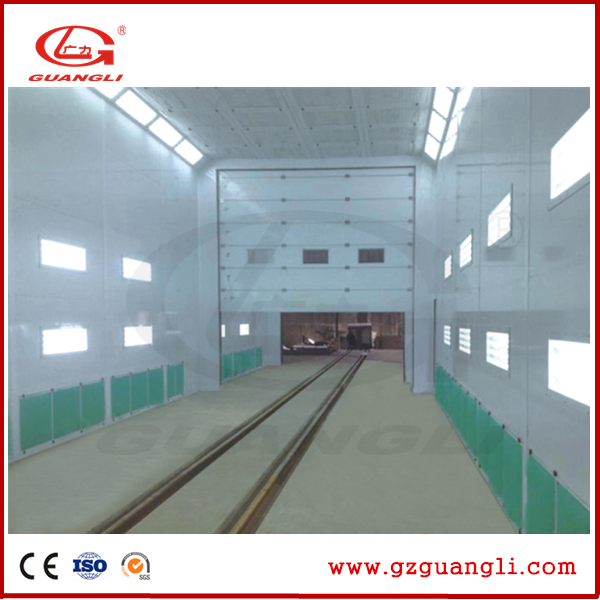

GuangLi Spray Booth Show

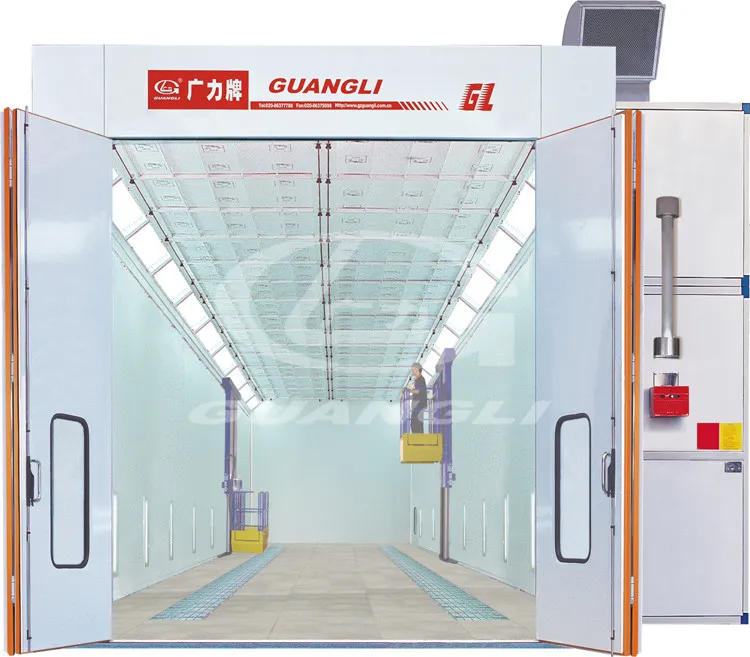

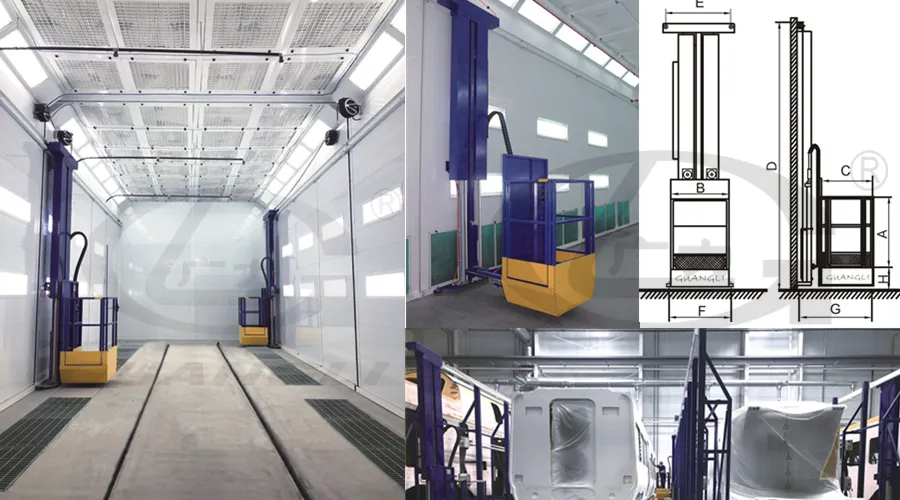

Note:The man lift model is GL1010.It's for optional.
Product packages
To keep the products safe and to remain the good image of the spray booth, Guangli company has standard fixed packages, to avoid getting damaged during international delivery. We use iron frame and carton boxes to package and fix before loading, as you can see in the pictures. This way can perfectly protect our paint booths when shipping.
Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.

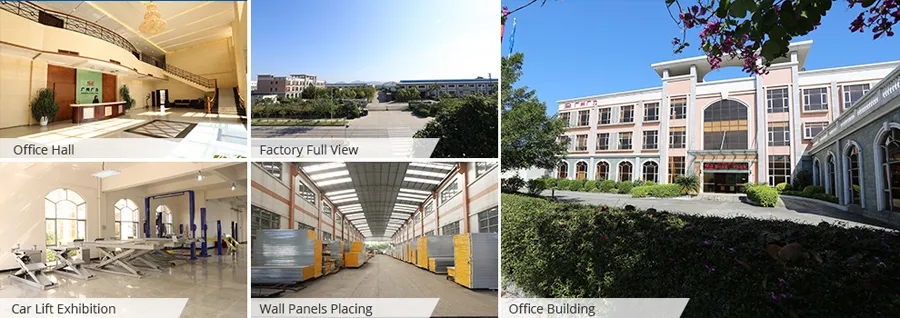

Company Profile
GZ GUANGLI EFE CO.,LTD is a professional spray booth and car lift manufacturer in China wtih more than 22 years technical and production experience.
Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M2of grounding area and 36,000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

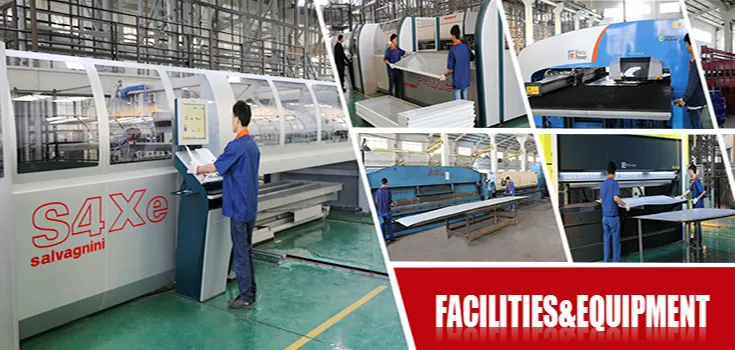

Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

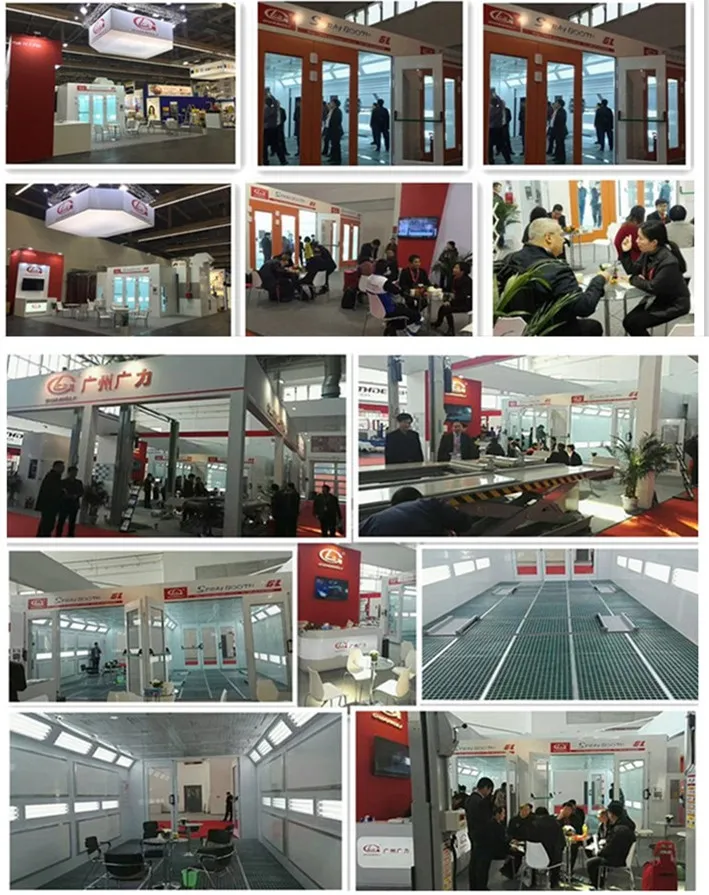

Exhibitions
Service after the Sale
Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
