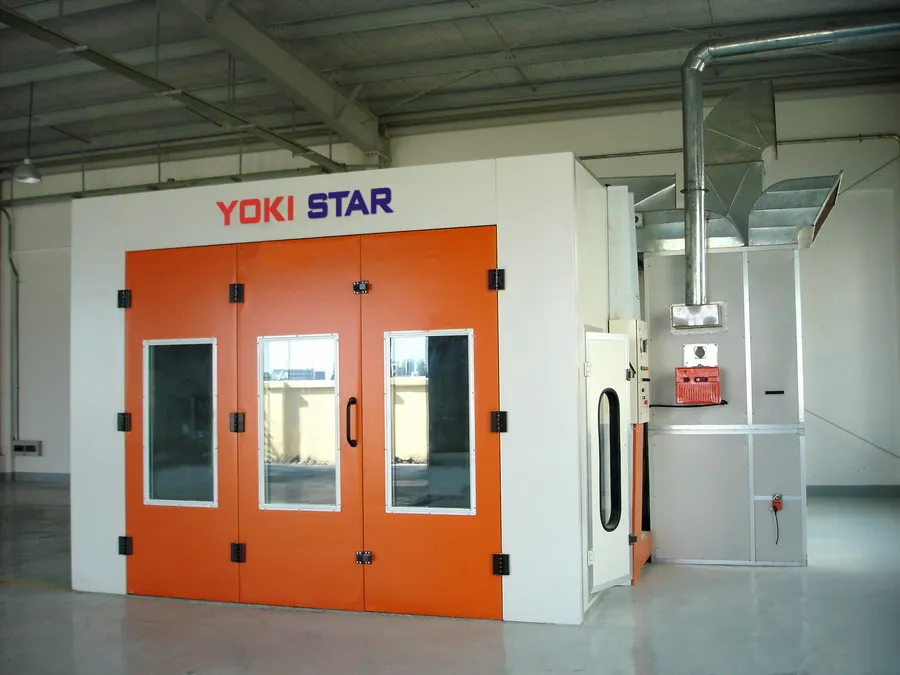

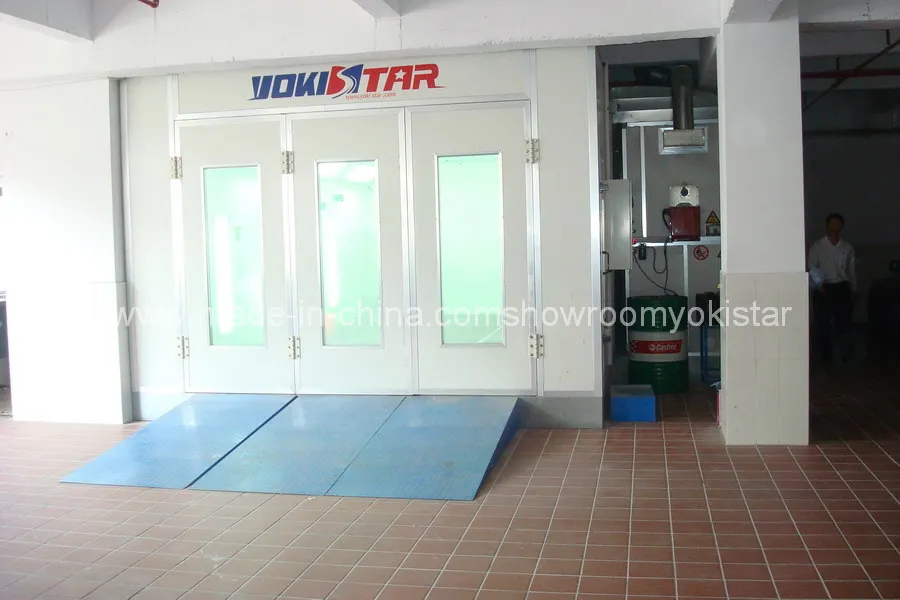

Dustless Spray Booth and Paint Booth Exhaust Filters
Product detailsModel:YS-20Inside dimention:6900*3900*2650 mm L*W*HAny Size Requirements Can Be Met.cheap but equiped with BELIMO actuatorA. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components a......
Send Inquiry
Product Description
Product details
Model:YS-20
Inside dimention:6900*3900*2650 mm L*W*H
Any Size Requirements Can Be Met.
cheap but equiped with BELIMO actuator
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
Model:YS-20
Inside dimention:6900*3900*2650 mm L*W*H
Any Size Requirements Can Be Met.
cheap but equiped with BELIMO actuator
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
YOKISTAR Products

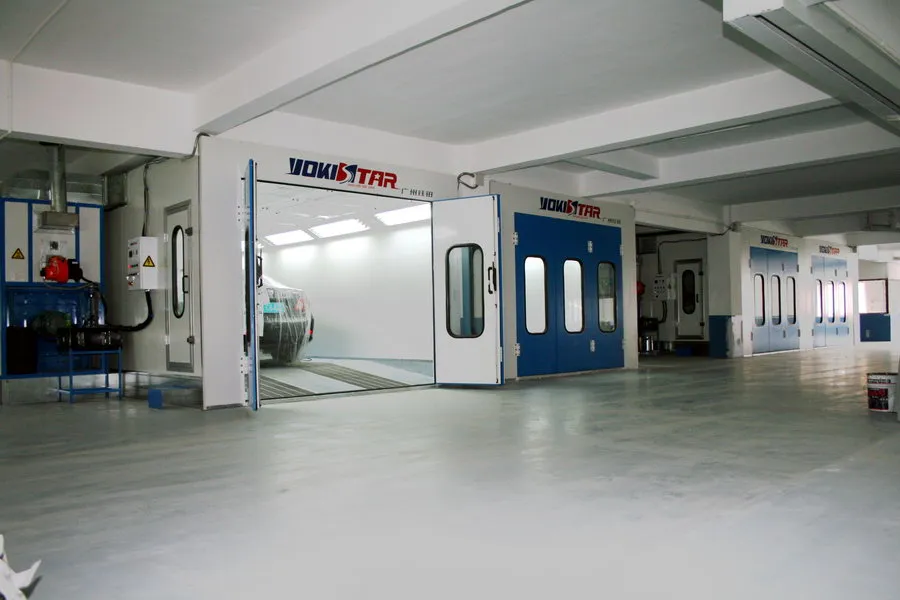

High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

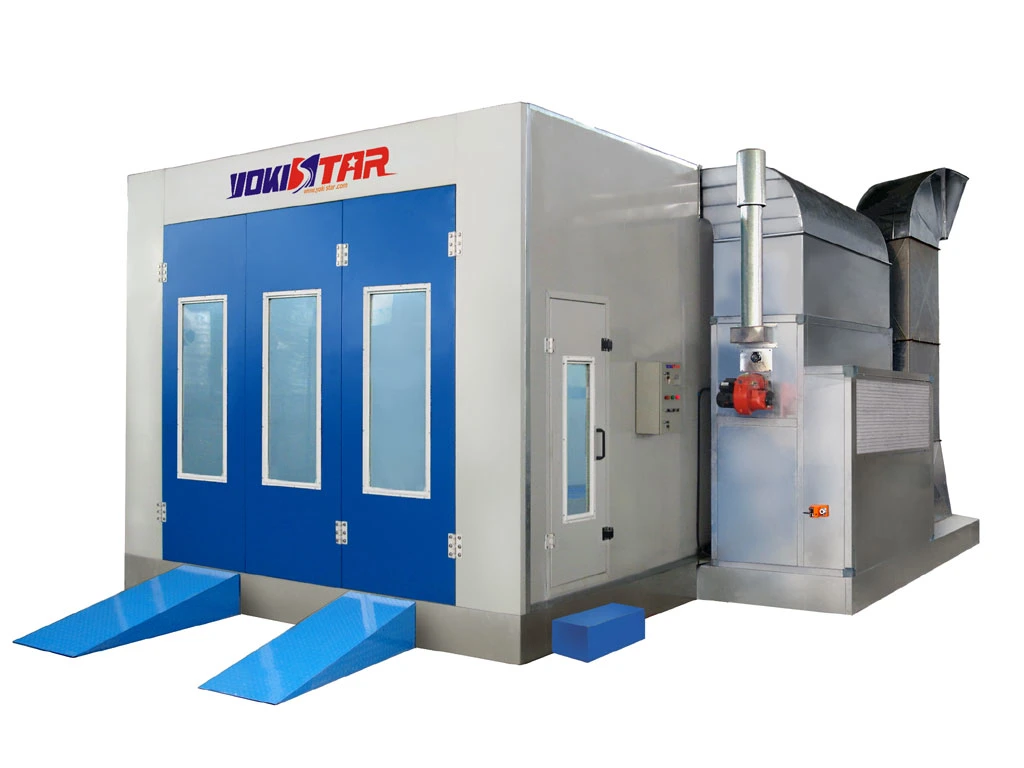

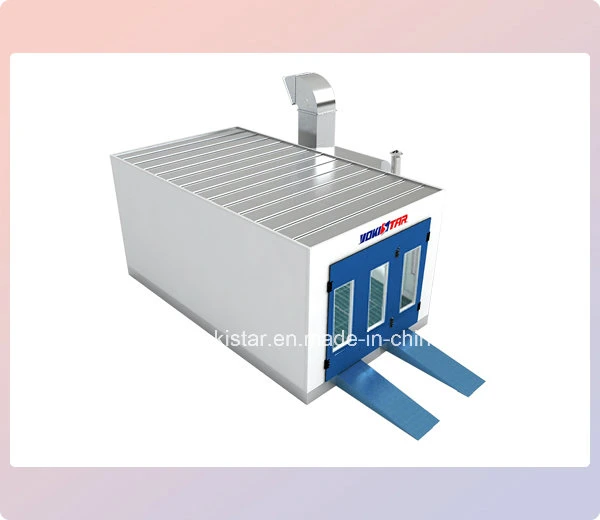

| Inside dimension | 6900 × 3900 × 2650mm (L× W× H ) |
| Outside dimension | 7000 × 5350 × 3400mm (L× W× H ) |
| Main door | F olding door, 2 folds, 2200× 2600 mm ( W× H ), made by bending steel without cover frame, , colour: blue. |
| Escape door | 1 unit, 650× 1800mm (W× H ), colour: white. |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 2 rows of grilles made by flat bar and round steel, then painted. 3 rows of indented plates, painted. 2 ramps, external setting, 520× 2000mm/pc. |
| Wall Panels | Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white. |
| Lighting system | Ceiling Lights: 8Units × 3Pcs=24Pcs × 36W, with electronic holders, lighting boxes are made by colour steel |

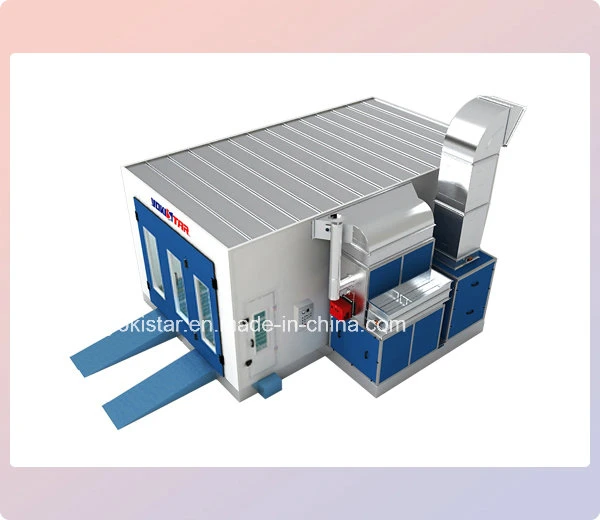

| Generator setting | Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. |
| Intake and Exhaust air system | 2× 3 KW double-intake centrifugal fans for intake air, model YDW4.5M1, air capacity for each fan: 10500m 3 /h. |
| Exhaust air system is optional. | |
| Heating system | Riello G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 180000Kcal/h... |
| Filtering system | Pre-filter, ceiling filter, exhaust fibreglass filter |
| Roof Plates | Galvanized steel plates |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start. |
