CE Approved Diesel Riello G20 Burner Car Spray Paint Booth
Detailed Product Description ItemDetailed specificationInside dimension6900×3900×2650 mm(L×W×H)Outside dimension7000×5300×3250 mm(L×W×H)Front doorFolding door, 4 folds, 3200×2600 mm(W×H), without fra......
Send Inquiry
Product Description
Detailed Product Description
Basic Draw----we can make draw according to your need and your installation place

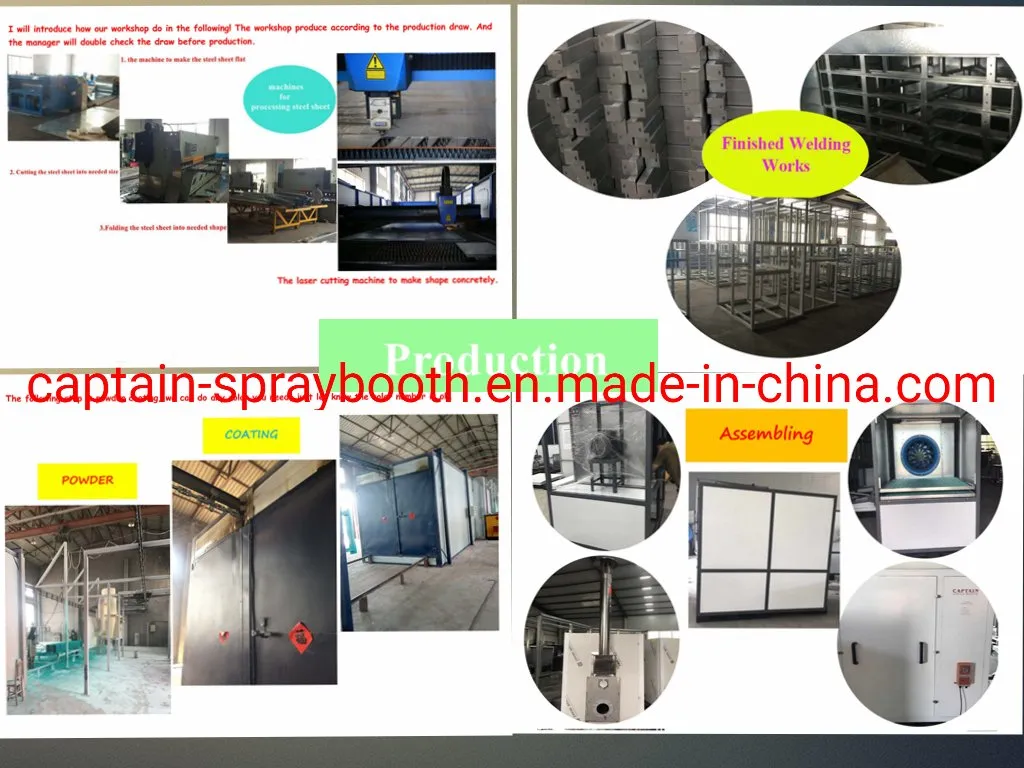

Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

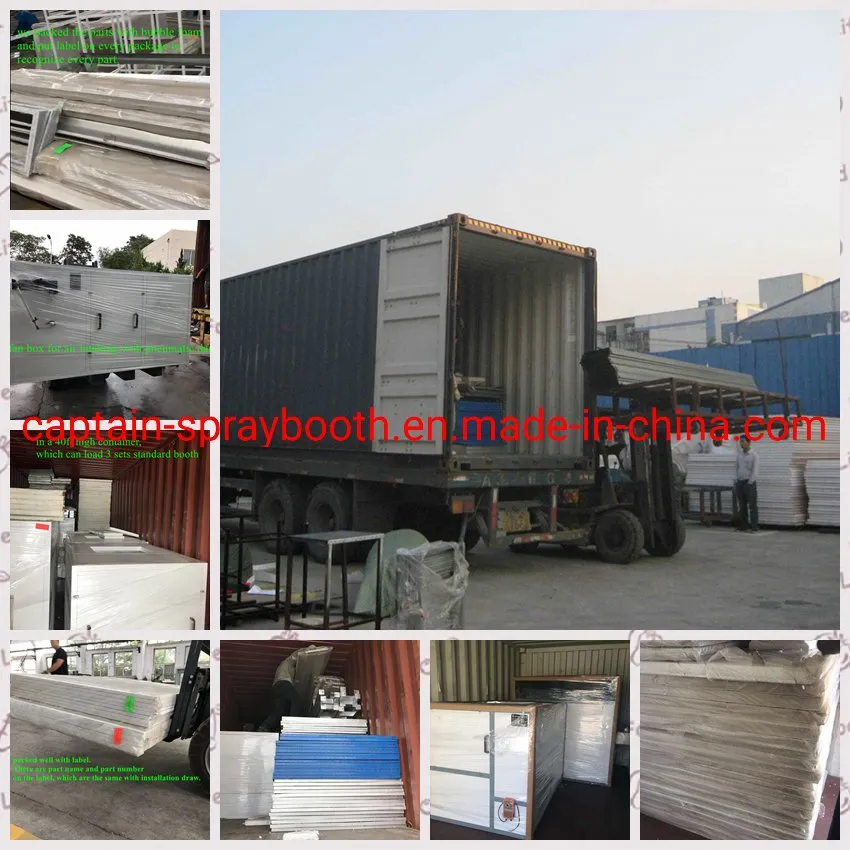

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.

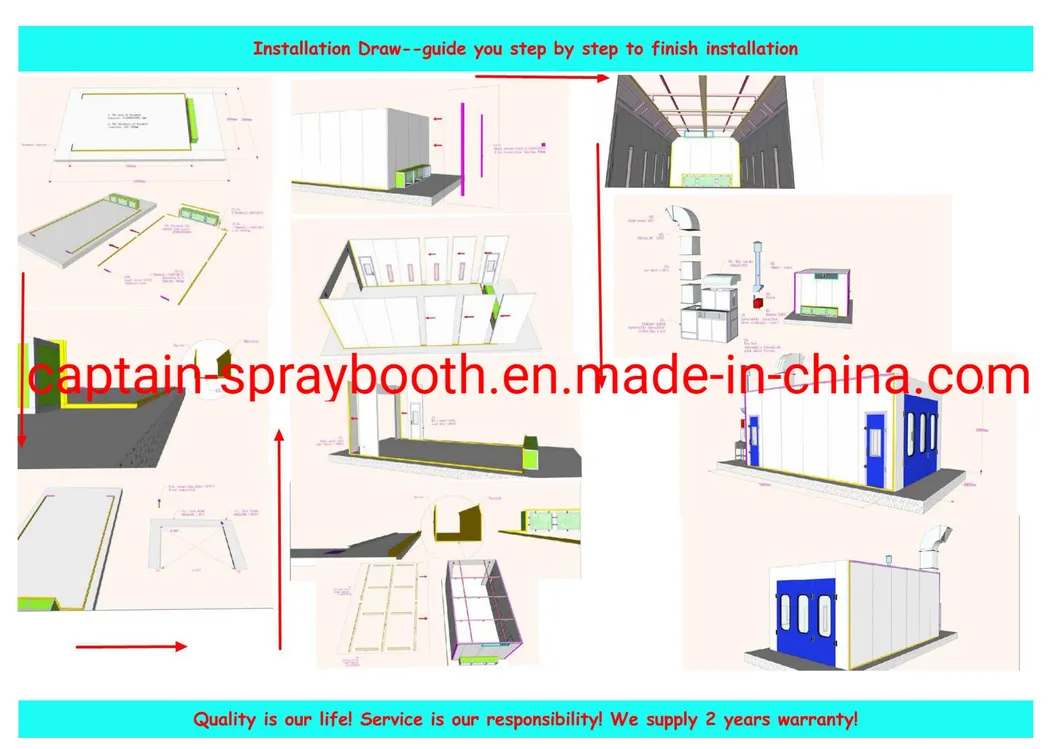

Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

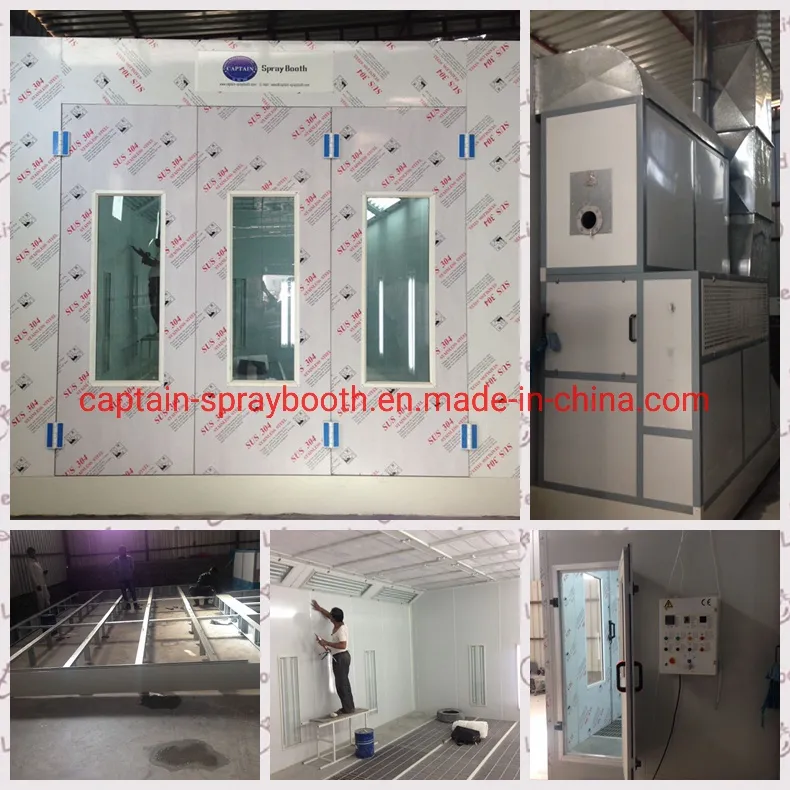

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

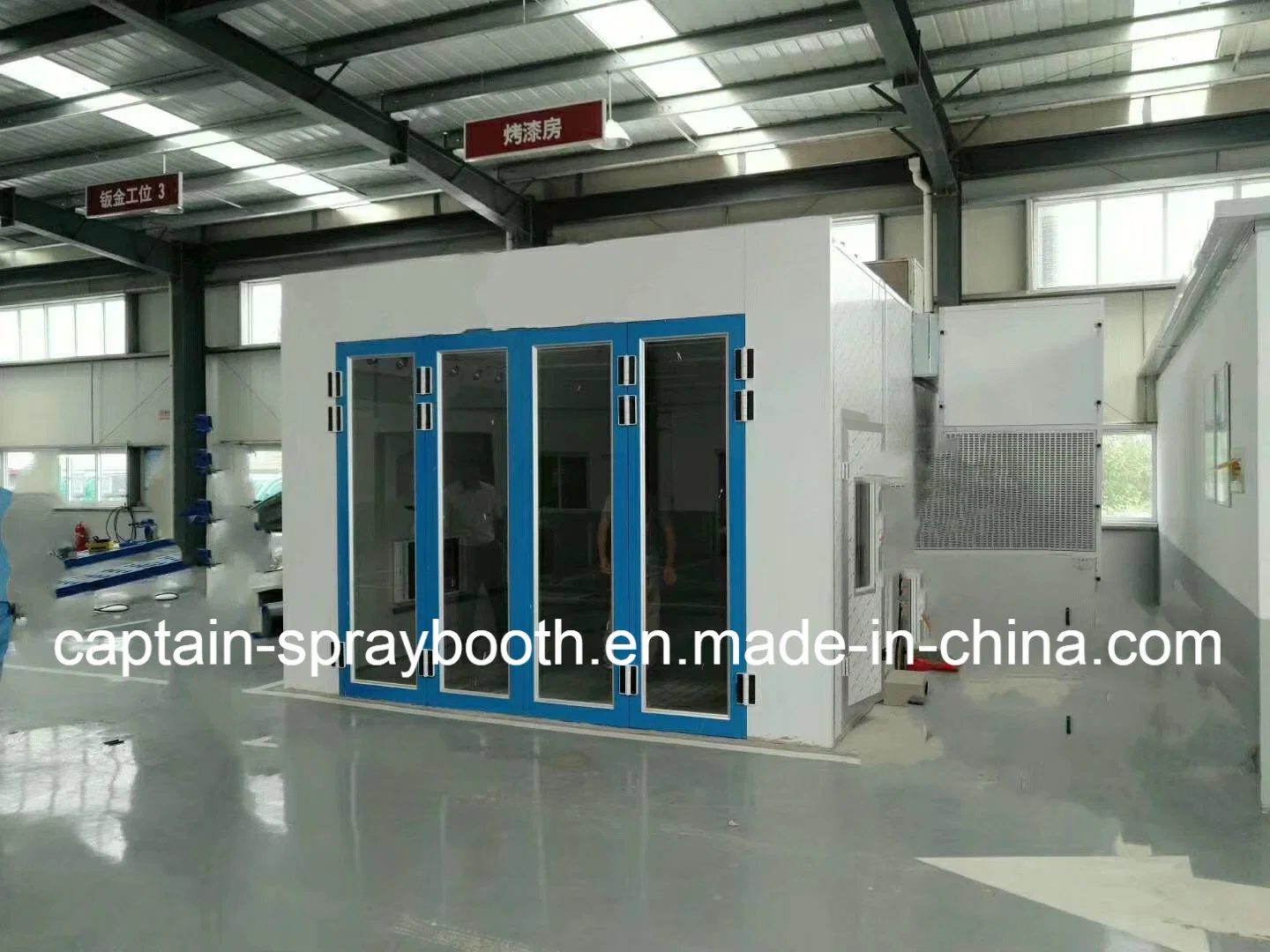

The installed models by our customers
Parts

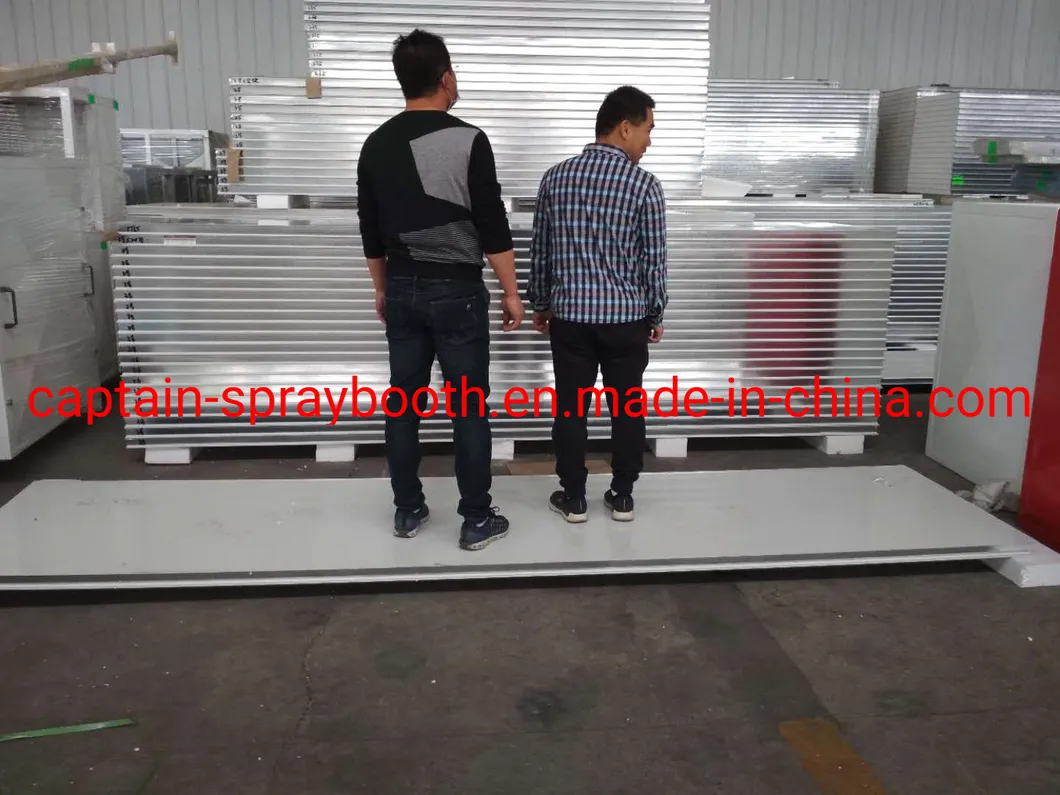

High desensity wall panel, two men stand on it, it will not bend.

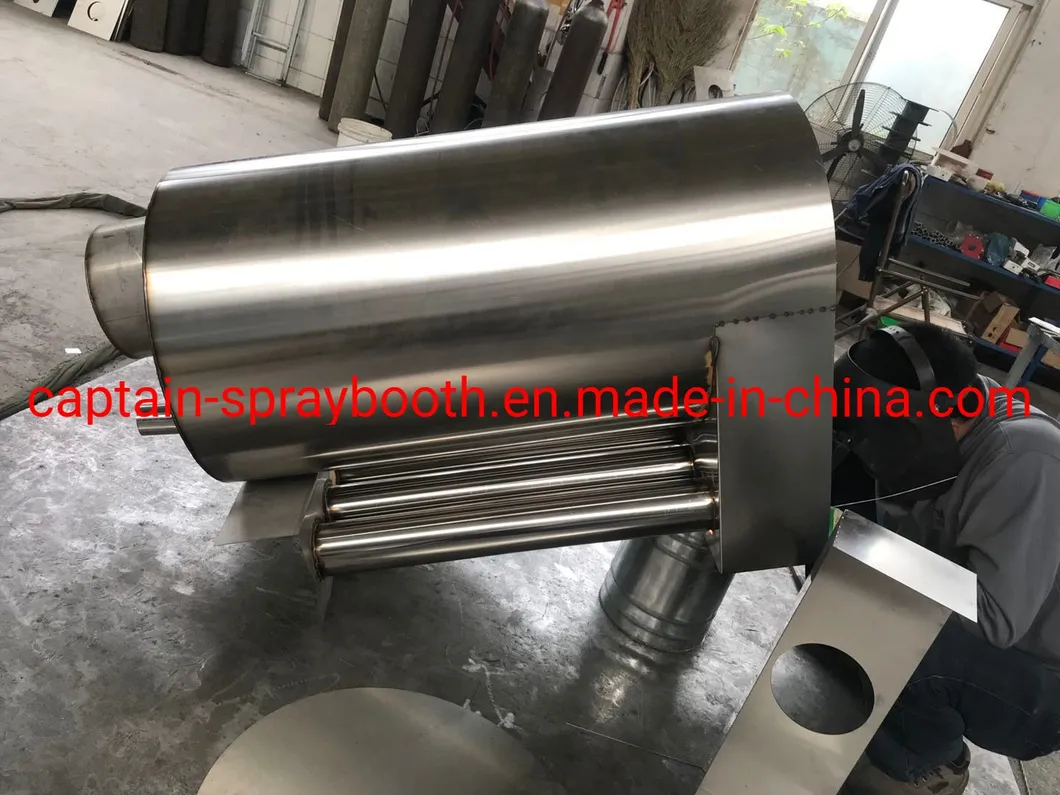

Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.
Our control box is with SCHNEIDER parts

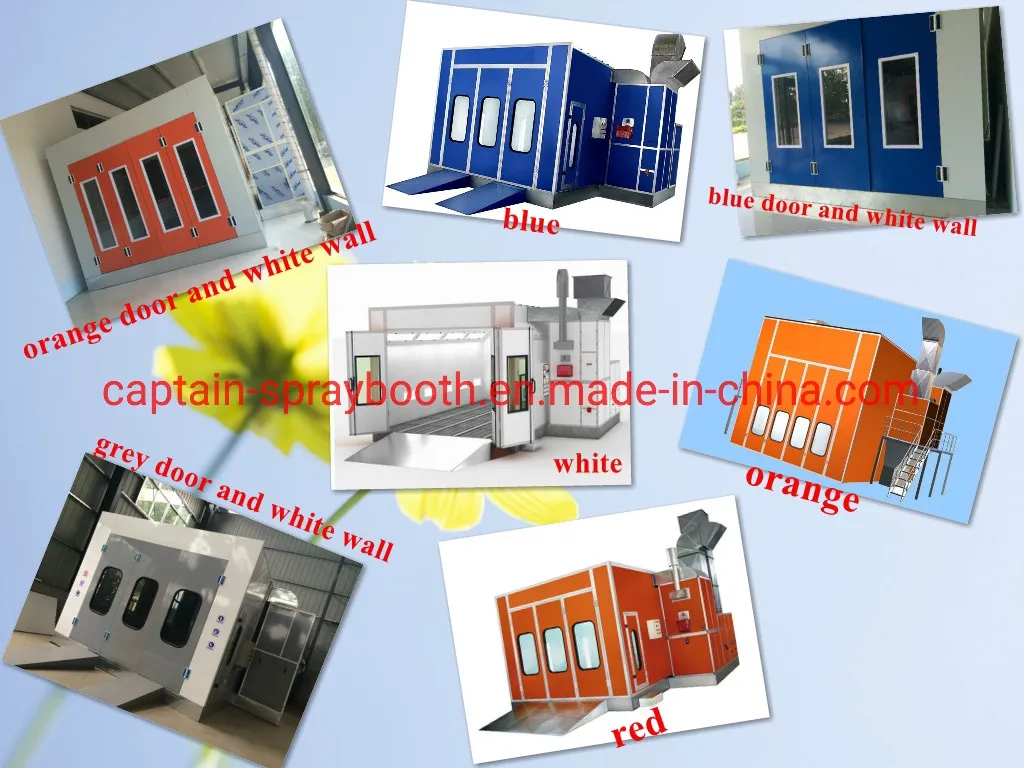

Different Colors for your choice
Workshop---- pictures for our workshop and stock, you can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery

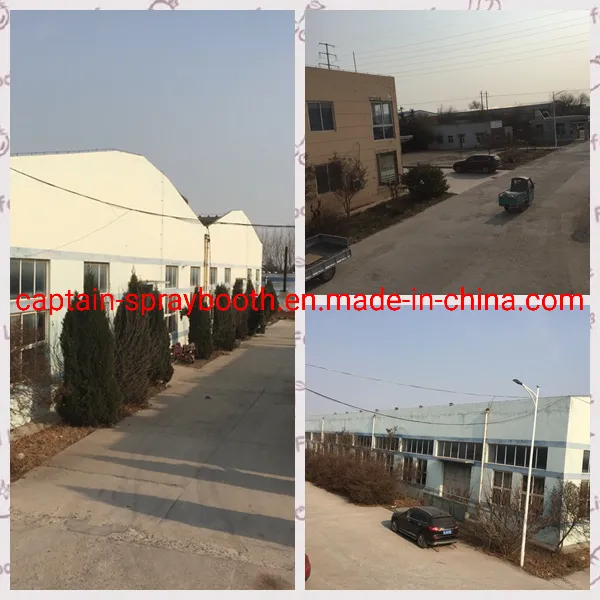

Factory View
Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
Introduction of our company
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
| Item | Detailed specification |
| Inside dimension | 6900×3900×2650 mm(L×W×H) |
| Outside dimension | 7000×5300×3250 mm(L×W×H) |

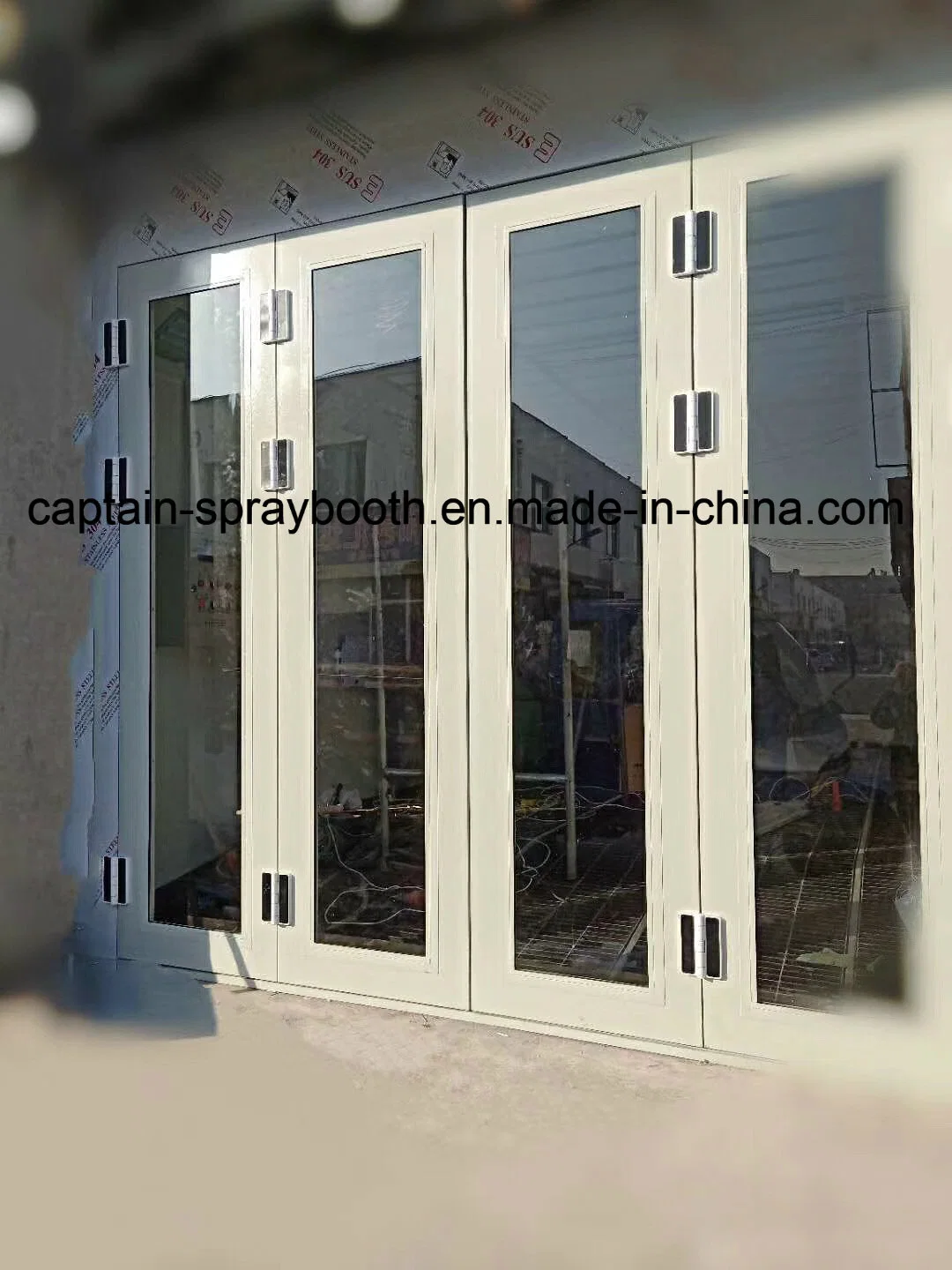

| Front door | Folding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue. |
| Emergency door | 1 unit, 650×2000mm(W×H), color: white |
| Basement | Galvanized steel assemble, 300mm high, with adjustable bolts, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized. 3ramps, 900×2000mm/pc. |
| Wall panel | Thickness: 50mm, width:950mm, tongue and groove structure, 0.5mm color steel with rock wool inside, color: white. |
| Light | Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 11Units×4Pcs=44Pcs×18W, with electronic ballasts, lighting boxes open outside, illumination≥1500Lux |
| Generator cabinet | Intake from back upper, exhaust from back upper, aluminium alloy frame; white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system | Inlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
Outlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. | |
| Heating system | RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. |
| Purification system | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof | Galvanized steel |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller,adjustable electric exhaust damper, all motors are normal start. |
| Total power | 18.5KW |
| UNIT PRICE |
Basic Draw----we can make draw according to your need and your installation place
Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise
Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.
Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.
Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.
The installed models by our customers
Parts
High desensity wall panel, two men stand on it, it will not bend.
Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.
Our control box is with SCHNEIDER parts
Different Colors for your choice
Workshop---- pictures for our workshop and stock, you can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery
Factory View
Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
Introduction of our company
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
