Product Description

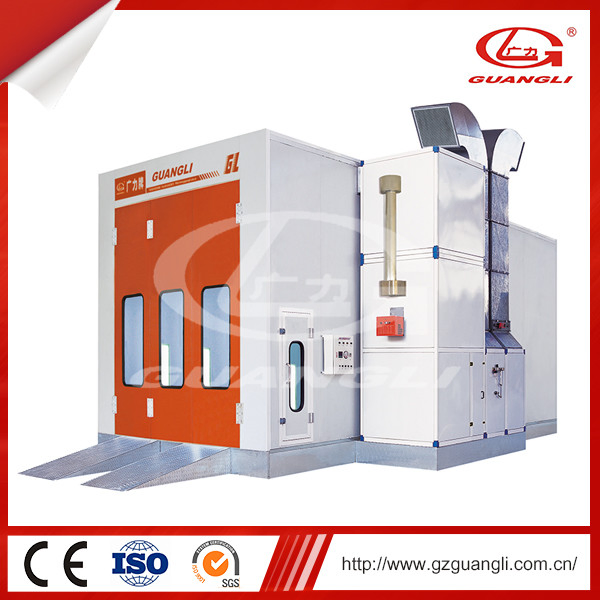

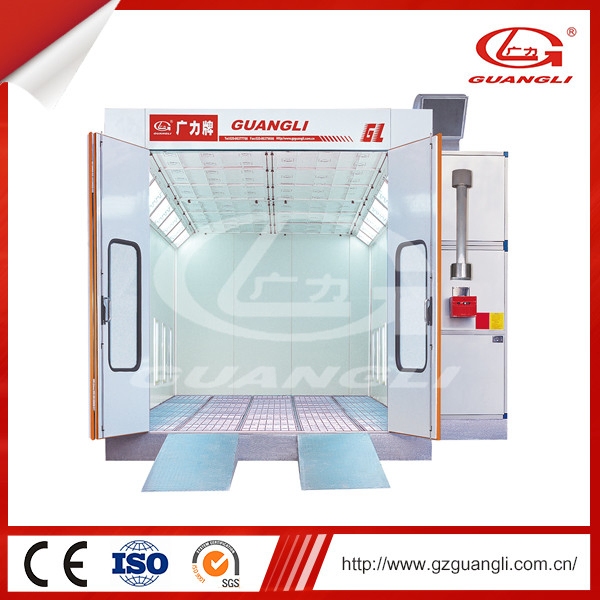

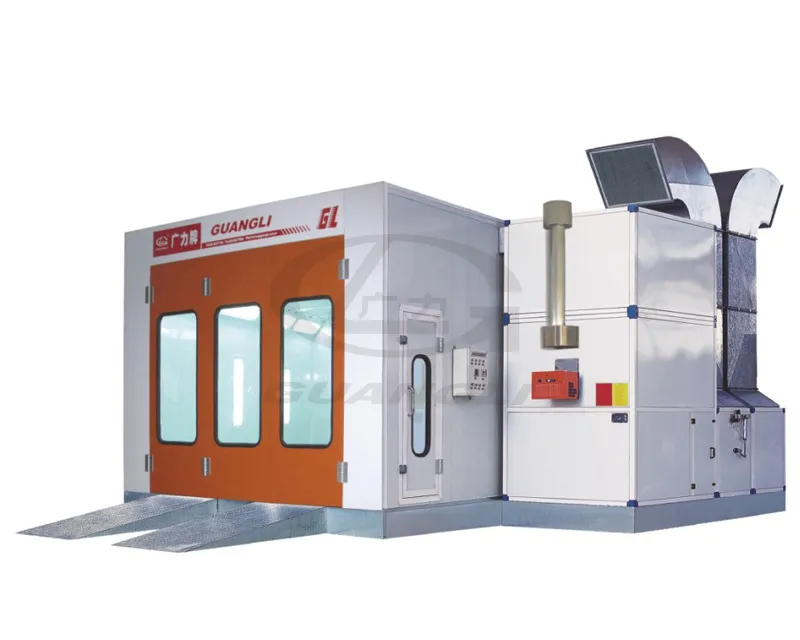

Top Qualtiy Spraybooth
Product Logo: GL
Product details:
| Model NO. | GL9( CE standard) |
| External Size | 8.7*5.63*4.23(m) |
| Internal Size | 8.6*4.0*3.4(m) |

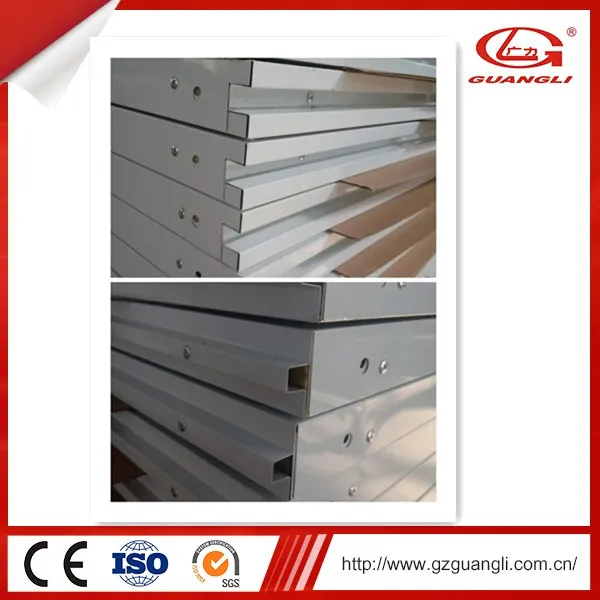

| Wall panel colour | White |
| wall panel keep warm material | Rock Wool, thickness:50mm |
| Wall panel colour steel | Thickness:0.426mm with metal edge cover |
Door :
| Enter size | 3*3.35(m) |
| Structure | 3 folded sheet metal process without frame |
| colour | orange, or blue or grey |
| Front horizontal panel and front vertical panels | White |
| Material | Rock wool |
| Safe door | White; 2000*800(mm), 1 piece in the side wall, with pressure lock with one pc of ramp for safe door and with LED exit light |

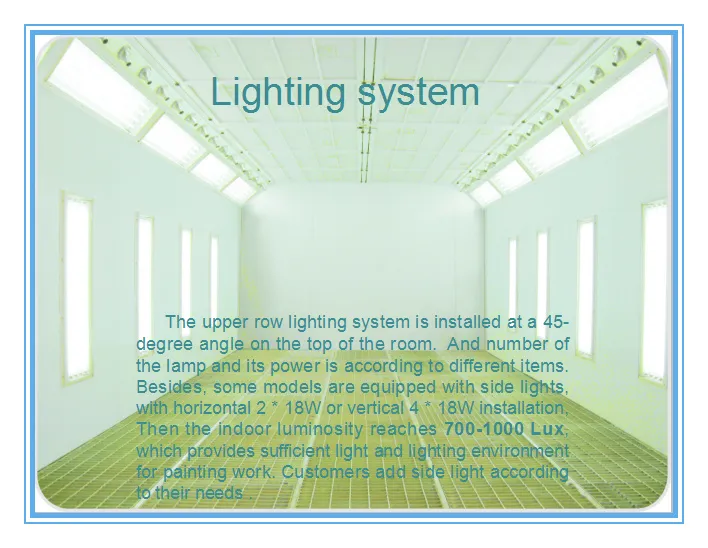

Light system:
| Top light | (2) sides*(6) sets* (4) pcs, LED 18W/piece -With tempering glass cover -With aviation connetor -with full frame for light box for ensruring the seal |
| Side light | (2) sides*(5)sets*(4) pcs, LED 18 W/piece -With tempering glass cover -with aviation connector -with fll frame for light box for ensuring the seal |
Generator:
| Color | White |
| Burner | Italy Riello diesel burner G20S |
| Intake Fan | 1 set of 11 kw with M style pre-filter With explosion-proof impeller |
| Exhaust Fan | 1 set of 7.5 kw with explosion-proof impeller |
| Fan capacity | (36000)M3/h |
| Duct&Chimney duct | With 5m exhaust duct and Without intake duct 5m straight chimney and 2 small bends. |
| Motor Voltage | 380V/50HZ/3PH(other voltage contact me) |

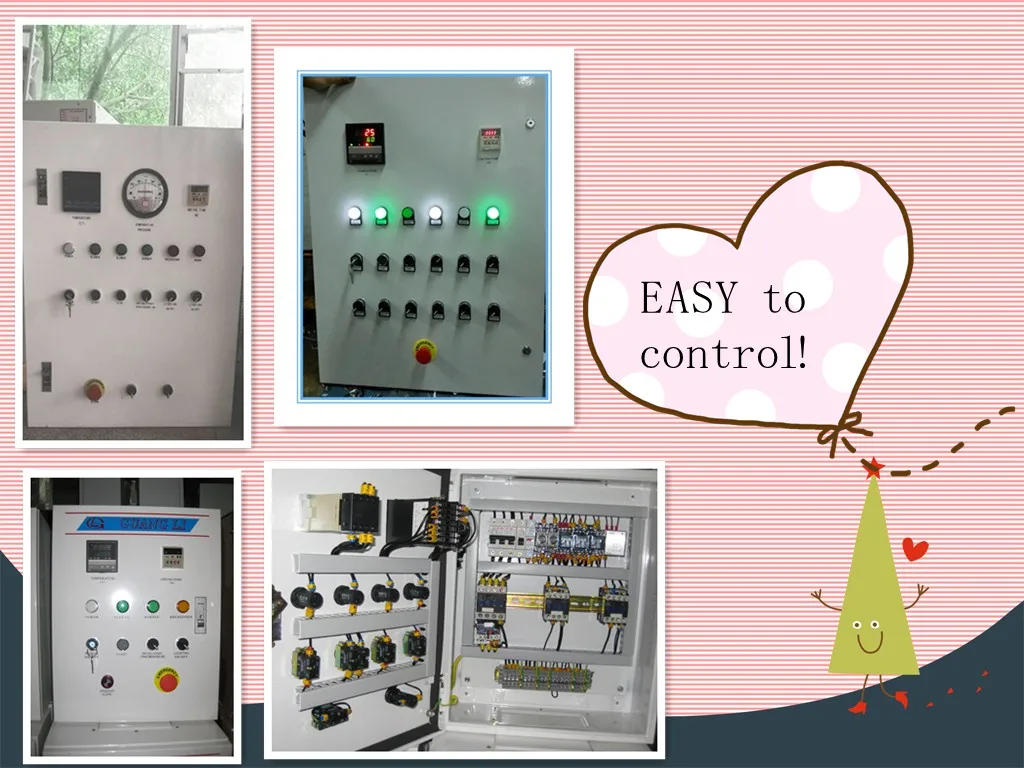

| Control box | Import components;Motor Y/three trangle start; With 1 pcs pressure meter All components should be CE standard, and the control box voltage should be as 24 V. |
Basement:
| Floor | 5 rows of twisted zincified bearing grids |
| Floor filter | 5rows/set |
| Ramps | 2 pcs of grid style ramps |
Filter Frame:
| Top filter | 8 pcs/set |
| Structure | Hinge installed iron welded, powdered |
Total Power: 22.5 KW
Optional wall panel-- stronger
