Scissor Car Lift ( SHL -Y-J-30CBL)
Product Specification1.Initial Height 10.5cm2.Solid steel X structure, good rust resistance and not easy to deformation.3.Oil cylinder built-in explosion-proof device;4.Mechanical safety locking with features of automatic engagement and pneumatic release;5.Ramps can be raised as extension6.Shot blas......
Send Inquiry
Product Description
Product Specification
1.Initial Height 10.5cm

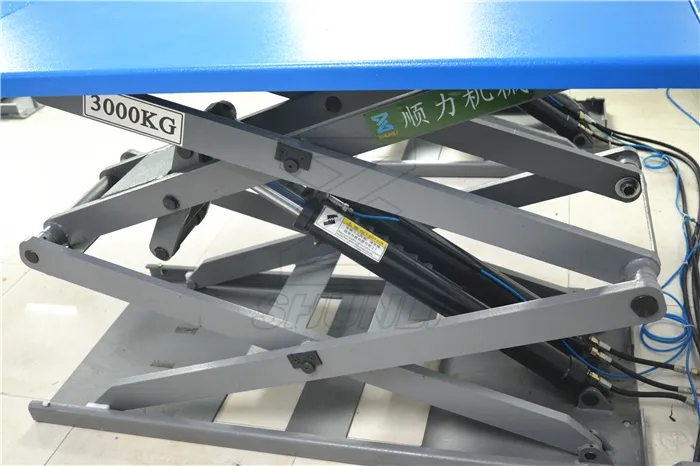

2.Solid steel X structure, good rust resistance and not easy to deformation.
3.Oil cylinder built-in explosion-proof device;
4.Mechanical safety locking with features of automatic engagement and pneumatic release;
5.Ramps can be raised as extension
6.Shot blasting and high temperature baking powder coated surface finish;
7.Wear-resisting bearings
8.24V safety control circuit
9.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
10.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
Technical parameter
Product Details

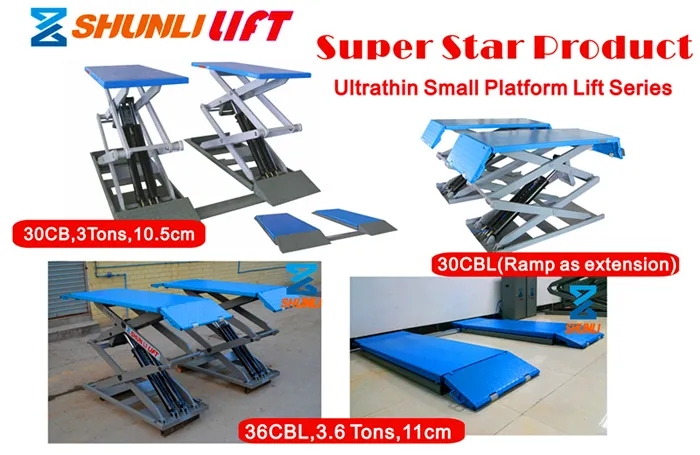

Ultrathin Small Platform Lift Series
Product advantage
1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost 0 after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
1.Initial Height 10.5cm
2.Solid steel X structure, good rust resistance and not easy to deformation.
3.Oil cylinder built-in explosion-proof device;
4.Mechanical safety locking with features of automatic engagement and pneumatic release;
5.Ramps can be raised as extension
6.Shot blasting and high temperature baking powder coated surface finish;
7.Wear-resisting bearings
8.24V safety control circuit
9.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
10.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
Technical parameter
| Model | SHL-Y-J-30CBL |
| Lifting Capacity | 3000kg |
| Lifting Height | 1980mm |
| The Platform Length | 1480-2080mm |
| The Platform Width | 650mm |
| Initial Height | 105mm |
| Motor | 3kw |
| Power | 220V, 380V |
| Air Pressure | 0.4-0.6mpa |
Product Details
Ultrathin Small Platform Lift Series
Product advantage
1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost 0 after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
