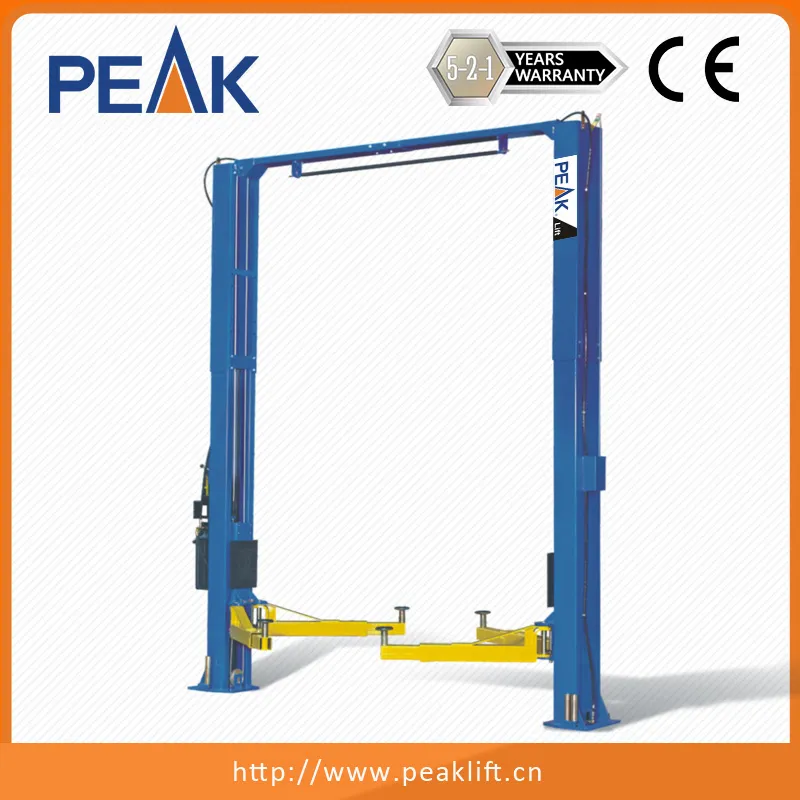

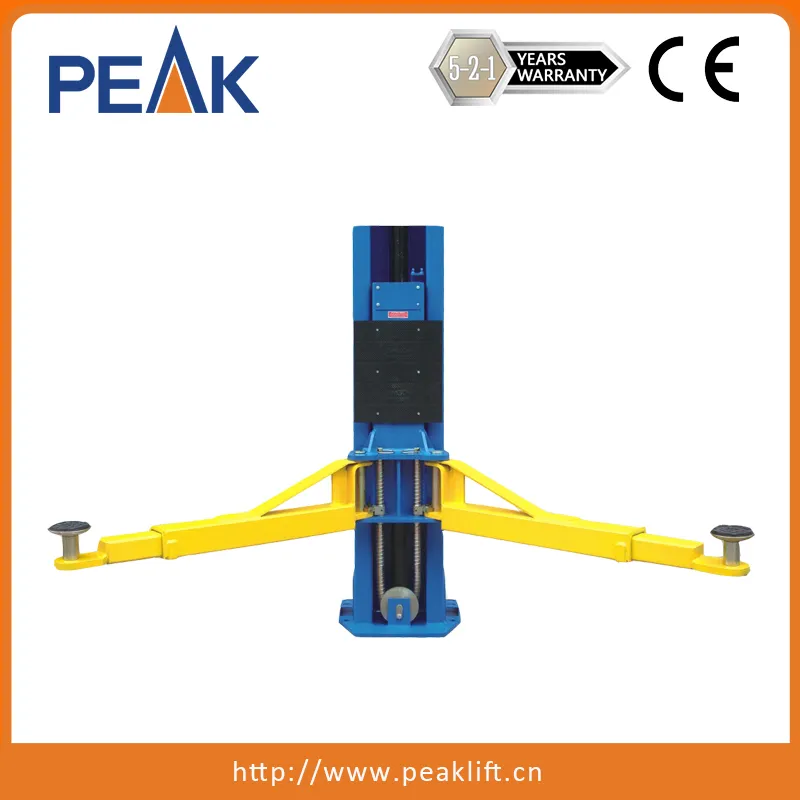

15000lbs Capacity Heavy Duty Electrical Truck Lift (215C)
215C 15000LBS Capacity Heavy Duty Electrical Truck LiftFeature 15,000 Lbs Capacity Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals. 3/8" aircraft quality cable is used for synchronization. Self-lubricating UHMW Polyethylene sliders and bronze bush. Single......
Send Inquiry
Product Description
215C 15000LBS Capacity Heavy Duty Electrical Truck Lift
Feature
• 15,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Adjustable three height setting accommodate varying service ceiling heights(The special low setting height 150" need to choose the optional short cables).
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
215C 15000LBS Capacity Heavy Duty Electrical Truck Lift
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
Feature
• 15,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Adjustable three height setting accommodate varying service ceiling heights(The special low setting height 150" need to choose the optional short cables).
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
215C 15000LBS Capacity Heavy Duty Electrical Truck Lift
| Model | 215C | ||
| Style | Planer-type Direct-drived | ||
| Lifting Capacity | 6.8T (15,000lbs) | ||
| Lifting Time | 72 Seconds | ||
| A | Lifting Height | 1872-2101mm (73 3/4"-82 3/4") | |
| B | Overall Height | 3812/4192/4497mm(150"/ 165" / 177") | |
| C | Overall Width | 3829mm(150 3/4") | |
| D | Drive-Thru Clearance | 2787mm(109 3/4") | |
| E | Width Between Columns | 3137mm(123 1/2") | |
| F | Minimum Pad Height | 145mm(5 3/4") | |
| Gross Weight | 1098Kg (2,420 lbs) | ||
| Motor | 4.0HP | ||
| Packing Dimension | 2890 x 540 x 765mm | ||
| QTY of Container | 18 Units/20'GP | ||
| 36 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
