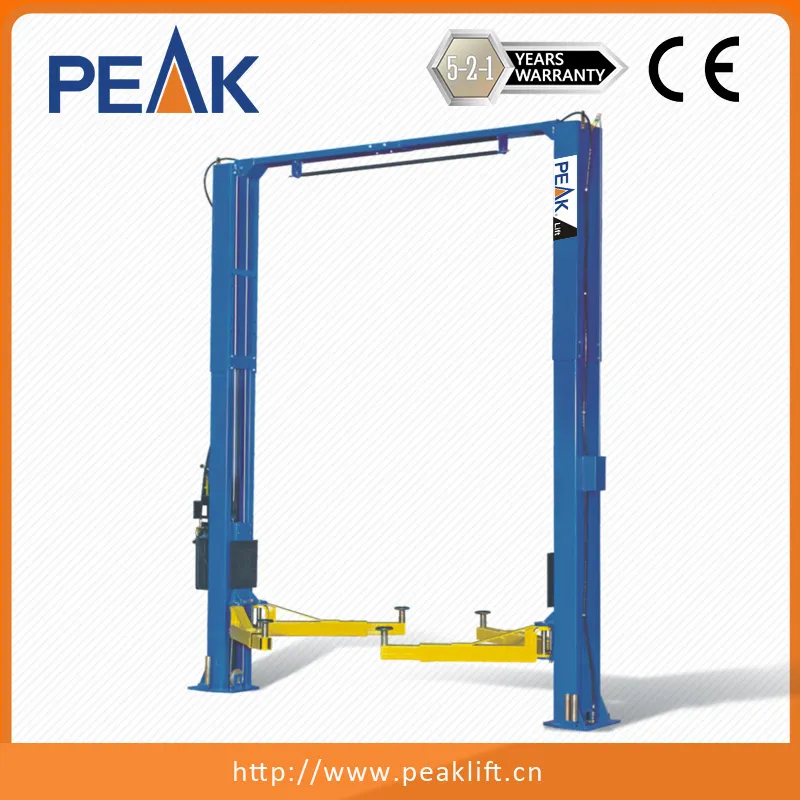

Symmetric Heavy-Duty China Supplier 2 Post Workshop Garage Lift (215C)
Symmetric Heavy-Duty China Supplier 2 Post Workshop Garage Lift(215C)Feature 15,000 Lbs Capacity Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals. 3/8" aircraft quality cable is used for synchronization. Self-lubricating UHMW Polyethylene sliders and bronze......
Send Inquiry
Product Description
Symmetric Heavy-Duty China Supplier 2 Post Workshop Garage Lift(215C)
Feature
• 15,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Adjustable three height setting accommodate varying service ceiling heights(The special low setting height 150" need to choose the optional short cables).
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Symmetric Heavy-Duty China Supplier 2 Post Workshop Garage Lift(215C)
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
Feature
• 15,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Adjustable three height setting accommodate varying service ceiling heights(The special low setting height 150" need to choose the optional short cables).
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Symmetric Heavy-Duty China Supplier 2 Post Workshop Garage Lift(215C)
| Model | 215C | ||
| Style | Planer-type Direct-drived | ||
| Lifting Capacity | 6.8T (15,000lbs) | ||
| Lifting Time | 72 Seconds | ||
| A | Lifting Height | 1872-2101mm (73 3/4"-82 3/4") | |
| B | Overall Height | 3812/4192/4497mm(150"/ 165" / 177") | |
| C | Overall Width | 3829mm(150 3/4") | |
| D | Drive-Thru Clearance | 2787mm(109 3/4") | |
| E | Width Between Columns | 3137mm(123 1/2") | |
| F | Minimum Pad Height | 145mm(5 3/4") | |
| Gross Weight | 1098Kg (2,420 lbs) | ||
| Motor | 4.0HP | ||
| Packing Dimension | 2890 x 540 x 765mm | ||
| QTY of Container | 18 Units/20'GP | ||
| 36 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
