Product Description

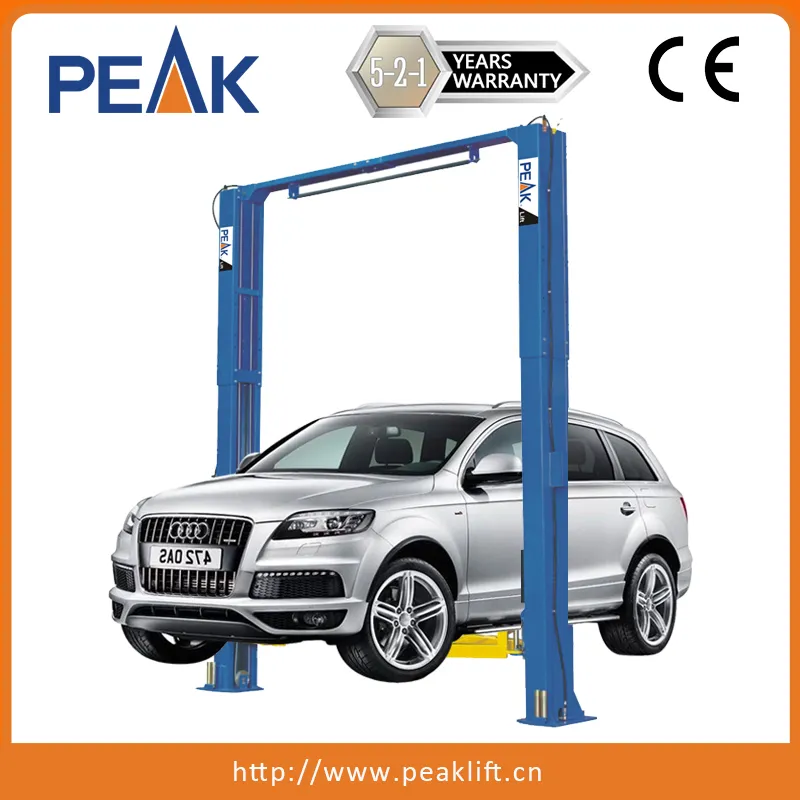

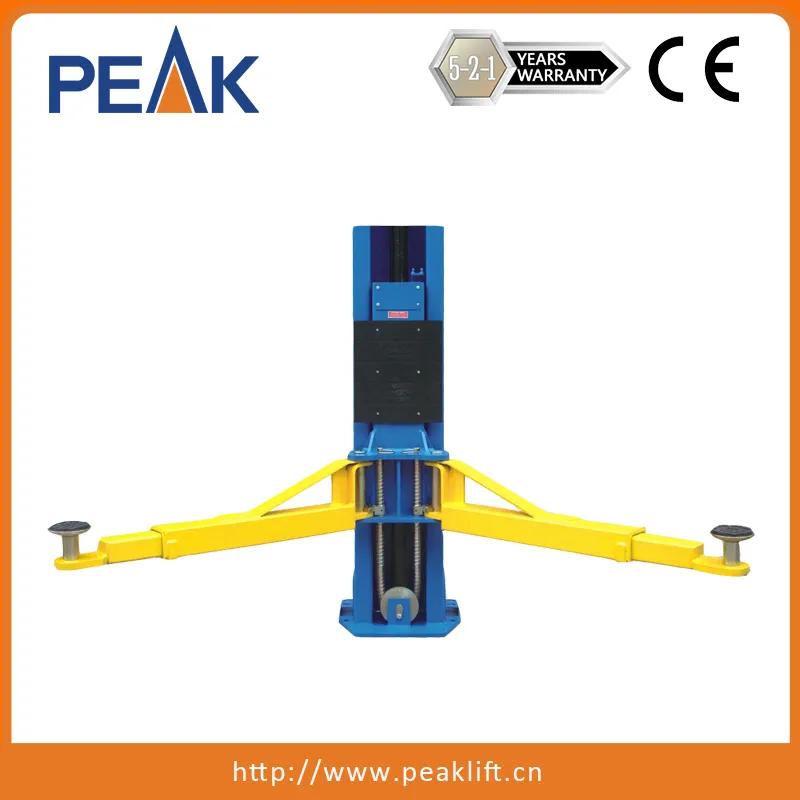

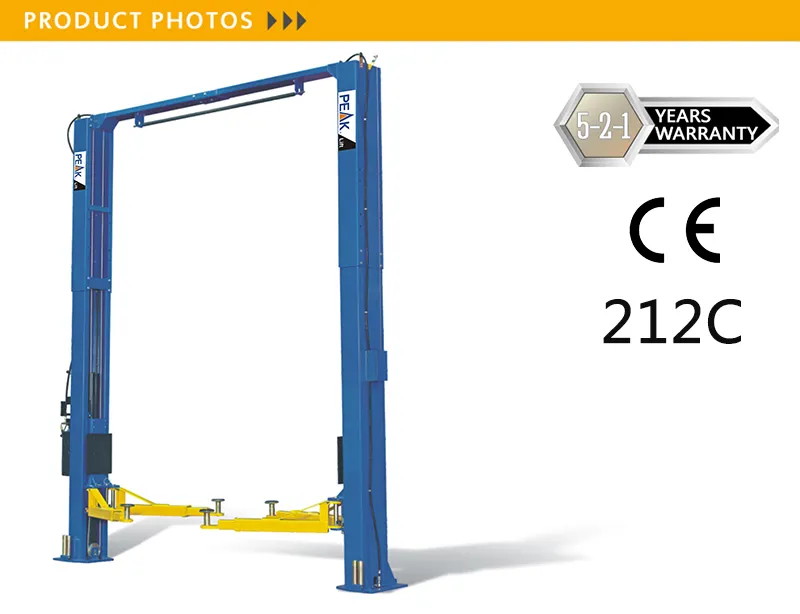

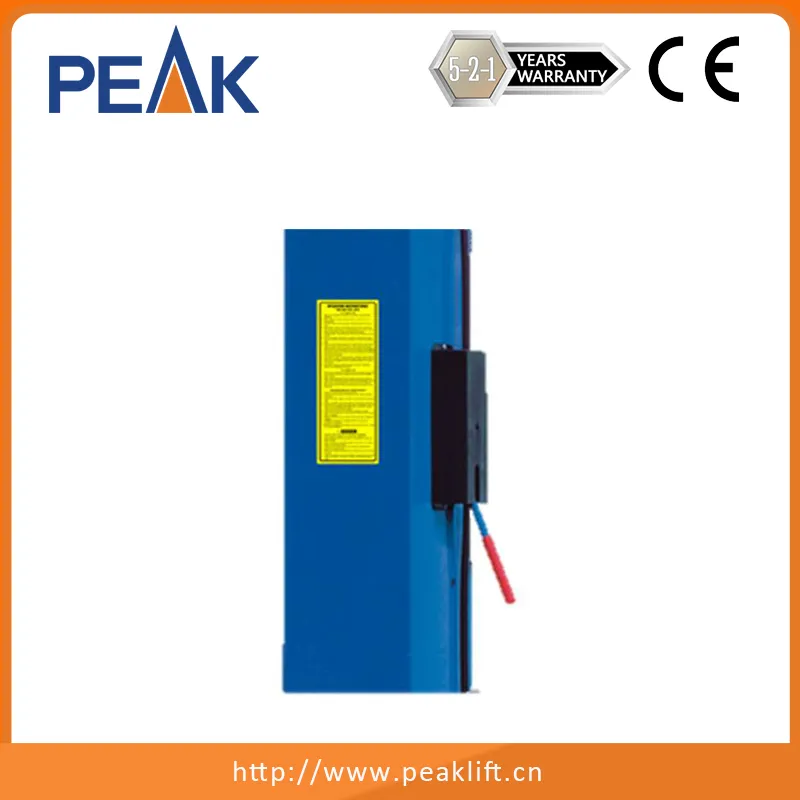

Heavy Duty 5.5t Capacity Two Columns Car Lifting Tools for Sale (212C)
Feature
• 12,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Adjustable three height setting accommodate varying service celing heights(The special low setting height 150" need to choose the optional cables)
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Heavy Duty 5.5t Capacity Two Columns Car Lifting Tools for Sale (212C)
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
Feature
• 12,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Adjustable three height setting accommodate varying service celing heights(The special low setting height 150" need to choose the optional cables)
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Heavy Duty 5.5t Capacity Two Columns Car Lifting Tools for Sale (212C)
| Model | 212C | ||
| Style | Planer-type Direct-drived | ||
| Lifting Capacity | 5.5T (12,000lbs) | ||
| Lifting Time | 55 Seconds | ||
| A | Lifting Height | 1842-2071mm (72 1/2"-81 1/2") | |
| B | Overall Height | 3812/4192/4497mm(150"/ 165" / 177") | |
| C | Overall Width | 3829mm(150 3/4") | |
| D | Drive-Thru Clearance | 2787mm(109 3/4") | |
| E | Width Between Columns | 3137mm(123 1/2") | |
| F | Minimum Pad Height | 115mm(4 1/2") | |
| Gross Weight | 966Kg (2,129 lbs) | ||
| Motor | 4.0HP | ||
| Packing Dimension | 2890 x 540 x 765mm | ||
| QTY of Container | 18 Units/20'GP | ||
| 36 Units/40'GP | |||
