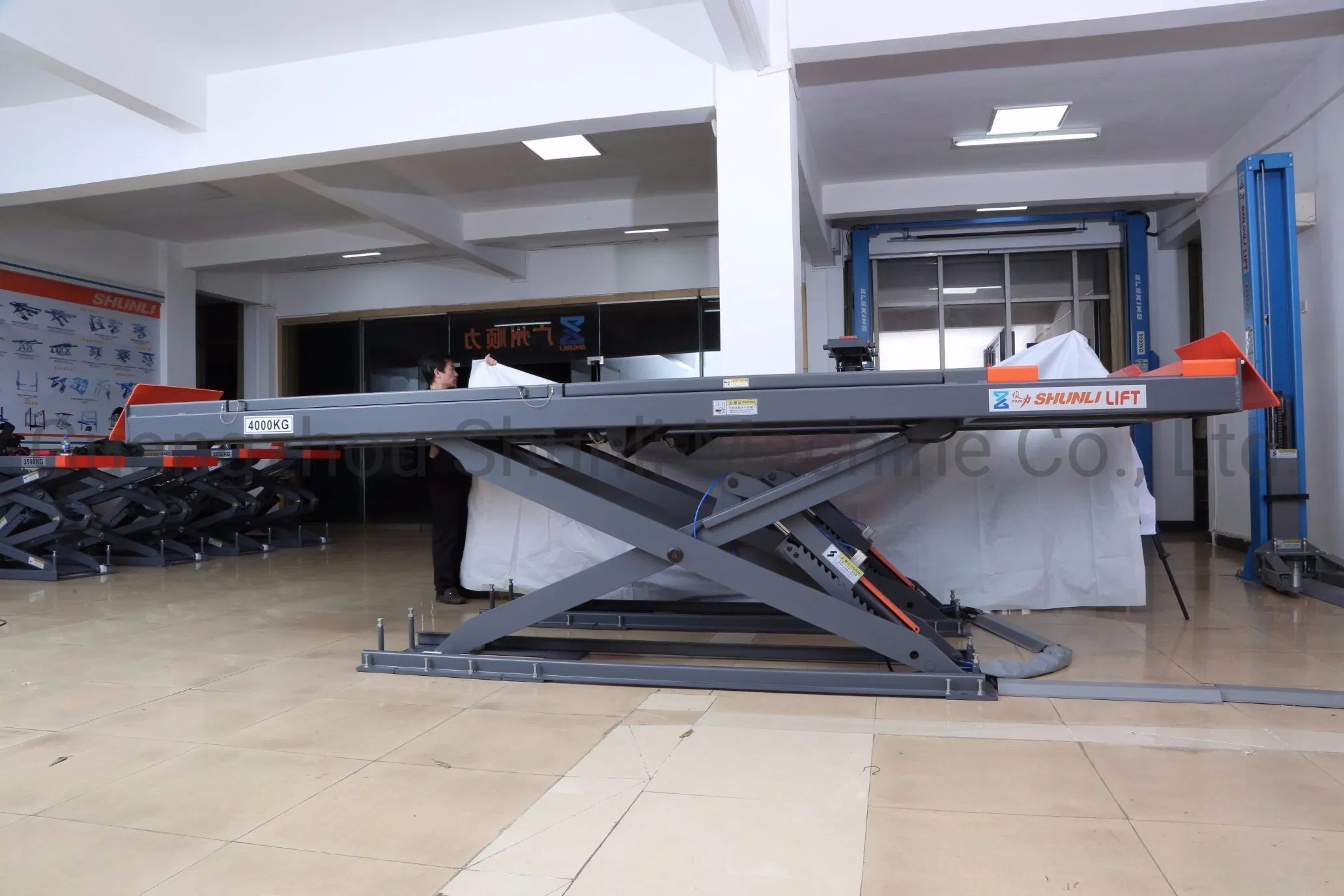

Double Level Scissor Lift for Four Wheel Alignment ( SHL -Y-J-40DL)
Scissor Design and 4000kg Lifting Capacity In ground scissor lift Introduction: Double-Level Scissor Lift Suitable For Four Wheel AlignmentIt's specifically for the repair maintenance, four-wheel aligning, tyre-changing and maintenance of various of high-grade cars. The advantage is easy operati......
Send Inquiry
Product Description
Scissor Design and 4000kg Lifting Capacity In ground scissor lift
Introduction:
Double-Level Scissor Lift Suitable For Four Wheel Alignment
It's specifically for the repair maintenance, four-wheel aligning, tyre-changing and maintenance of various of high-grade cars. The advantage is easy operation, smooth& reliable working process, high lifting insurance quotient and durability.
It's popular in abroad and local market.
Product features:
1.Oil cylinder built-in explosion-proof device
2.Mechanical safety locking with features of automatic engagement and release;
3.Super precision alignment scissor lift, double hidden design small space;
4.Long side slide plate, suitable for different wheelbase models;
5.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;
6.Double hydraulic system, hydraulic and mechanical lock triple insurance device, machine double-stage pneumatic insurance device, suitable for different height requirements;
7.A factory for its unique conjoined structure, Solid steel X structure of high qualified steel plate, made of high precision numerical control design, overcome steel pipe rigidity is not enough, easy to rust, to shape defects, structure more reasonable, more secure;
8.Main hydraulic parts imported from Japan, Germany, high-quality, stable, safe and reliable
9.Pass CE test. 110% dynamic loading, and 150% static loading.
Technical parameter
Product detail
Certification
More we can do
Introduction:
Double-Level Scissor Lift Suitable For Four Wheel Alignment
It's specifically for the repair maintenance, four-wheel aligning, tyre-changing and maintenance of various of high-grade cars. The advantage is easy operation, smooth& reliable working process, high lifting insurance quotient and durability.
It's popular in abroad and local market.
Product features:
1.Oil cylinder built-in explosion-proof device
2.Mechanical safety locking with features of automatic engagement and release;
3.Super precision alignment scissor lift, double hidden design small space;
4.Long side slide plate, suitable for different wheelbase models;
5.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;
6.Double hydraulic system, hydraulic and mechanical lock triple insurance device, machine double-stage pneumatic insurance device, suitable for different height requirements;
7.A factory for its unique conjoined structure, Solid steel X structure of high qualified steel plate, made of high precision numerical control design, overcome steel pipe rigidity is not enough, easy to rust, to shape defects, structure more reasonable, more secure;
8.Main hydraulic parts imported from Japan, Germany, high-quality, stable, safe and reliable
9.Pass CE test. 110% dynamic loading, and 150% static loading.

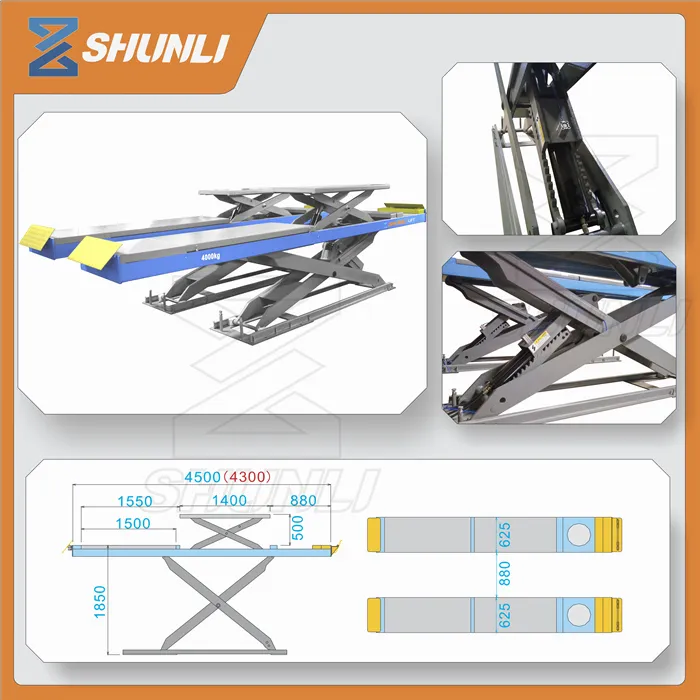

Technical parameter
| Model | SHL-Y-J-40DL |
| Lifting Capacity | 4000kg or 8818 b |
| Host Lifting Height | 1850mm |
| The Host Platform Length | 4300 or 4500mm |
| The Host Platform Width | 610mm |
| Second Jack Lifting Height | 500mm |
| Second Jack Lifting Length | 1400mm |
| Second Jack Lifting Width | 570mm |
| Motor | 3kw |
| Power | 220V, 380V, 50-60HZ |
| Air Pressure | 0.4-0.6mpa |

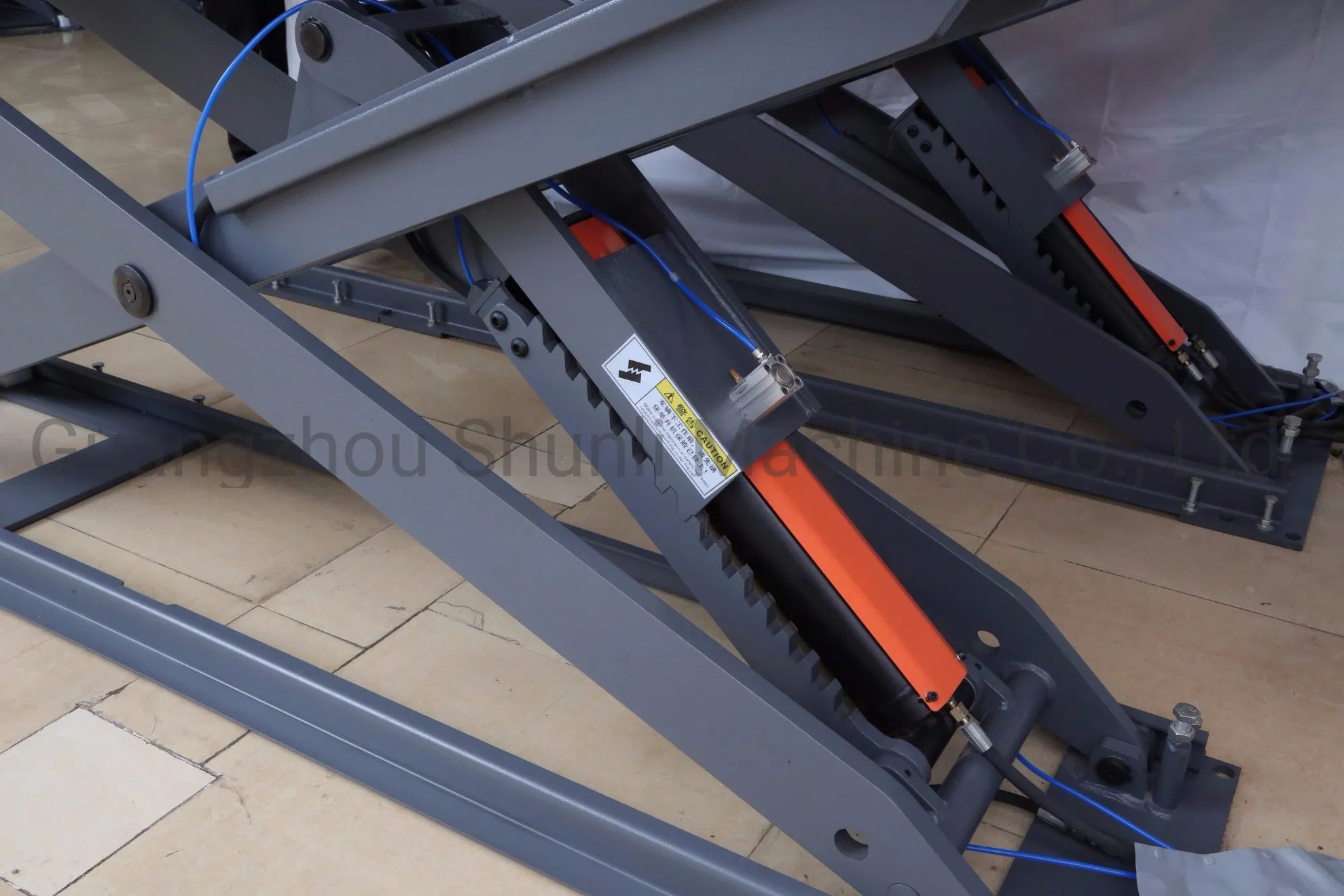

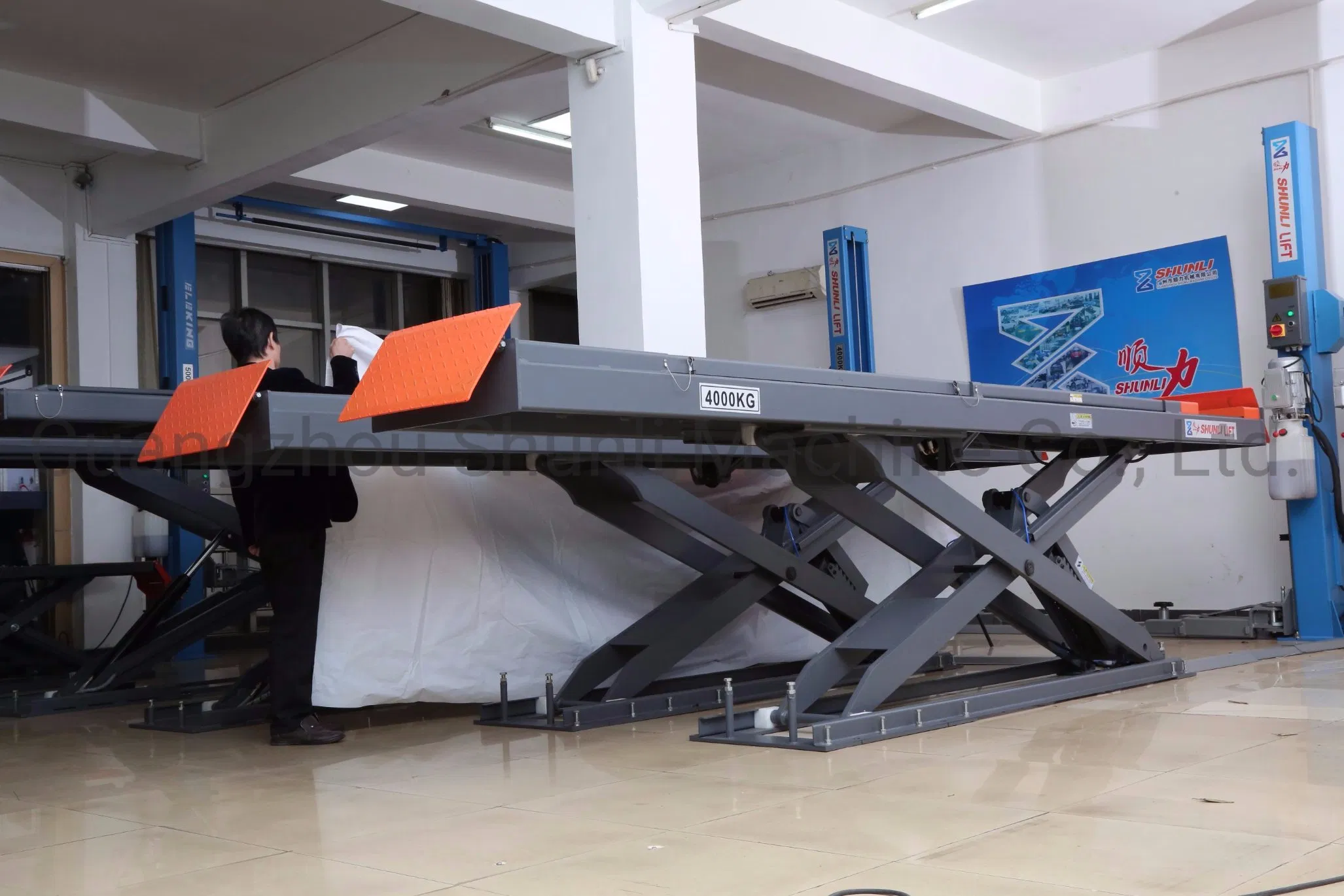

Product detail
Certification

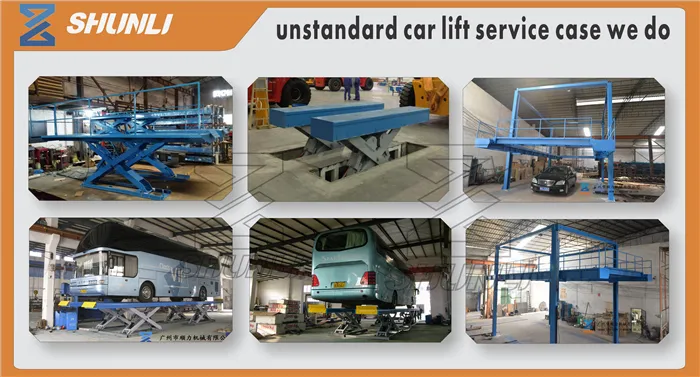

More we can do
With oversea customer

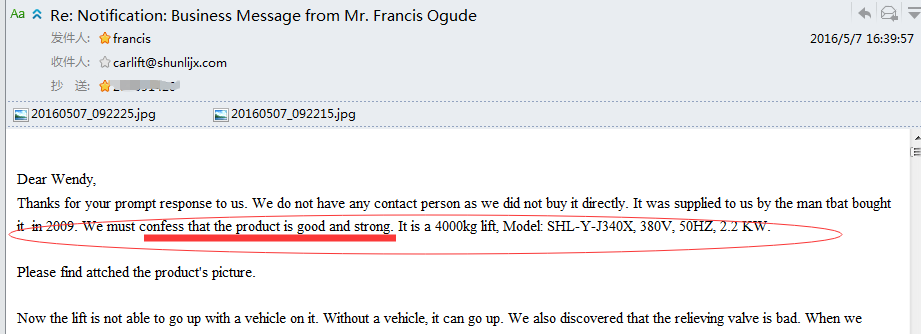

Customer Feedback
Product advantage
1. Easy control the lift table up &down by foot step
2. Solid steel X structure.
3. Without welding, one steel plate insurance machinery lock
4. Almost after-sales problem
5. Pass CE test.
6. Factory directly sales. Good price and good aftersales service.
Customer Feedback
Product advantage
1. Easy control the lift table up &down by foot step
2. Solid steel X structure.
3. Without welding, one steel plate insurance machinery lock
4. Almost after-sales problem
5. Pass CE test.
6. Factory directly sales. Good price and good aftersales service.
