Product Description

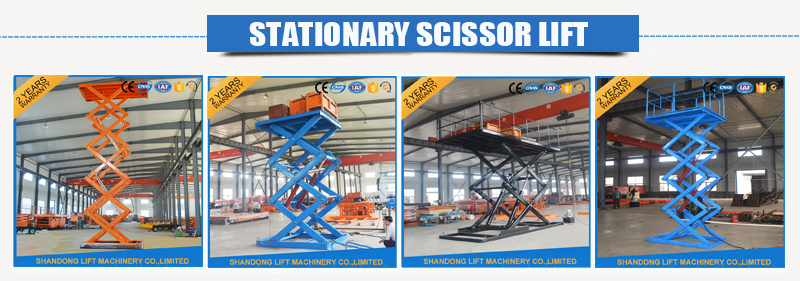

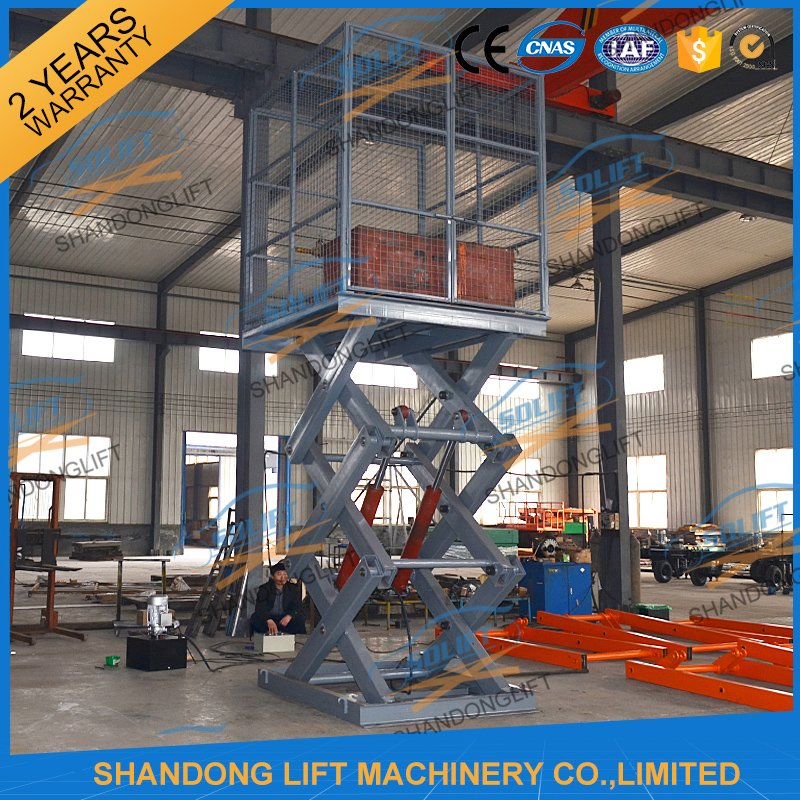

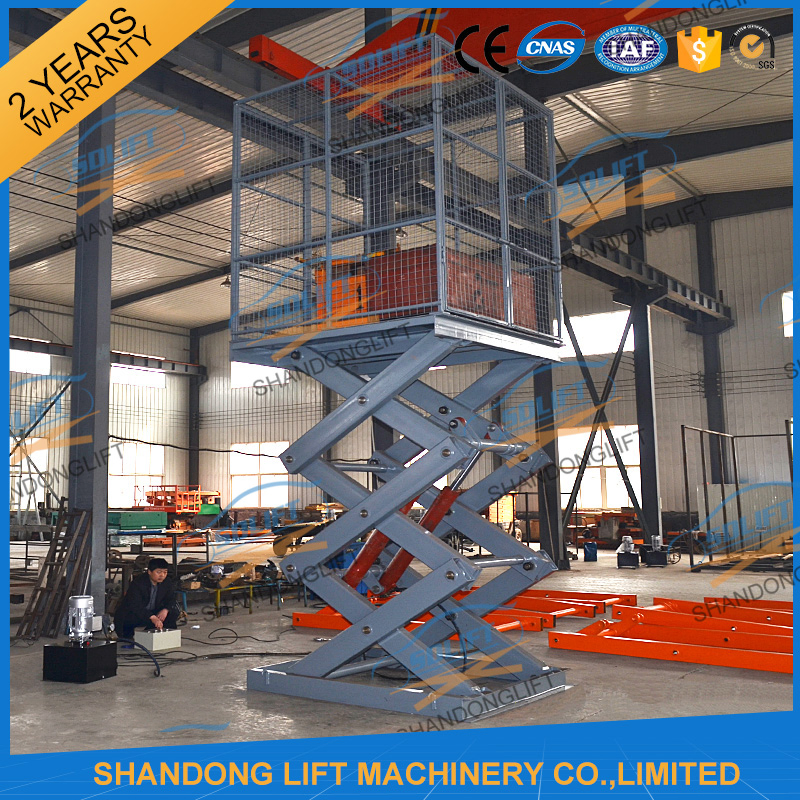

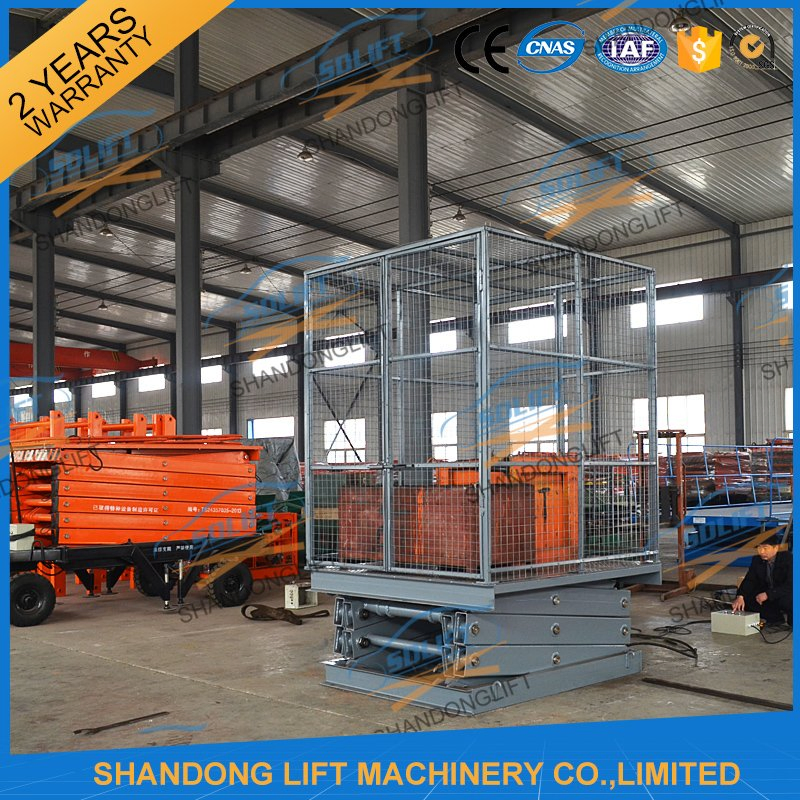

Customized Hydraulic Safety Cargo Lift for Warehouse

Application:

·The cargo lifting elevator can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

·Operation is easy. There are 2 sets control system installed on the cargo lifting elevator, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.

Customized Hydraulic Safety Cargo Lift for Warehouse

The frequent models we supplied for our clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG0.3-2	0.3T	1.5m x 1.5m	2m	400mm	220V, 240V, 380V or 400V
SJG0.5-3	0.5T	2m x 1.8m	3m	500mm	220V, 240V, 380V or 400V
SJG1-4.5	1T	2.1m x 1.5m	4.5m	650mm	220V, 240V, 380V or 400V
SJG1.5-4	1.5T	2.2m x 1.6m	4m	600mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
The cargo lifting elevator can be customized as your detailed size.

Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform

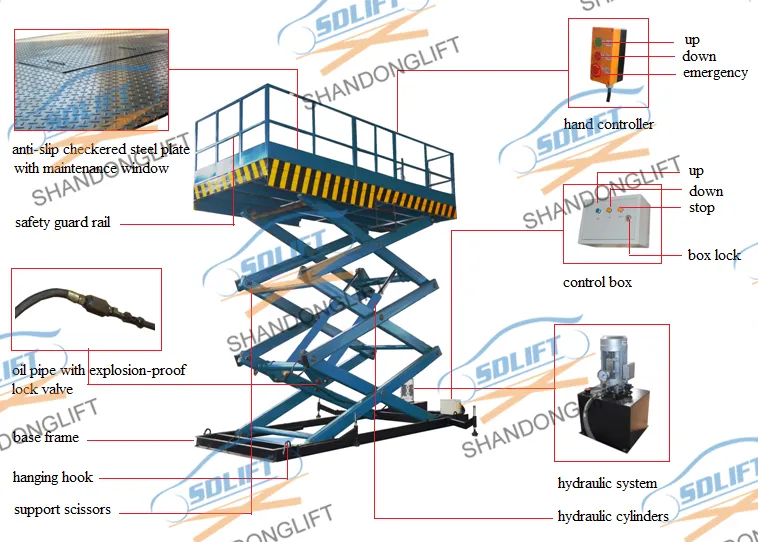

Parts Showing:

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above Electric Hydraulic lift platform .
3) Equipped 4 guide rails, to ensure the cargo lifting elevator runs more smoothly and steadily.
4) The limit switch system helps the cargo lifting elevator to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the cargo lifting elevator are passed 1.2 times loading test before leaving factory.

Our services:
1) We can design the cargo lifting elevator as per your requirement.
2) The most suitable cargo lifting elevator will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
