Column Extensions Two Pillars Asymmetrical Hoist (211SAC)
211SAC Column Extensions Two Pillars Asymmetrical HoistFeature 11,000 Lbs Capacity Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals. 3/8" aircraft quality cable is used for synchronization. Self-lubricating UHMW Polyethylene sliders and bronze bush. Single-......
Send Inquiry
Product Description
211SAC Column Extensions Two Pillars Asymmetrical Hoist

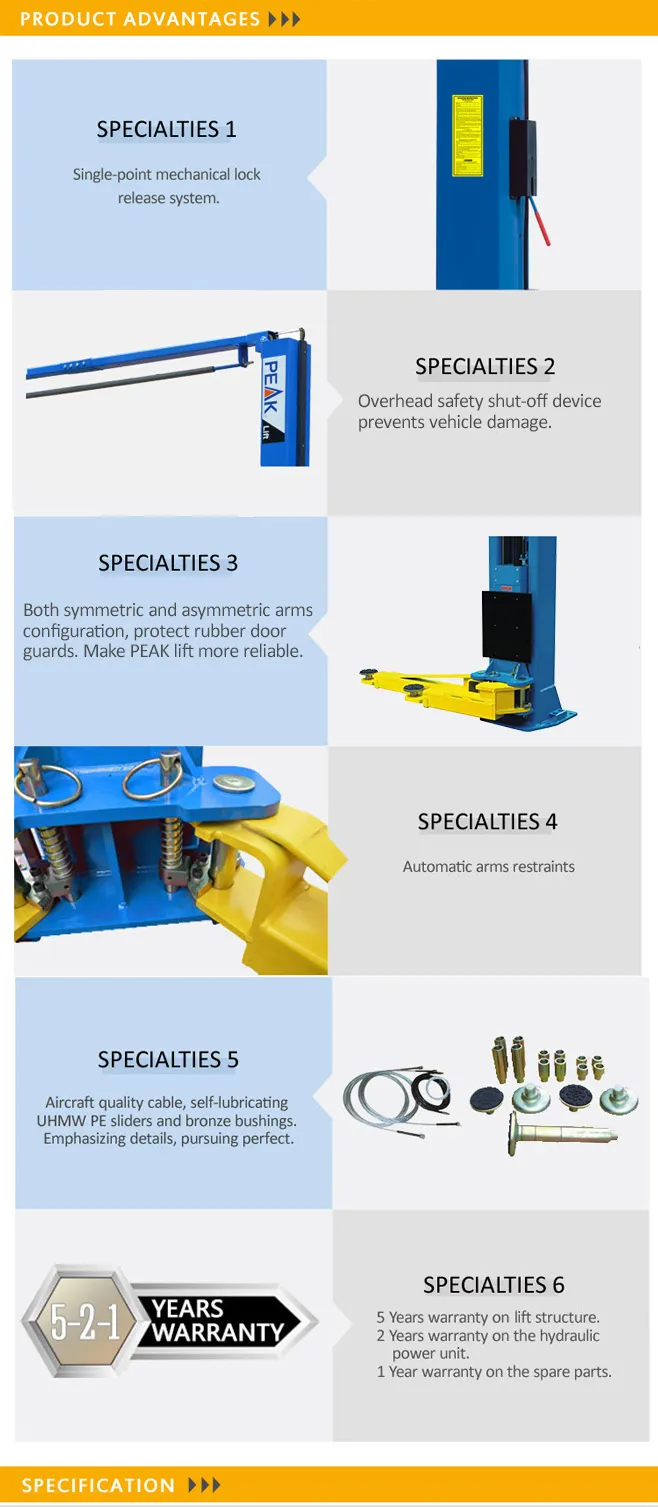

Feature
• 11,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Both symmetric and asymmetric arms configuration.
• Stackable rubber pads with 1.5" , 2.5" and 5" adaptors for truck.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
211CH Column Extensions Two Pillars Asymmetrical Hoist
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
Feature
• 11,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Both symmetric and asymmetric arms configuration.
• Stackable rubber pads with 1.5" , 2.5" and 5" adaptors for truck.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
211CH Column Extensions Two Pillars Asymmetrical Hoist

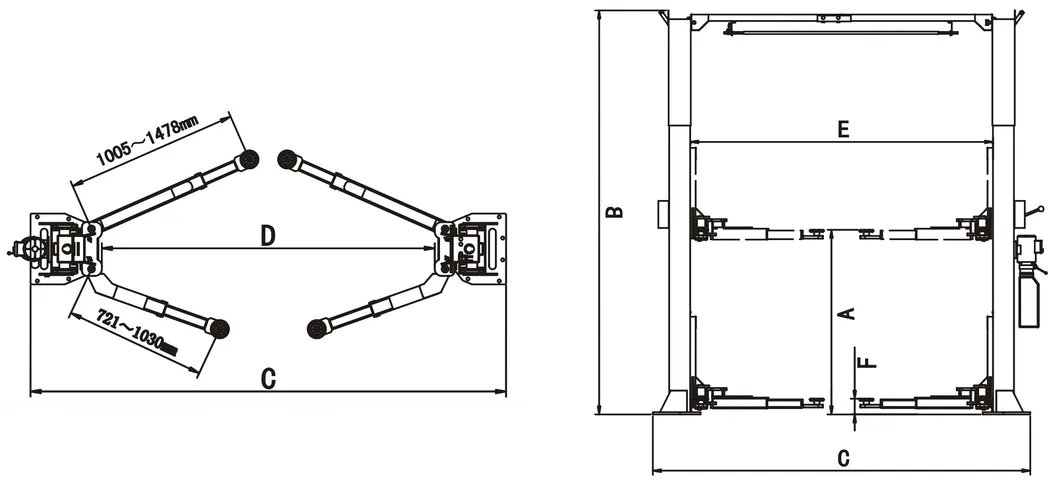

| Model | 211SAC | ||
| Style | Planer-type Direct-drived | ||
| Lifting Capacity | 5.0T (11,000lbs) | ||
| Lifting Time | 55 Seconds | ||
| A | Lifting Height | 1842-2071mm (72 1/2"-81 1/2") | |
| B | Overall Height | 3988/4420mm(157"/ 174") | |
| C | Overall Width | 3542mm(139 1/2") | |
| D | Drive-Thru Clearance | 2495mm(98 1/4") | |
| E | Width Between Columns | 2850mm(112 1/4") | |
| F | Minimum Pad Height | 115mm(4 1/2") | |
| Gross Weight | 910kg (2,006 lbs) | ||
| Motor | 3.0HP | ||
| Packing Dimension | 2890 x 540 x 765mm | ||
| QTY of Container | 20 Units/20'GP | ||
| 40 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
