Clearfloor Type 2 Post Hoist for Automobile Maintenance
209CH Clearfloor Type 2 Post Hoist For Automobile MaintenancePEAK's Series of 2 Post Lift for Hydraulic Direct-DrivedModelLifting Capacity209C4.0T (9,000 lbs)209CH4.0T (9,000 lbs) * "C" is planer-type style. * 209CH is higher than 209C. Feature 9,000 Lbs Capacity Dual hydraulic cylin......
Send Inquiry
Product Description

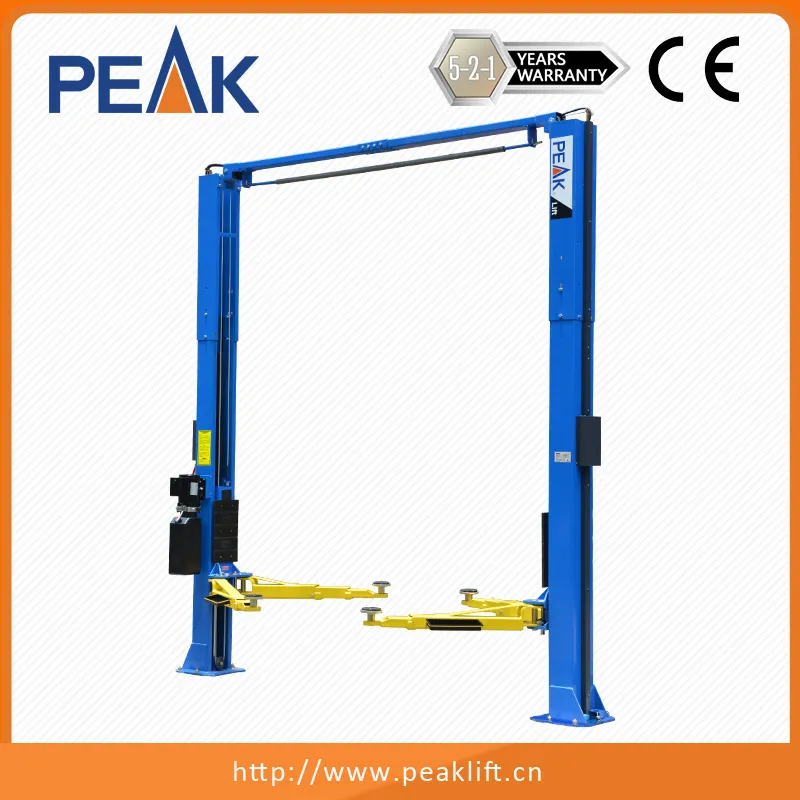

209CH Clearfloor Type 2 Post Hoist For Automobile Maintenance
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived
* "C" is planer-type style.
* 209CH is higher than 209C.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.

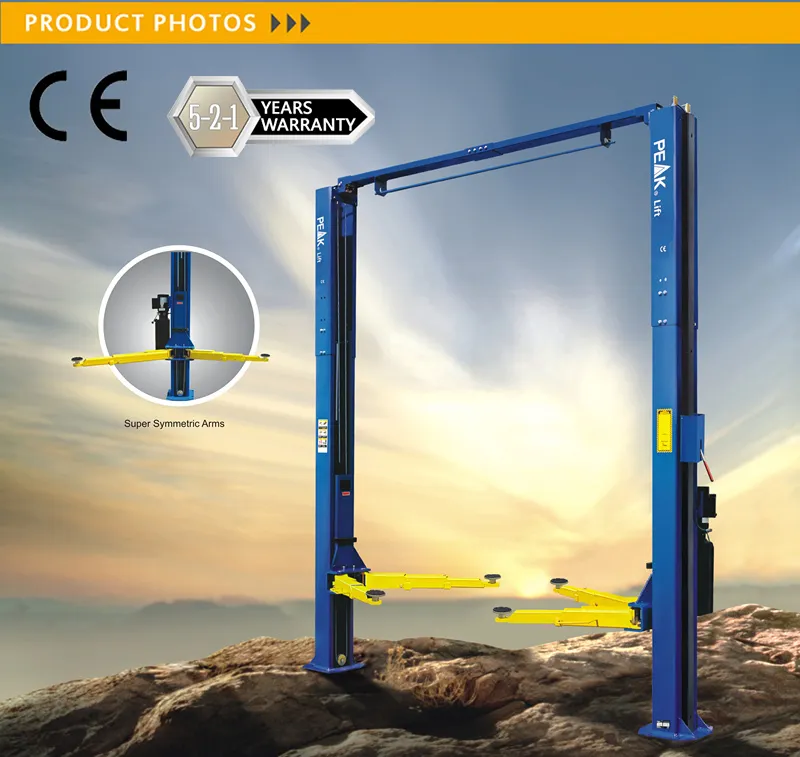

• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
209CH Clearfloor Type 2 Post Hoist For Automobile Maintenance
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived
| Model | Lifting Capacity |
| 209C | 4.0T (9,000 lbs) |
| 209CH | 4.0T (9,000 lbs) |
* 209CH is higher than 209C.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
209CH Clearfloor Type 2 Post Hoist For Automobile Maintenance

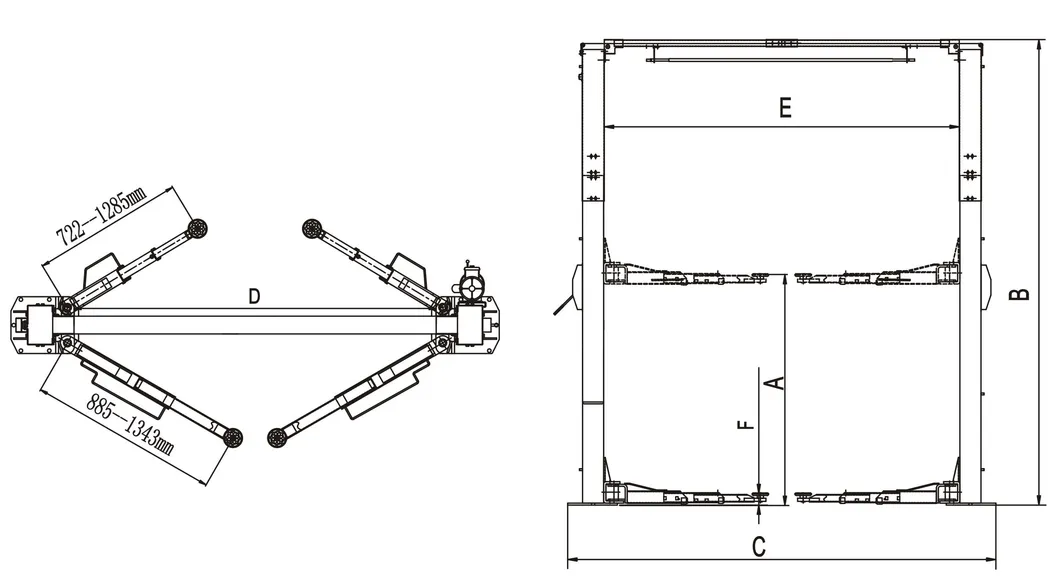

| Model | 209CH | ||
| Style | Planer-type Direct-drived | ||
| Lifting Capacity | 4.0T (9,000lbs) | ||
| Lifting Time | 52 Seconds | ||
| A | Lifting Height | 1815-2044mm(71 1/2"- 80 1/2") | |
| B | Overall Height | 4231mm/4431mm(166 1/2" / 174 1/2") | |
| C | Overall Width | 3428mm(135") | |
| D | Drive-Thru Clearance | 2528mm(99 1/2") | |
| E | Width Between Columns | 2850mm(112 1/4") | |
| F | Minimum Pad Height | 90mm(3 1/2") | |
| Gross Weight | 701kg(1,545lbs) | ||
| Motor | 2.0/3.0HP | ||
| Packing Dimension | 2815 X 450 X 755 mm | ||
| QTY of Container | 23 Units/20'GP | ||
| 46 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
