Product Description

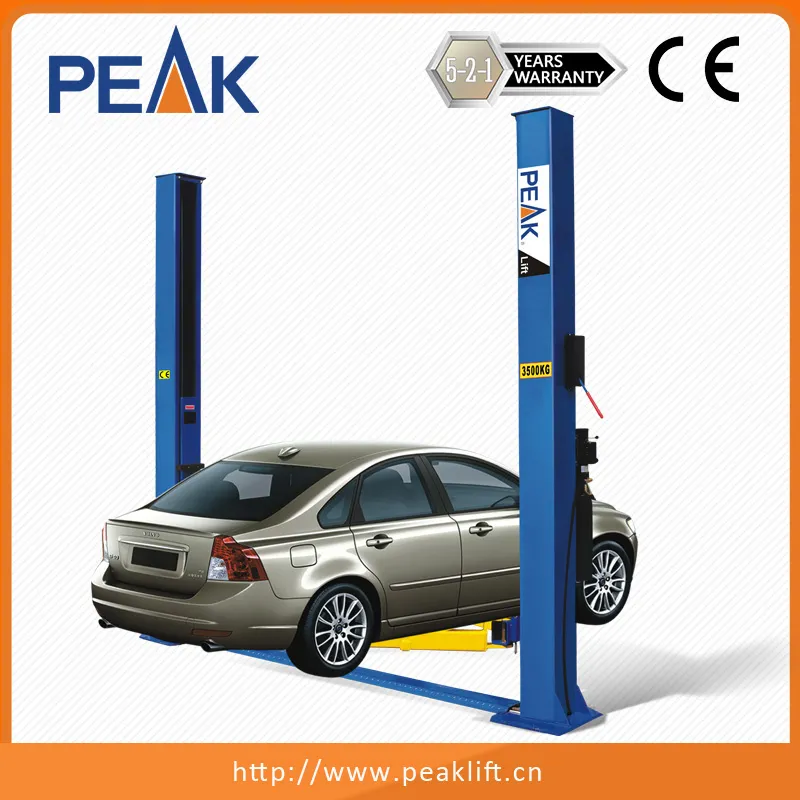

208 8000lbs Chain-drived Compact Line Two-Post Lift with Competitive Price
PEAK's Series of 2 Post Lift for Chain-Drived
* "C" is Clearfloor style.
* 209X is stronger, wider and higher than 209 in construction.
Feature
• 8,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for synchronization.

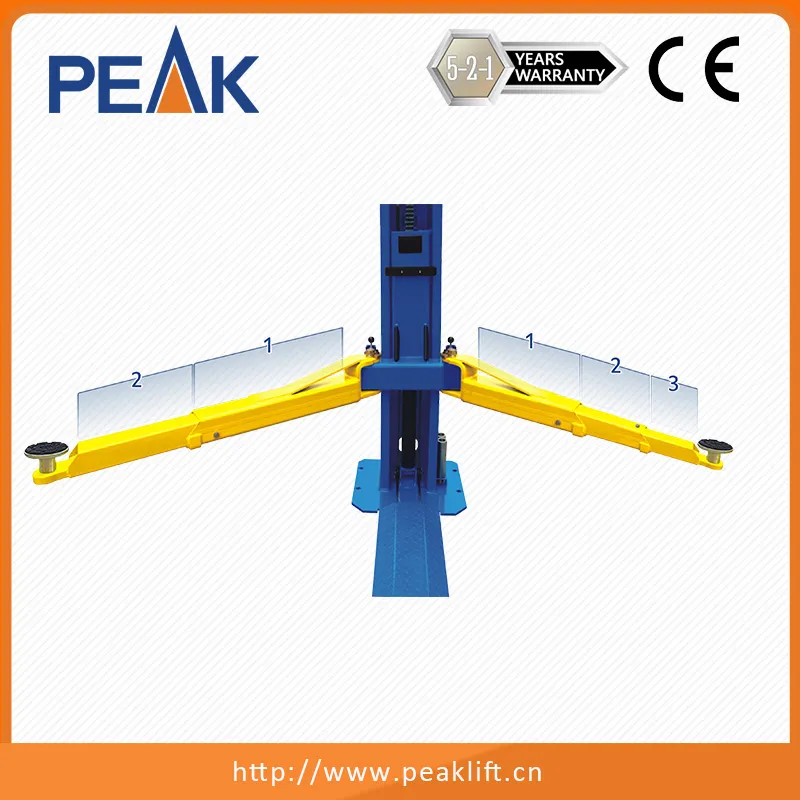

• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.

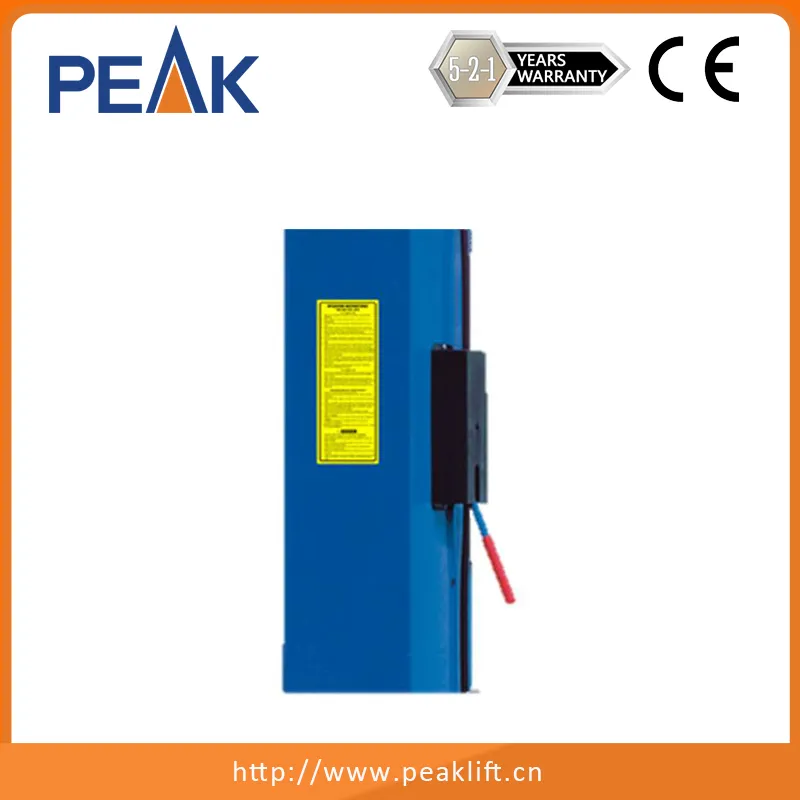

• Single-point safety release, and dual safety design.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
208 8000lbs Chain-drived Compact Line Two-Post Lift with Competitive Price
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK's Series of 2 Post Lift for Chain-Drived
| Model | Lifting Capacity |
| 208C | 3.5T (8,000 lbs) |
| 208 | 3.5T (8,000 lbs) |
| 209 | 4.0T (9,000 lbs) |
| 209X | 4.0T (9,000 lbs) |
* 209X is stronger, wider and higher than 209 in construction.
Feature
• 8,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

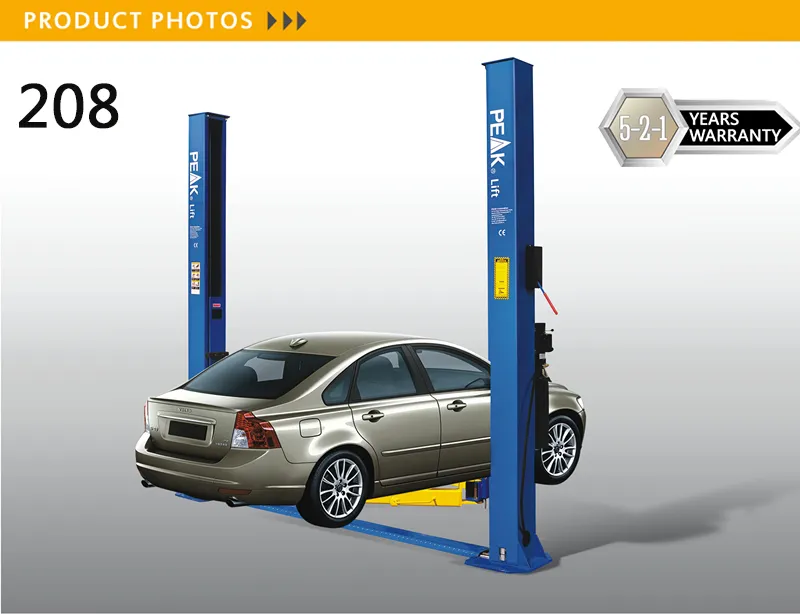

208 8000lbs Chain-drived Compact Line Two-Post Lift with Competitive Price

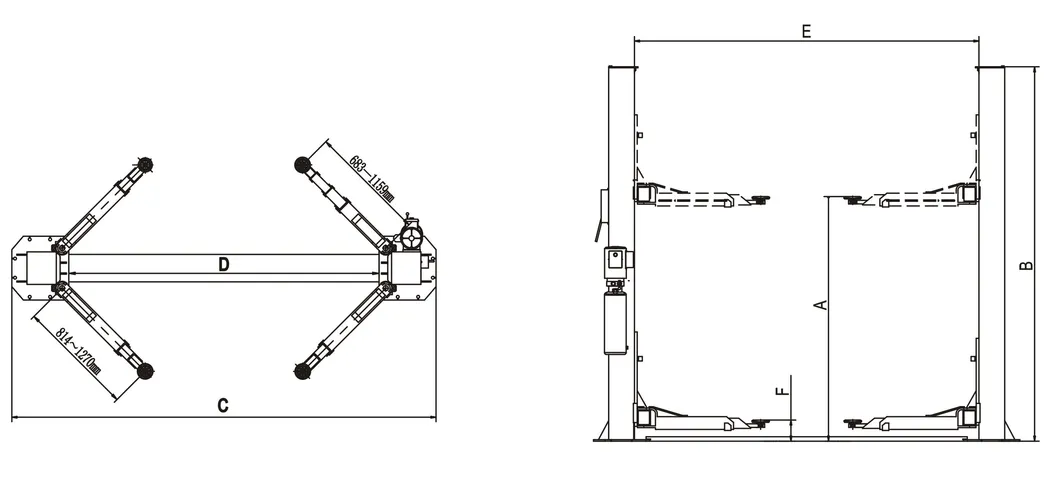

| Model | 208 | ||
| Style | Thin Plate Type Chain-drived | ||
| Lifting Capacity | 3.5T (8,000lbs) | ||
| Lifting Time | 45 Seconds | ||
| A | Lifting Height | 1815-1930mm (71 1/2" - 75") | |
| B | Overall Height | 2850mm(112 1/4") | |
| C | Overall Width | 3390mm(133 1/2") | |
| D | Drive-Thru Clearance | 2554mm(100 1/2") | |
| E | Width Between Columns | 2780mm(109 1/2") | |
| F | Minimum Pad Height | 90mm(3 1/2") | |
| Gross Weight | 590kg(1,300lbs) | ||
| Motor | 2.0/3.0HP | ||
| Packing Dimension | 2900 X 450 X 750 mm | ||
| QTY of Container | 25 Units/20'GP | ||
| 50 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
