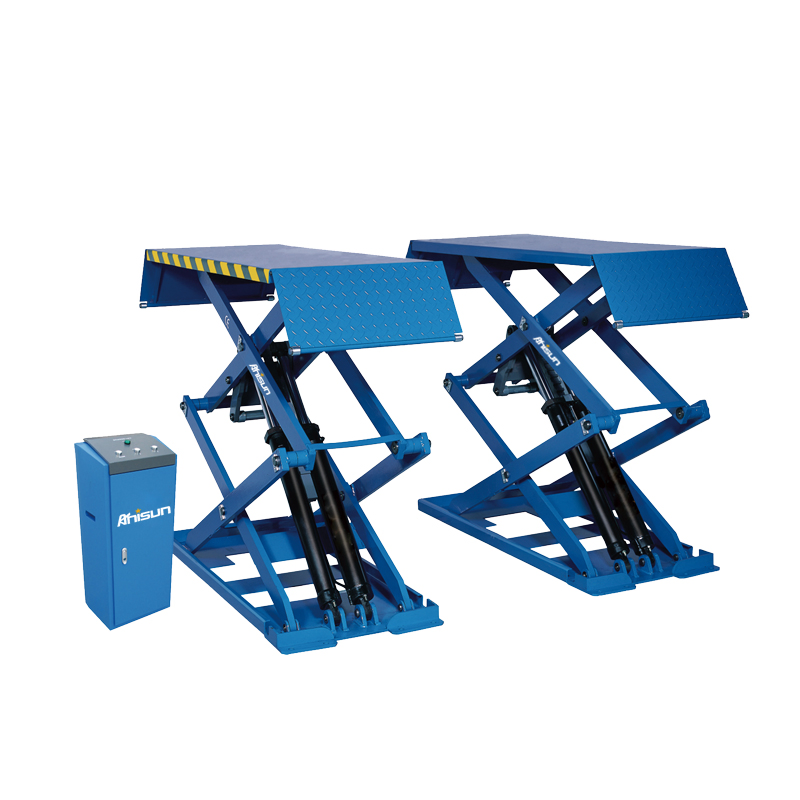

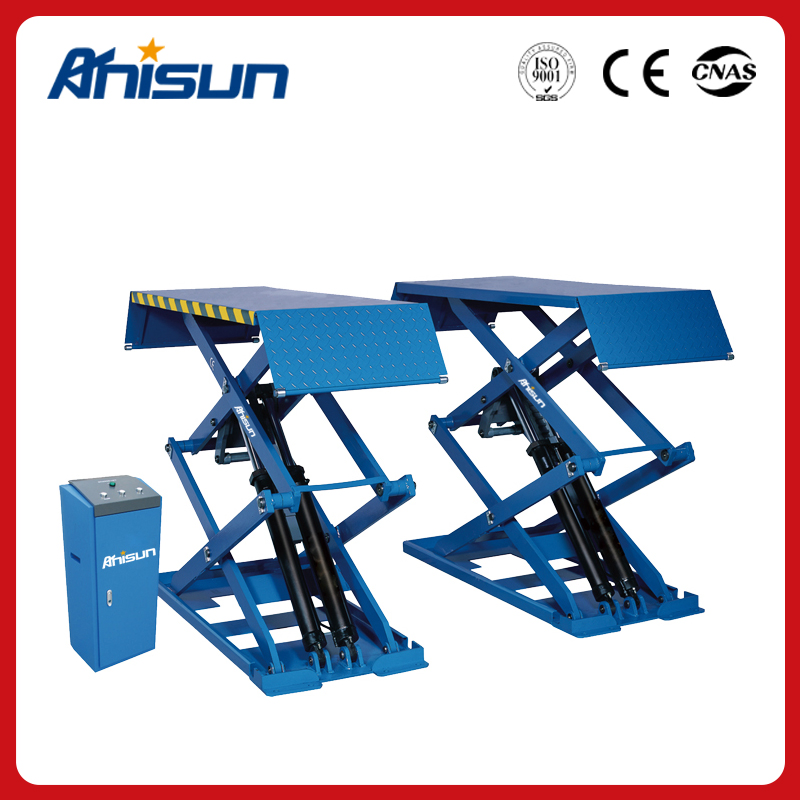

3000kg Ultrathin Small Scissor Lift
Model NoB32Max lifting height1850mmBrandANISUNMachine heightmmPower supply2.2KWLfting time≤55sMotor220-380V/50-60HZ/1-3PHDropping time≤55sColorGrey/Bule/RedMaterialMetalSpecification3TMOQ1SETMachine width2000mmDelivery time7-15days after order confirmed Product Characteristics1. Shear......
Send Inquiry
Product Description
| Model No | B32 | Max lifting height | 1850mm |
| Brand | ANISUN | Machine height | mm |
| Power supply | 2.2KW | Lfting time | ≤55s |
| Motor | 220-380V/50-60HZ/1-3PH | Dropping time | ≤55s |
| Color | Grey/Bule/Red | Material | Metal |
| Specification | 3T | MOQ | 1SET |
| Machine width | 2000mm | Delivery time | 7-15days after order confirmed |
Product Characteristics
1. Shear-shaped concealed ultra-thin structure, occupying small space, without the need to construct foundation pit.
2. Imported hydraulic, pneumatic and electrical components, the equipment runs smoothly.
3. Pneumatic wide teeth self-locking safety and explosion-proof device, safe and reliable.
4. Easy to dismantle tyres and chassis maintenance.
5. Extended platform structure, suitable for various types of vehicles.
TECHNICAL PARAMETER
Motor power 2.2 kw
Power supply voltage 380V/220V
Machine Noise < 70dB
Gas source pressure 6-8 kg/cm 2
Working environment temperature 5-40 C
Working environment humidity 30-95%
Transportation and storage temperatures - 25-55 C
Installation Height of Machine <1000M

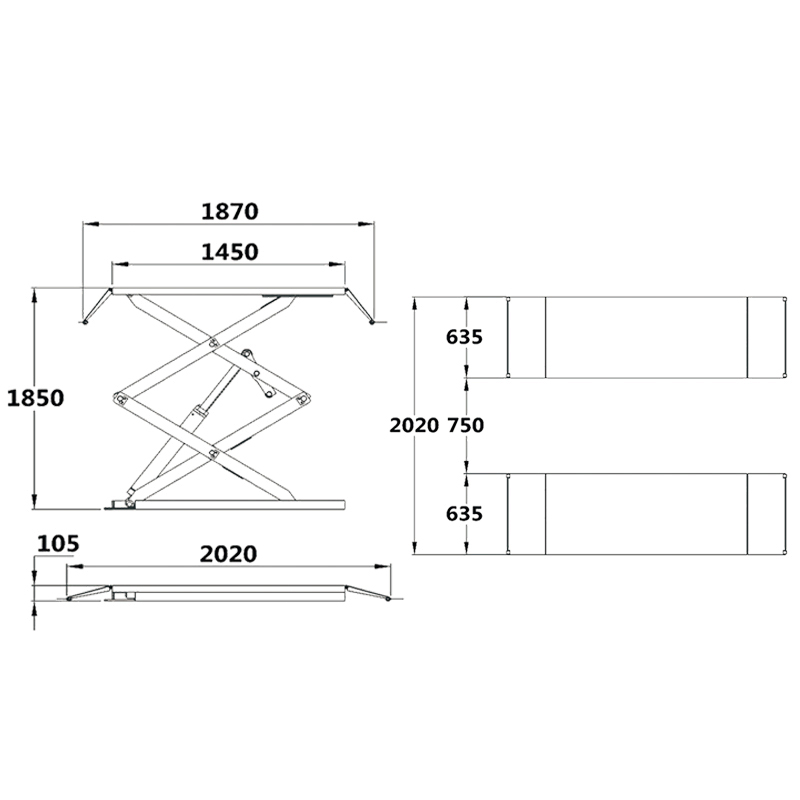

| Lifting Capacity | Lifting Height | Overall Width | Overall Width | Platform Length | Platform Width | Paltform Height | Lfting Time | Dropping Time |
| 3000kgs | 1850mm | 2020mm | 2000mm | 1450mm | 635mm | 105mm | ≤55s | ≤55s |
Company information

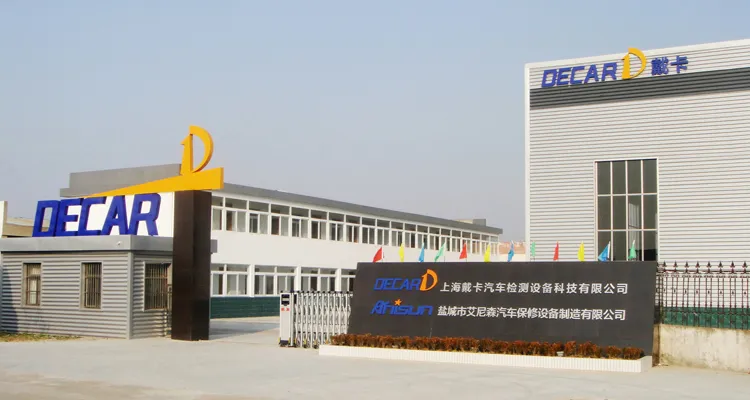

Yancheng Anisun Automobile Maintenance Equipment Manufacturing Co., Ltd. is a professional company which integrates the research and development of automobile testing equipment and automobile maintenance equipment. Its main products are four-wheel positioner, lifter, tire dynamic balancer, tire disassembly and assembly machine, etc. Package
Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 18months
Free parts will be sent by courier or post if machine goes wrong during 36months .
2) Delivery time : 10days after payment received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE
