USA Europe Market Car TPMS Diagnostic Scanner Programming Tool
Tire Pressure Sensor Diagnostic Car TPMS Diagnostic Scanner Programming ToolModel:Q01Application: US and EU cars 315MHz and 433MHz Signal 98% car protoclos supported More than 4000 models availableFunctionsOriginal TPMS Sensor DiagnosisQQR......
Send Inquiry
Product Description
Tire Pressure Sensor Diagnostic Car TPMS Diagnostic Scanner Programming Tool
Model:Q01
Application: US and EU cars
315MHz and 433MHz Signal
98% car protoclos supported
More than 4000 models available
Functions
Original TPMS Sensor Diagnosis
QQR Universal Sensor Programming
QQR Sensor Relearn
Original Sensor Diagnosis
Sensor ID, Pressure, Battery Status and Temperature can be read. Better to read the sensor at
straight and at the front of the sensor.
Features
Activate all known TPMS sensors.
Read, record and playback TPMS real-time data. Including tire pressure, sensor frequency, temperature, battery status etc.
Auto creating sensor ID QQR-Sensor Programming.
Covers the existing software automatically
Programming single tire one time
Check Remote Keyless Entry (Key Fob) for transmissions
Graph vehicle with 4 wheels to simplify the diagnostic process
Provide visual and audible response to confirm sensors are working properly.
Provide historic test recodes
Easy online software update via USB port
Specifications
QQr-Sensor Programing For US Cars
Choose Region: America
Back Home, Select Car Make, Model and Year
Check the OEM part number and universal QQr Sensor.
Turn arrow to PROG for senor programming.
Choose tire and Press OK for programming. Better distance less than 15cm.
Sensor ID, OEM part number and Frequency will be shown on the tool.
QQr Programmable Sensor Programing For EU Cars
1. Choose Region: Europe
2. Back Home, Select Car Make, Model and Year
3. Check the OEM part number and universal QQr Sensor.
4. Turn arrow to PROG for senor programming.
5. Unlock sensor
6. Choose programming methods, "Auto Creat ID" and "Copy ID" available.
7. Choose tire and Press OK for programming. Better distance less than 15cm.
8. Sensor ID, OEM part number and Frequency will be shown on the tool.
QQr Programmable Sensor and Sensor Relearn suggested.
Special Design and Features
User friend fashion housing design
Built-in rechargeable Li-ion battery
TFT color screen
Battery status reading
Relearn Method OEM part number and programmable sensor chosen display
Copy ID function available
Integrated US and EU version in one Tool
Life-time software free update
Fast and simple assembly into any wheels

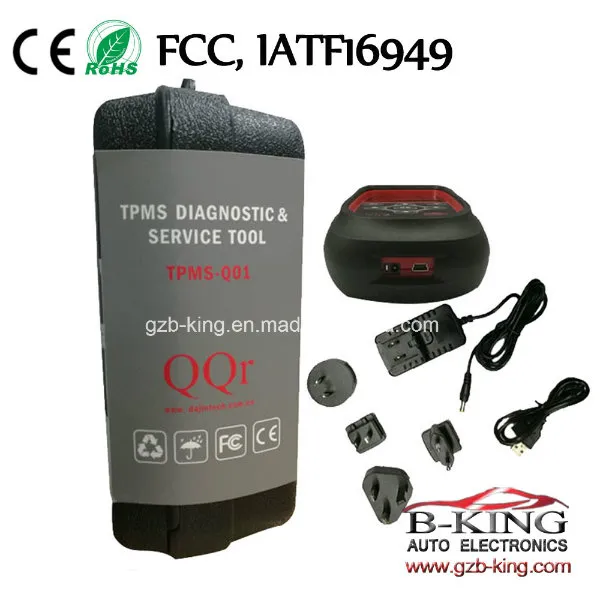

Packaging & Shipping
Tire Pressure Sensor Diagnostic Car TPMS Diagnostic Scanner Programming Tool
Package: Carry box
G.W.: 3.5KG/pcs
Model:Q01
Application: US and EU cars
315MHz and 433MHz Signal
98% car protoclos supported
More than 4000 models available
Functions
Original TPMS Sensor Diagnosis
QQR Universal Sensor Programming
QQR Sensor Relearn
Original Sensor Diagnosis
Sensor ID, Pressure, Battery Status and Temperature can be read. Better to read the sensor at
straight and at the front of the sensor.
Features
Activate all known TPMS sensors.
Read, record and playback TPMS real-time data. Including tire pressure, sensor frequency, temperature, battery status etc.
Auto creating sensor ID QQR-Sensor Programming.
Covers the existing software automatically
Programming single tire one time
Check Remote Keyless Entry (Key Fob) for transmissions
Graph vehicle with 4 wheels to simplify the diagnostic process
Provide visual and audible response to confirm sensors are working properly.
Provide historic test recodes
Easy online software update via USB port
Specifications
| Size | 19.3x10.2x4.2cm |
| Display screen | TFT color display(320x240 resolution ration) |
| Battery | 3.7V lithium polymer battery 3500mAh |
| Power adapter | 5V 1A |
| Operating temperature | 0ºC to 50ºC (32ºF to 122ºF) |
| Storage temperature | -20ºC to 70°C (-4ºF to 158°F) |
| ID format | Hexadecimal and Decimal |
| Temperature format | Centigrade and Fahrenheit |
| Pressure readout | Kpa, Bar, Psi |
| Language | English |
QQr-Sensor Programing For US Cars
Choose Region: America
Back Home, Select Car Make, Model and Year
Check the OEM part number and universal QQr Sensor.
Turn arrow to PROG for senor programming.
Choose tire and Press OK for programming. Better distance less than 15cm.
Sensor ID, OEM part number and Frequency will be shown on the tool.
QQr Programmable Sensor Programing For EU Cars
1. Choose Region: Europe
2. Back Home, Select Car Make, Model and Year
3. Check the OEM part number and universal QQr Sensor.
4. Turn arrow to PROG for senor programming.
5. Unlock sensor
6. Choose programming methods, "Auto Creat ID" and "Copy ID" available.
7. Choose tire and Press OK for programming. Better distance less than 15cm.
8. Sensor ID, OEM part number and Frequency will be shown on the tool.
QQr Programmable Sensor and Sensor Relearn suggested.
Special Design and Features
User friend fashion housing design
Built-in rechargeable Li-ion battery
TFT color screen
Battery status reading
Relearn Method OEM part number and programmable sensor chosen display
Copy ID function available
Integrated US and EU version in one Tool
Life-time software free update
Fast and simple assembly into any wheels
Packaging & Shipping
Tire Pressure Sensor Diagnostic Car TPMS Diagnostic Scanner Programming Tool
Package: Carry box
G.W.: 3.5KG/pcs
