Universal Measuring Instruments Testing Machine Common Rail Laboratory Equipment Diesel Pump Injector Car Diagnostic Tool Test Bench
Product IntroductionJZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors andhigh-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillarand so on. The e......
Send Inquiry
Product Description
Product Introduction

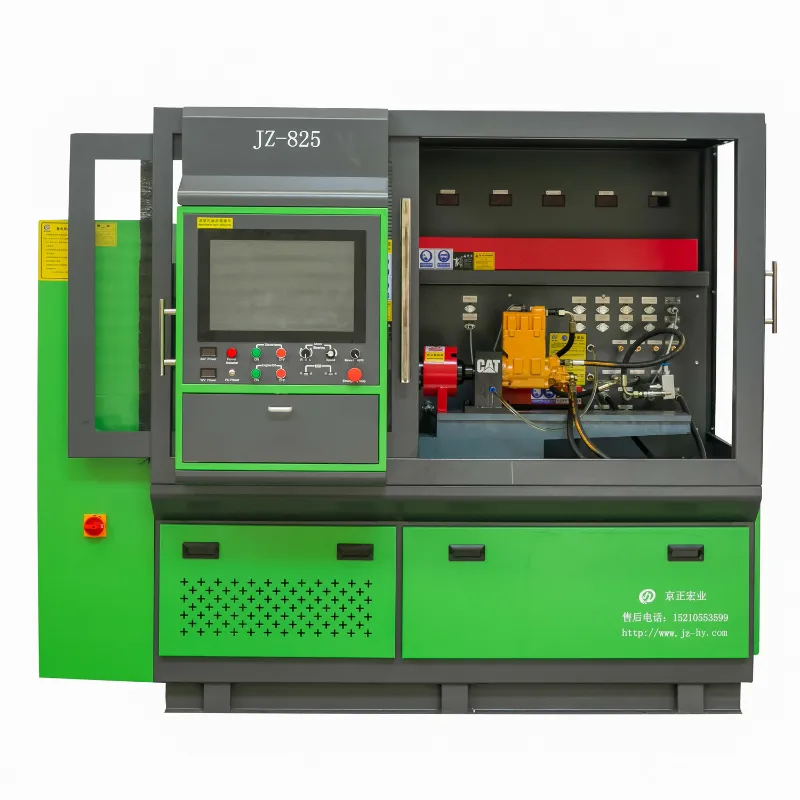

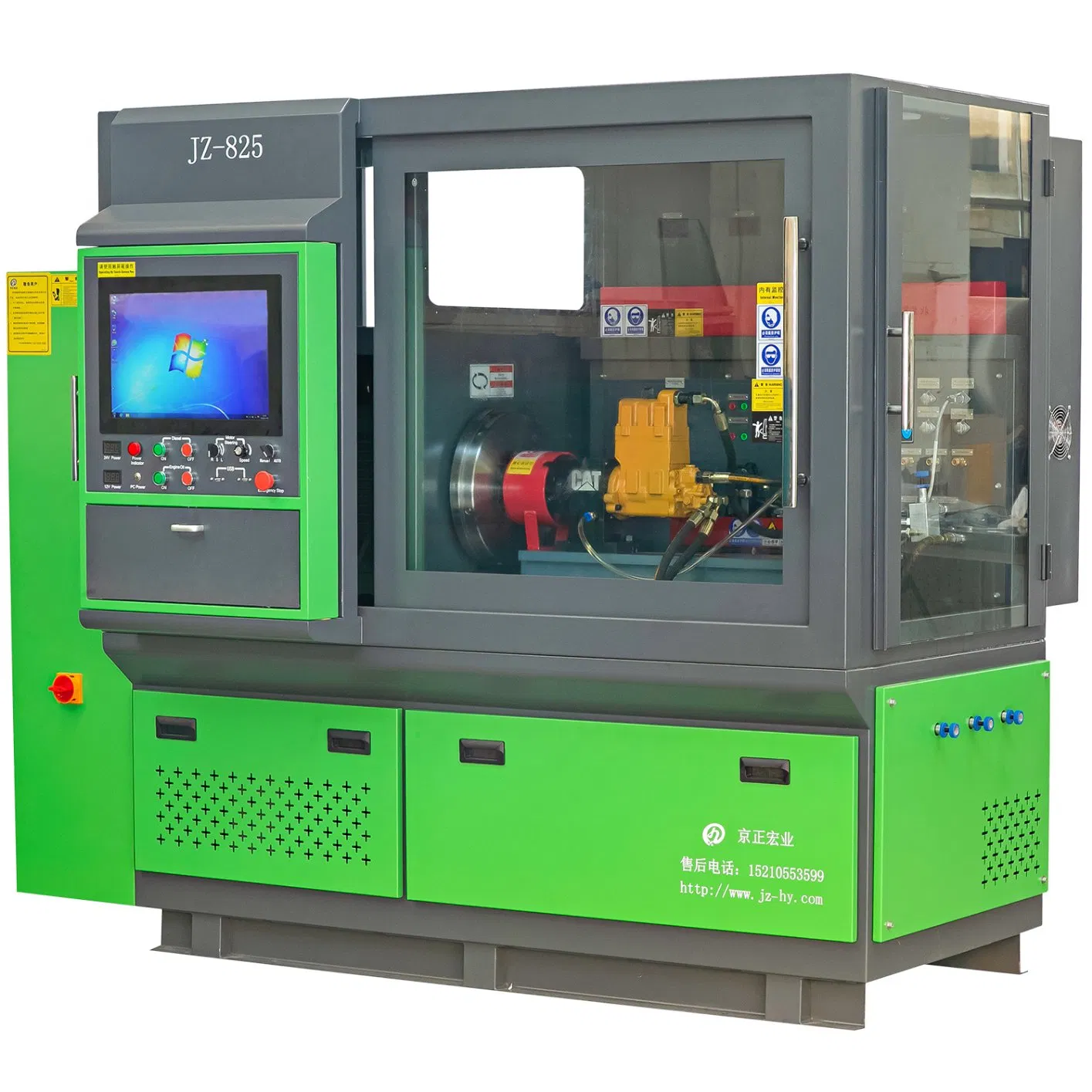

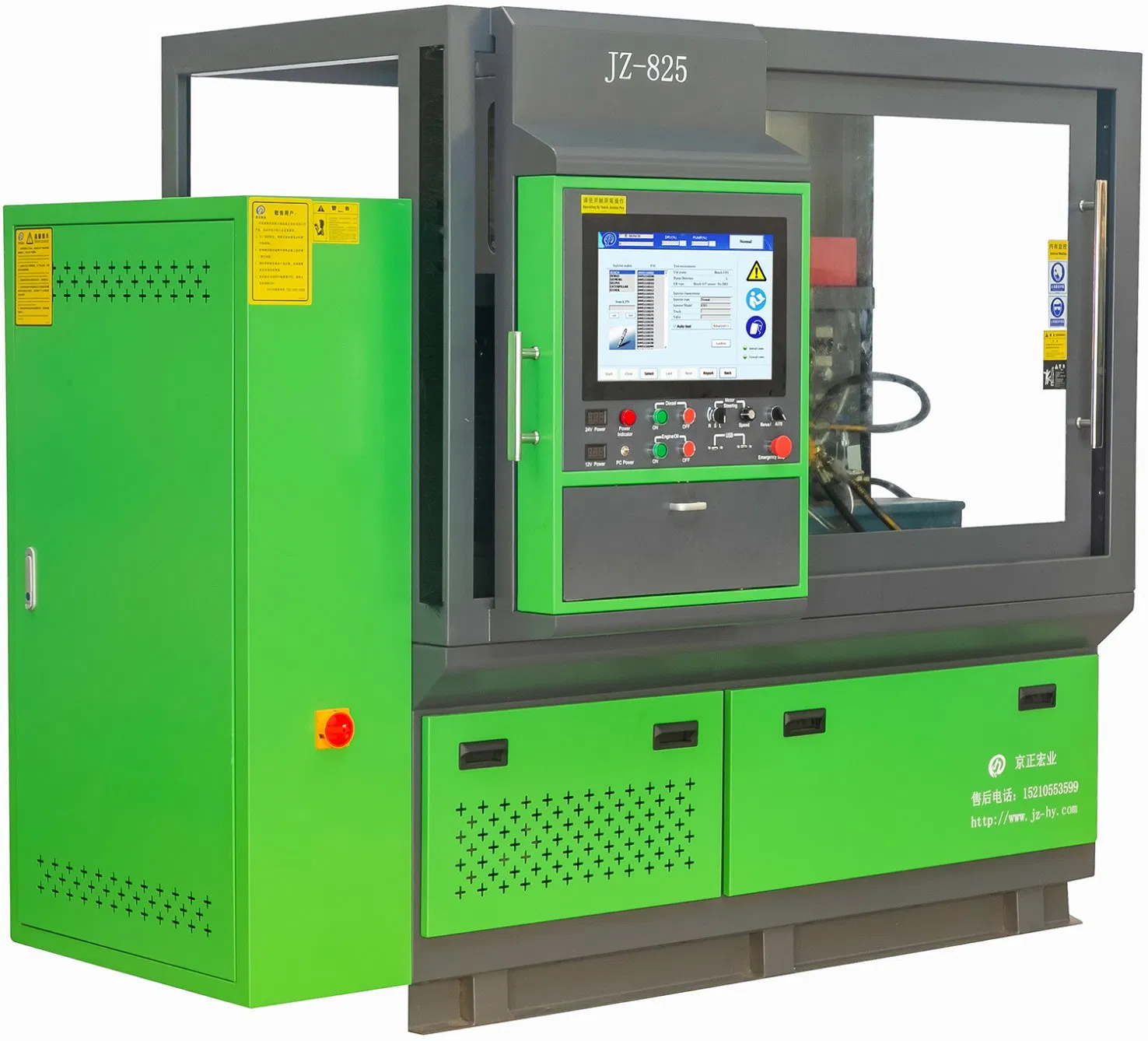

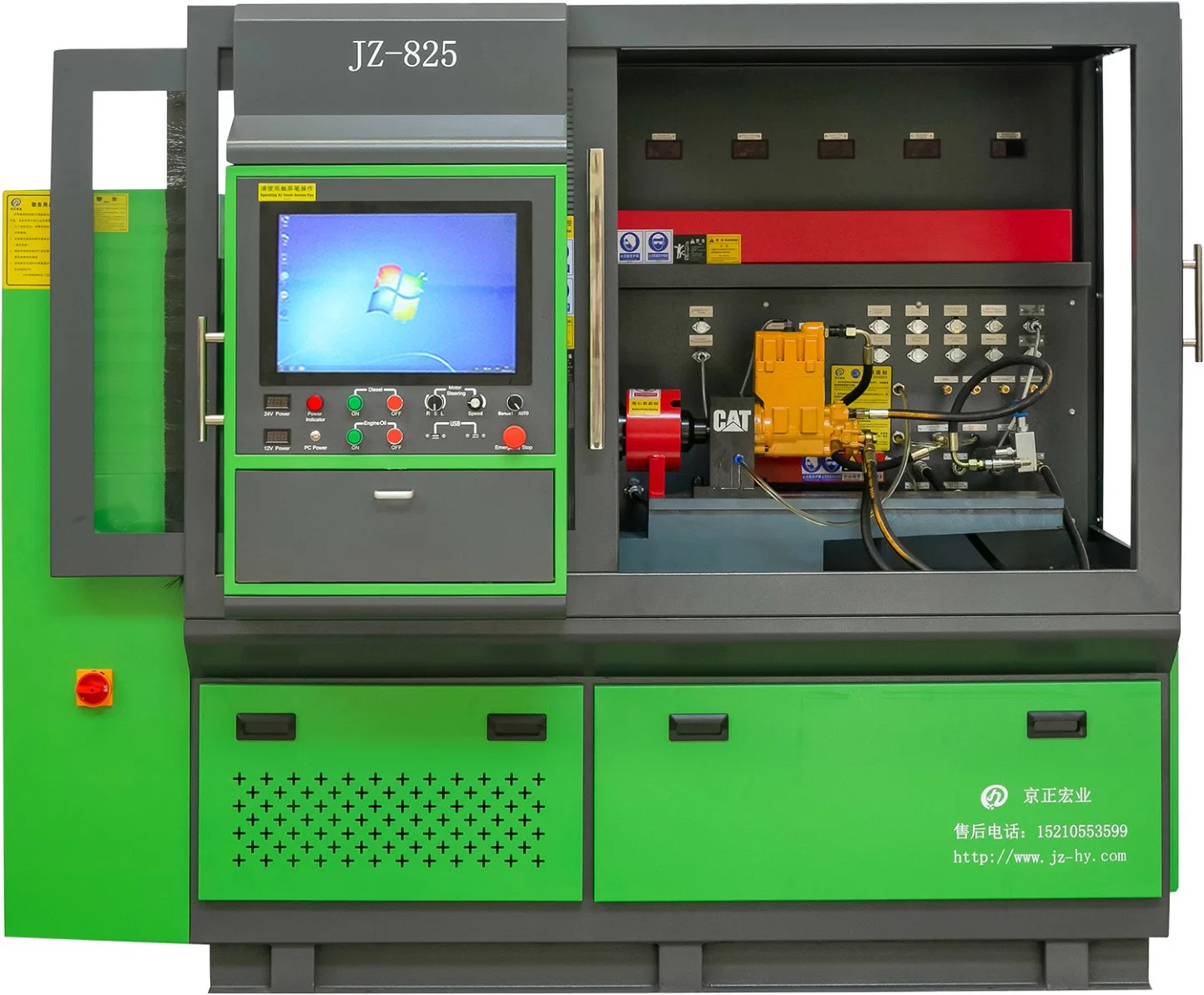

JZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and
high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar
and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.

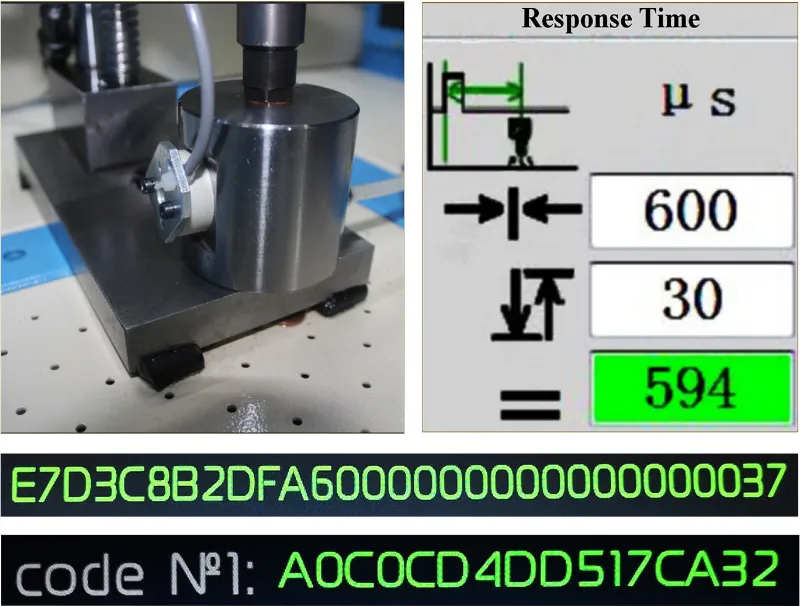

BIP Function & Coding Function
Functions Description
1.BIP function
2. Coding system (Bosch-IMA coder)
3. Can test solenoid valve injectors & piezo injectors
4. Can add medium pressure common rail injector kit
5. Can add actuating pump kit

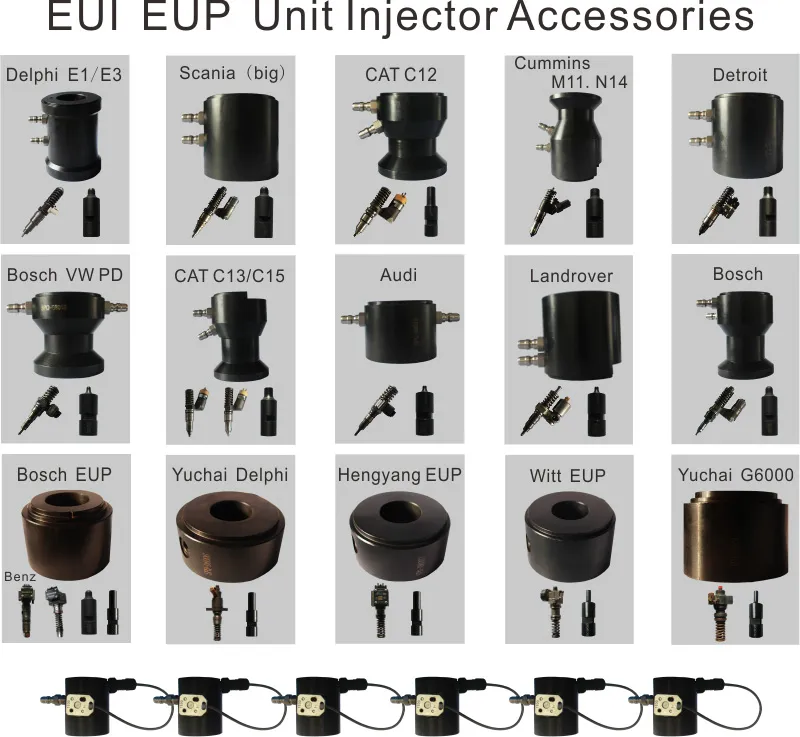

6. EUI, EUP test module can be added onto this test bench
7. Can test different types of common rail high pressure pumps, including Bosch CP1
CP2/CP3, Delphi CRSP, DENSO HP3/HP4,HP0, Siemens DCP pumps etc

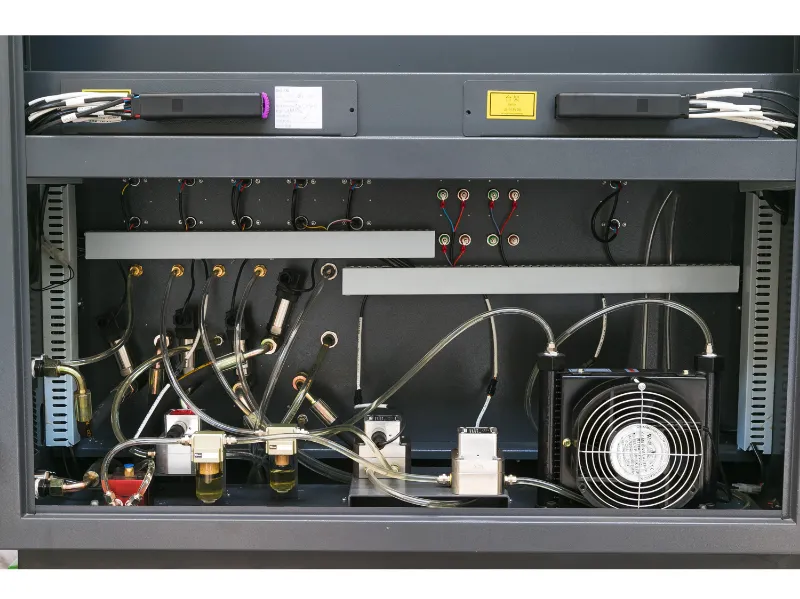

8. Integrated flow sensor
9. Full-automatic Fully function
10. With electronic measuring system
11. Prepositioned precise filter for sensor
12. Intelligent algorithm Automatic calibration
13. Automatically heating/cooling control for test oil
14. Bosch datas are from the orginal equipment of EPS708
15. Denso, Delphi, Siemens data are calibrated from the latest injectors
16. Bosch CP3 pump and high pressure oil rail with DRV
17. Real-time display the curve of the injected fuel volume and returned fuel volume
18. Data backup, software update and cloud upgradable
19. Many language interfaces can be switched
Product Details
Technical Parameters
Testing Scope
Related Products and Fixtures
Packing and Delivery

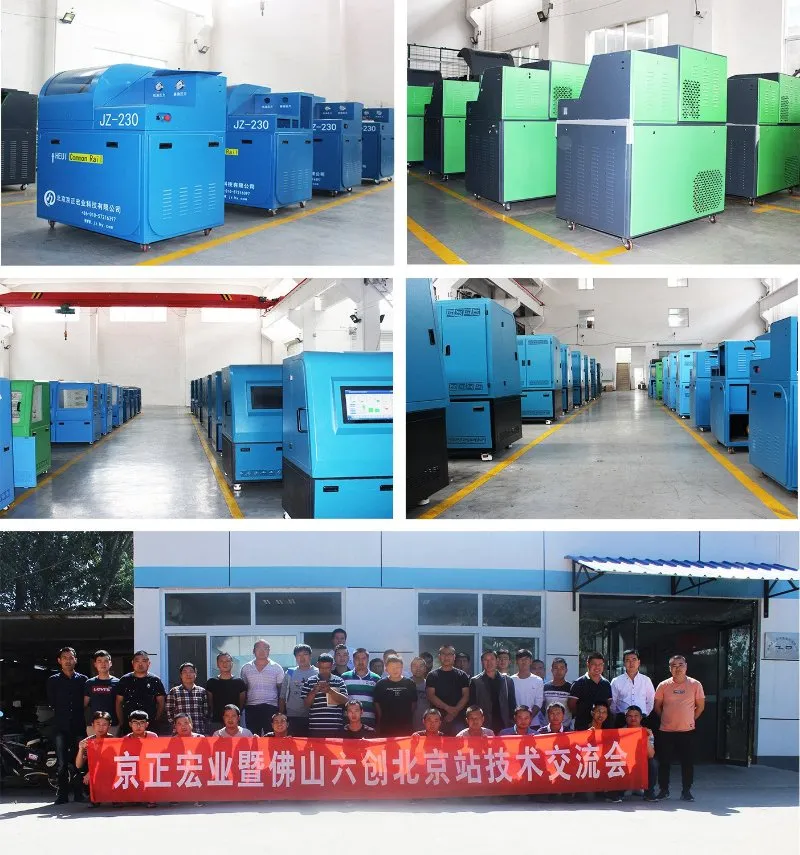

Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Jazmín Lu | Sales Manager
Wuxi JiaMiao Auto Technology Co., Ltd
Address: No.1 Miaojiaan, Shitangwan industrial park, Luoshe Town Wuxi City Jiangsu Province China
Website: jm888888.en.made-in-china.com
JZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and
high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar
and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
BIP Function & Coding Function
Functions Description
1.BIP function
2. Coding system (Bosch-IMA coder)
3. Can test solenoid valve injectors & piezo injectors
4. Can add medium pressure common rail injector kit
5. Can add actuating pump kit
6. EUI, EUP test module can be added onto this test bench
7. Can test different types of common rail high pressure pumps, including Bosch CP1
CP2/CP3, Delphi CRSP, DENSO HP3/HP4,HP0, Siemens DCP pumps etc
8. Integrated flow sensor
9. Full-automatic Fully function
10. With electronic measuring system
11. Prepositioned precise filter for sensor
12. Intelligent algorithm Automatic calibration
13. Automatically heating/cooling control for test oil
14. Bosch datas are from the orginal equipment of EPS708
15. Denso, Delphi, Siemens data are calibrated from the latest injectors
16. Bosch CP3 pump and high pressure oil rail with DRV
17. Real-time display the curve of the injected fuel volume and returned fuel volume
18. Data backup, software update and cloud upgradable
19. Many language interfaces can be switched

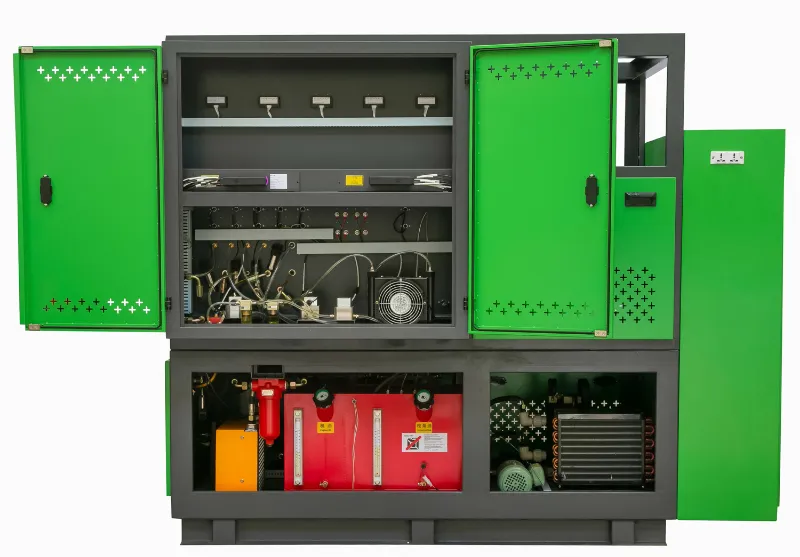

Product Details
Technical Parameters
| Technical Parameters | |
| Output | 22KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~4000 RPM |
| Rail Pressure | 0~2200 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 30 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 1450 kg |
| Packing Size | 2400×1630×2100 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

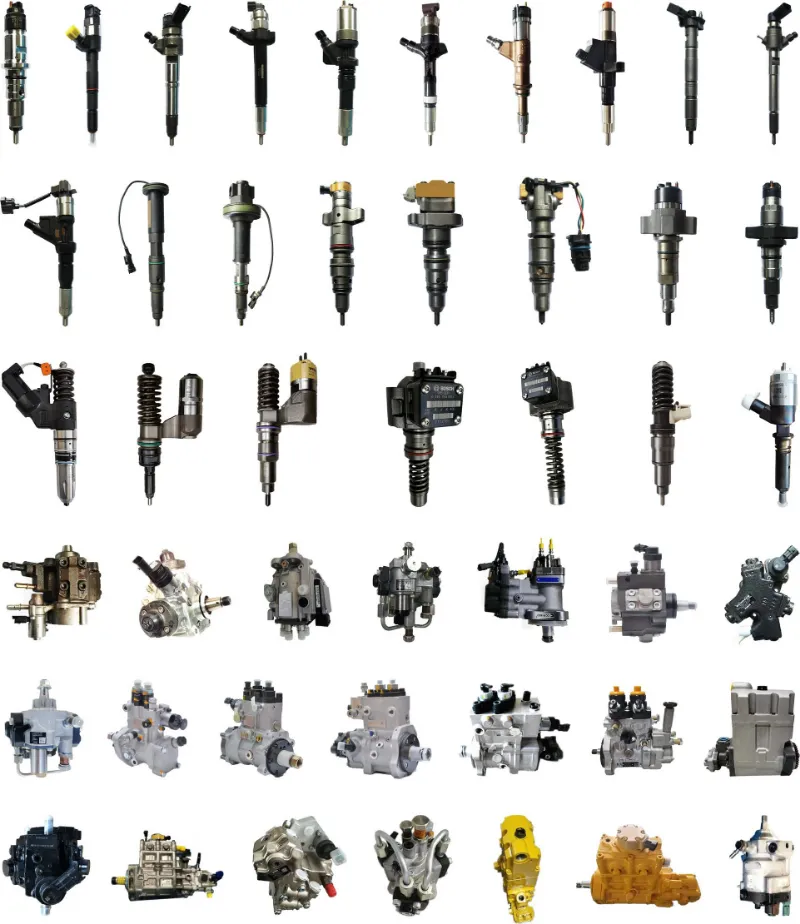

Testing Scope
Related Products and Fixtures
Packing and Delivery
Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
