Solenoid Valve Injector Piezo Injector Common Rail Pump Test Bench

Product Description

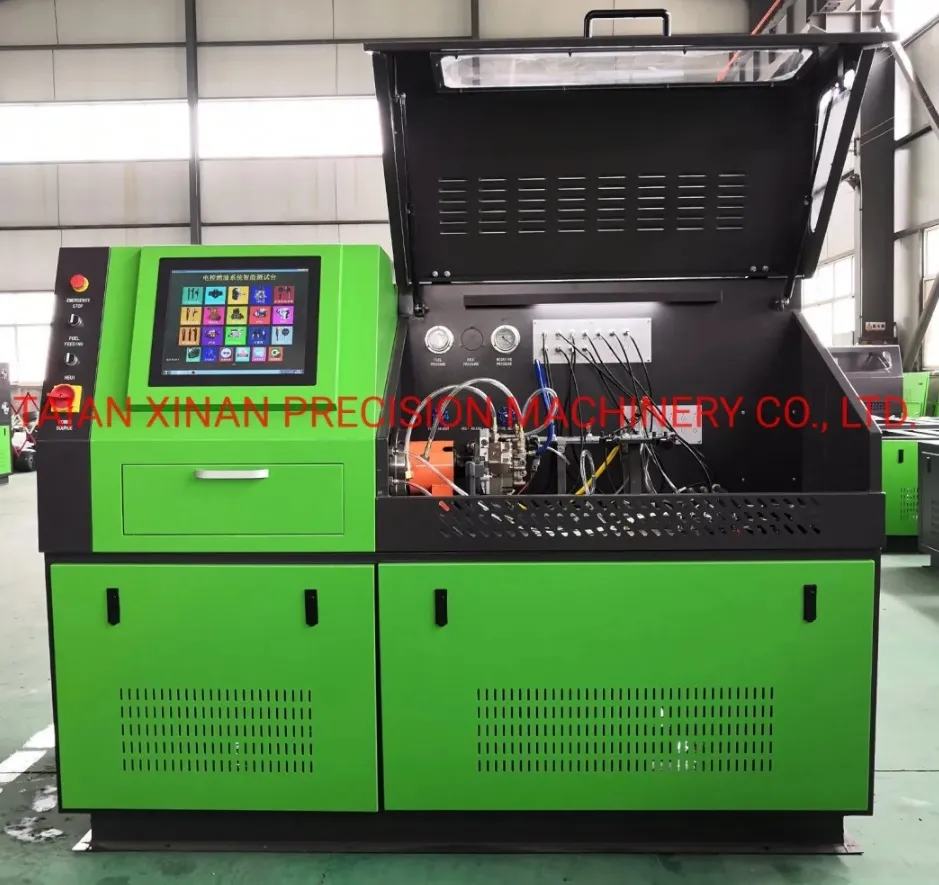

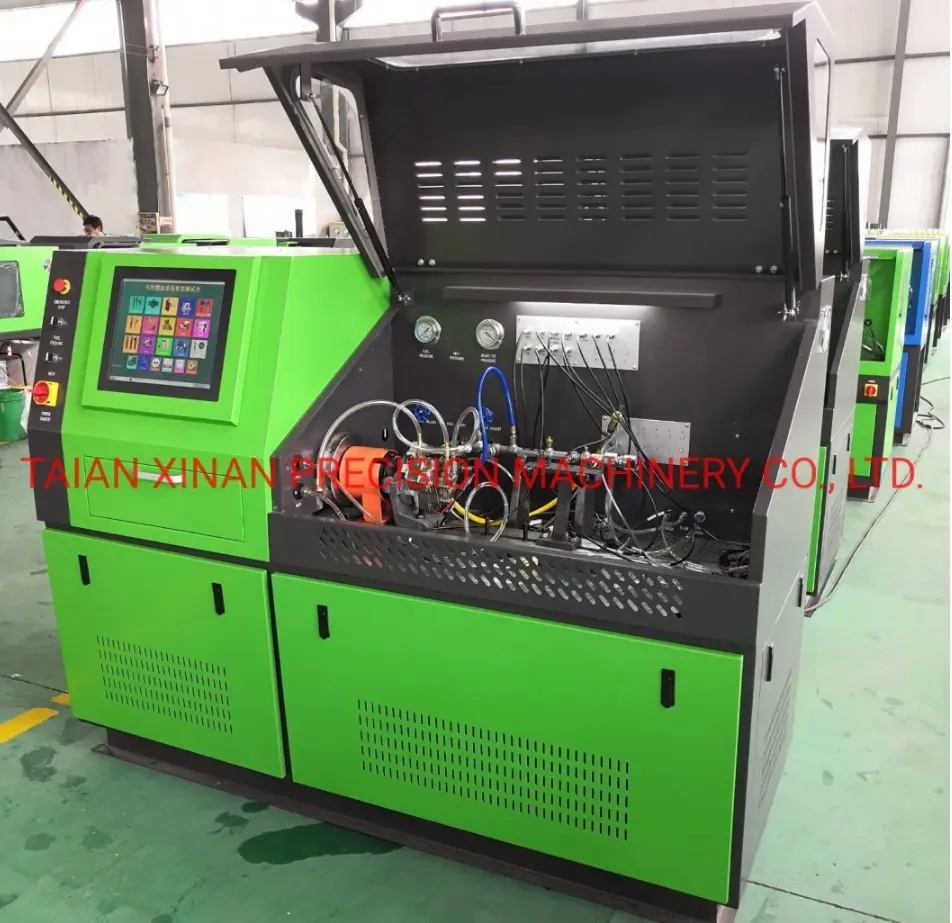

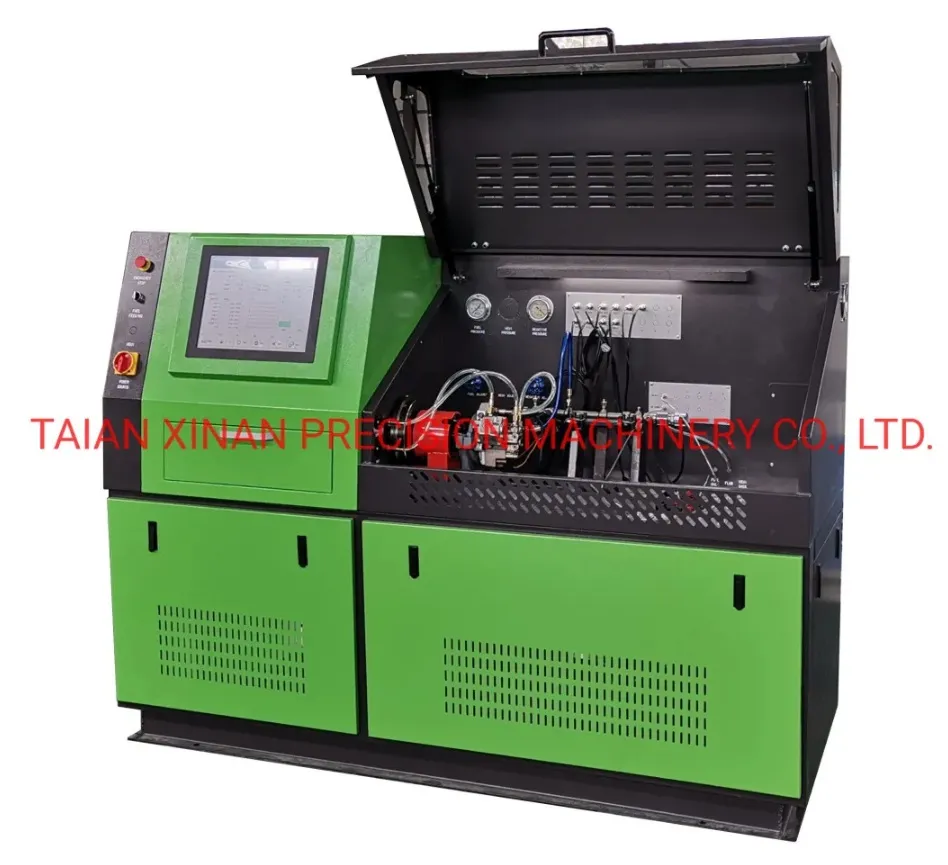

CR718 Solenoid valve injector Piezo injector Common rail pump test bench
Features
The diesel EFI machine control system adopts fully automatic control, which is very
convenient for common rail solenoid valve or piezoelectric injector, high pressure pump,
HEUI medium pressure common rail injector, actuating pump, 320D oil pump, pump and
Pump nozzle, maintenance test. It can test thousands of EFI injectors, oil pumps, and
complete experimental data including Bosch, Delphi, Denso, Siemens, Caterpillar,
Cummins, etc.
Main feature
(1) Integrated automatic operation, including test bench rotation speed, fuel rail pressure, flow
measurement, report analysis, etc., one-button operation, the measurement results can be
obtained.
(2) Can test electromagnetic valve injector, piezoelectric crystal injector and common rail high pressure pump from Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins.
(3) Can test Electronic Unit Pump ( EUP) and Electronic Unit Injector ( EUI ) from Bosch, Caterpillar, Cummins, Delphi, including Delphi E3
double solenoid valve EUI (optional);

(4) Can test HEUI medium pressure common rail injector and actuating pump (optional);
(5) Can test Caterpillar 320D high pressure pump (optional);
(6) Can test VP37, VP44, RED4, Denso V3/V4/V5 pump (optional);
(7) Can test Cummins HPI injector, PT pump (optional);
(8) The test standard data is consistent with the original data, and the test accuracy
reaches the original factory standard;
(9) The database is fully open operation, the part number can be increased.
(10) Automatic network upgrade, keep test data and functions newest all the time.
(11) The injection response time can be tested;
(12) The fuel injector compensation code can be generated;
(13) Can test injector resistance and indctance.

Technical Parameters:
1, Output power: 7.5KW, 11KW, 15KW. (Optional)
2, Optional input voltage: three-phase 380V, three-phase 220V, single-phase 220V optional
3, Motor speed range: 0-4000RPM,
4, Working pressure adjustment range: 0-2000bar
5, Flow measurement range: 0-600ml/1000 times
6, Flow measurement accuracy: 0.1ml
7, Temperature control range: 40 +-2
8, Temperature cooling method: air-cooled / forced cooling optional
