              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              • Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection PumpNts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              • Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection PumpNts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              • Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection PumpNts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              • Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection PumpNts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

              Function: 1, Test diesel injection pump (Mechanical pump) 2, Test common rail pump 3, Test HP0 pump4, Test common rail injector: (BOSCH, DENSO, SIEMENS, DELPHI, CUMMINS, CAT, etc, including CUMMINS ISG/XPI injector,4 pin injector). 5......

              Send Inquiry

              Product Description


              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              Function:
              1, Test diesel injection pump (Mechanical pump)
              2, Test common rail pump
              3, Test HP0 pump
              4, Test common rail injector: (BOSCH, DENSO, SIEMENS, DELPHI, CUMMINS, CAT, etc, including CUMMINS ISG/XPI injector,4 pin injector).
              5, Test piezoelectric injector
              6, Test the injector's inductance and resistance
              7, QR coding(injector coding for Bosch, Denso, Siemens, Delphi, Cummins…)
              8, EUI/EUP (Option)
              9, HEUI (C7 C9 C-9 3126B injector) (Optional)
              10, BIP (Optional)
              11, CAT 320D pump test (Optional)
              12, CAT HEUI (C7 C9) PUMP test (Optional)
              13, HEUI (3406, 3408, 3412, FORD 6.0 injector) (Optional)
              14, VP37(Optional)
              15, VP44(Optional)
              16, RED4(Optional)
              17, Forced cooling system (Optional)


              Technical parameter:
              1. Out put power: 11/15/18.5/22kw
              2. Input power: 380V/50hz or 220V/60hz
              3. Rotation speed: 0~3000RPM
              4. Rail high pressure: 0~2500 bar
              5. Flow measurement accuracy:0.1ml,Flow testing range: 0-600ml/1000times
              6. Diesel tank: 60L
              7. Size: 2300*1370*2100mm
              8. Weight: 1300kg
              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

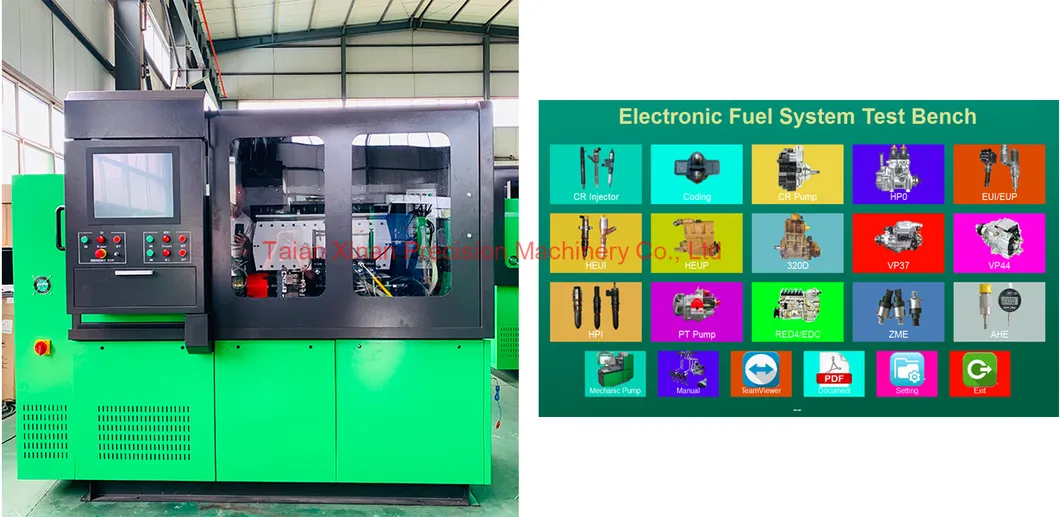

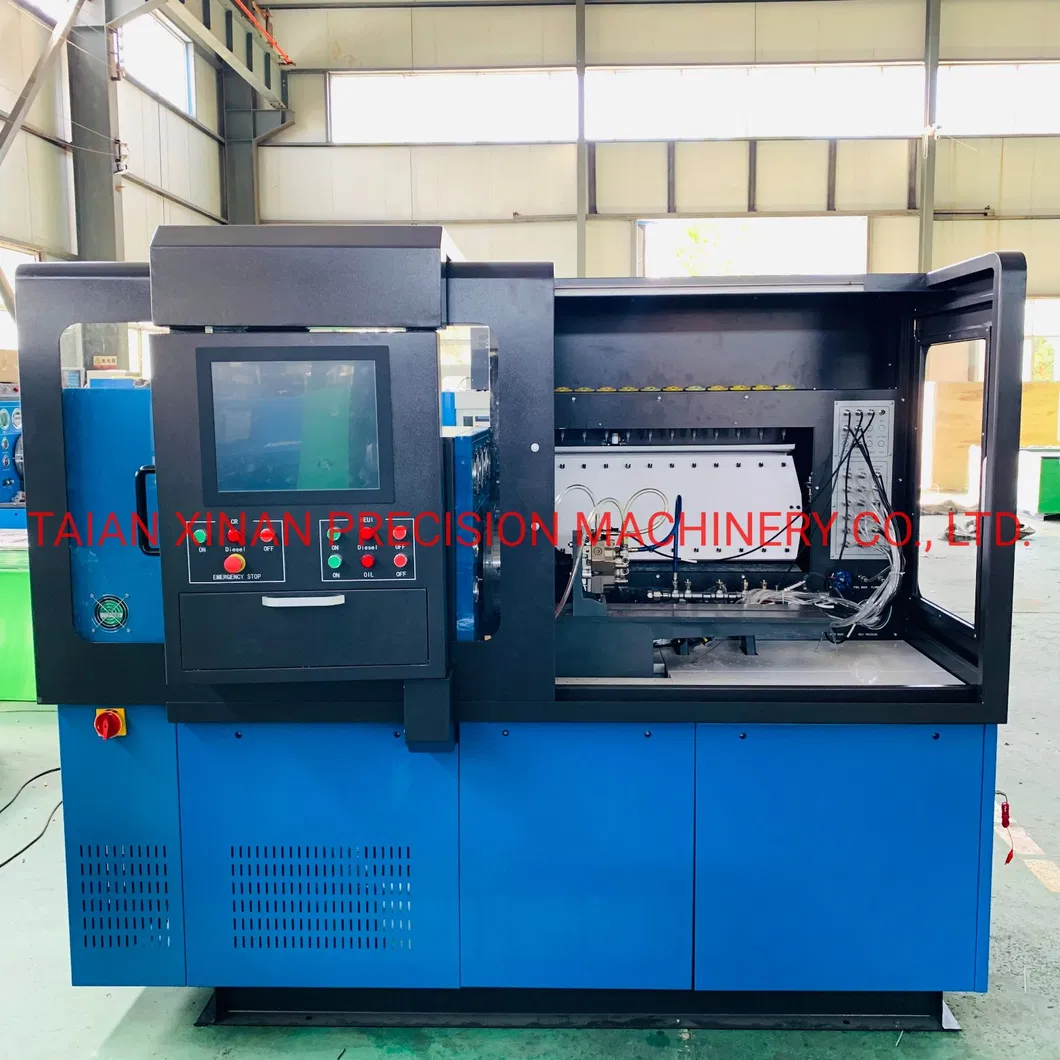

              Outlook & System (Whole new)

              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              Diesel injection mechanical pump(EURO II pump) test

              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

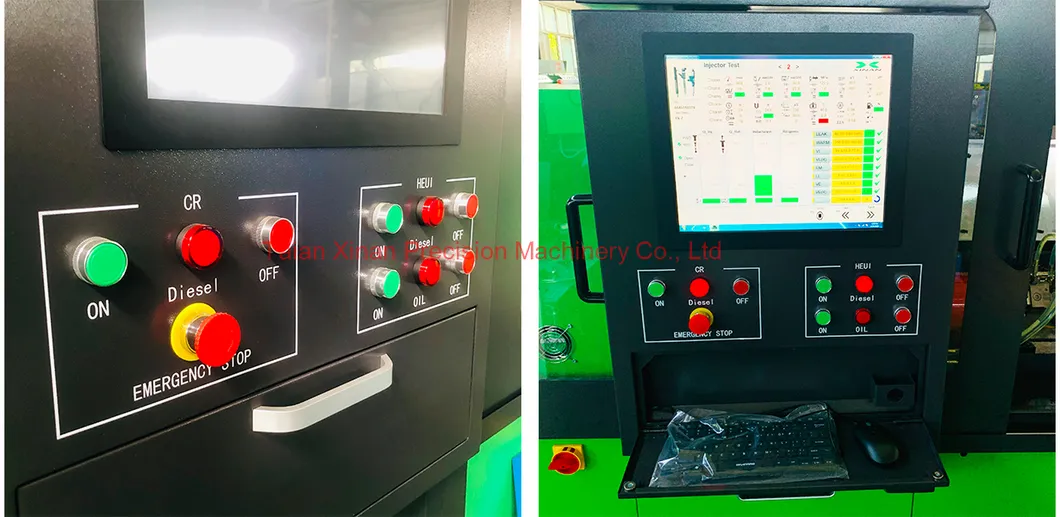

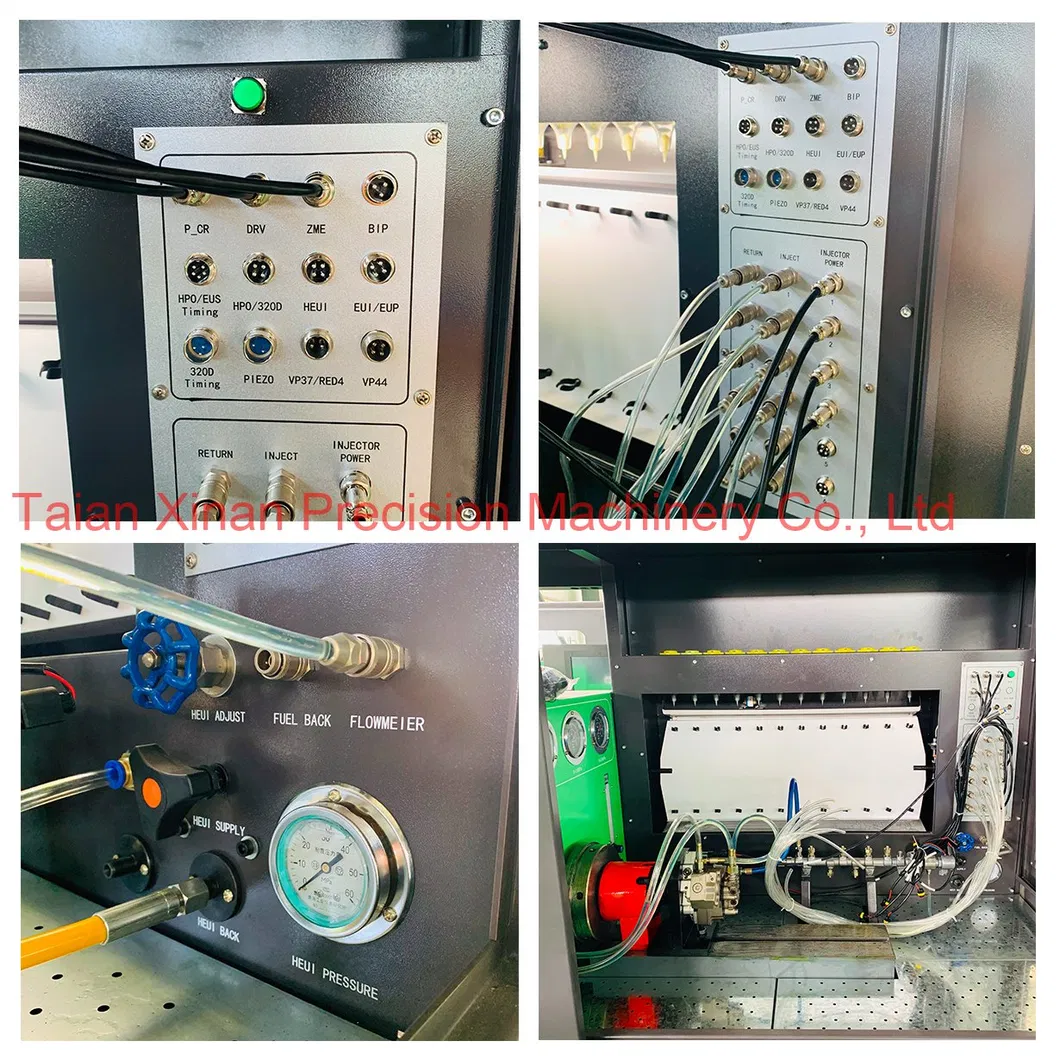

              New design buttons



              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

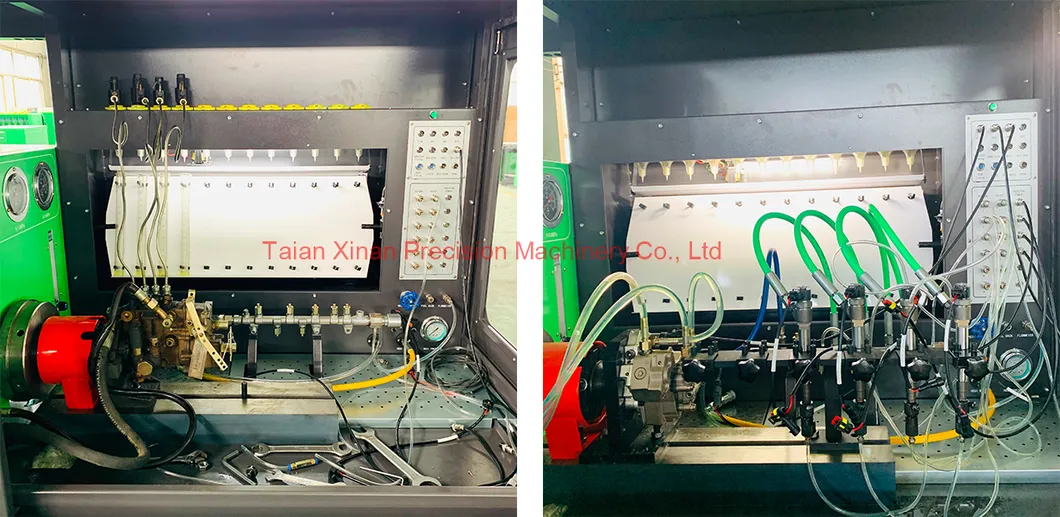

              Common rail injectors test (Test 6 injectors at one time)

              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

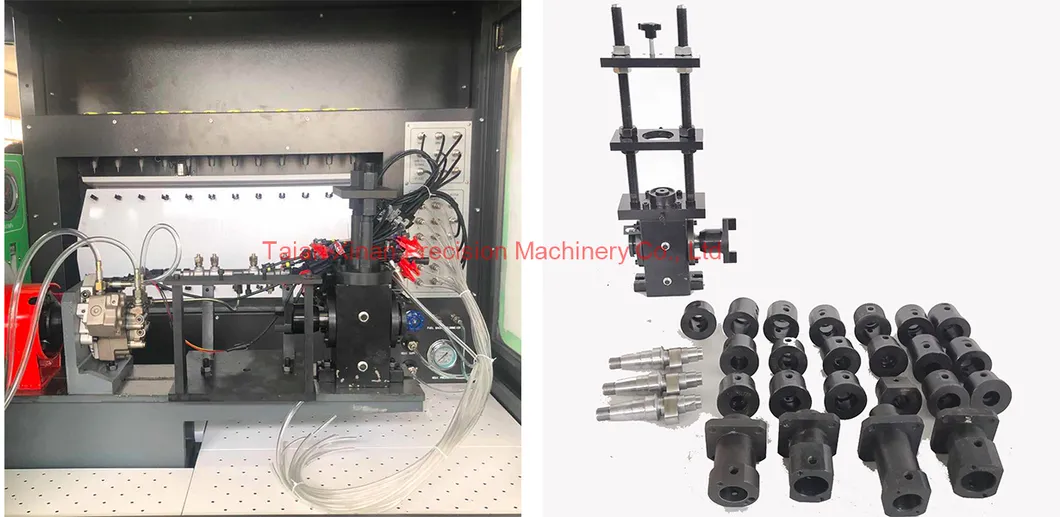

              EUI EUP test

              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump
              HEUI test

              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

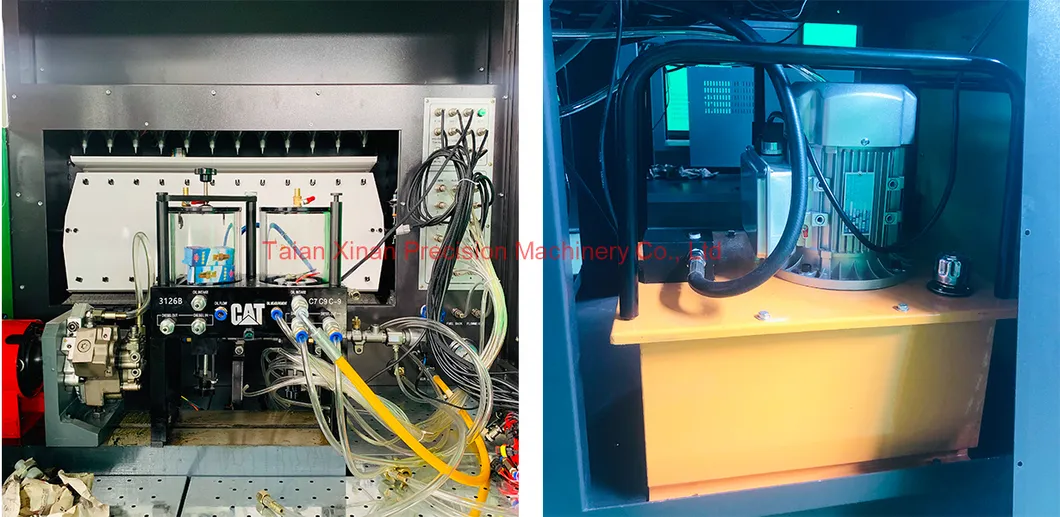

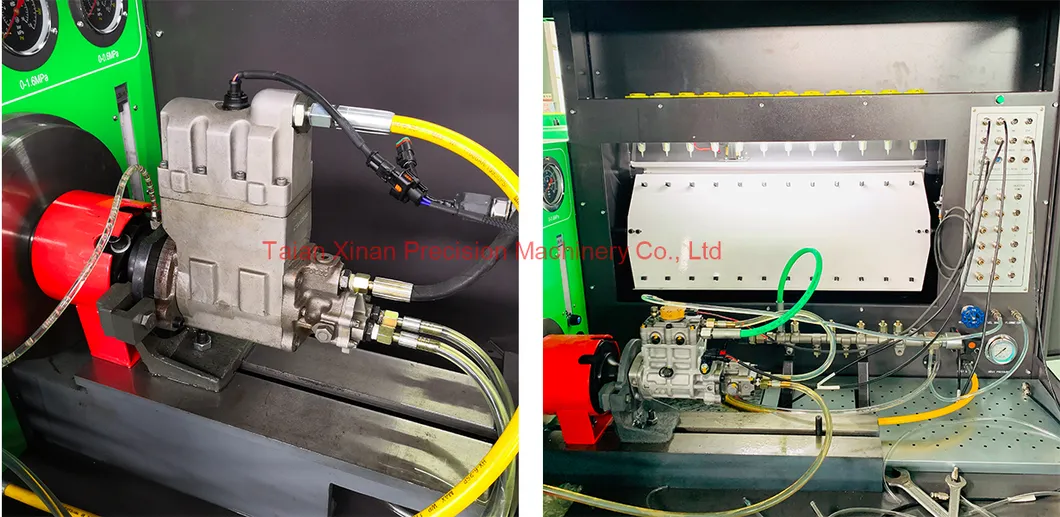

              CAT HEUI Actuation pump test & CAT320D pump test



              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump


              Nts815A Xns815A Full Function Common Rail Test Bench Euro II III IV V Pump Eui Eup Heui Cat320d Pump Cat Actuation Pump Qr Coding Vp37 Vp44 Red4 Injection Pump

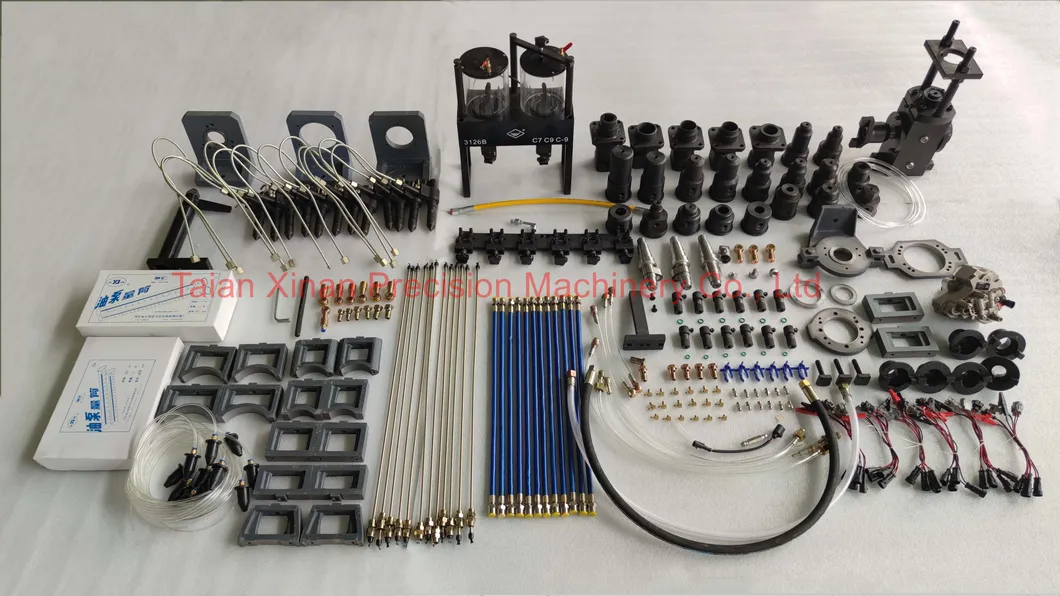

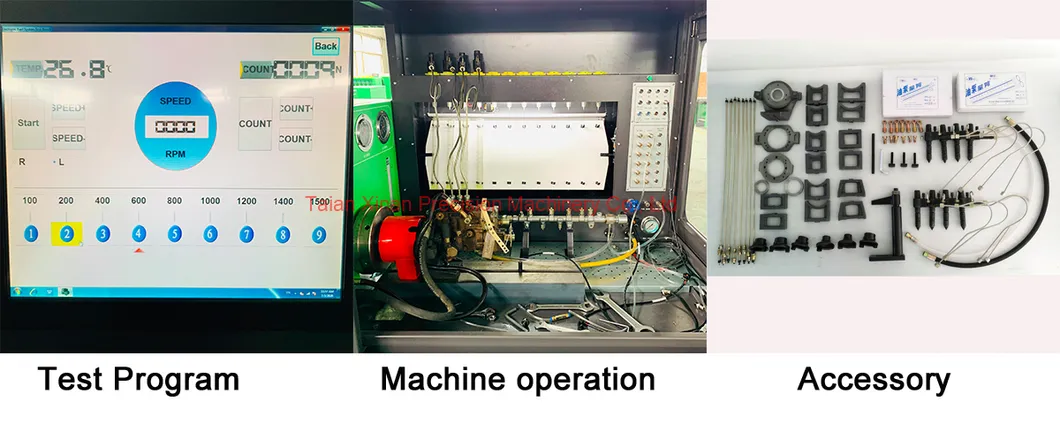

              Standard accessories for full functions
