              Nts118 Common Rail Injector Test Bench

              NTS118 common rail injector test benchis our latest independence researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fu......

              Send Inquiry

              Product Description

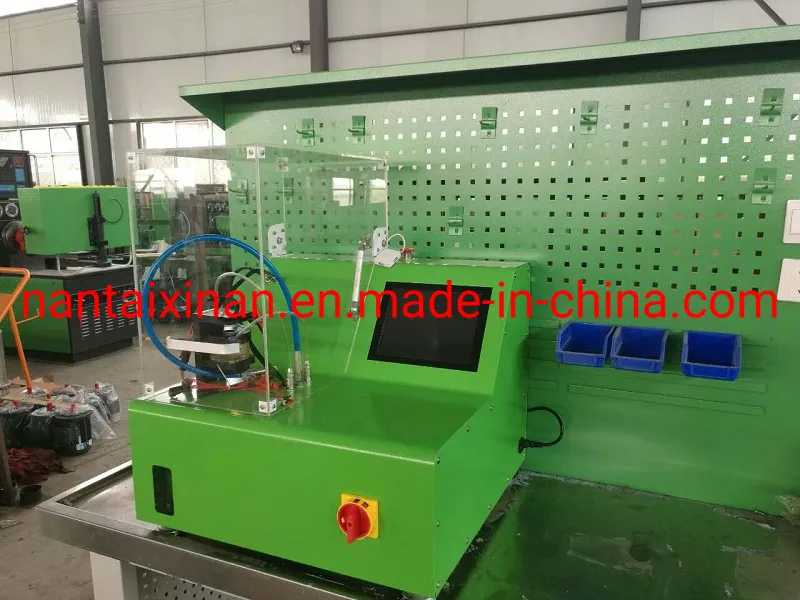

              NTS118 common rail injector test bench
              is our latest independence researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect.
              It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and convenient operation

               >>>CHARACTERISTIC
              1. Controlled by industrial computer in real time, Windows operating system.

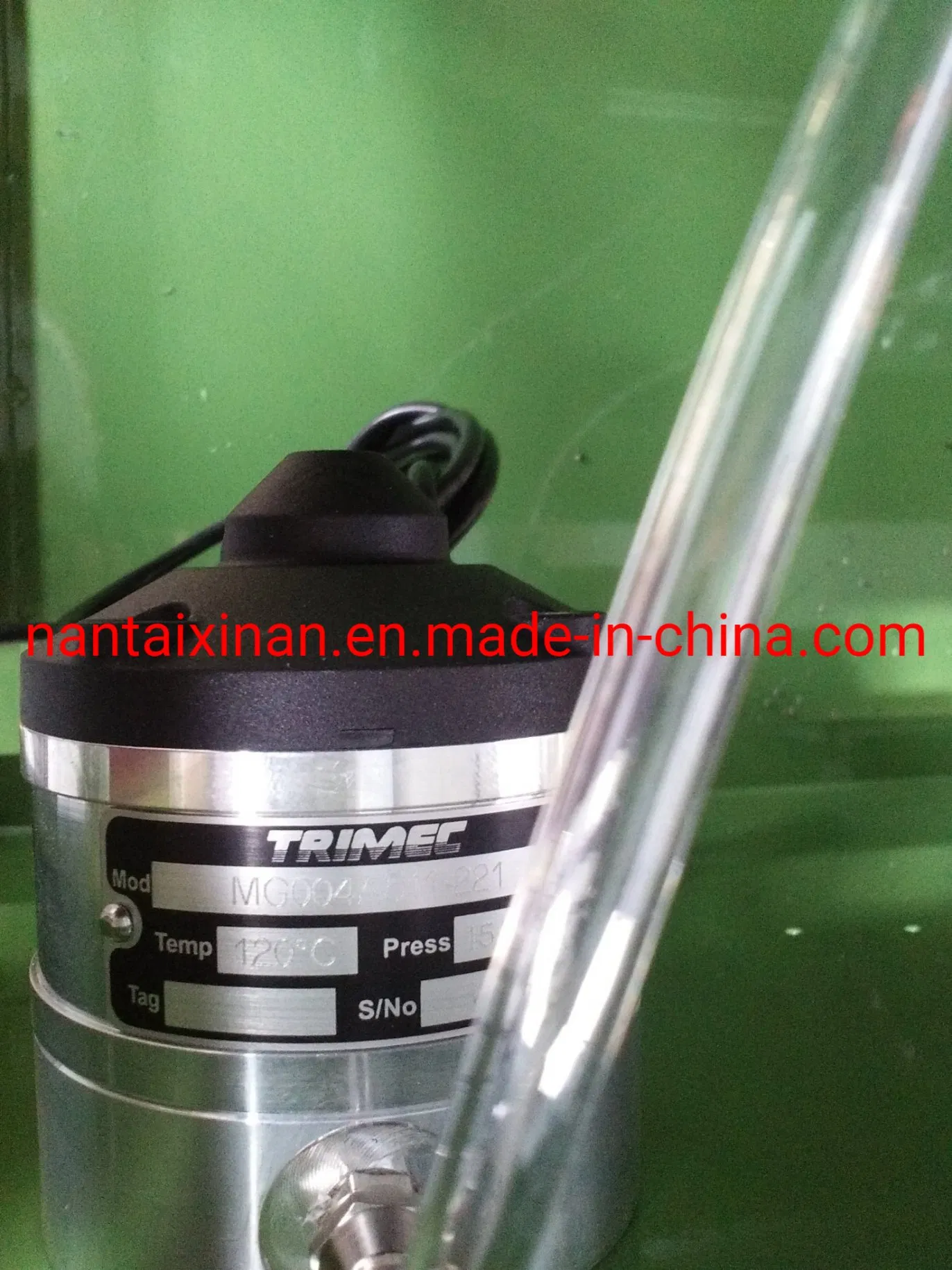

              2. Oil quantity is measured by sensor and displayed on 10.4 tactile  LCD screen;
              3. More than 2700 kinds of injector's data can be searched and used.
              4. It is installed BOSCH common rail pump to provide 0~2400 bar
              5. Rail pressure can be tested in real time,
              6. Provide pressure overload protect
              7. Pulse and frequency of the injector can be adjusted.
              8. Injection time can be set.
              9.  Protection function of short-circuit.
              10. Precise measurement, easy operation, low noise.
              11.Frequency converter inside to keep the RPM.

               >>>FUNCTION
              1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.

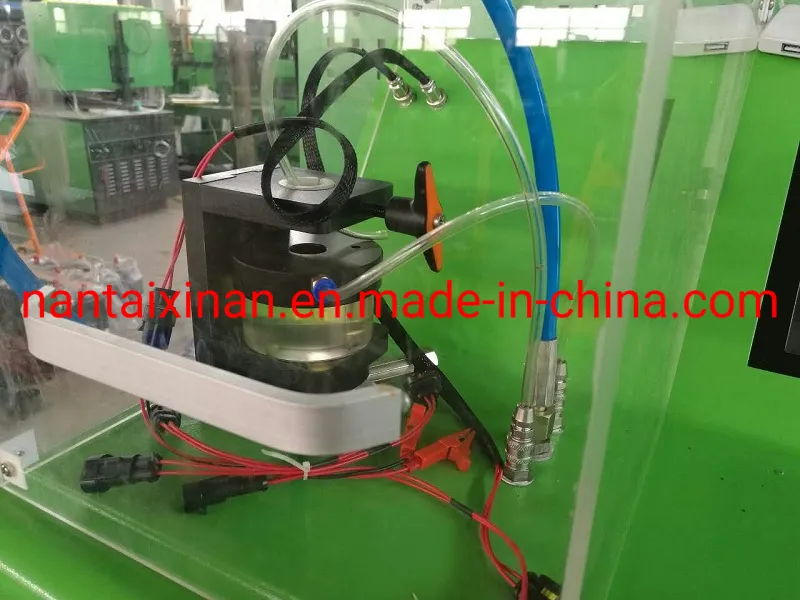

              2. Test 1 piece of injector.
              3. Test the pre-injection of common rail injector.
              4. Test the max. oil quantity of common rail injector.
              5. Test the cranking oil quantity of common rail injector.
              6. Test the back flow oil quantity of common rail  injector.
              7.Test the average oil quantity of common rail injector.
              8. Test the seal performance of common rail injector.
              9. Data can be searched and saved.
              10. Clean the common rail injectors.

              >>>TECHNICAL PARAMETER
              1. output power:1.5KW             2. power voltage:220V 1phase
              3. motor speed: 0-3000RPM         4. Oil pressure:0-2000bar
              5. flow measure range: 0-600ml/1000times      6. flow measurement accuracy: 0.1ml
              7. temperature control range: 40+-2
              8. Adding water cooling ( optional)
