Nt300c electronic Injector Common Rail Injector and Cr Pump Tester Includes Test Plan

Product Description

Brand	NANT (Nanyang Nantai)
Model number	CRI-NT300C
Function	Test CR injectors and pumps.

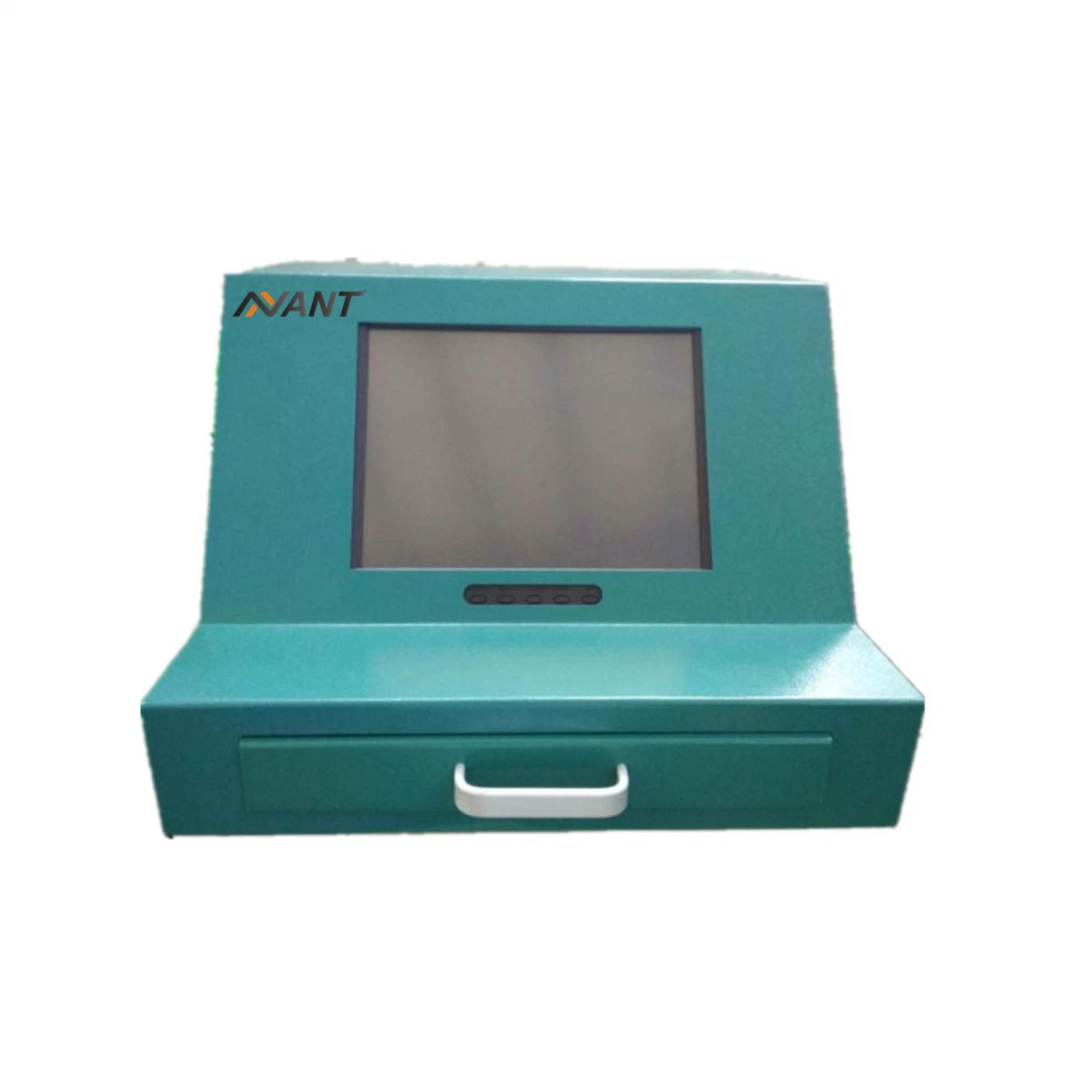

Brief on Common Rail System CRI-NT300C:

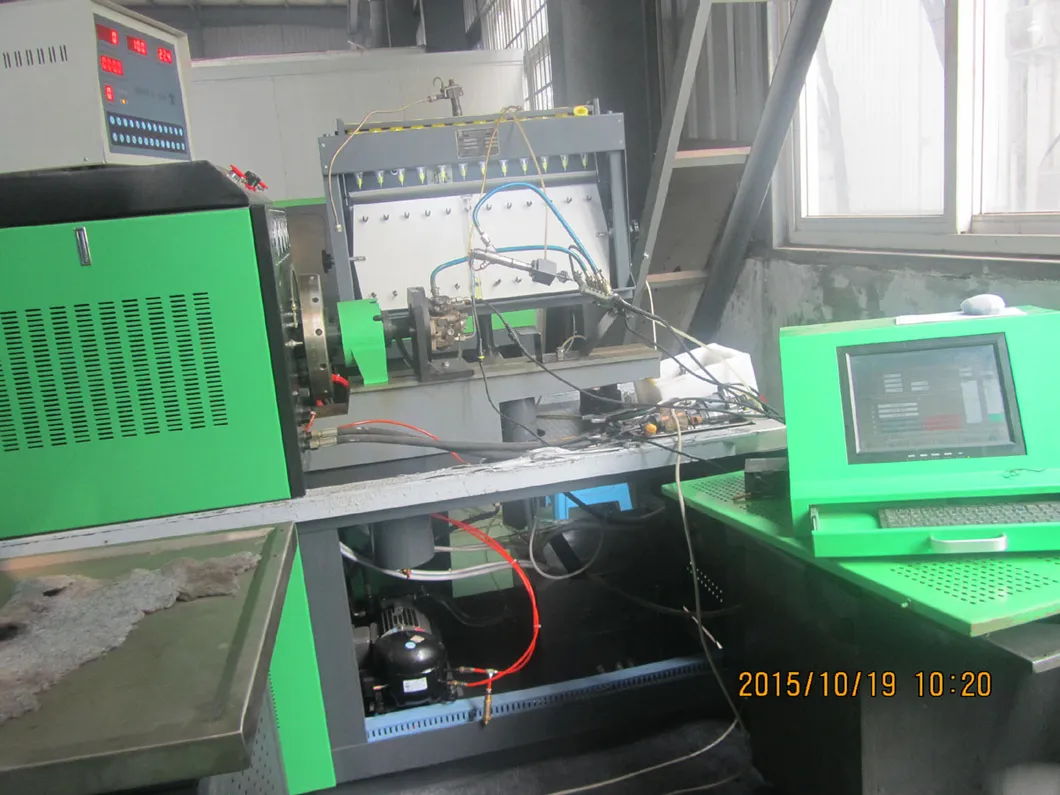

CRI-NT300C(Common Rail System CRI-NT300C) common rail control system by controlling the operation of the common rail test bench to complete the common rail pumps, common rail injector, high-pressure fuel rail test.

Wide range of equipment, can be widely measurement Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the injector system is equipped with more than 1600 injectors data, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.

Product Features
CRI-NT300Ccommon rail control system components can be flexibly matching, to form different control platforms to meet the functional, cost, size, and many other needs, to achieve the highest price.

In addition the device driver parameters can be flexibly adjusted to suit the pump and injector testing special models, ease of maintenance personnel working status Common Rail System judge and maintenance.

The system can also be extended, such as centralized management of multiple devices, unified data reporting, especially for common rail device manufacturers batch testing.

Functions:
1 High pressure oil rail test
   Supply advance rate value of Bosch,Delphi,Denso,Jier oil rail pipe pressure sensor.
   Customer can add new model of oil pump sensor and re-calibrate the different sensor's pressure value.
   Rail pressure Controlling automatically.
   Automatically protection for oil rail pressure over-voltage.

2 Common rail injector test
   It can test maximal 6 pieces of solenoid injectors.
    High voltage- Bosch,Denso injectors
    Low voltage-Delphi injectors
   It can test one channel of Siemens,Bosch crystal(Piezo) injectors.
   All channels of solenoid and Piezo crystal system include function of short-circuit protection, and will not damage controller and injectors.
   Supply standard testing steps and every channel's standard injection volume, return oil volume and display values syn-chronically. Customer also can reset up working value by himself, add or change testing data. There are more than 1000 pieces of testing standard data in system and the the data will be updated continuously.

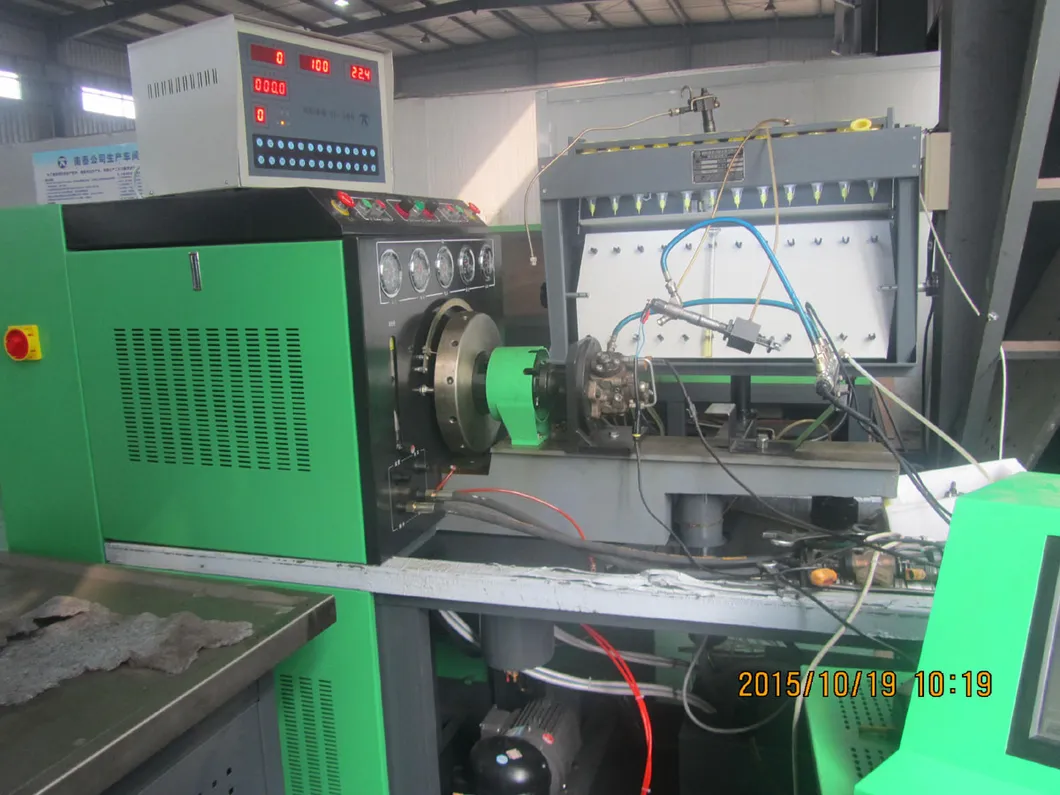

3 Common rail diesel injection pump test
      Put out Multi-channels PWM(Pulse width modulated signal) to drive different pumps.
       Adjust single-channel driving signal of oil pumps.
         Bosch CP1/CP2/CP3
         Delphi CRSP
         Denso HP3/HP4
      Drive channel No.1 DRV and be used for test pump's injection ability. (Optional)
   Drive timing signals of rpm sensor on Denso HP0 pump (ECD-U2) by respective two channels. Control syn-chronically two oil-volume controlling valve of HP0 pump. (Optional)
All channel drives has short-circuit protection function and will not damage controller and pumps.
Supply standard testing steps and data of respective pump's standard injection volume and display syn-chronically.   Customer also can set up new working situation data, add or change testing data.

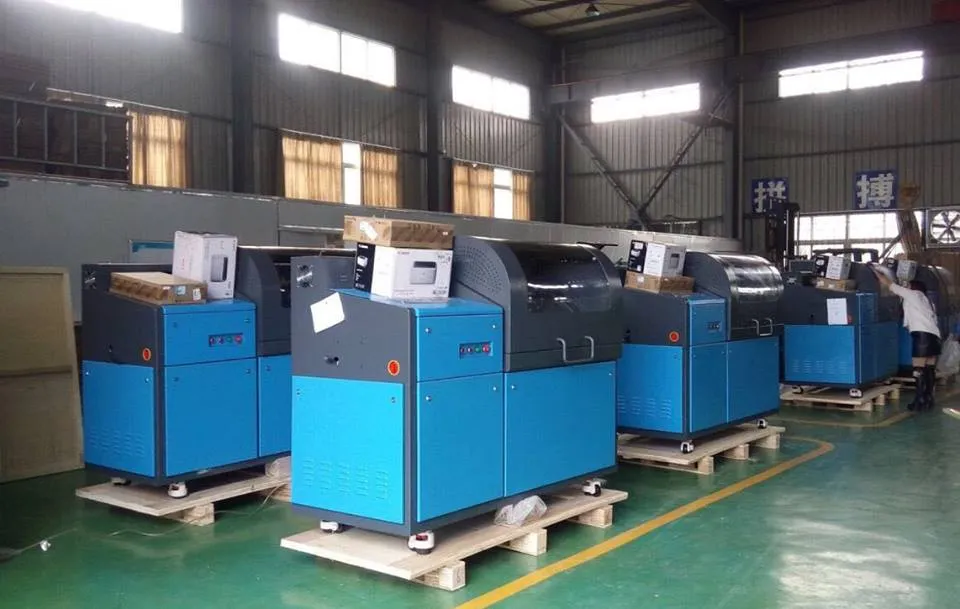

Packing and delivery:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Delivery:
By sea
By air
By express
Just as customers requested.

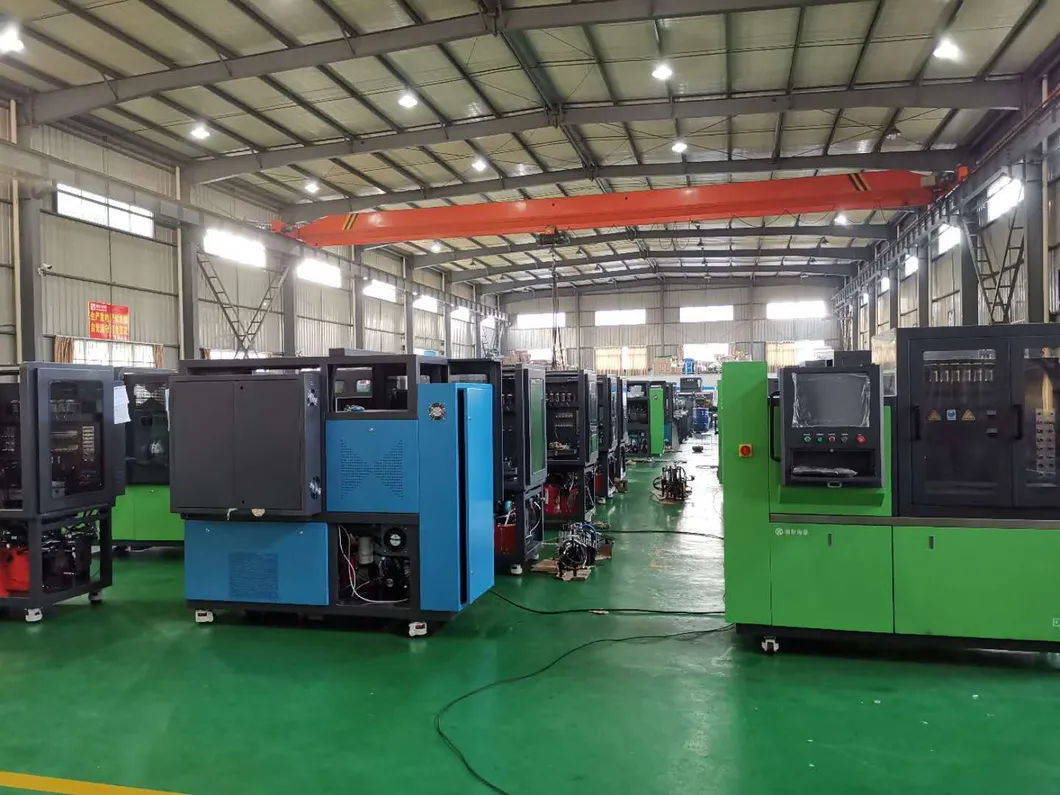

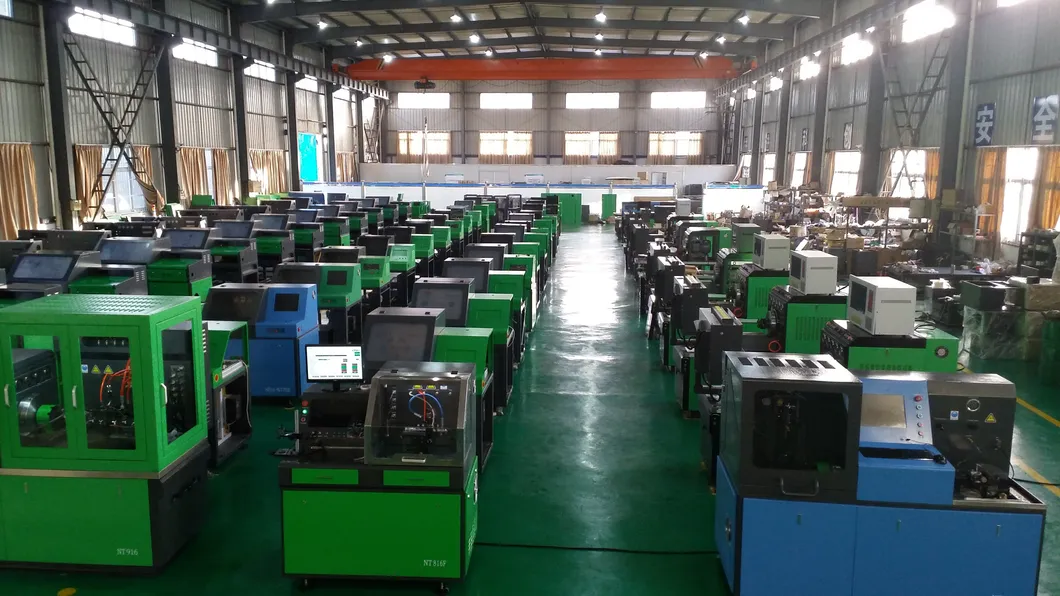

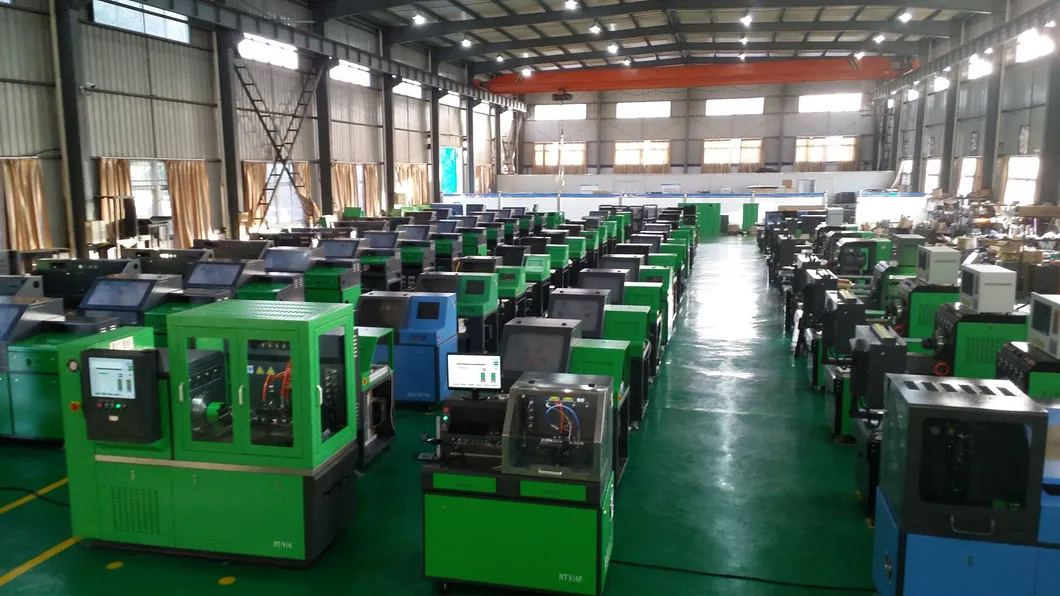

Nanyang NanTai Experimental Equipment Co.,Ltd has 20 years of experience in professional production test benches.The strong R&D strength ensures that the measurement accuracy and automation of the company's products reach the international advanced level. The current products cover Europe, Asia, Africa, South America, North America and Oceania and other countries and regions.
