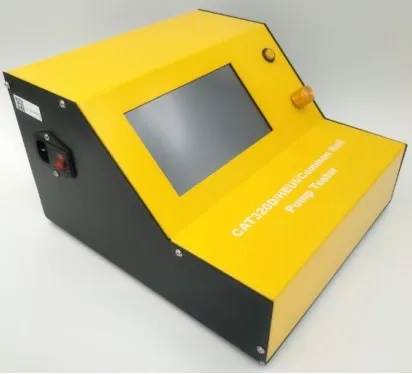

New Cat100A Cat320d Pump Heui Pump Simulator Pump Tester

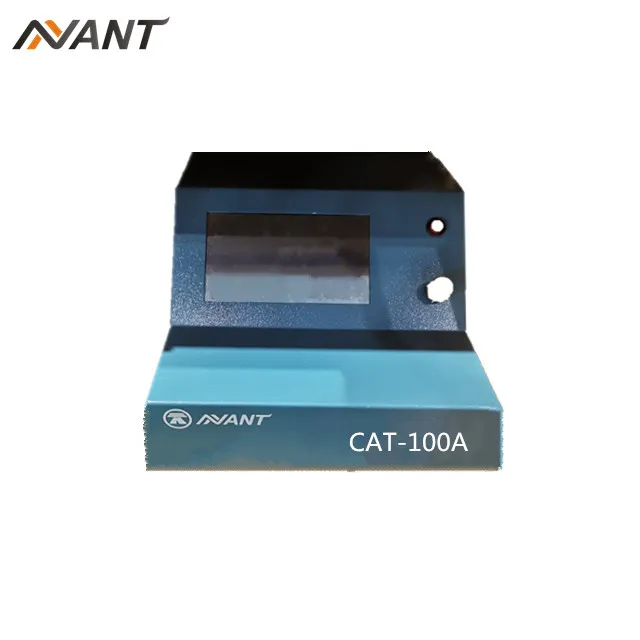

CAT-100A pump tester can test Caterpillar 320D common rail pump, HEUI pump and other common common rail pumps. It can save test models, test conditions and standard test data. Built-in flowmeter (optional) can test pump flow.

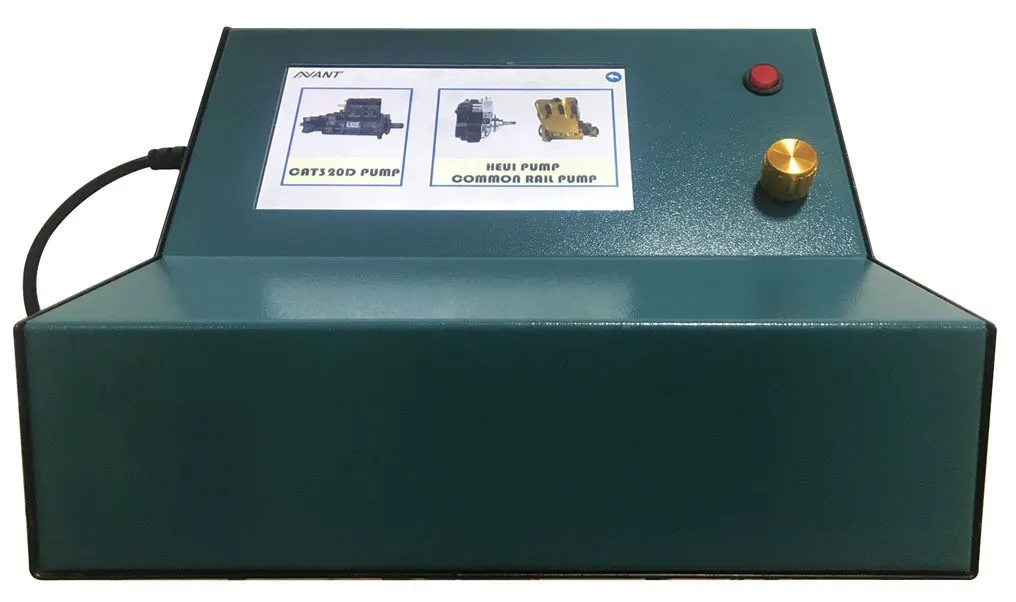

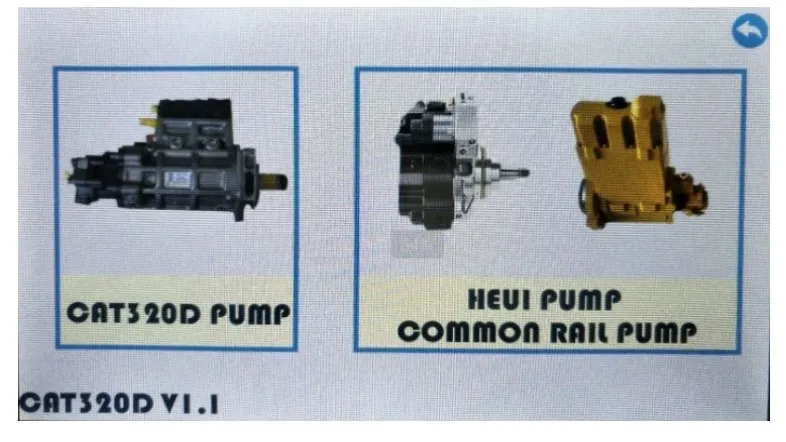

1.Power on into the selection page of the oil pump type, and select CAT320D pump or HEUI and common rail pump.

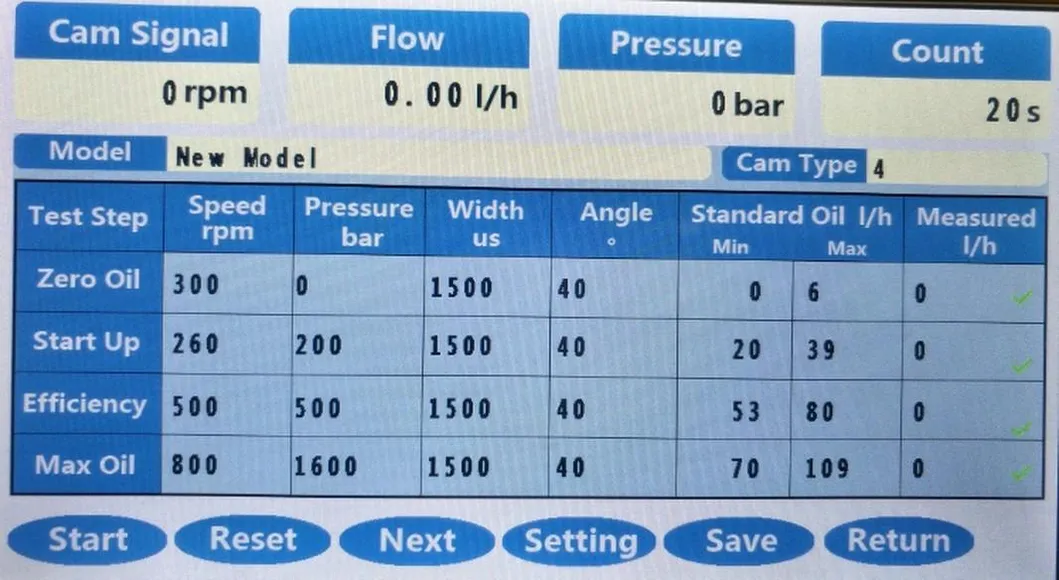

2.CAT320D pump test page:Test conditions: cam speed, setting pressure, pulse width, angle, standard oil can be changed.;

Count is the test time, and it can also be set according to need.
Cam type: optional 4 cylinder or 6 cylinder.

3.After the setting is completed, connect the plug and you can start testing.
a, start the motor, adjust the speed and the set cam speed;

b, After the speed is stable, click Starts and the test starts;
c, Observe the pressure and flow of each working condition;



4.HEUI and common rail pump test page:This page only provides an open loop test.
Start the motor, click the start button, change the current of ZME and DRV, observe the pressure change;
If it is a normally closed pump, ZME current adjusted to the minimum then sratr motor; If it is a normally open pump, ZME current adjusted to the maximum, then start motor;




After Sales Service

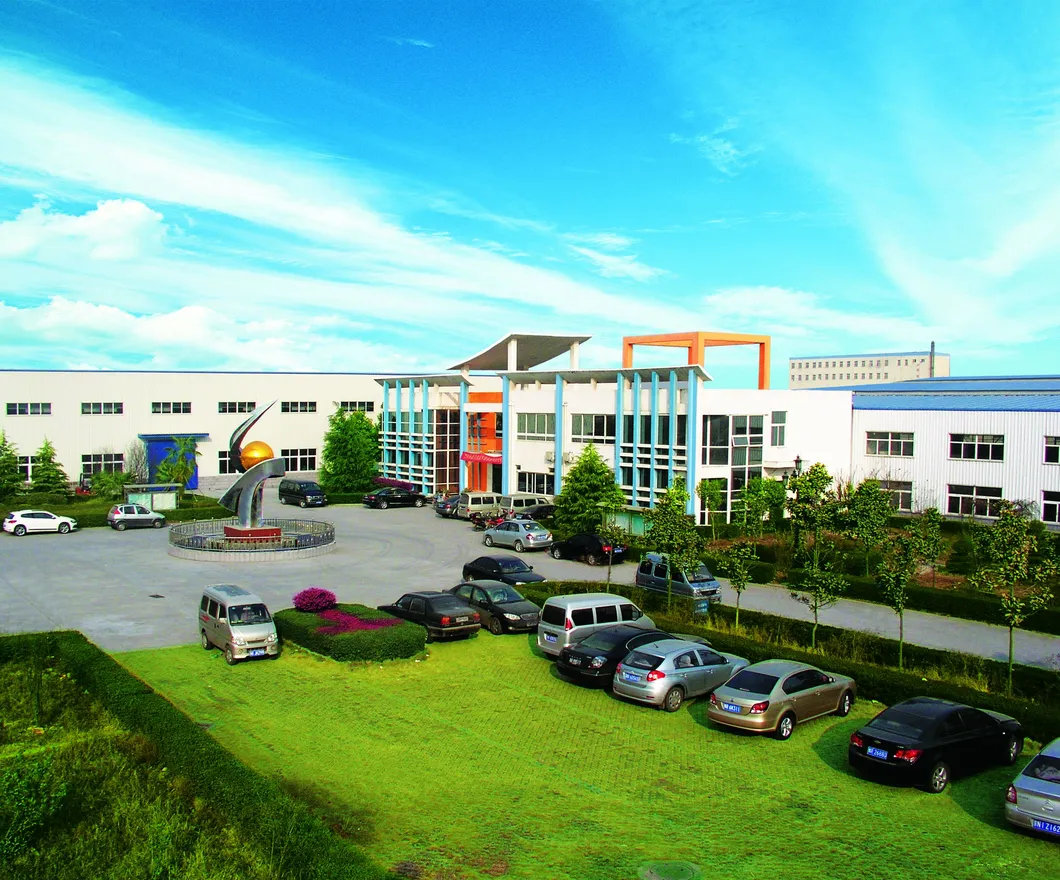

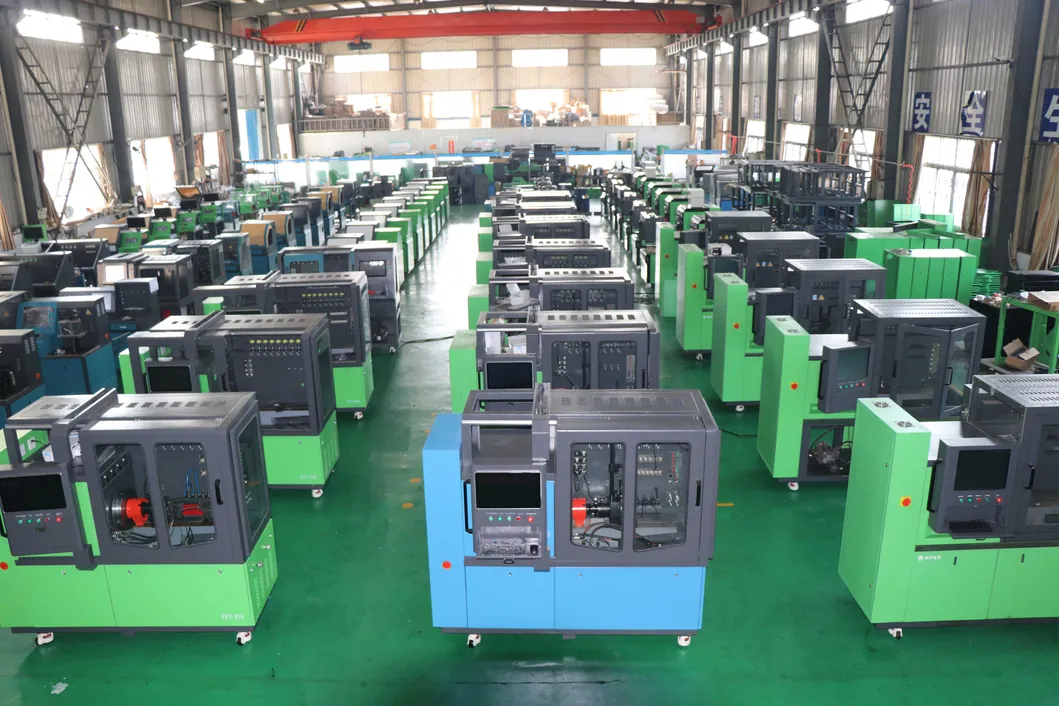

Nanyang Nantai Test Equipments Co.,Ltd is a joint-stock enterprise that produces common rail test bench, common rail injector test bench and diesel injection pump test benches and diesel parts to serve the automobile aftermarket all over the world.
