Nantai Multifunction Test Bench Common Rail Test Equipment EPS916
Product DescriptionThe test bench software system contains all testing functions. Including all the standard functions and Selection function. Standard functions has free accessories. Selection functions just need paid Mechanical hardware. Then the optional functions will open. Function:*Automatical......
Send Inquiry
Product Description
Function:
*Automatically test various solenoid valve injector and piezo injector.
*Automatically test the performance of injector solenoid valve.
*Automatically test voltage-current curve of the injector.
*Generate IMA code for Bosch injector
*Automatically test all common rail pump
*Automatically test Denso HPO pumps with 2 pins double magneto electric sensor or 3 pins single magneto electric Hall sensor
Main configuration:

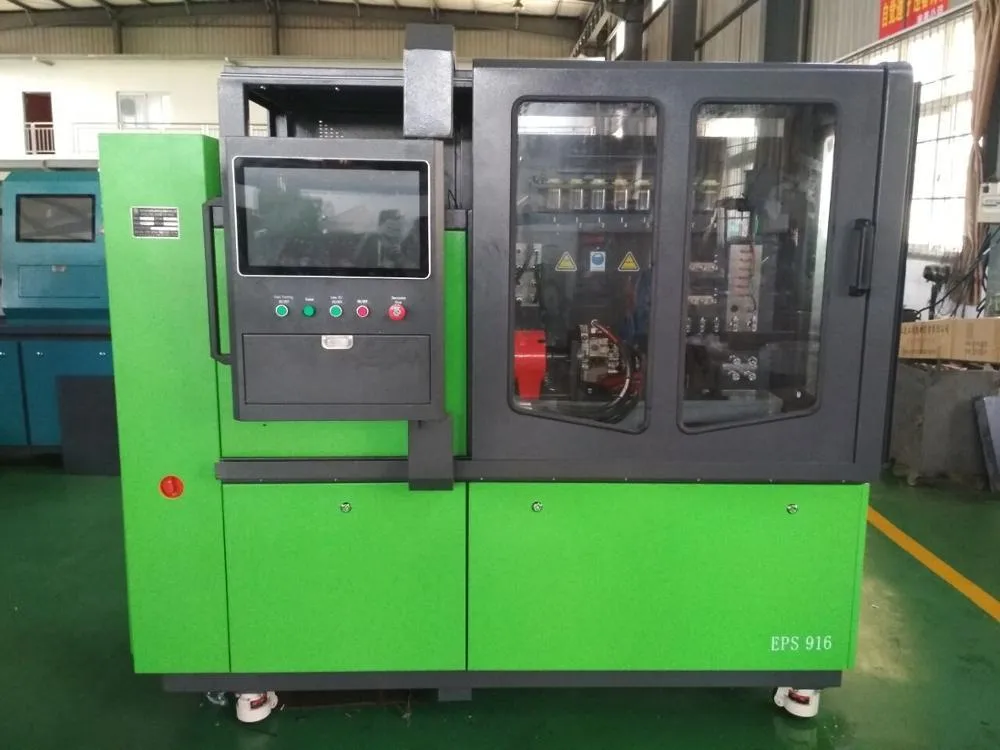

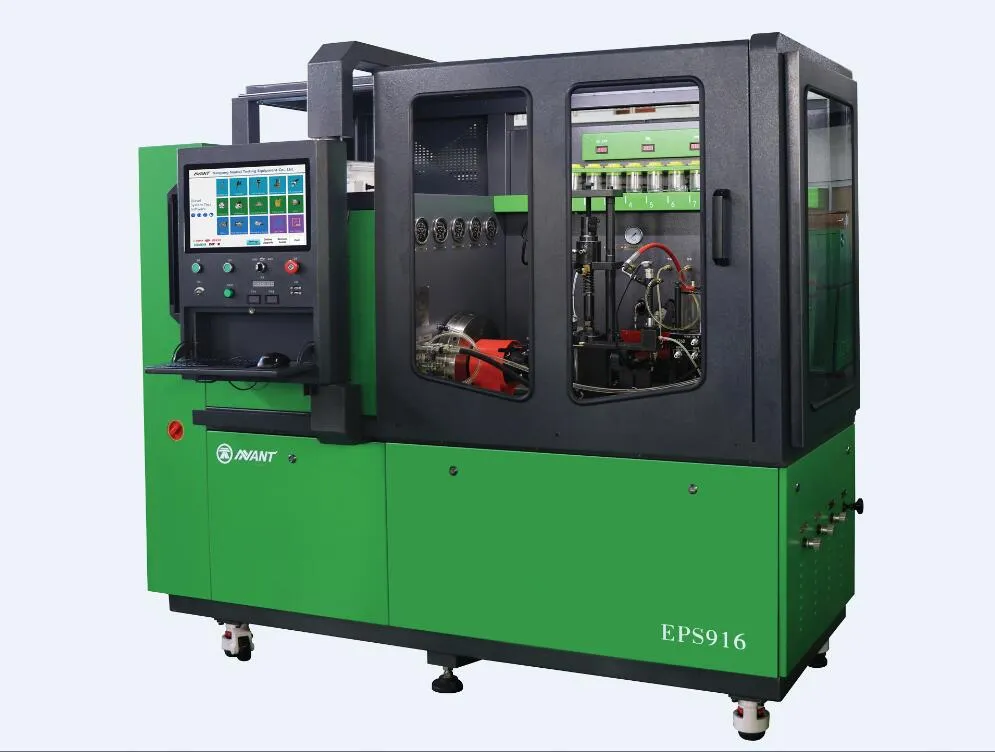

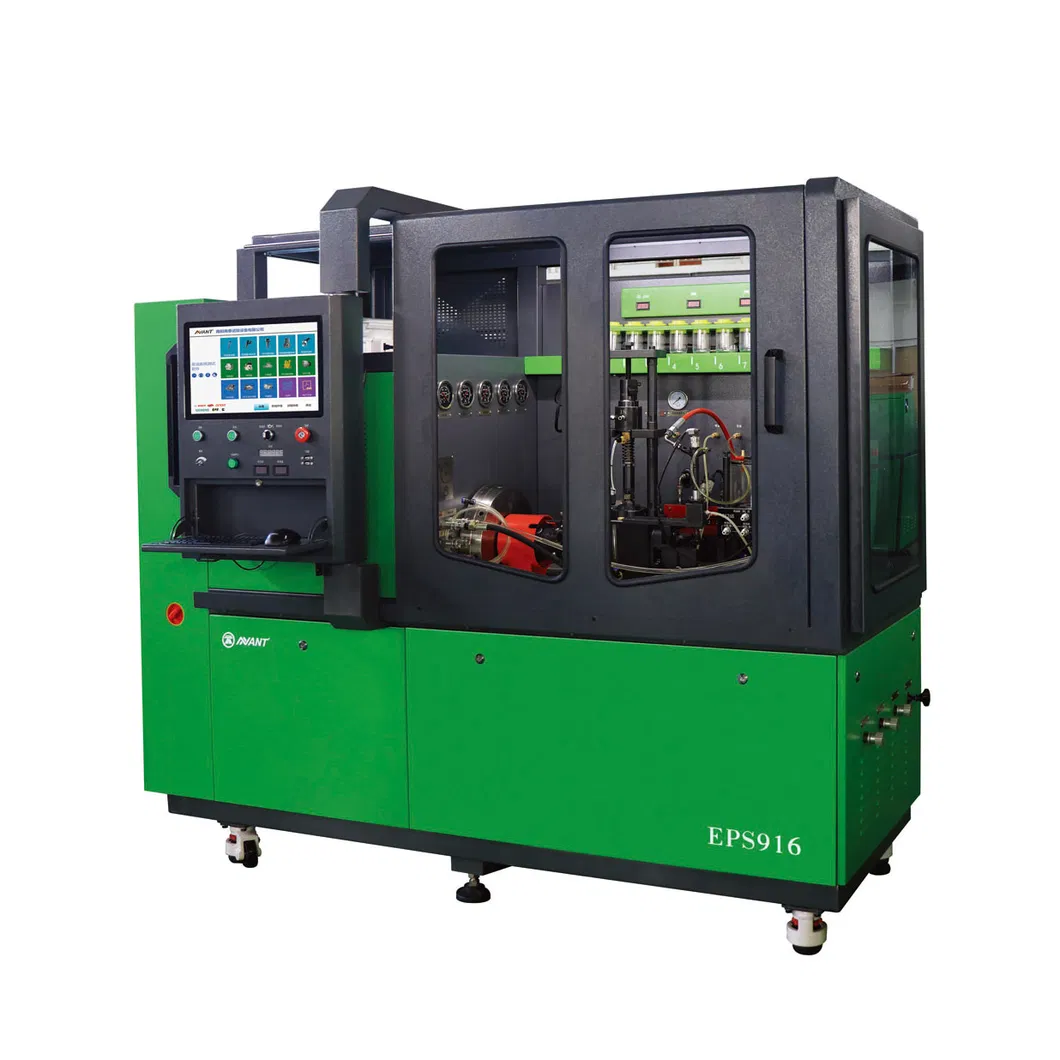

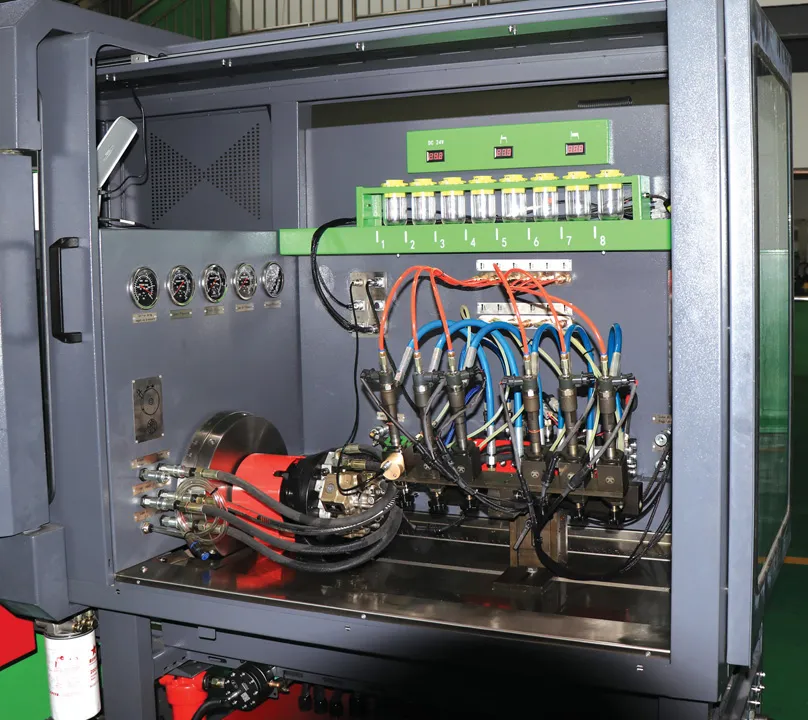

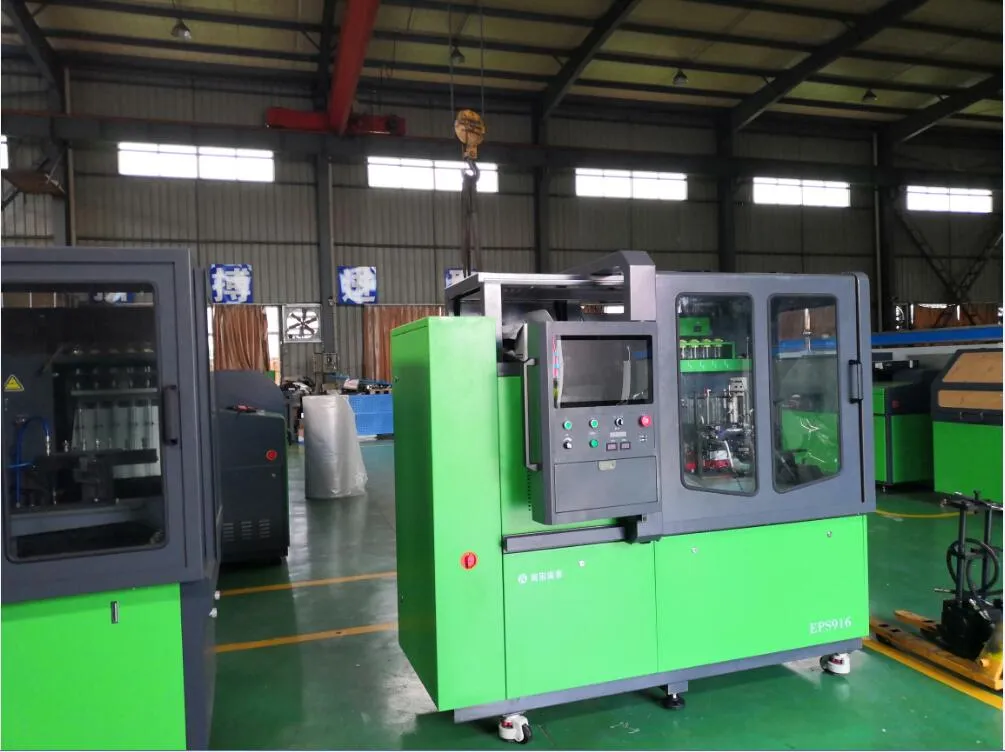

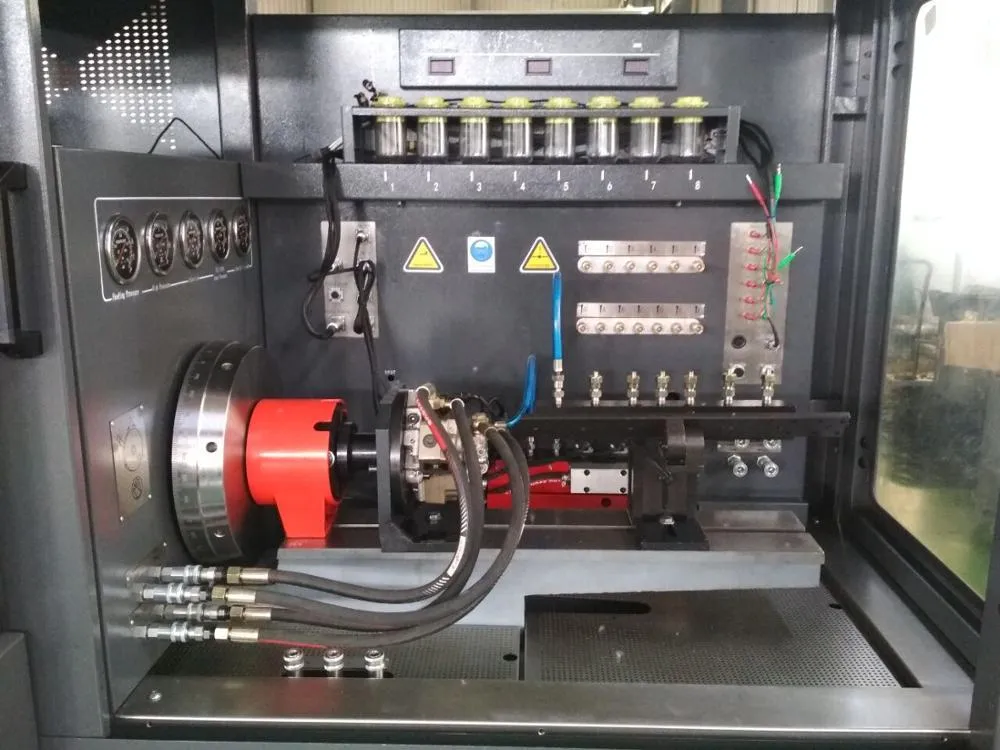

*EPS916 Full function common rail test bench use industrial capacitive touch screen and Rotary operation interface.

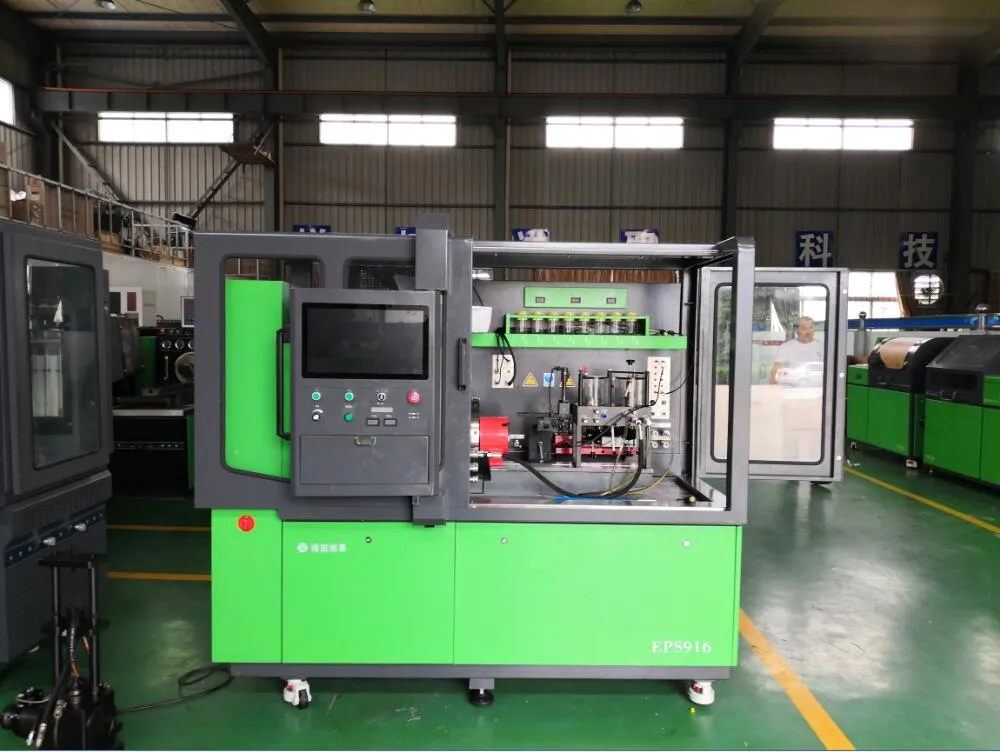

Use movable sliding door and side door. Double door design make the work space bigger and convenient.
*With movable casters,It can rotate at 360 degrees and move freely.
*Wireless network card provides remote technical service
*With BOSCH original CP3.3 new oil pump
*Industrial Air-conditioner, Double temperature control stainless steel diesel tank and hydraulic oil tank. .
*Equipped with original BOSCH ZME and special temperature control rail tube, the rail pressure controlled at ±0.5Mpa,temperature control rail pipes, the rail pressure range at 0-2600Bar.
*Equipped with four high precision flow sensor. Test Fuel injection, pump oil supply,pump oil back oil and engine oil injection. The flow range is 0.008-4L/Min, the test precision is 0.3%.
*Oil circuit pressure and temperature detection and protection device
*Main motor 15KW/18.5KW/22KW, we can make different power supply for different countries and markets.
Selection function
- Automatically test VP37 and ,VP44 pump
- Denso, Delphi QR code;
- Fuel injection response time test;
- Delphi E3 and Cummins ISX series test.
- Six injectors can be test at the same time
- Automatically test C7/C9/C-9,C3126/3408, Ford Power Stroke 6.0L,3412E/ISUZU and so on HEUI products.
- Automatically test all HEUI actuating pump.
- Automatically test Cat 320D pump.
- Automatically test Bosch, CAT, CUMMINS, DDC, Delphi,Mercedes-Benz,Volvo EUI/EUP and dual-valve E3, series of electronic unit pump system, electronic unit injector system (EUI/EUP).
| 1.Motor 15KW | 16.original Bos*ch ZME |
| 2.automaticlly test all series solenoid valve injector | 17.original Bos*ch CP3.3 pump |
| 3.automaticlly test all series piezo injector | 18.Multiple flow sensors |
| 4.Detect the resistance, inductance and voltage of the solenoid valve | 19.Oil circuit pressure and temperature detection reminder |
| 5.Test BIP of common rail injector | 20.Engine oil/diesel dual-tank integrated industrial air-conditioning refrigeration system |
| 6.Test common rail pump | 21.oil lubrication system |
| 7.Test Den*so HP0 pump | 22.Bos*ch 6/7/8/9/10 digit QR code |
| 8.Test CAT 320D pump | 23.Bos*ch piezo IMA QR Code generate |
| 9.Test CAT actuation pump | 24.Software data with one-click upgrade |
| 10.Test EUI EUP | 25.Stable performance, low noise, no vibration |
| 11.Test BIP of EUI EUP | 26.Test HPI Q60 X15 |
| 12.Test HEUI injector | 27.Test vp37 vp44 pump |
| 13.Test Del*phi E3 and Cumm*ins ISX injectors | 28.Test RED4 pump |
| 14.Bos*ch temperature control rail tube dual DRV | 29.test 6 injectors at same time |
| 15.Maximum pressure 2800bar | 30.Den*so Del*phi code generate |
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are test bench assembling factory. We have had test bench for 20 years.
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.
Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements
you can contact us directly.
