Nant Diesel Pump Tester Manual Oil Discharge Injection Pump Test Bench Bg-3

Product Description

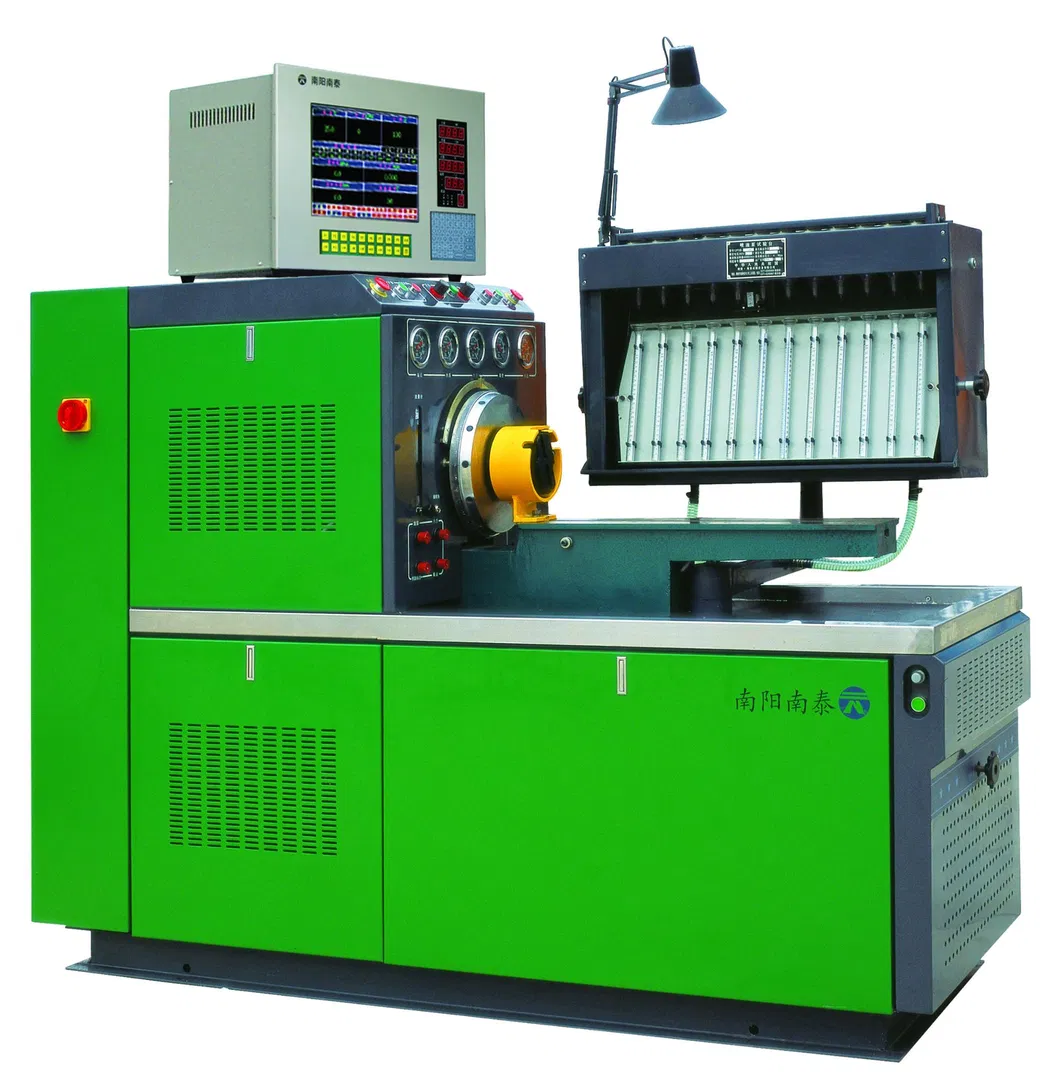

NANT Diesel Injection Pump Test Bench Michanical Pump Tester with LCD Screen 12PSBG-3

Nant Diesel Pump Tester Manual Oil Discharge Injection Pump Test Bench Bg-3

Nant Diesel Pump Tester Manual Oil Discharge Injection Pump Test Bench Bg-3

Type:Computer Manual oil discharge diesel pump test bench

Functions:

1.Test and debugging about oil supply amount and uniformity each cylinder of injection pump.
2.Check the oil supply spacing of each cylinder and oil supply starting point in the static state.
3.Check and adjust the performance of mechanical speed controller.
4.The sealing inspection of pump body.
5.The test of solenoid valve of distribution pump.
6.The test of return oil of distribution pump.
7.Measure the interior pressure of distribution pump.
8.Check the vacuum capacity regulators.
9.Check the pressure of compensator.
10.Checking the fuel supply pump.
11.Measure the advance timer device.
12.User can change the temperature.

Optional (On Request):
1.Oil lubricate
2.Measurement of rack travel
3.Printer

Advantages:

1.Advanced frequency conversion technology and industrialized computer control technology with rotation speed temperature count numeral control Industrial LCD double control display system.
2.English and Chinese menu.
3.Two sides operation manually.
4.Equipped with the relevant attachments for measuring the domestic and international various kinds of high pressure oil pumps
5.Measuring the Rack Bar journey exactly.
6.Debug speed curve of injecting oil pump.
7.Automatic oil unloading device
8.Print and keep debugging data of pump.
9.Large inertia flywheel--- steady drive and good balance

* computer control
* ultra-low-noise
* energy save

Technical parameter:

Power	5.5KW,7.5KW,11,15,18.5KW optional
Adjustable rotation speed range	0~4000rpm
Double series of graduates	45/150CC
Volume of oil tank	100L
Temperature stabilization	40±2°C
Test oil filtering unit	5μ
DC. Supply	12/24V
Feed pressure	0~0.4MPa (low), 0~4MPa (high)
Air pressure (MPa)	-0.03~0.3
Rack travel range	0~25mm
3-phase power supply	380V/50Hz or 220V/60Hz
Flywheel inertia's moment	0.8kg/m²
Center height	125mm
Overall dimensions	200X90*170CM
Net weight (kg)	1000
Average trouble-tree working time of test stand	≥2500h.

Recommendation:

Nant Diesel Pump Tester Manual Oil Discharge Injection Pump Test Bench Bg-3

Certification:

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

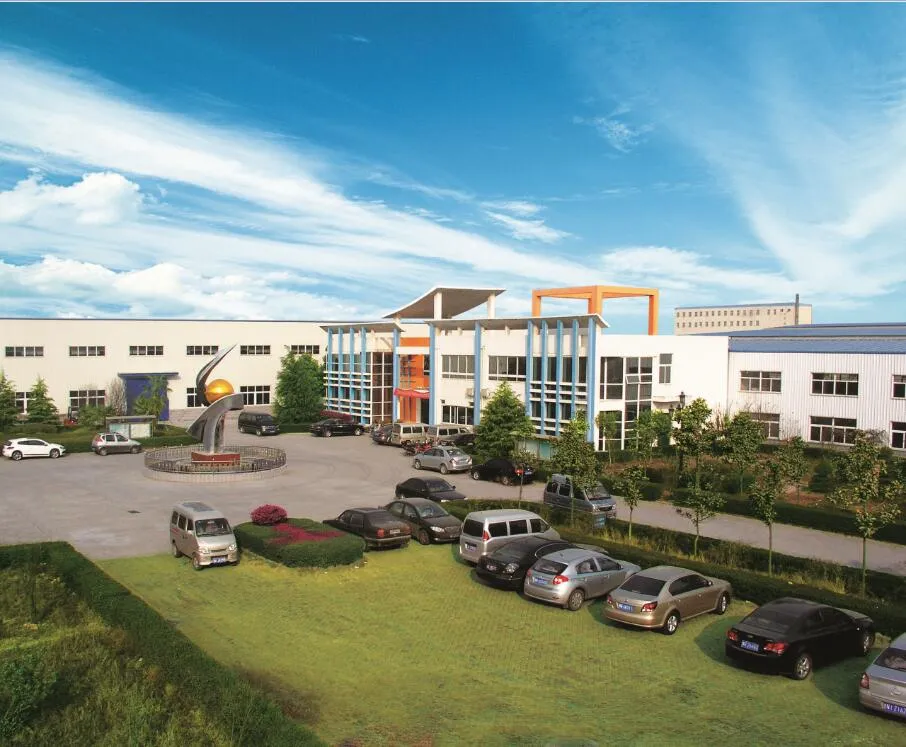

About Our Factory:

Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells many spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.The Company located in China's cultural and historical famous city--the four saint's (ZhongJing Zhang,Heng Zhang, Liang ZhuGe,Lee Fan) hometown--Nan yang, covering above 5000 square meters. Since established in 2001, the company has been taking the scientific management method of the modern enterprise, producing with meticulous care and non-stop creation and developing to become a bright pearl and pacemaker of the mechanical industry in our country. The company pays more attention to the international technical communication and cooperation, adopts advanced technology and craftworks of Germany, Italy and so on. The company owns an independent research centre to innovate and develop new products. The company pursues high standard manufacturing and qualified products. All the products had passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and so on etc. The Company owns a service team that has rich experience and skillful technique. According to customers'demand, we supply the services in a flexible way not only the traditional services but also the Internet on-line services. We try our best to carve out market and provide services all the time. Try our best to provide our customers with service of high quality and high efficiency. Lead advanced technology and create excellent quality! We are striving to pioneer and innovate, progress with you hand in hand, and create Nantai business together.

FAQ

1. who are we?
We are based in Henan, China, start from 2001,sell to South Asia(7.69%),Southern Europe(7.69%),Northern Europe(7.69%),Central America(7.69%),Western Europe(7.69%),Eastern Asia(7.69%),Mid East(7.69%),Oceania(7.69%),Africa(7.69%),Southeast Asia(7.69%),Eastern Europe(7.69%),South America(7.69%),North America(7.69%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Test Bench,diesel,common rail injector,diesel tester

4. why should you buy from us not from other suppliers?
Nanyang Nantai Test Equipment Co., Ltd., founded in 1998, is a professional engaged in the high pressure common rail diesel fuel injection pump test bench, the R & D and production of joint-stock enterprises, injector test equipment...

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Russian
