Product Description
Multifunctional Injection Pump Test Bench Diesel Pump Tester

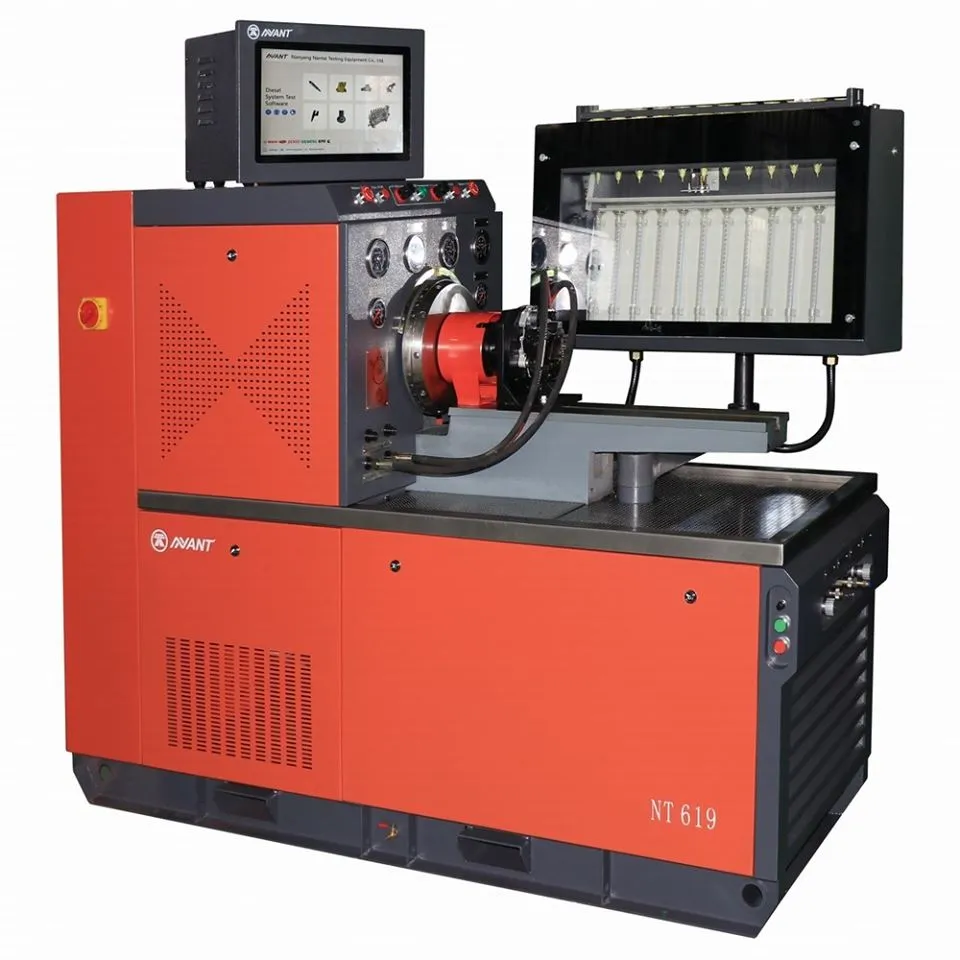

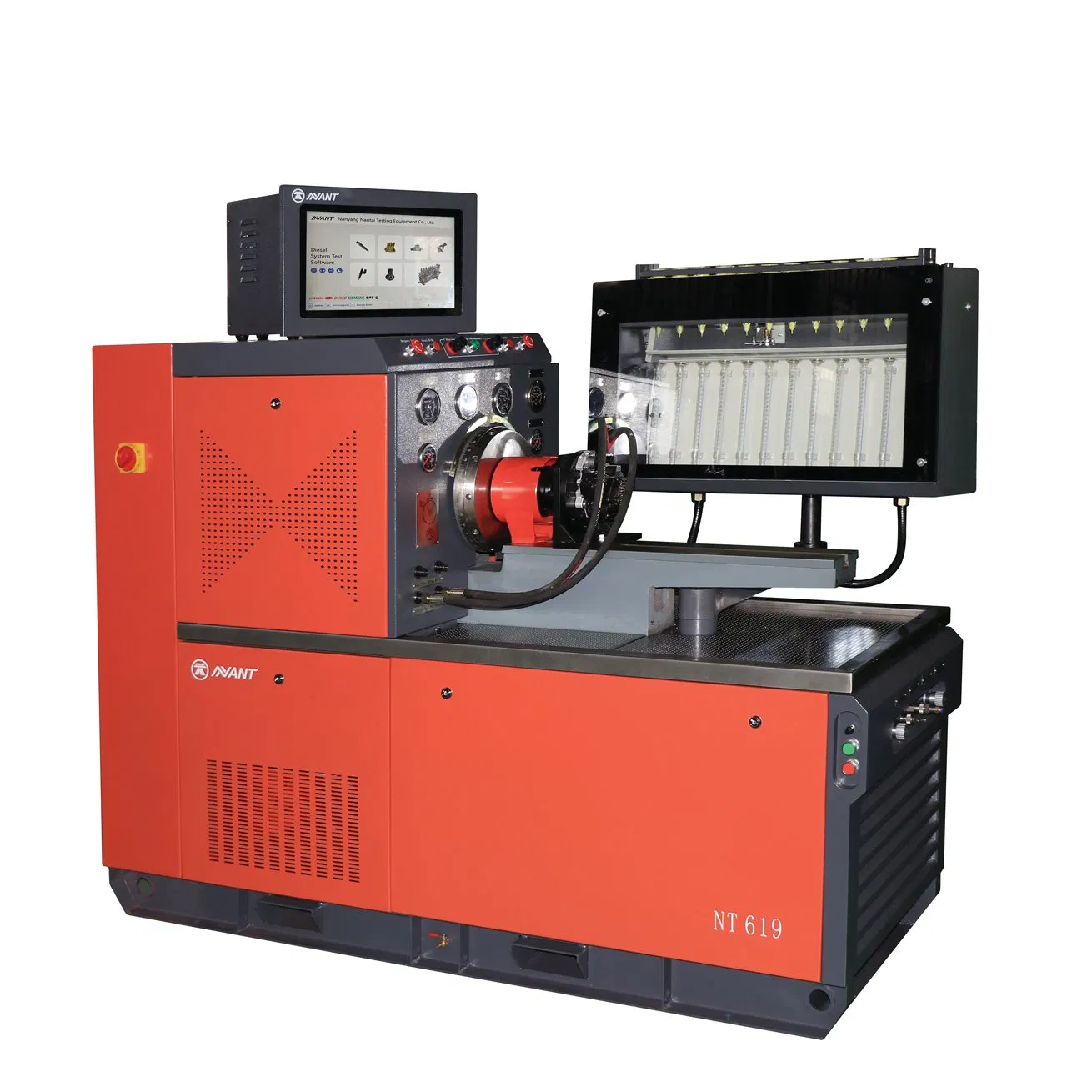

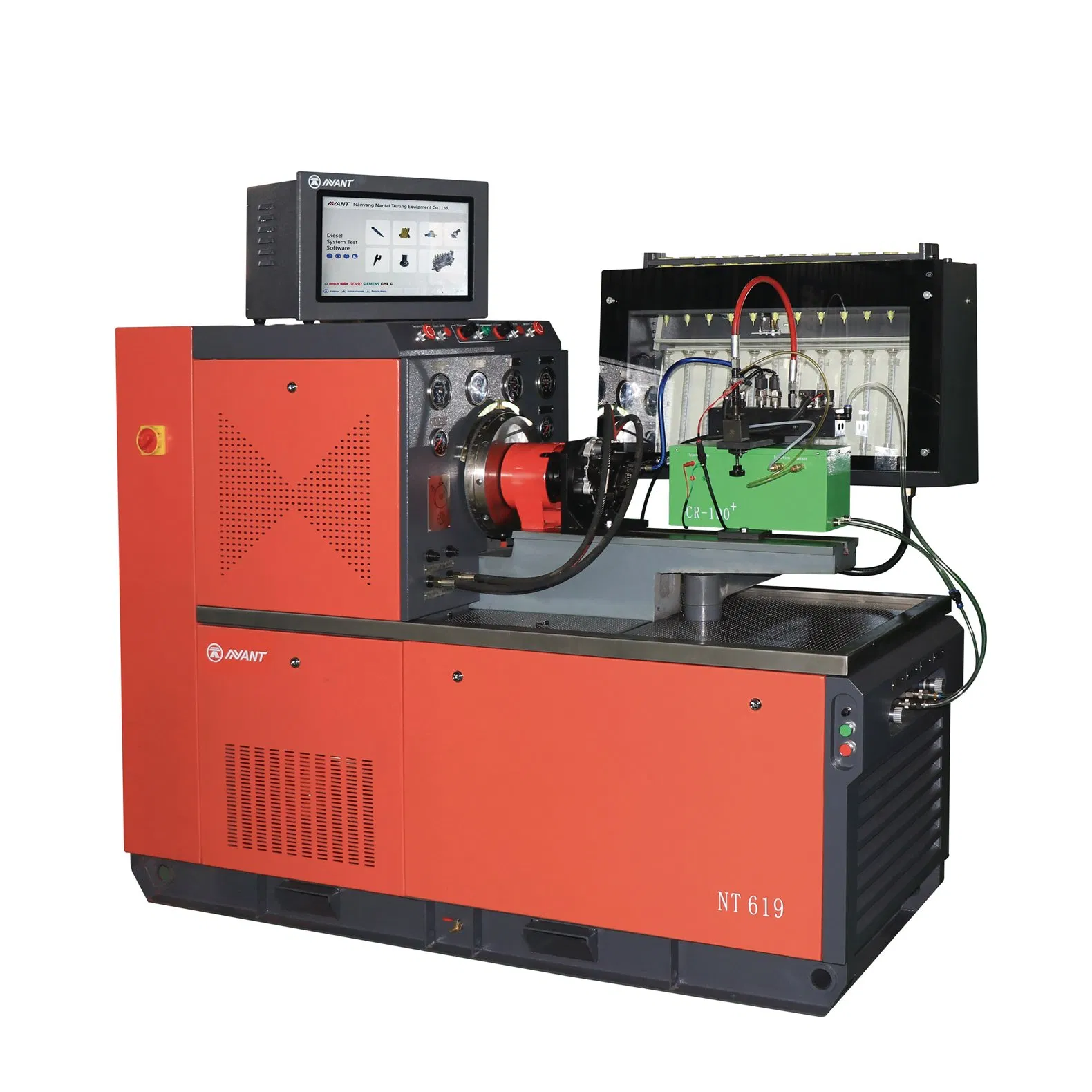

NANT Diesel Injection Pump Repairing Equipment Diesel Fuel Injection Pump Test Bench NT619
The NT-619 test bench is the latest high-tech product developed by our company on the basis of the original, which can meet the needs of different users and different regions.
The new equipment adopts the safer Linux system, the industrial control LCD color display touch screen, in addition to the advantages of the original 12PSB series test bench, it can control the oil quantity, common rail injector test, EUI/EUP test ,CAT 320D pump test, automatic oil pouring.
Features such as remote control and data upgrade. It is the best choice for users to open up new markets and upgrade.
Machine size and characteristics
1.Machine size:210CMx93CMx168CM (L*W*H),Weight: 1000KG
2.Power supply: three-phase four-wire system 380V/50HZ (Customizable three-phase four-wire 220V/60HZ,two-phase three-wire 220V/60HZ)
3.Motor:11 KW/15 KW/18.5 KW/22 KW
4.Air-cooled cycle
5.Diesel drive
6.Fuel tank 30 liters
Features
1.Oil supply and oil supply uniformity of each pump
2.Fuel injection pump oil supply point and oil supply interval angle
3.Check and adjust the governor's workability.
4.Test adjustment of distribution pump work
5.Test adjustment of booster compensator performance
6.Measurement of the oil return of the distribution pump
7.Test of distribution pump solenoid valve performance (12V/24V)
8.Measurement of internal pressure under various specified speeds of the distribution pump
9.Check the advance angle of the measuring automatic advancer
10.Fuel injection pump sealing performance test
11.Connect the self-priming oil supply pipe to check the oil pump (including the VE pump)
12.System support English,French, German, Russian,Spanish,etc
Optional functions:

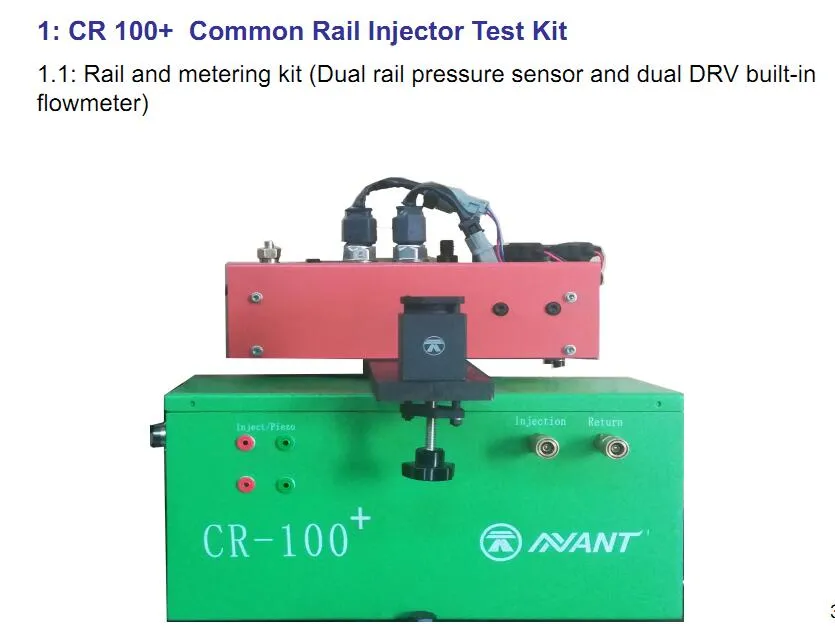

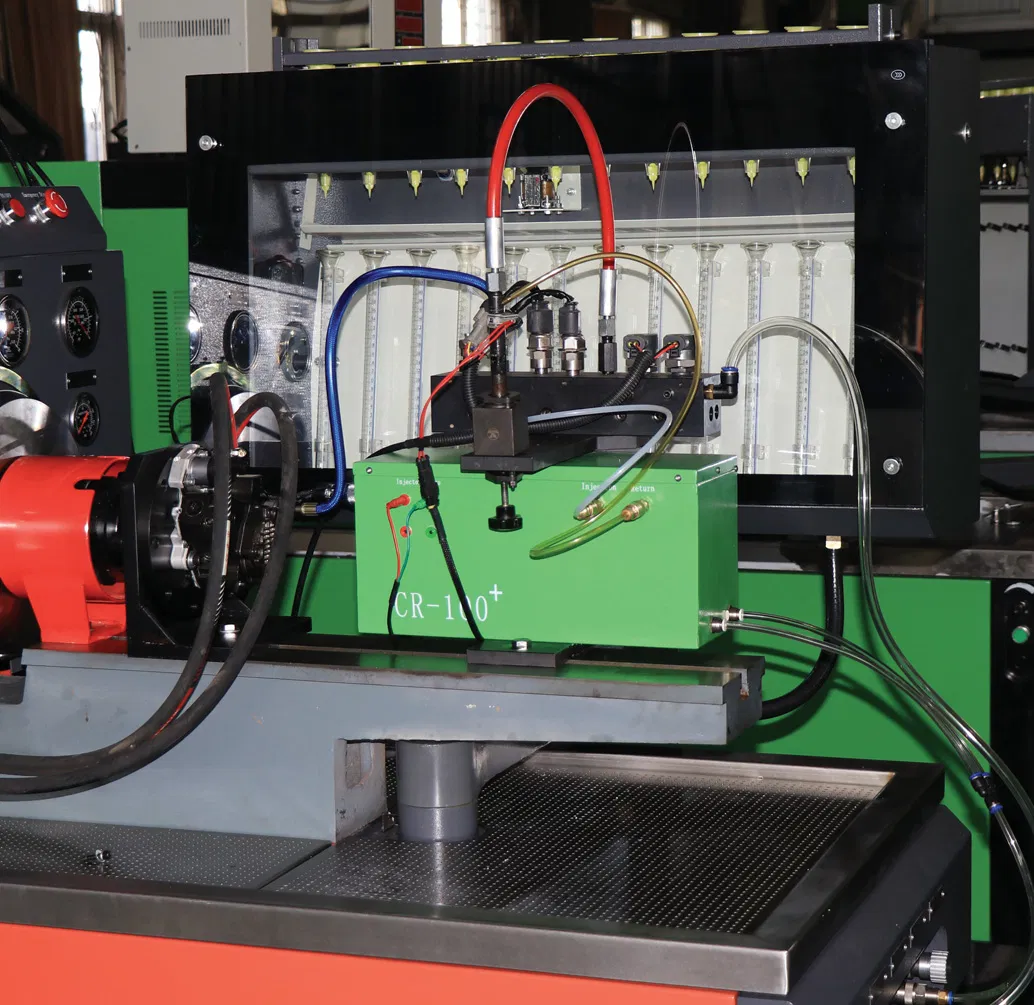

CR 100+:
CR 100+
1.With oil circuit filtering function high pressure rail pipe
2.Built in solenoid valve and DRV
3.High-precision German flow sensor
4.Test all high pressure common rail injectors and piezoelectric injectors,has over 3000 data
5.Measure the resistance,inductance,capacitance of the injector
6.Measure the response time of the injection solenoid valve (optional)

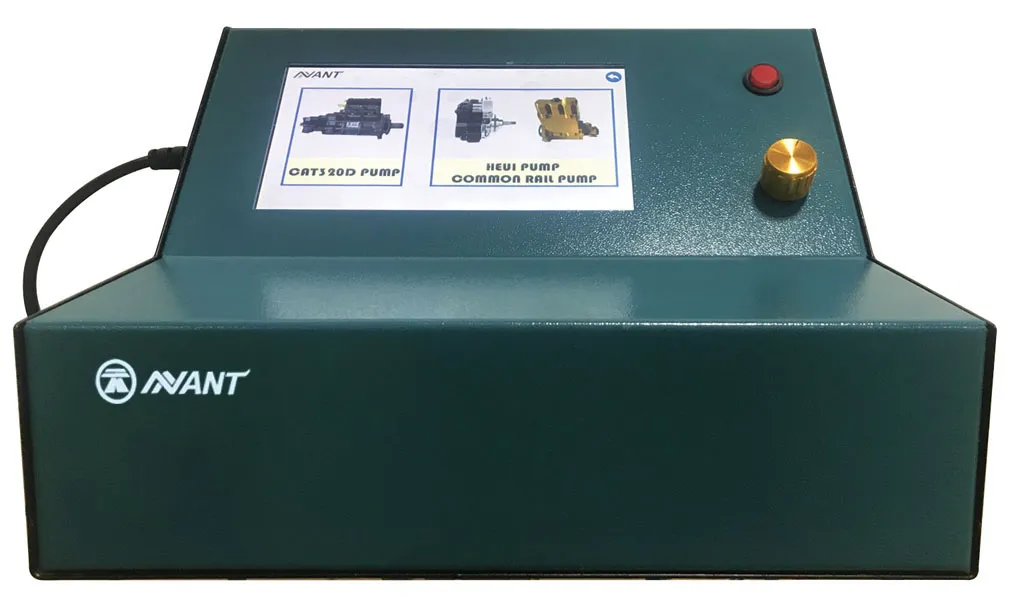

CAT-100A:
1.Test CAT 320D pump
2.Test CAT actuation pump
3.Pressure and flow test of CAT medium pressure oil pump
CAT-100B:

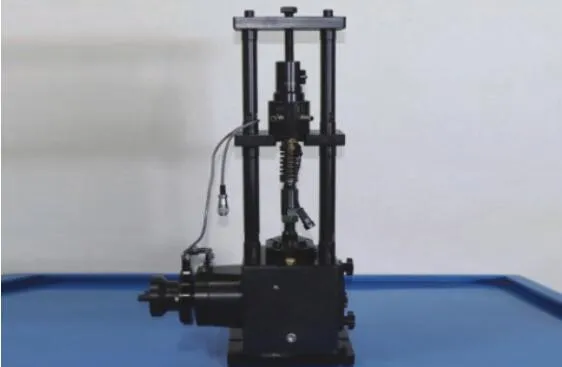

Cam Box NT1400/NT1500N
can test all models EUI/EUP,Siemens Piezo EUI,Delphi E3 EUI,Cummins X15 Q60(optional)

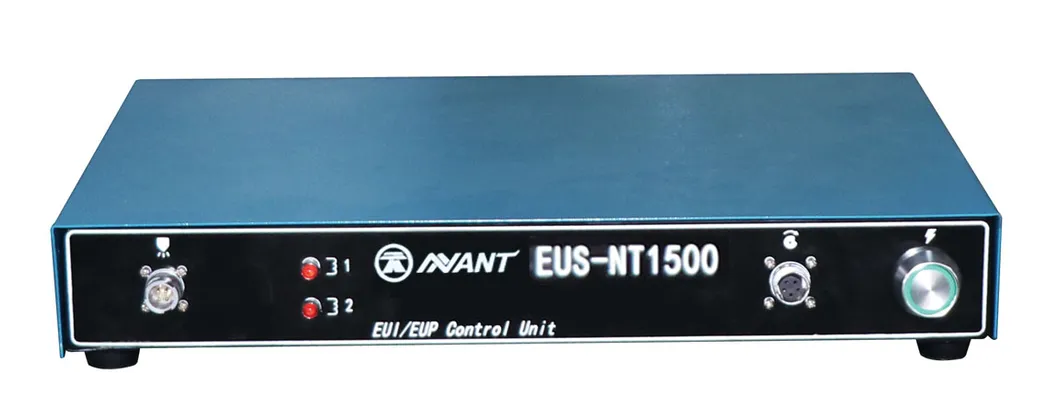

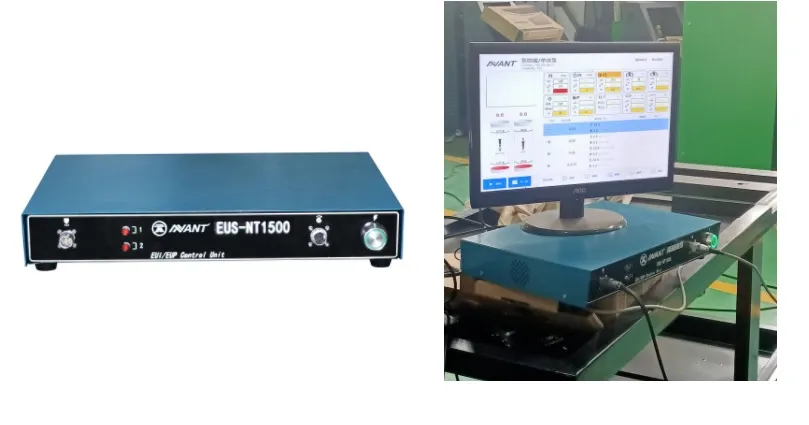

EUS-3000+
EUS-3000+ is a maintenance perfprmance test conducted by the company for various electronic unit injector(EUI) and electronic unit pump(EUP).The detector consists of a mechanical cam box any diesel injection pump test bench and is driven by it .
1,Can test all models EUI/EUP on the market.
2,Siemens Piezo EUI.
3,Delphi E3 EUI.
4,Cummins X15,Q60.
5,Measure the response time of the injection solenoid valve.
6,Remote control and online data upgrade.
Packing and shipping:
Other information about us you might wanna know:
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
The company has been pursuing high standard manufacturing and qualified products since 20 years ago.
All the products have passed the quality system certification of ISO9001:2008 & CE certificate and entered European market.
Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc.
