Multi-Function Test Bench
EPS919 dual-screen comprehensive test benchEPS919 two display screen,two system, can test different type injector or pump at same time.EPS919 integrates the three functions of common rail, medium pressure, and EUI/EUP combines with Delphi E3, Cummins ISX, actuation pump, VP37, VP44 and other functio......
Send Inquiry
Product Description

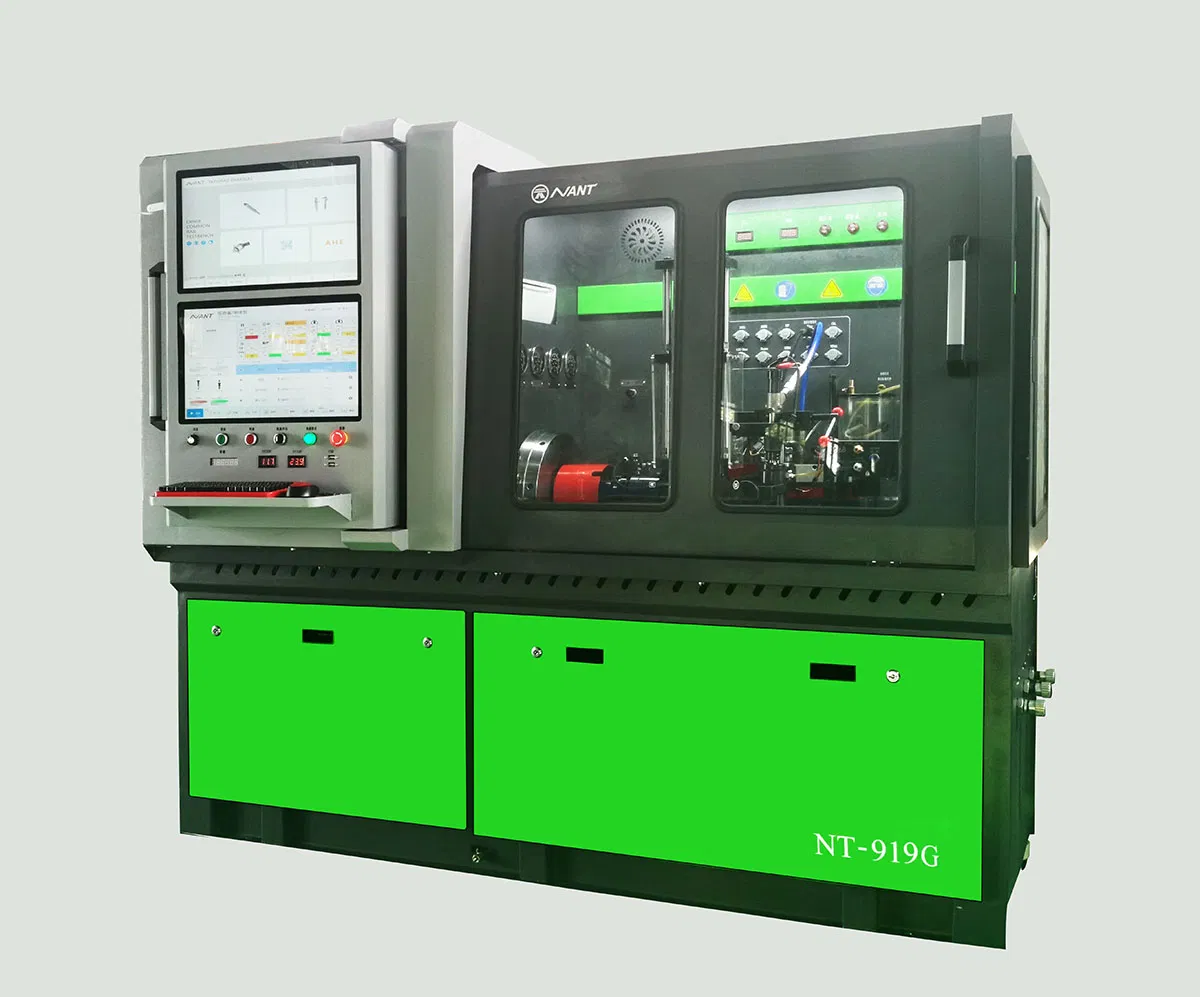

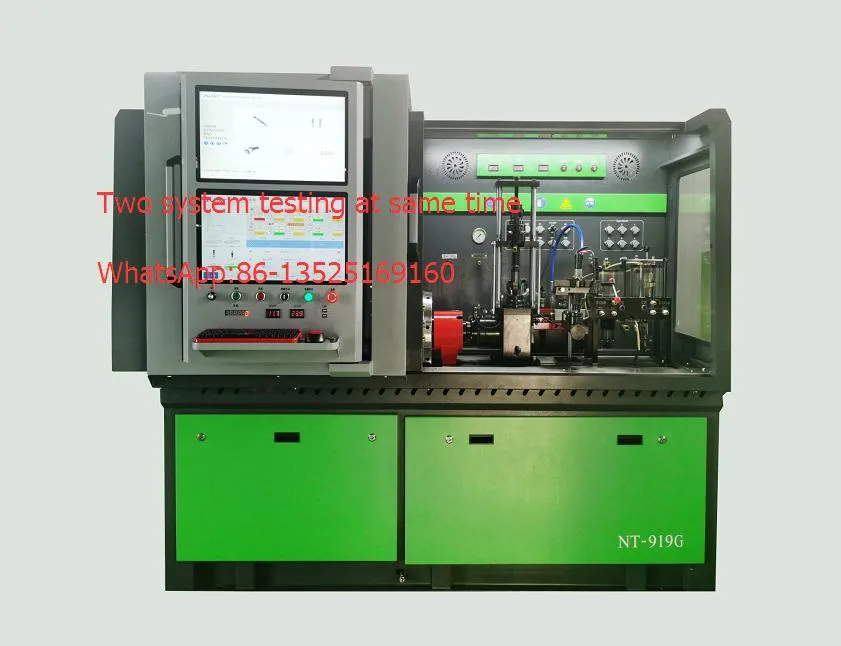

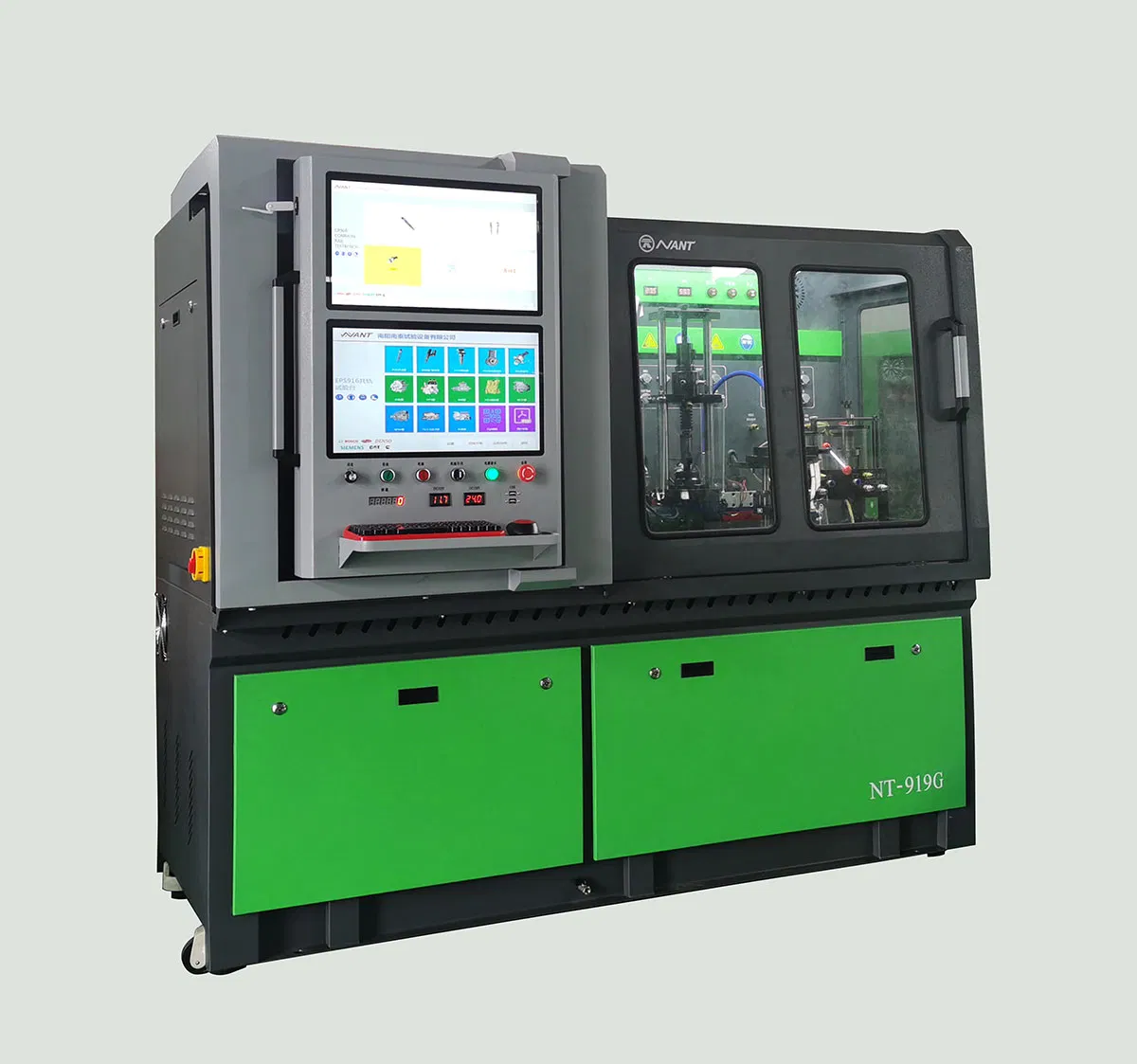

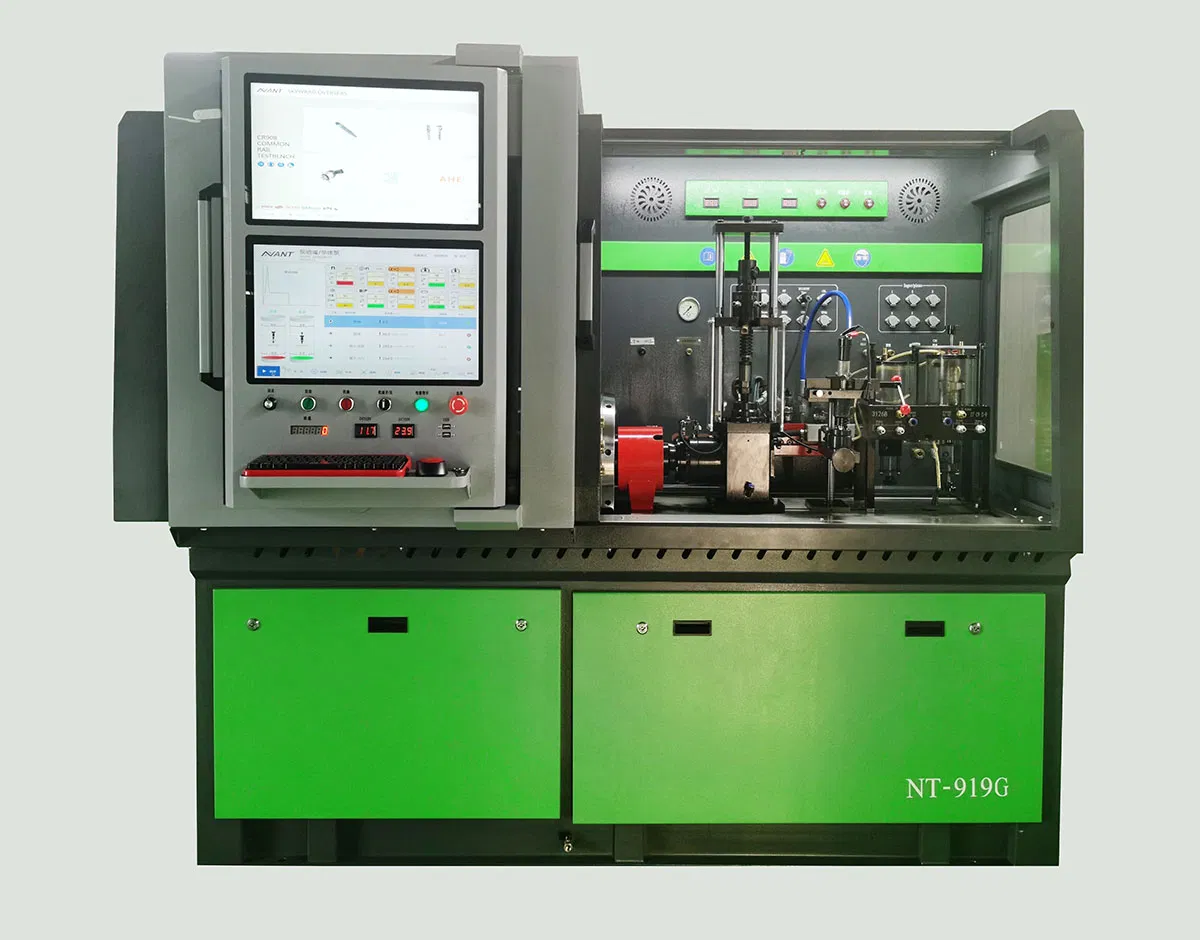

EPS919 two display screen,two system, can test different type injector or pump at same time.
EPS919 integrates the three functions of common rail, medium pressure, and EUI/EUP combines with Delphi E3, Cummins ISX, actuation pump, VP37, VP44 and other functions to meet all current market needs for testing.

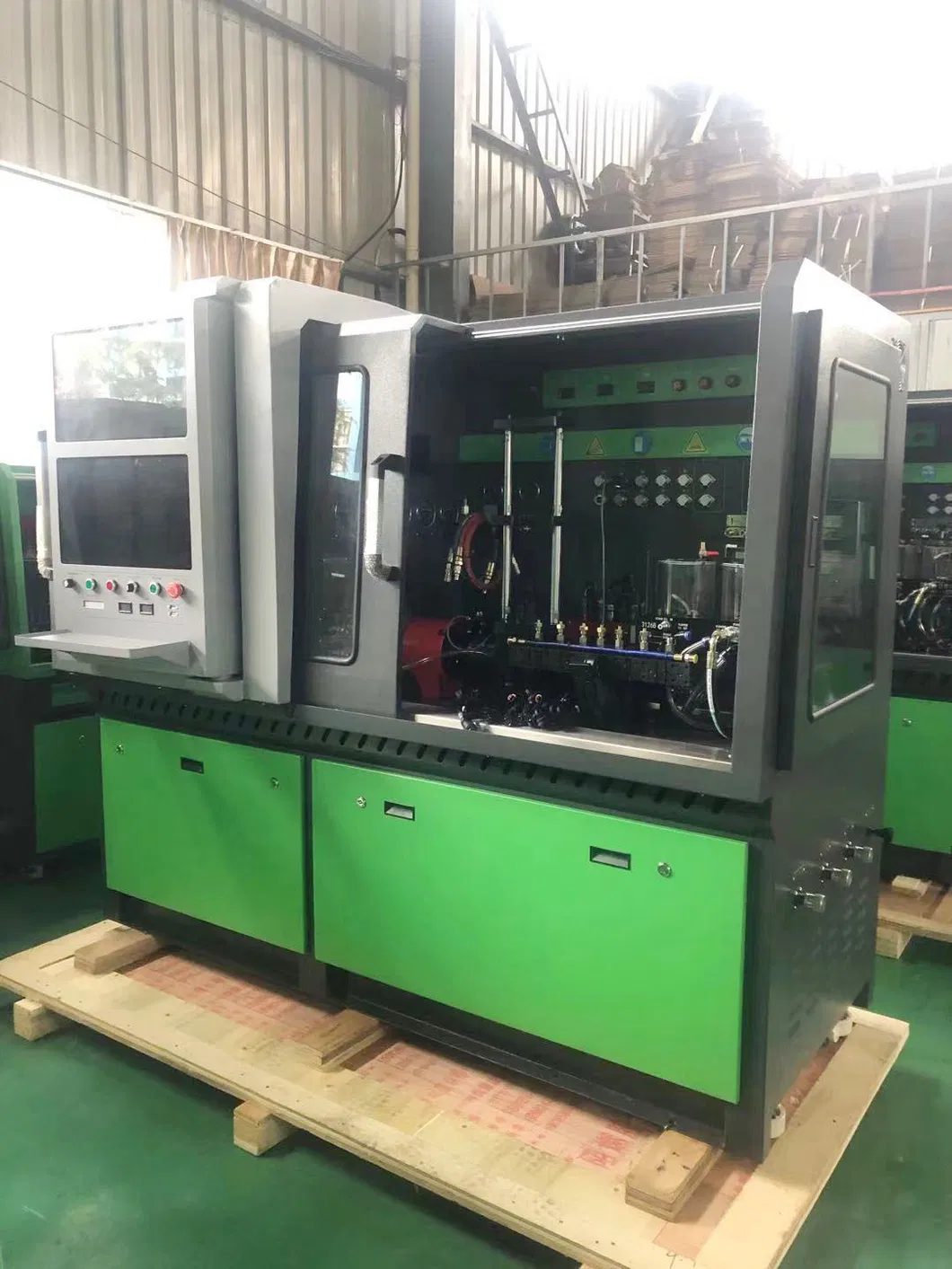

EPS919 full-function common rail test bench adopts industrial capacitive touch screen and rotary operation interface. Use movable sliding doors and side doors. The double door design makes the working space more convenient. Use movable casters, which can rotate 360 degrees freely.
Wireless network card provides remote technical services
Use Bosch original CP3.3 new oil pump
With test voltage monitor
Industrial air conditioner, dual temperature control stainless steel tank, automatic temperature control system, control the oil temperature at 40±2ºC.

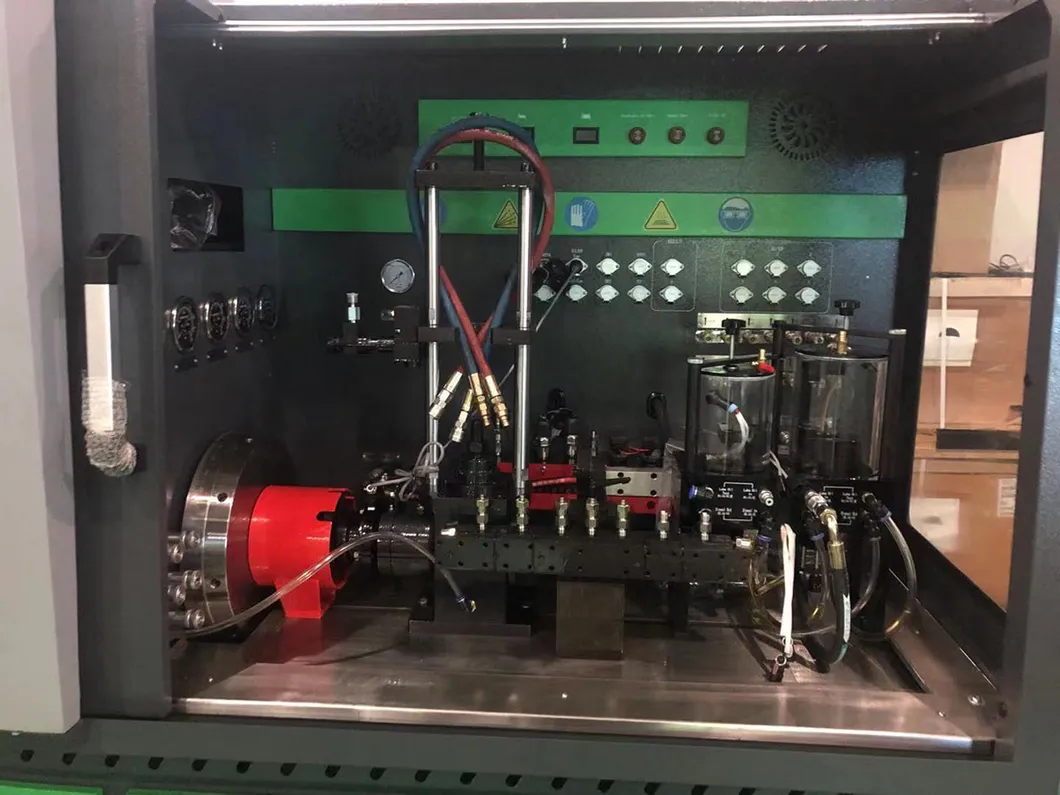

Equipped with original BOSCH original DRV and ZME, German BOSCH EPS815 special temperature control rail pipe, rail pressure is controlled at ±0.5Mpa, temperature control rail pipe, rail pressure range is 0-250Mpa.
Equipped with four German high-precision flow sensors. Test fuel injection, pump supply, pump oil return, and engine oil injection. The flow range is 0.00~4L/min, and the test accuracy is 0.3%.
The main motor is 15kW/18.5kW/22kW, which can provide different power sources for different countries and markets.
System advantages:
Embedded industrial computer system: high-speed operation, high test accuracy and retest accuracy. The original Bosch test bench database can set the current curve. The test accuracy is similar to the world's leading test bench. The equipment has high reliability and stable performance. The advantages of low noise and no vibration. Including Chinese, English, German, Spanish, French, Russian and Portuguese operation interface, suitable for global use.
EPS919 integrates the three functions of common rail, medium pressure, and EUI/EUP combines with Delphi E3, Cummins ISX, actuation pump, VP37, VP44 and other functions to meet all current market needs for testing.
Function
Test the full range of common rail injectors and piezo injectors
Test solenoid valve resistance, voltage, inductance detection (including standard data)
Test the injector BIP response time
Test common rail pump
Test unit pump/unit injector EUI/EUP
Test the BIP response time function ofEUI/EUP
Test HEUI medium pressure injector
Test HEUI Carter medium pressure actuation pump
Test Denso dual magnetoelectric sensor HPO pump and single magnetoelectric Hall sensor Denso pump
Test Delphi E3 and Cummins ISX series
Diesel/Hydraulic oil, dual fuel tanks, integrated industrial air-conditioning, strong refrigeration
Pump lubrication function
Bosch 6, 7, 8, 9, 10-digit QR code
Bosch piezoelectric IMA, ISA code generation
Automatically generate Denso QR code
Automatically generate Delphi C2i and C3i codes
Automatically generate Siemens (VDO) IIC code
One-click upgrade of software data, sharing global data
The equipment has high reliability and stable performance. Small noise and no vibration
Optional function
Testing Cummins PT injector and PT pump
Testing Cumins HPI Q60 X15
Testing Cummins HPI actuator
Testing VP37 and VP44 pump
Testing RED4 pump
Testing 6pcs injectors at same time
Can generate 6 injector QR codes at the same time

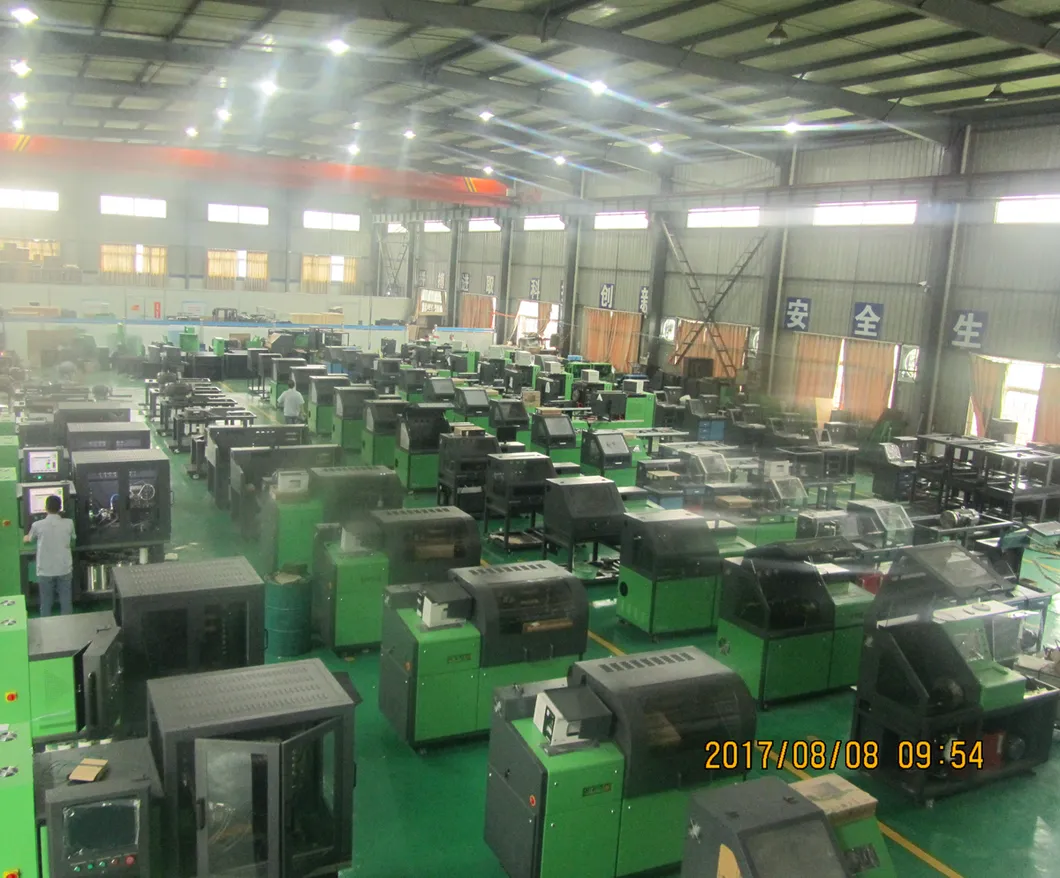

Nanyang NanTai Test Equipments Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
Our city Nanyang is famous as a maintenance base, factory hold maintenance training every month, many person learn repair skill to go to different city to work,we not only train in our factory, but also go to many cities to train, such as Xian city. Kunming city. Guizhou city and so on,we also provide training for foreign customers.
Questions
Q: How about your raw materials of the test bench?
A: Machine frame and mechanical parts are made of stainless steel. The precise test parts is made in Germany
Q:What is the advantage of your product technology than other manufacturers?
A: We develop the BOSCH compensation (IMA) code generation, Denso compensation code generation and Delphi compensation code generation. This technology in China is unique.
Q: What are the benefits of becoming a dealer?
A: 1. Dealers enjoy some free product accessories and parts.
2. Dealers will enjoy free the expenditures on to-and-fro traffic for training and learning to manufactory.
3. Dealers enjoy our free door-to-door service and upgrading.
4. We will cooperate with distributors to participate in some large-scale exhibitions and assist dealers in publicity.
5. We provide product customization services to distributors.
Q:I want different product style and appearance.
A: No problem,the color of the test bench is request. And the flow calculation method depend on you.
Q: What is the quality of your products?
A:Our products through Europe CE, and have passed the ISO quality system authentication. We have the standard of self-examination in mechanical aspects and software. All products are100% qualified factory test.
Q: How is the after-sale service?
A: Our product warranty is one year. Within the warranty period, We are responsible for the quality of the product parts. After it, we provide the spare parts at the cost price.
Q: How to install and use the machine after receiving the machine?
A: The test bench has been installed 90%. We have the instructions and technical service personnel to guide.
