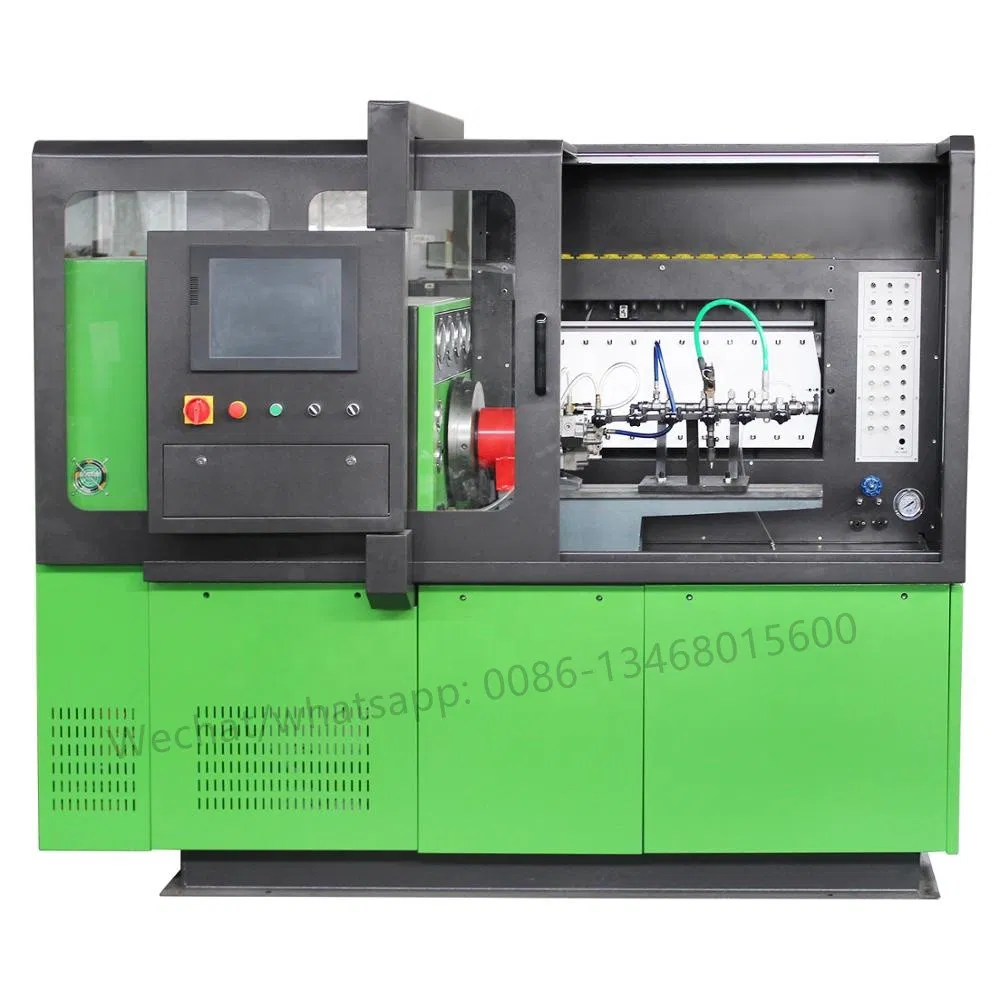

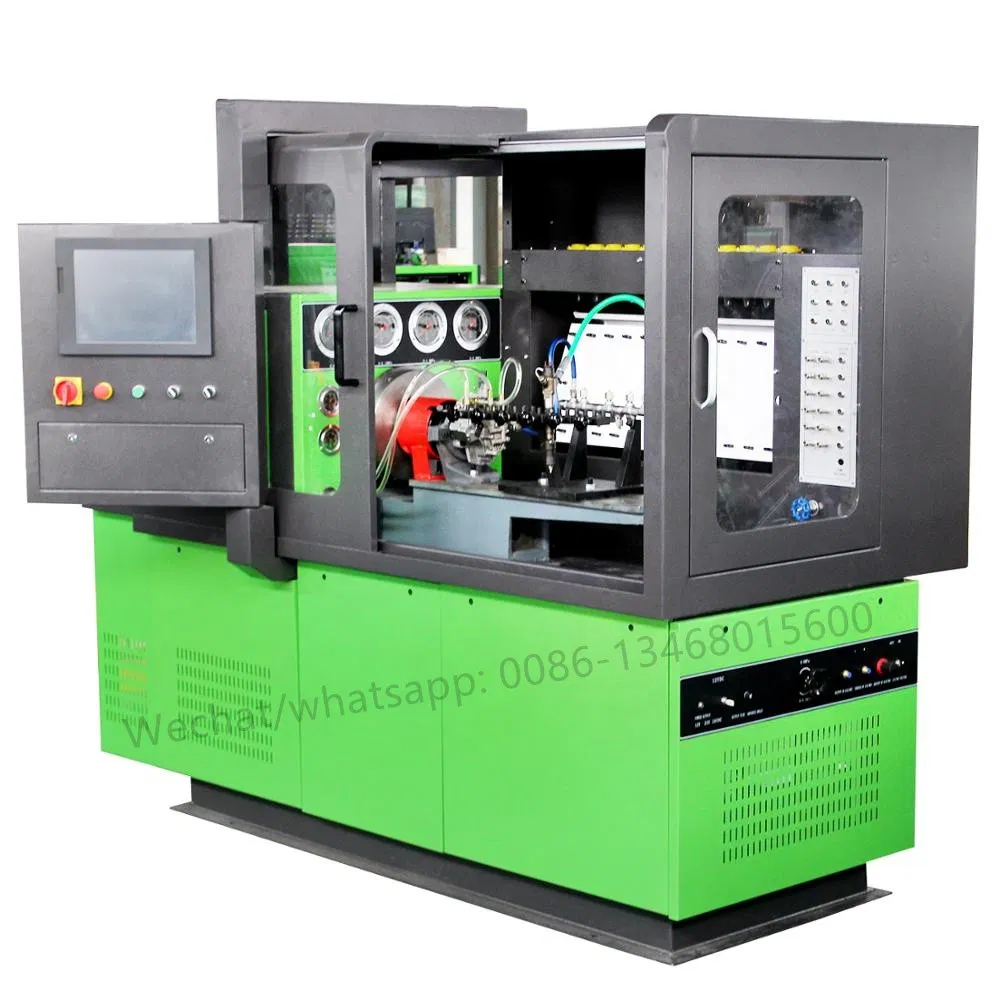

Multi-Function Comprehensive Nts815A Common Rail Diesel Fuel Injection Pump Test Bench
NTS815AMultipurpose Diesel injector &pump Common Rail EDC Test Bench 12 cylinders Brief Introduction:NTS815A multi-purpose Diesel injector &pump Common Rail EDC Test Bench 12 cylinders, which can test :Mechanical pump: include all types of the in line and Rotary( VE) pump.All types of the Co......
Send Inquiry
Product Description
NTS815A
Multipurpose Diesel injector &pump Common Rail EDC Test Bench 12 cylinders
Brief Introduction:
NTS815A multi-purpose Diesel injector &pump Common Rail EDC Test Bench 12 cylinders, which can test :- Mechanical pump: include all types of the in line and Rotary( VE) pump.
- All types of the Common rail injectors: Electromagnetic and Piezo injectors
- All types of the Common rail pumps: include BOSCH, DENSO,
- DENSO HP0 SIEMENS and DELPHI pumps.
- EUI EUP TESTING
- HEUI TESTING
Mechanical pump testing :
1.It can test A. B. P,P7 PN. PW types etc.in line pumps.
2.All rotor type VE pumps can be tested.
3.Measurement of each cylinder delivery at any speed.
4.Test point and interval angle of oil supply of injection pump.Checking and adjust the mechanical governor.
5.Checking and adjusting the distributor pump.
6.Experiment and adjusting of behavior of supercharging and compensatory device.
7.Measurement of oil return of distributing pump
8.Testing of the electromagnetic valve of distributor pump.(12V/24V)
9.Measurement of the internal pressure of distributor pump.
10.Checking of the advance angle of advance device.
11.Checking the sealing of injection pump body
12.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.
HIGH pressure Common rail System Test function
HP2, HP3, HP4, DELPHI and other high pressure common rail pumps. How and pressure under various working conditions, the system automatically judges the quality of the fuel pump.2.All rotor type VE pumps can be tested.
3.Measurement of each cylinder delivery at any speed.
4.Test point and interval angle of oil supply of injection pump.Checking and adjust the mechanical governor.
5.Checking and adjusting the distributor pump.
6.Experiment and adjusting of behavior of supercharging and compensatory device.
7.Measurement of oil return of distributing pump
8.Testing of the electromagnetic valve of distributor pump.(12V/24V)
9.Measurement of the internal pressure of distributor pump.
10.Checking of the advance angle of advance device.
11.Checking the sealing of injection pump body
12.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.
HIGH pressure Common rail System Test function
- Full automatic detection of BOSCH, DELPHI, DENSO , SIEMENS and other brands of the electromagnetic injectors, CLEAN, VE, VL. LL. EM. LEAK and other conditions of pressure flow and other performance and parameters.
- The computer system can automatically detection the quality of the injection.
- The computer system can automatically produce BOSCH QR code according to the measurement results.
- Full automatic detection of BOCH CP1, CP2, CP3, DENSO HP1,
5.Fully automatic detection of the CAT to drive the flow and pressure of
the pump at various speeds, the system automatically judges weather the umps is good or bad.
6.Fully automatic detection of the DENSO HP0 pump flow and
pressure under various working conditions, the system automatically judges the quality of the pump.
OPTIONAL FUNCTIONS:
1.HEUI PUMP TESTING
2. 320D PUMP TESITNG3. QR CODEING ( BOSCH, DENSO, DELPHI, SIEMENS injectors)
4. VP44 pump testing
5. VP37 pump testing
THE Main Configuration:
- Embedded industrial computer system, color LCD touch screen control, easy to operate, stable performance.
- System memory standard data of various injectors and fuel pumps
- Randomly configure the BOSCH CP3.3 fuel pump.
- Configure BOSCH DRV valve, pressure range 0-2300bar, rail pressure accuracy+ - 0.5bar
- High precision flow sensor , flow range 0.008-4L/mm, accuracy 0.3%.
Technical parameters
| Item | ||
| 1 | Number of Cylinder for Mechanical pump( Rotatory and in line) | 8 cylinders |
| 2 | Number of the cylinder for common rail pumps | 12 cylinders |
| 3 | Output power | 11KW |
| 4 | Optional input voltage | 3PHASE 380V |
| 5 | Motor speed range | 0-4000RPM |
| 6 | Working pressure adjustment range | 0-2400BAR |
| 7 | Flow measuring range | 0-600ML/ 1000TIMES |
| 8 | Flow measuring accuracy | 0.1ML |
| 9 | Temperatural control range | 40+-2 |
| 10 | Temperture cooling method | Air cooling |
OTHER:
1.ACCESSORIES include : Packing list attached.2.WARRANTY : 1 YEAR
3 TRAIING: WELCOME TO OUR FACTORY TO LEARN, THERE ARE FREE OF CHARGE.
CONTACT:
nantaixinan.en.made-in-china.com
0086-13468155600
Related Products:

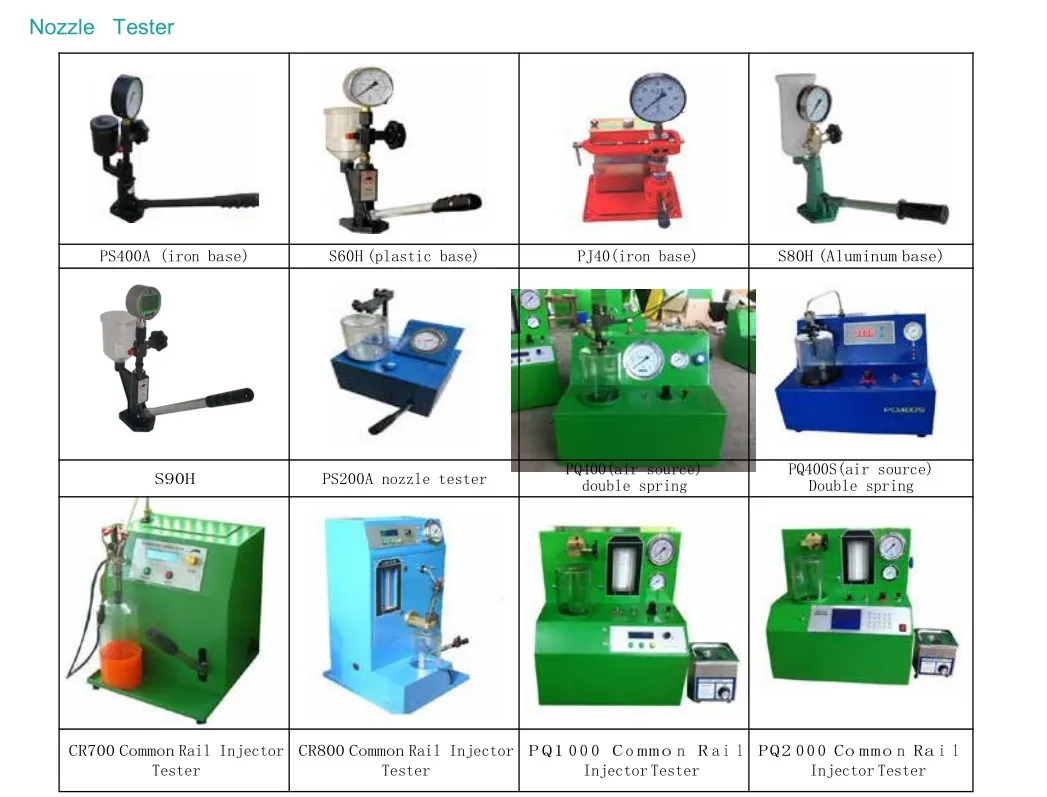

1. NOZZLE TESTER

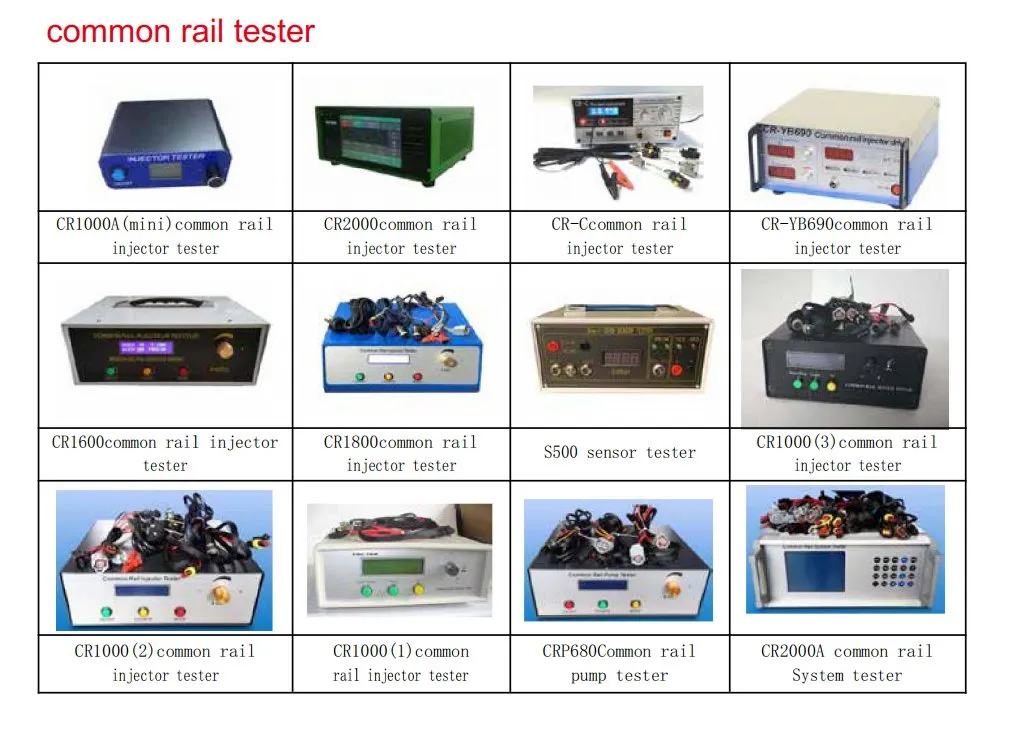

2. COMMON RAIL TESTER :

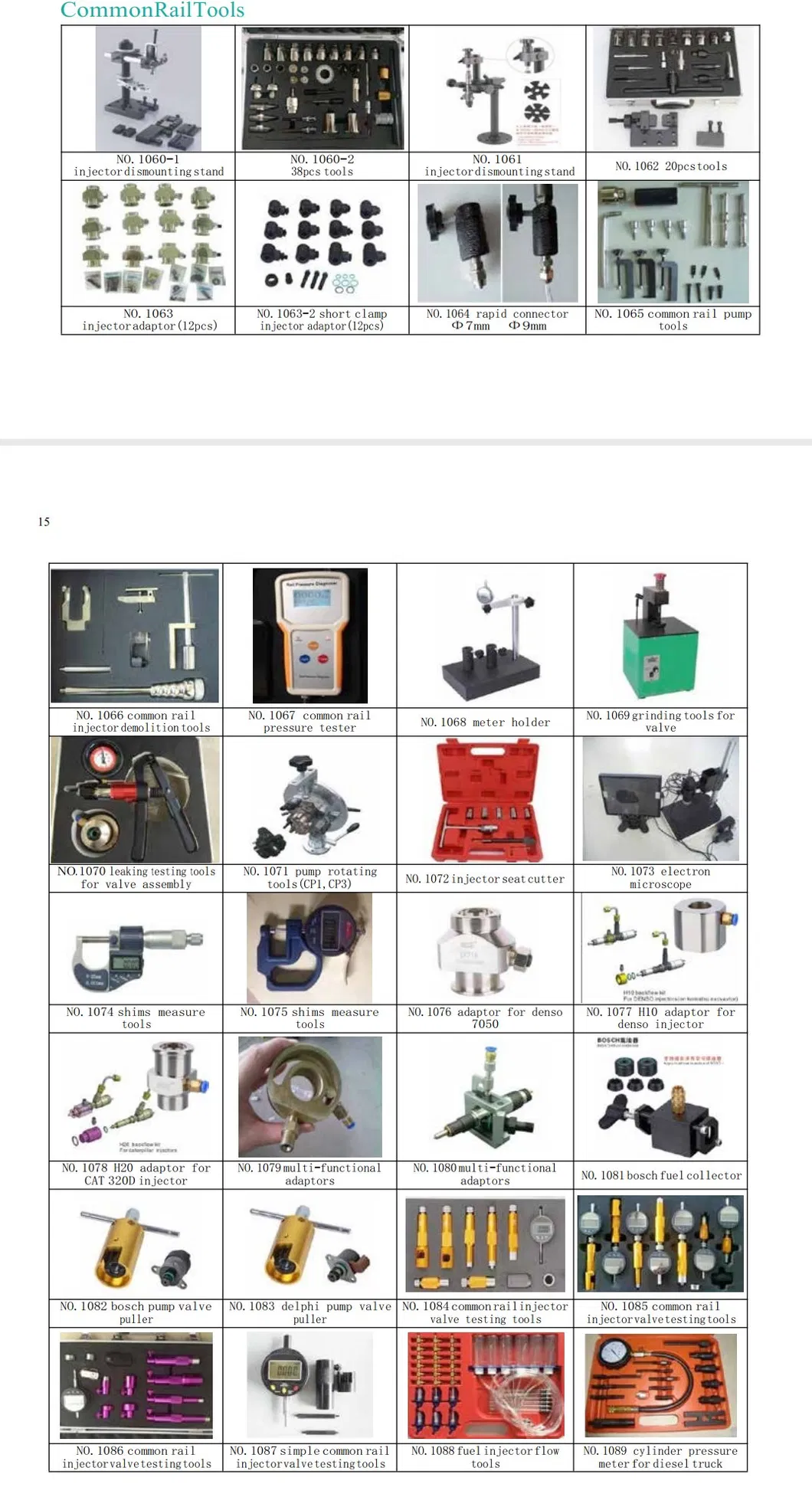

3. Professional Tools:

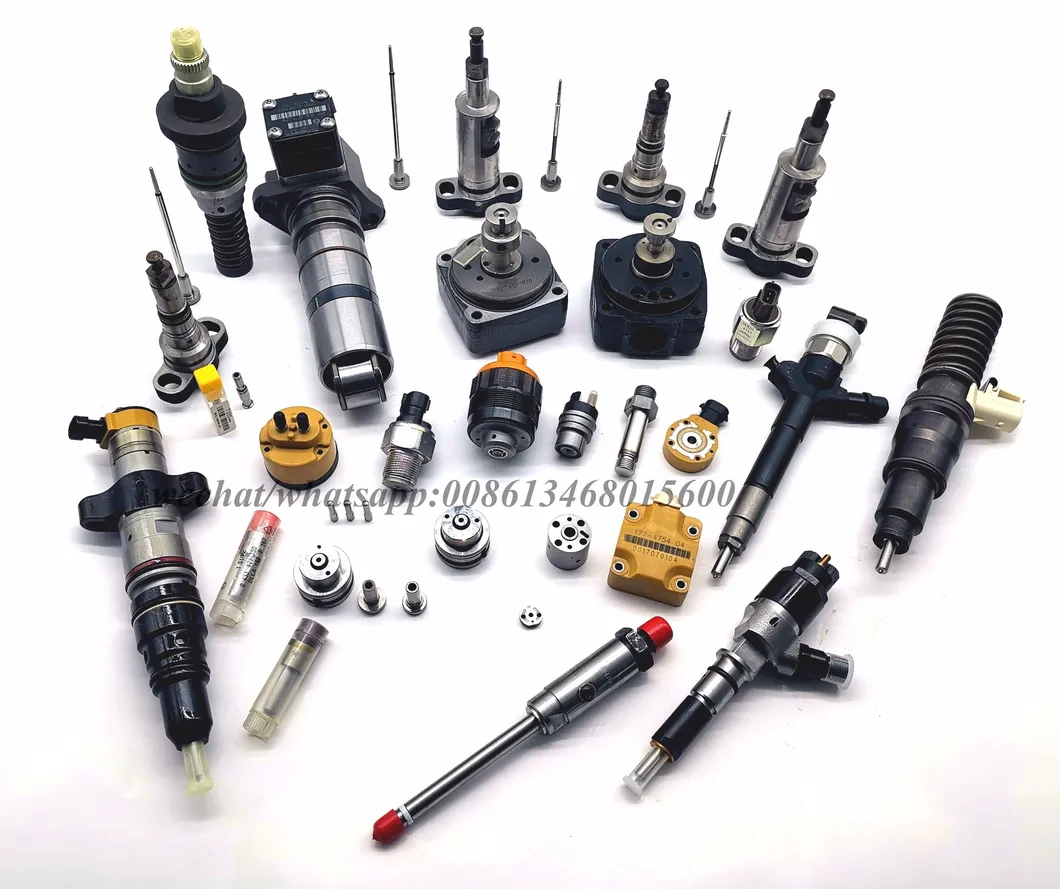

4. Spare parts:
