Product Description

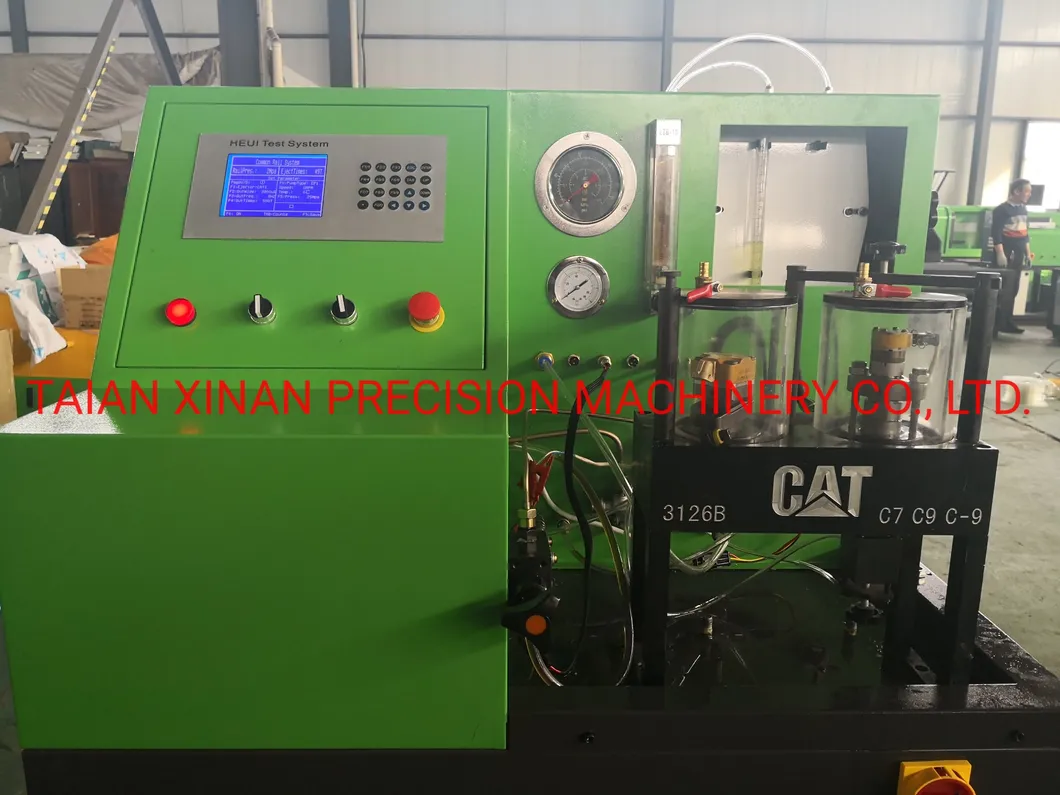

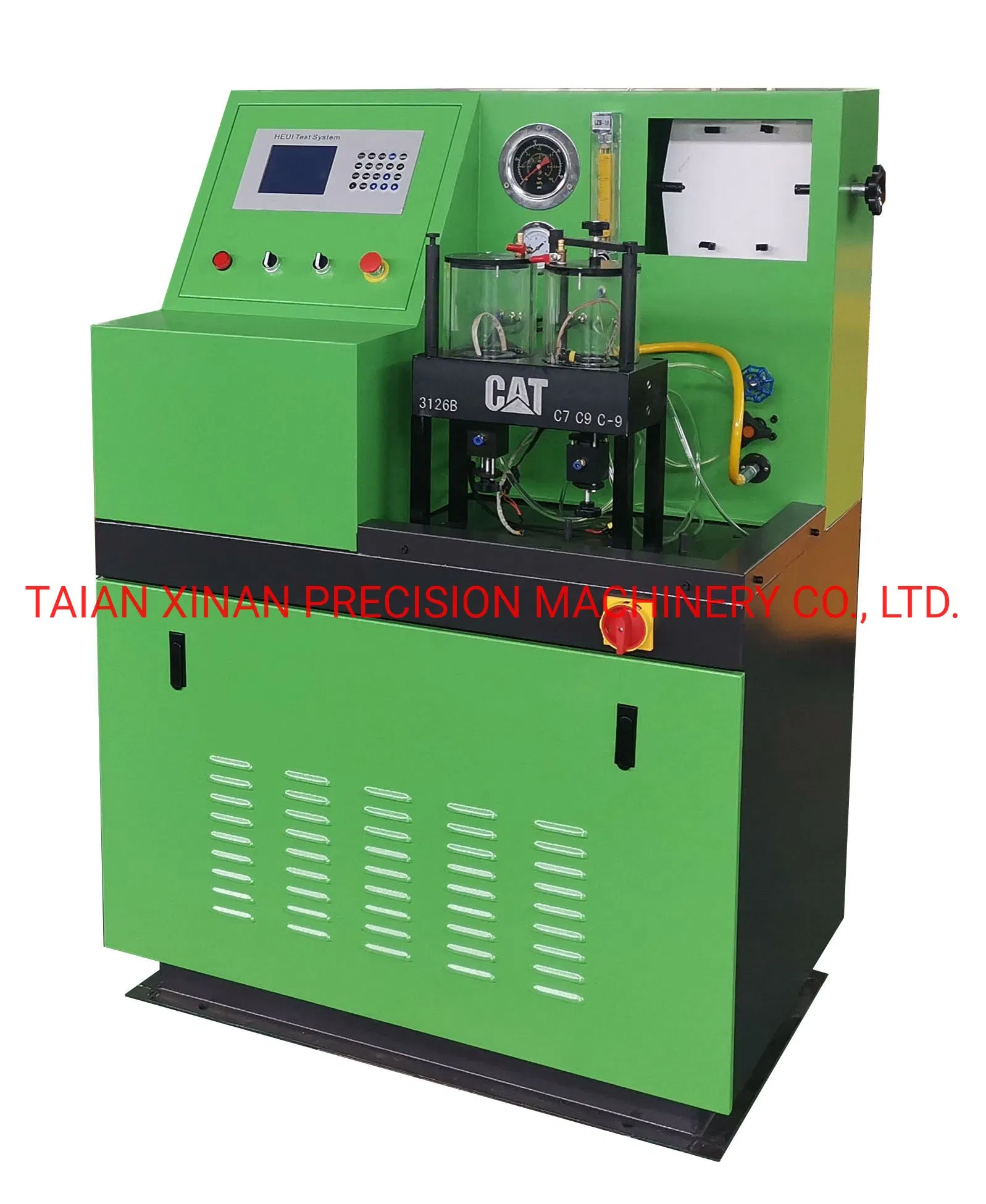

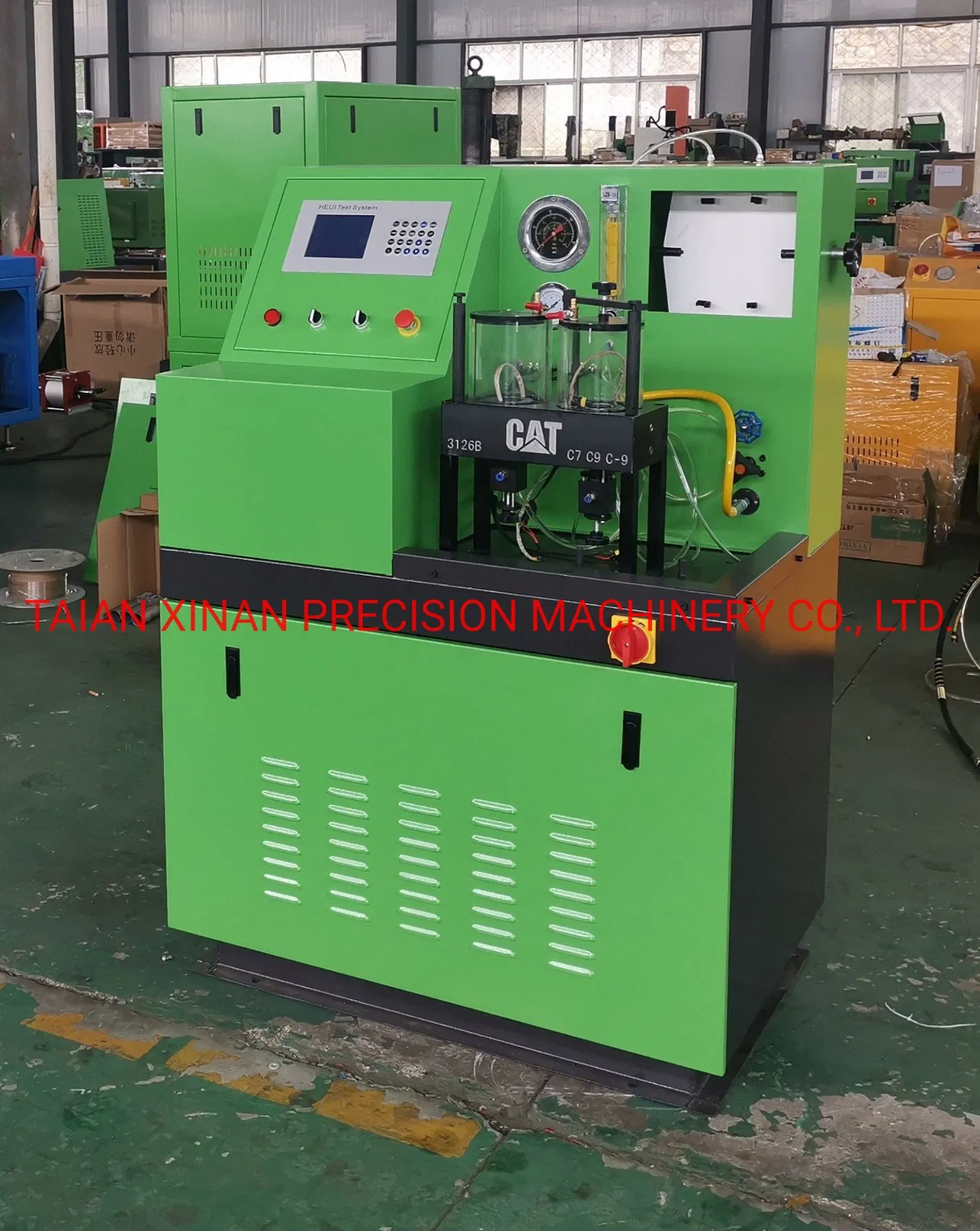

HEUI TEST BENCH:
INTRODUCTION:
Improve fuel economy & enhance performance
Measurement fuel delivery of four HEUI injectors
Sealing test for injectors upper seat of the solenoid control valve
It can test HEUI(CAT C7/C9,CAT 3408...)
Application:
The test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
l Navistar T444E, as Ford 7.3L PowerStroke Engines
l Navistar DT466E
l Navistar I530E
l Caterpillar 3126B

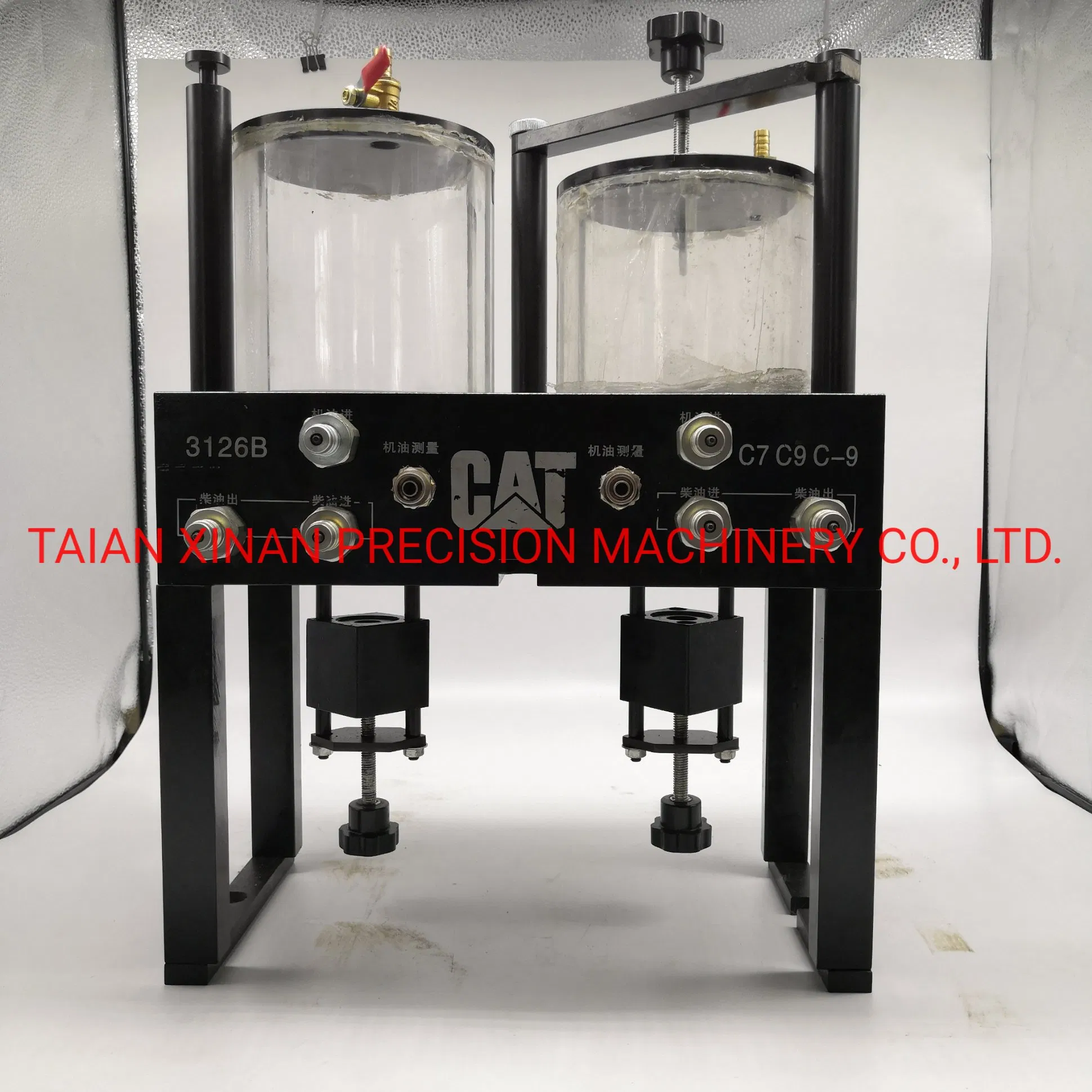

l Adapting Kits for Testing One CAT C7/C9 HEUI Injector
l Adapting Kits for Testing One CAT 3126 HEUI Injector
Function:
l Measurement fuel delivery of HEUI injectors
l Sealing test for injector upper seat of the solenoid control valve
Specification:
l AC Power: 3-Phase, 380V/50Hz or 230V/60Hz or 460V/60Hz
l Drive System for Actuation Pump
l 3KW AC Induction Motor
l VFD(Variable Frequency Drive) Motor Controller
l Actuation Pump
l Pressure Range of Actuation Oil: 0~3000psi (0~210bar)
l Low Pressure Test Oil Supply:0~60psi (0~4bar)
l Test Oil Tank Capacity:10.5US gallons (40 liters)
l Test Oil Temperature Control
l Range: 30~50°C
l Accuracy: +/- 1°C
l Digital Display
l Test Oil
l The machine is designed to run on single test oil for both oil injection and high pressure actuation to HEUI injectors.
l The test oil should meet ISO4113 standard.
l Injection Quantity Measurement: 2 Cylinders, 45/150cc
l Full Functioned HEUI Control Module
l Test Oil Filtration: 5µm, Full Flow
l Main Features of HEUI Control Module:
Improve fuel economy & enhance performance
Measurement fuel delivery of four HEUI injectors
Sealing test for injectors upper seat of the solenoid control valve
It can test HEUI(CAT C7/C9,CAT 3408...)
Application:
The test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
l Navistar T444E, as Ford 7.3L PowerStroke Engines
l Navistar DT466E
l Navistar I530E
l Caterpillar 3126B
l Adapting Kits for Testing One CAT C7/C9 HEUI Injector
l Adapting Kits for Testing One CAT 3126 HEUI Injector
Function:
l Measurement fuel delivery of HEUI injectors
l Sealing test for injector upper seat of the solenoid control valve
Specification:
l AC Power: 3-Phase, 380V/50Hz or 230V/60Hz or 460V/60Hz
l Drive System for Actuation Pump
l 3KW AC Induction Motor
l VFD(Variable Frequency Drive) Motor Controller
l Actuation Pump
l Pressure Range of Actuation Oil: 0~3000psi (0~210bar)
l Low Pressure Test Oil Supply:0~60psi (0~4bar)
l Test Oil Tank Capacity:10.5US gallons (40 liters)
l Test Oil Temperature Control
l Range: 30~50°C
l Accuracy: +/- 1°C
l Digital Display
l Test Oil
l The machine is designed to run on single test oil for both oil injection and high pressure actuation to HEUI injectors.
l The test oil should meet ISO4113 standard.
l Injection Quantity Measurement: 2 Cylinders, 45/150cc
l Full Functioned HEUI Control Module
l Test Oil Filtration: 5µm, Full Flow
l Main Features of HEUI Control Module:
Adjustable Range of Equivalent Engine Speed of Fuel Injection | 0~4000 rpm |
Adjustable Range of Injection Pulse Width | 0~6ms |
Fuel Delivery Measurement Counter Range | 1~9999 |
Simple, User-Friendly Display and Mini-Key Pad | |
