Fuel Injection Pump Test Bench Nt-619

NT-619 Multifunctional Diesel fuel injection pump and common rail injector test bench

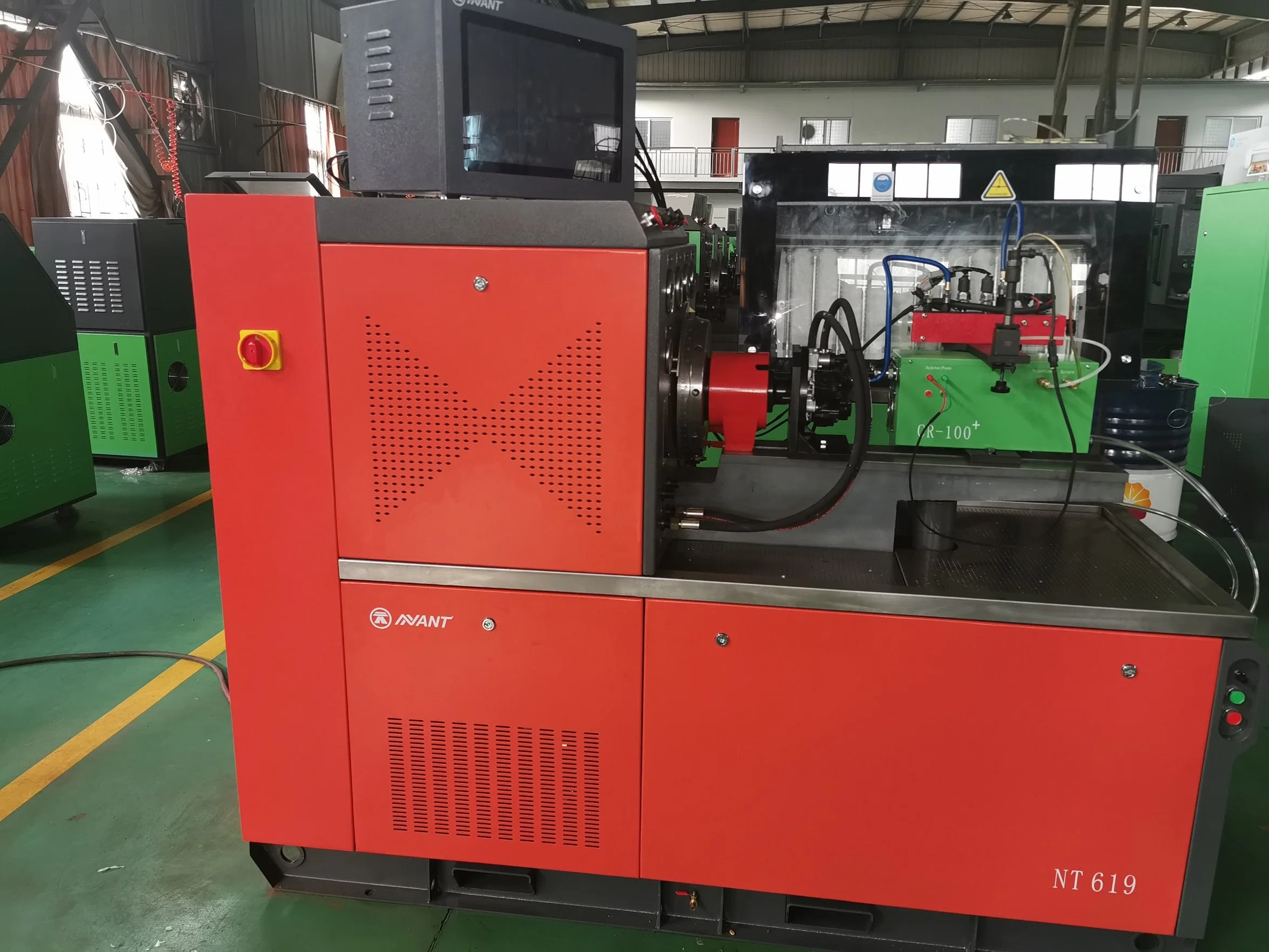

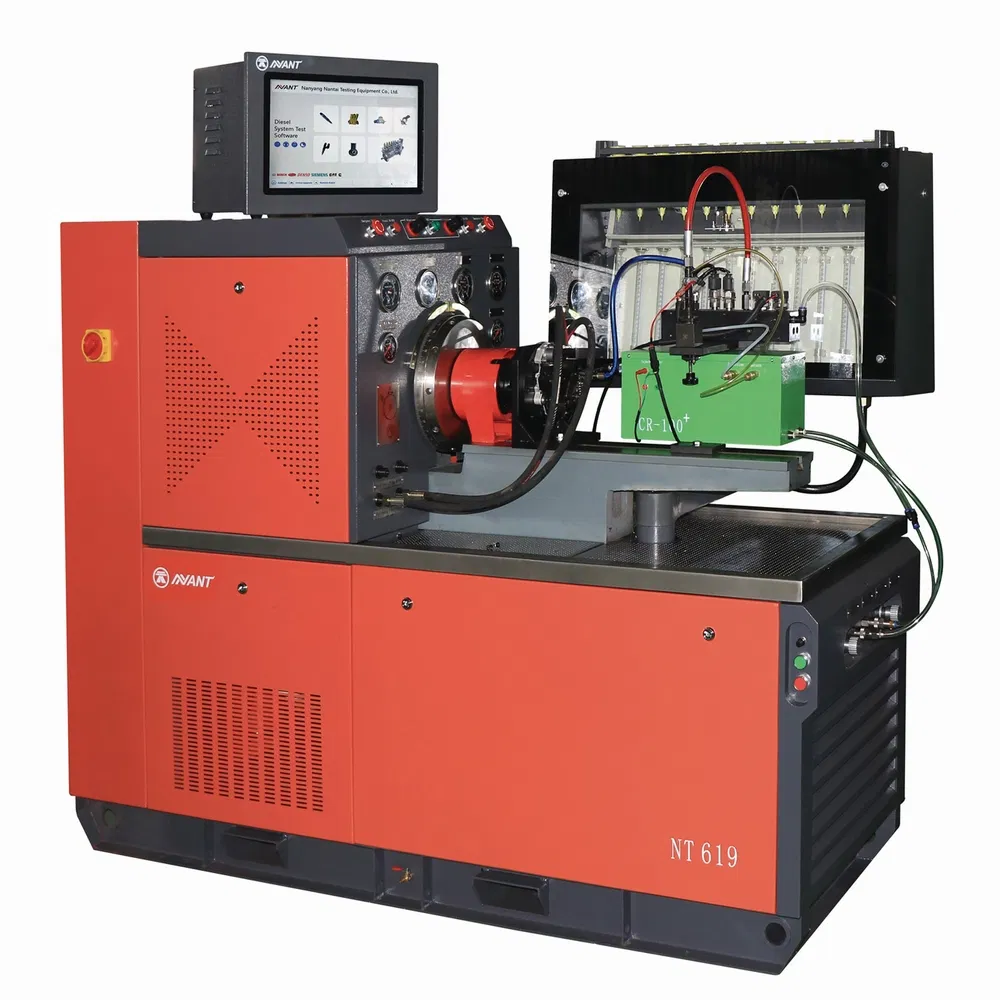

NT-619 Multifunctional injection pump test bench
The NT-619 test bench is the latest high-tech product developed by our company on the basis of the original, which can meet the needs of different users and different regions. The new equipment adopts the safer Linux system, the industrial control LCD color display touch screen, in addition to the advantages of the original 12PSB series test bench, it can control the oil quantity, common rail injector test, EUI/EUP  test ,CAT pump test, automatic oil pouring. Features such as remote control and data upgrade. It is the best choice for users to open up new markets and upgrade.

Machine size and characteristics

1.Machine size:220CMx110CMx180CM (L*W*H),Weight: 1000KG

2.Power supply: three-phase four-wire system 380V/50HZ (Customizable three-phase four-wire 220V/60HZ,two-phase three-wire 220V/60HZ)

3.Motor:11 KW/15 KW/18.5 KW/22 KW

4.Air-cooled cycle

5.Diesel drive

6.Fuel tank 30 liters

Features

1.Oil supply and oil supply uniformity of each pump

2.Fuel injection pump oil supply point and oil supply interval angle

3.Check and adjust the governor's workability.

4.Test adjustment of distribution pump work

5.Test adjustment of booster compensator performance

6.Measurement of the oil return of the distribution pump

7.Test of distribution pump solenoid valve performance (12V/24V)

8.Measurement of internal pressure under various specified speeds of the distribution pump

9.Check the advance angle of the measuring automatic advancer

10.Fuel injection pump sealing performance test

11.Connect the self-priming oil supply pipe to check the oil pump (including the VE pump)

12.System support English,French, German, Russian,Spanish,etc


Optional function

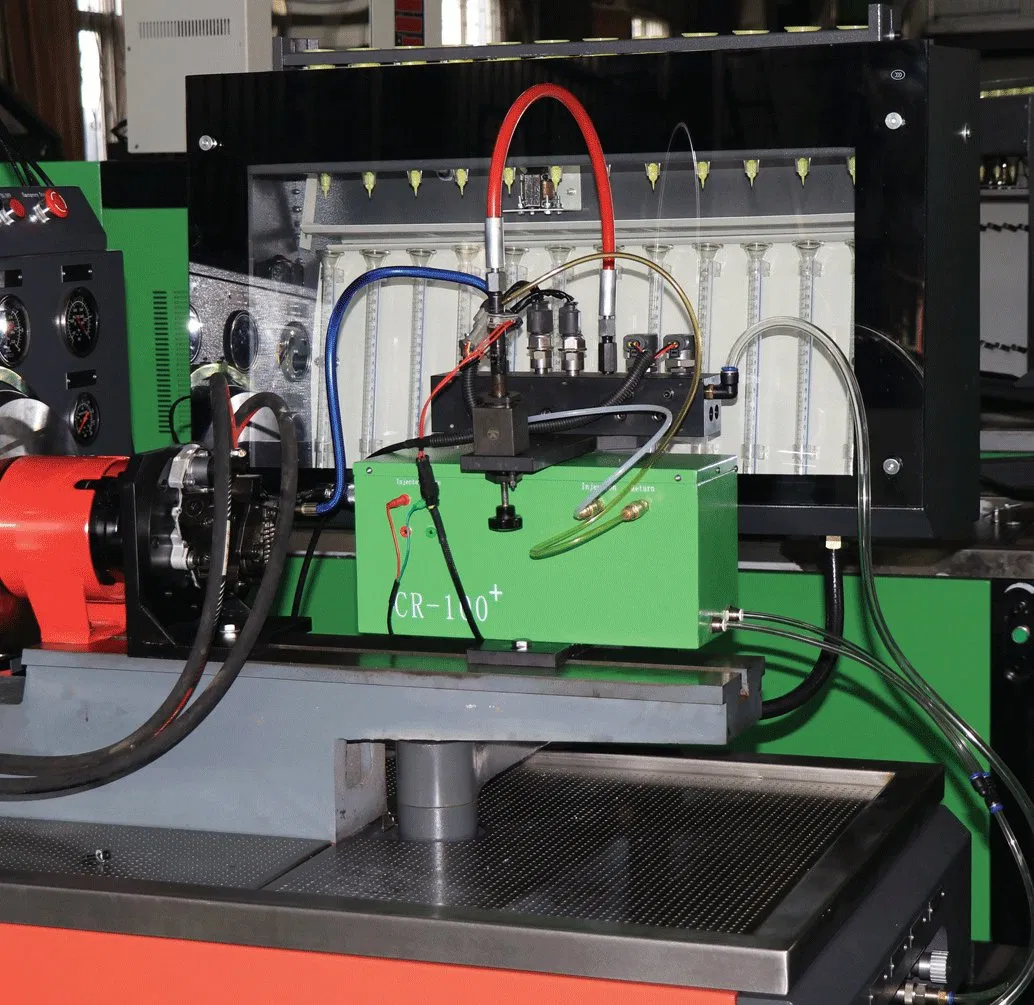

CR 100+

1.With oil circuit filtering function high pressure rail pipe

2.Built in solenoid valve and DRV

3.High-precision German flow sensor

4.Test all high pressure common rail injectors and piezoelectric injectors,has over 3000 data

5.Measure the resistance,inductance,capacitance of the injector

6.Measure the response time of the injection solenoid valve (optional)
7.Add mechanical cam box (NT1400/NT1500) can test all models EUI/EUP,Cummins X15 Q60 and so on.
8.Add CAT-100A can test CAT 320D pump and actuation pump on any machine test bench


Optional function
CAT-100A
1.Test CAT 320D pump
2.Test CAT actuation pump
3.Pressure and flow test of CAT medium pressure oil pump
4.Add CAT-100B can test CAT 320D pump and CAT actuation pump on any injection pump test bench.


CAT-100B
1.With medium pressure engine oil tank
2.With engine oil supply pump
3.With temperature control device
4,With engine oil pressure regulation



Optional function

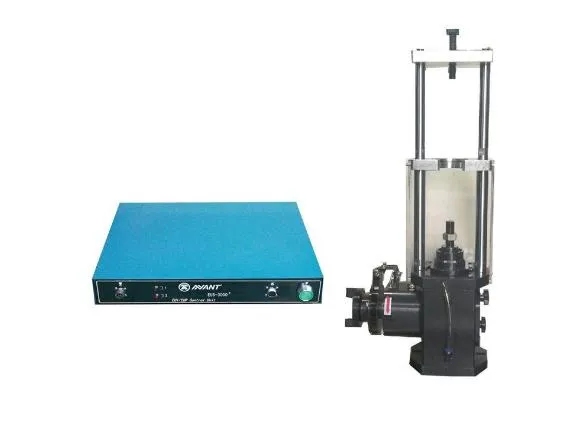

EUS-3000⁺
The test box EUS-3000⁺ Testingor is a maintenance performance test conducted by the company for various electronic unit injector (EUI) and electronic unit pump (EUP). The Testingor consists of a mechanical cam box (NT1400/NT1500), various EUI/EUP adapters and an electronic controller (EUS-3000). The cam box is mounted on any diesel injection pump test bench and is driven by it.
1. Can test all models EUI/EUP on the market
2.Siemens Piezo EUI
3.Delphi E3 EUI
4.Cummins X15, Q60
4.Measure the response time of the injection solenoid valve
5.Remote control and online data upgrade

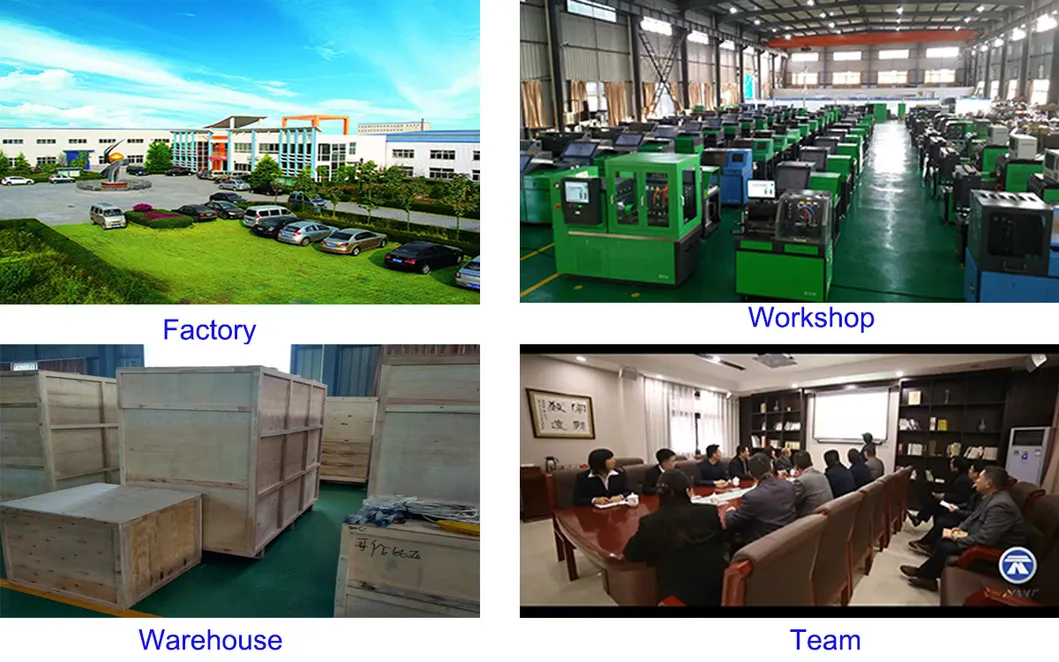

NANT Test Equipments Co.,Ltd Profile

NANT Test Equipments Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells many spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
NANT Test Equipments Co.,Ltd was established in 1998, and started to fight and create in mechanical pump test bench manufacturing factory. We using the purchasing, machining and sale as our major sales model and laid the foundation for the preliminary development of our company.
With the development of the market, we started to produce common rail test bench in 2001.
Since 2005 our company successfully signed an international trade order, NANT Test Equipments Co.,Ltd took this as an opportunity to develop international trade.
The company pursues high standard manufacturing and qualified products. All the products had passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as
Southeast Asia, Eastern Europe, Middle East , Africa, Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia Indonesia, Australia, and so on etc. and with the reliable and stable quality, our company also has a good reputation at home and abroad.
Now, there are more than 80 countries and regions that use our machine.

Q: Are you trading company or manufacturer ?
A: We are test bench assembling factory. We have had test bench for 20 years.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.

Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements you can contact us directly.
