Factory Price Common Rail Injector Test Bench Diagnostic Equipment
Product IntroductionJZ-205 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.Functions D......
Send Inquiry
Product Description
Product Introduction

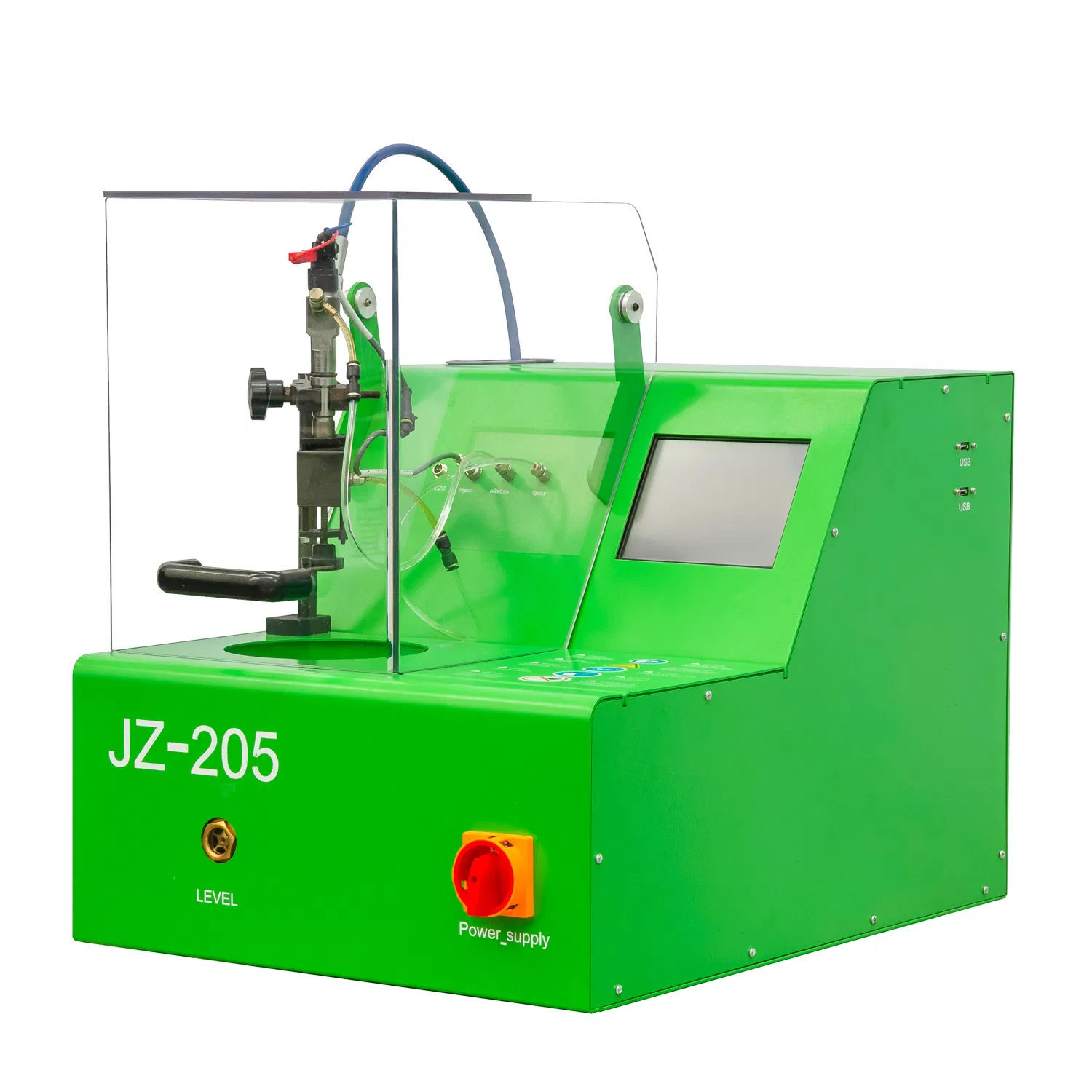

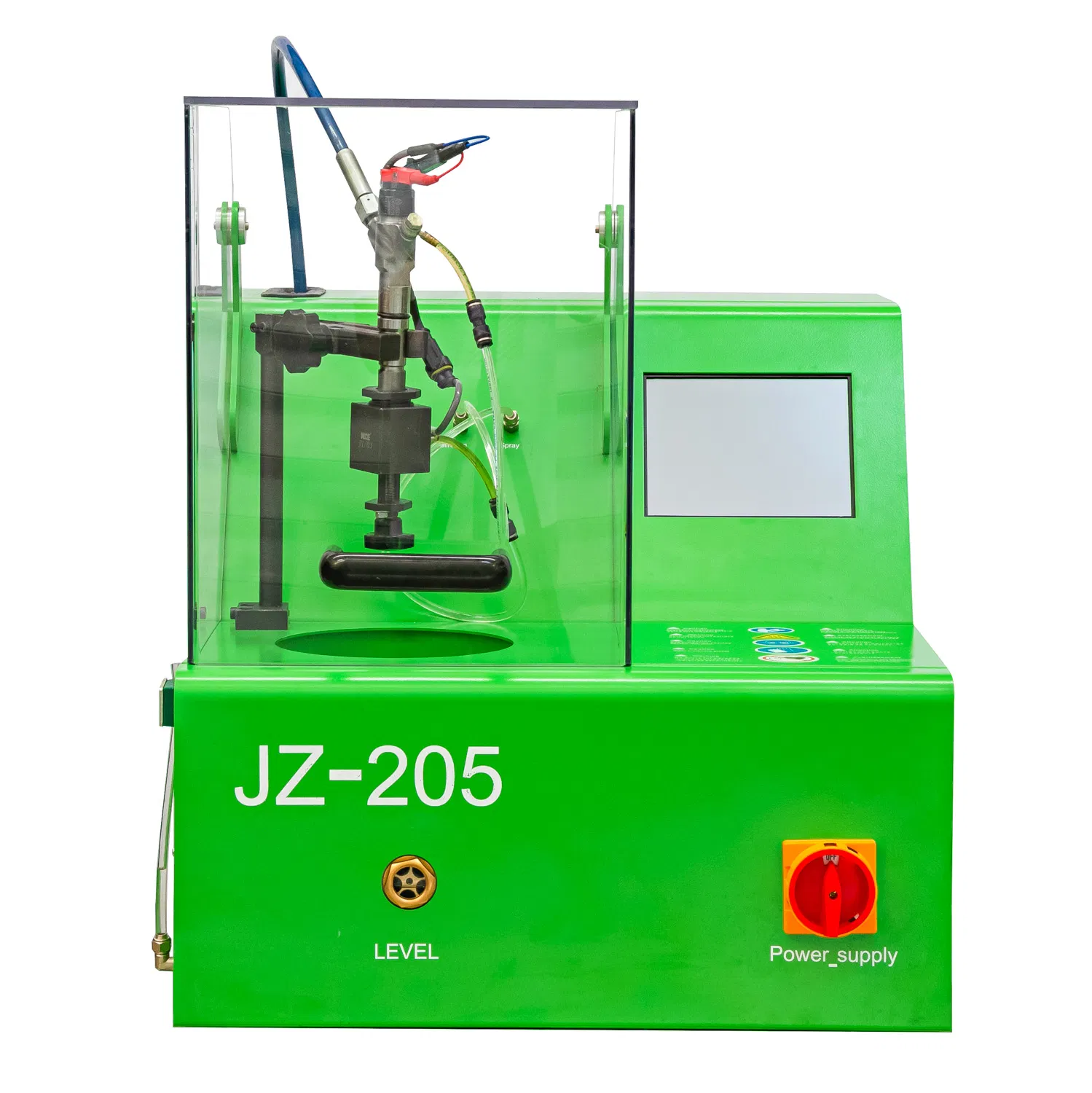

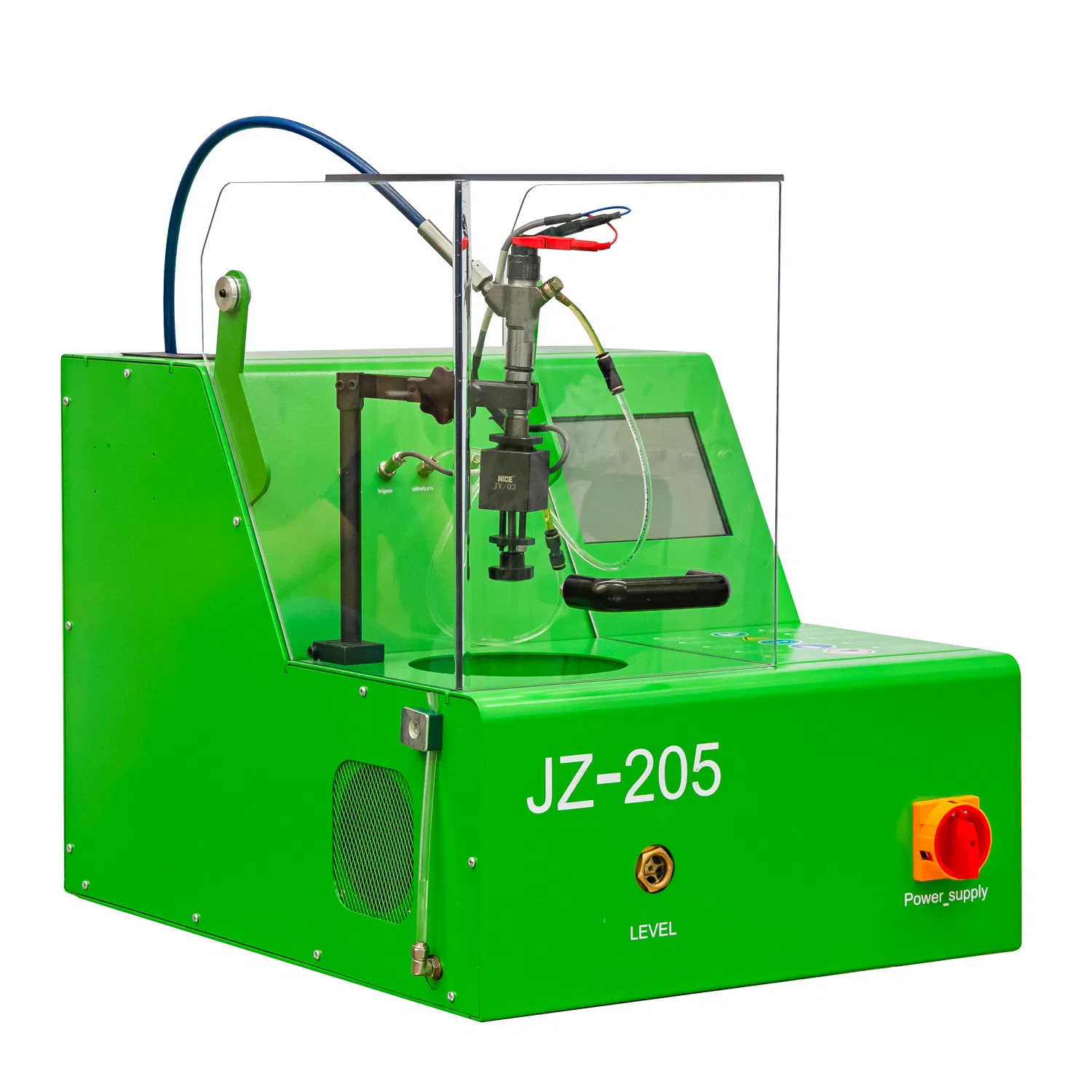

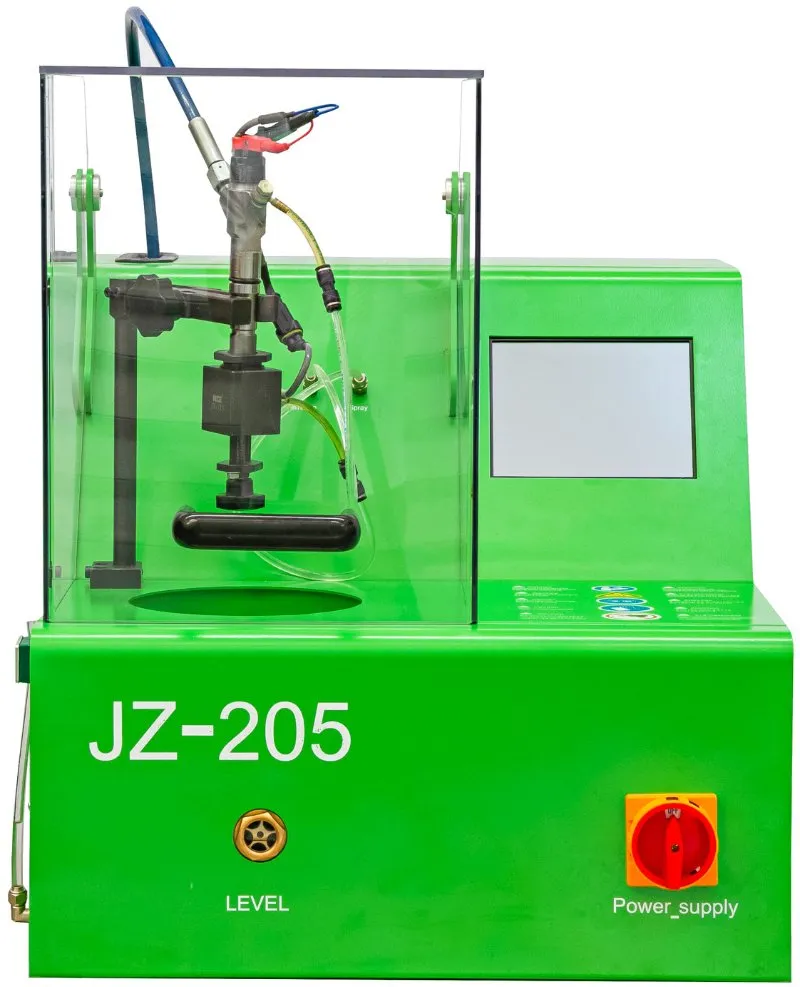

JZ-205 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description

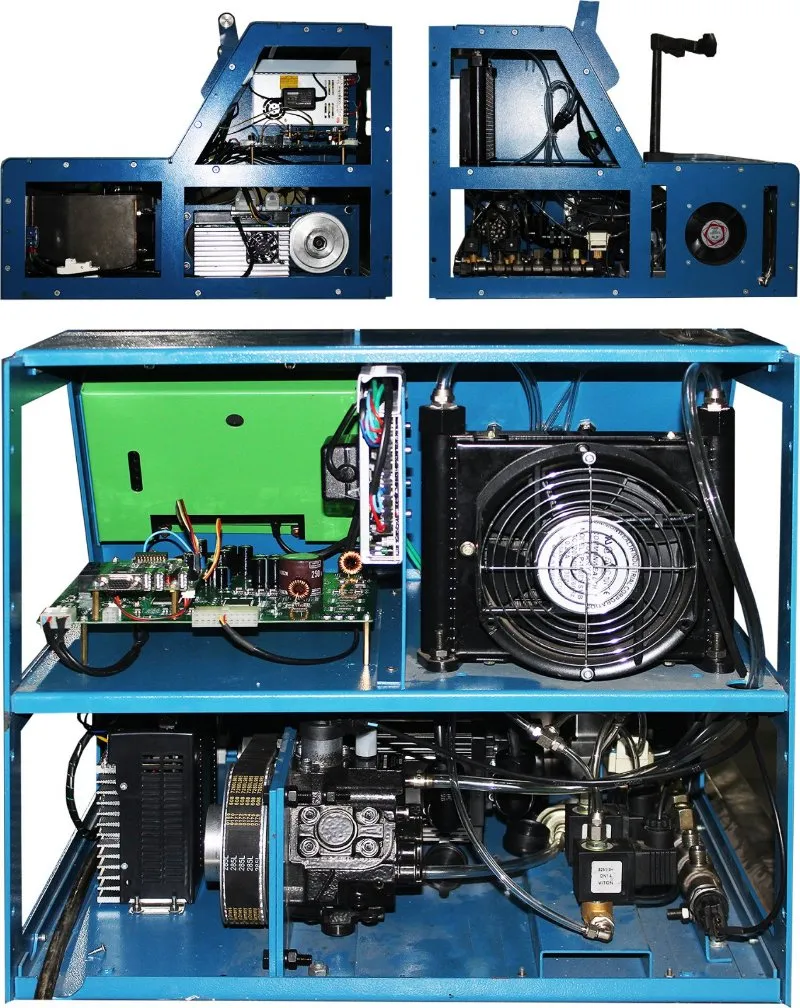

Product Details
Technical Parameters
Testing Scope
Related Products and Fixtures
Packing and Delivery
Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and rich produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Alisa Yuan | Sales Manager
Wuxi JiaMiao Auto Technology Co., Ltd
Address: No.1 Miaojiaan, Shitangwan industrial park, Luoshe Town Wuxi City Jiangsu Province China
Website: jm888888.en.made-in-china.com
JZ-205 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description
| 1. Integrated flow sensor | 11. Can test piezo injectors |
| 2. Full-automatic Fully function | 12. Can test common rail injectors |
| 3. With electronic measuring system | 13. Linear calibration of flow sensor |
| 4. Accurate data Multiple protection | 14. Industrial computer with touch-screen |
| 5. Prepositioned precise filter for sensor | 15. Real-time display the fuel delivery graph |
| 6. Intelligent algorithm Automatic calibration | 16. Many language interfaces can be switche |
| 7. Automatically heating/cooling control for test oil | 17. Opening pressure and flow rate of oil nozzle |
| 8. Bosch CP1 pump and high pressure oil rail with DRV | 18. Data backup, software update and cloud upgradable functions |
| 9. Bosch datas are from the orginal equipment of EPS708 | 19. Function debugging can be realized under different speed conditions |
| 10. Denso, Delphi, Siemens data are calibrated from the latest injectors | 20. Test items: preheating emptying; tightness; full load; fuel return; discharge volume; pre-injection volume; idle oil volume |
Technical Parameters
| Technical Parameters | |
| Output | 2.6 KW |
| Power | 220V 50/60HZ |
| Speed | 0~1000 RPM |
| Rail Pressure | 0~1800 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 8 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 120 kg |
| Packing Size | 840×700×860 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air-Cooled Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Dark Blue/ Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40%Deposit, the rest paid before delivery |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

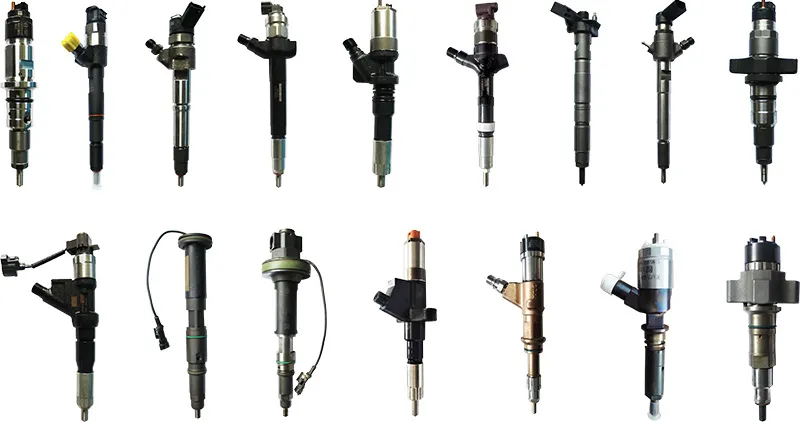

Testing Scope
Related Products and Fixtures
Packing and Delivery

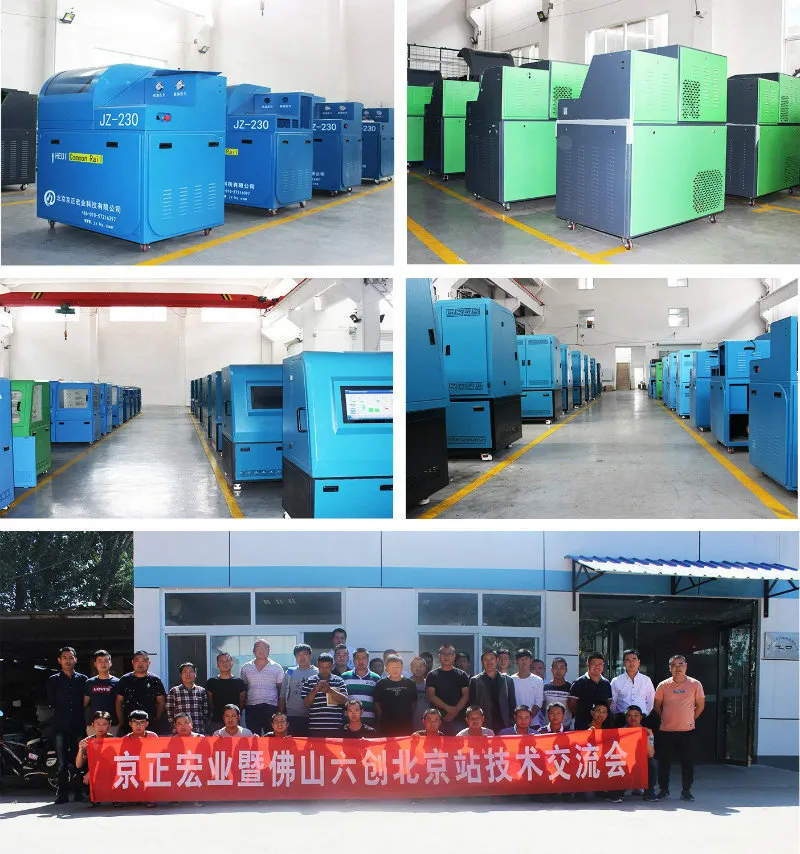

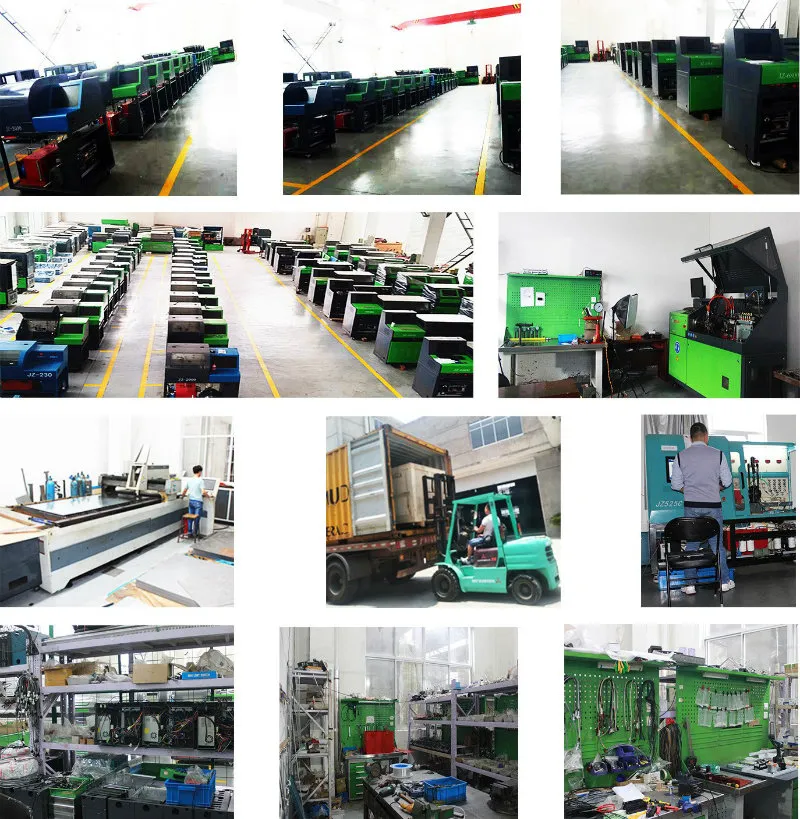

Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and rich produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Alisa Yuan | Sales Manager
Wuxi JiaMiao Auto Technology Co., Ltd
Address: No.1 Miaojiaan, Shitangwan industrial park, Luoshe Town Wuxi City Jiangsu Province China
Website: jm888888.en.made-in-china.com
