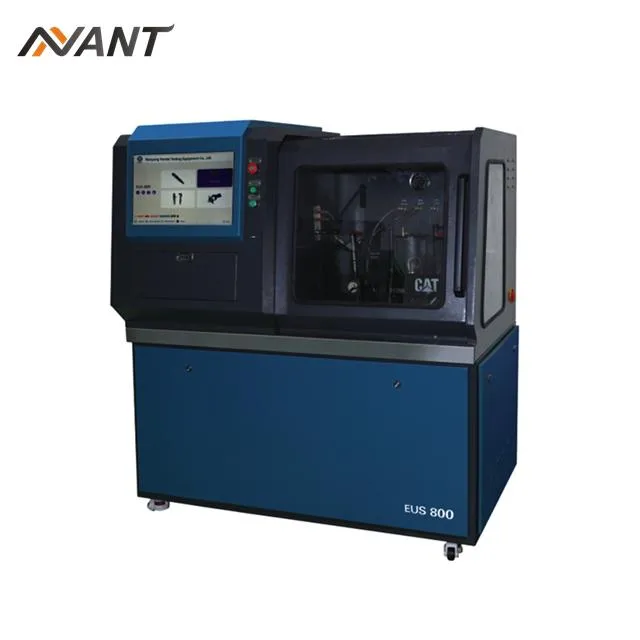

              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              Product DescriptionMain configuration: *Size:148CM*89CM*166CM(L*W*H) *Industrial air conditioner fuel tank to control temperature at 40±2ºC *HEUI common rail injector test bench equip with original Bosch common rail system and CP1 pump. *Equipped with original german high-precis......

              Send Inquiry

              Product Description

              Product Description


              Main configuration:

              *Size:148CM*89CM*166CM(L*W*H)
              *Industrial air conditioner fuel tank to control temperature at 40±2ºC
              *HEUI common rail injector test bench equip with original Bosch common rail system and CP1 pump.
              *Equipped with original german high-precision flow sensor.
              *Equipped with special ram pump for HEUI testing system.
              *Automatically test the oil return of the HEUI
              *Electrical performance test for solenoid valve .

              System advantage:

              *Industrial computer with Linux system to achieve flexible upgrading,data processing and functional expansion .
              *Independent desigh for the console of high pressure and medium pressure common rail system, automatic system switching,automatic pressure regulating,automatic detection.
              *The separation of flow sensor for high and medium pressure common rail system ensure more precise control of pressure ( high pressure ±0.5Mpa ,medium pressure ±0.2Mpa)
              *Bosch latest original database,HEUI medium pressure in the original data, can be scheduled to upgrade.
              *HEUI common rail injector test bench desides original current data,user can set start voltage,current,hold voltage,current himself.
              *Database remote one click upgrade

              Main technical parameter:
              Place of origin:Henan,China(Mainland)
              Brand name:NANT
              Function:HEUI/CRI injector testing
              Warranty:12 months
              Certificate:CE ISO
              Power:4KW
              Rated voltage:380V 50Hz/60Hz 3phase
              Speed range:0-1400RMP
              Supply pressure of the testing fuel:4Mpa
              Test precision of rail pressure:±0.5MpaTest precision of flow sensor:0.50%
              Fuel tank capacity:40L
              Injection width control range:100--6000μs
              Injection volume range:0L-4L/min
              Backflow measureing range:6-400L/H
              Pressure control range:0-2600Bar
              Fuel temperature range:40±2ºC
              Cooling method:industrial air-condition cooling

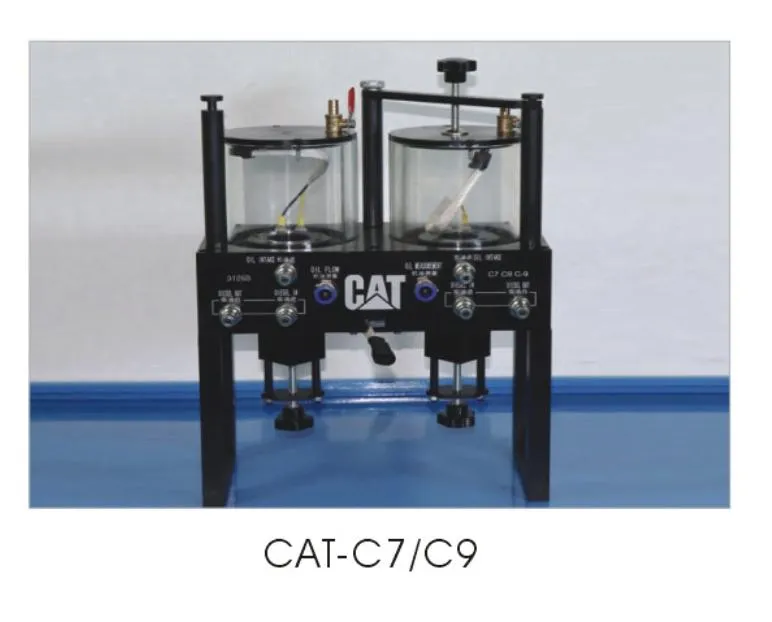

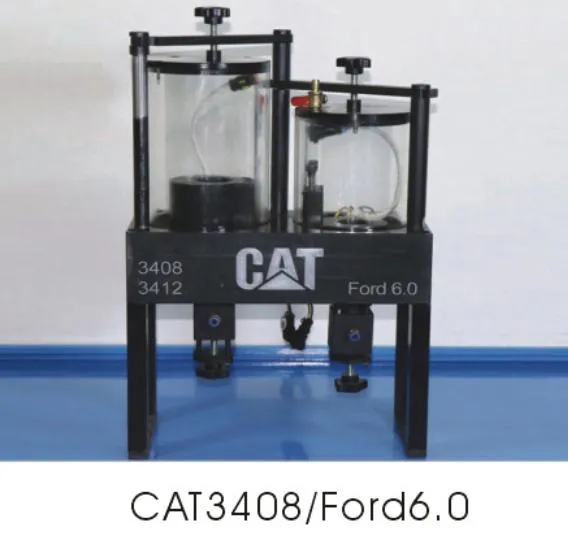

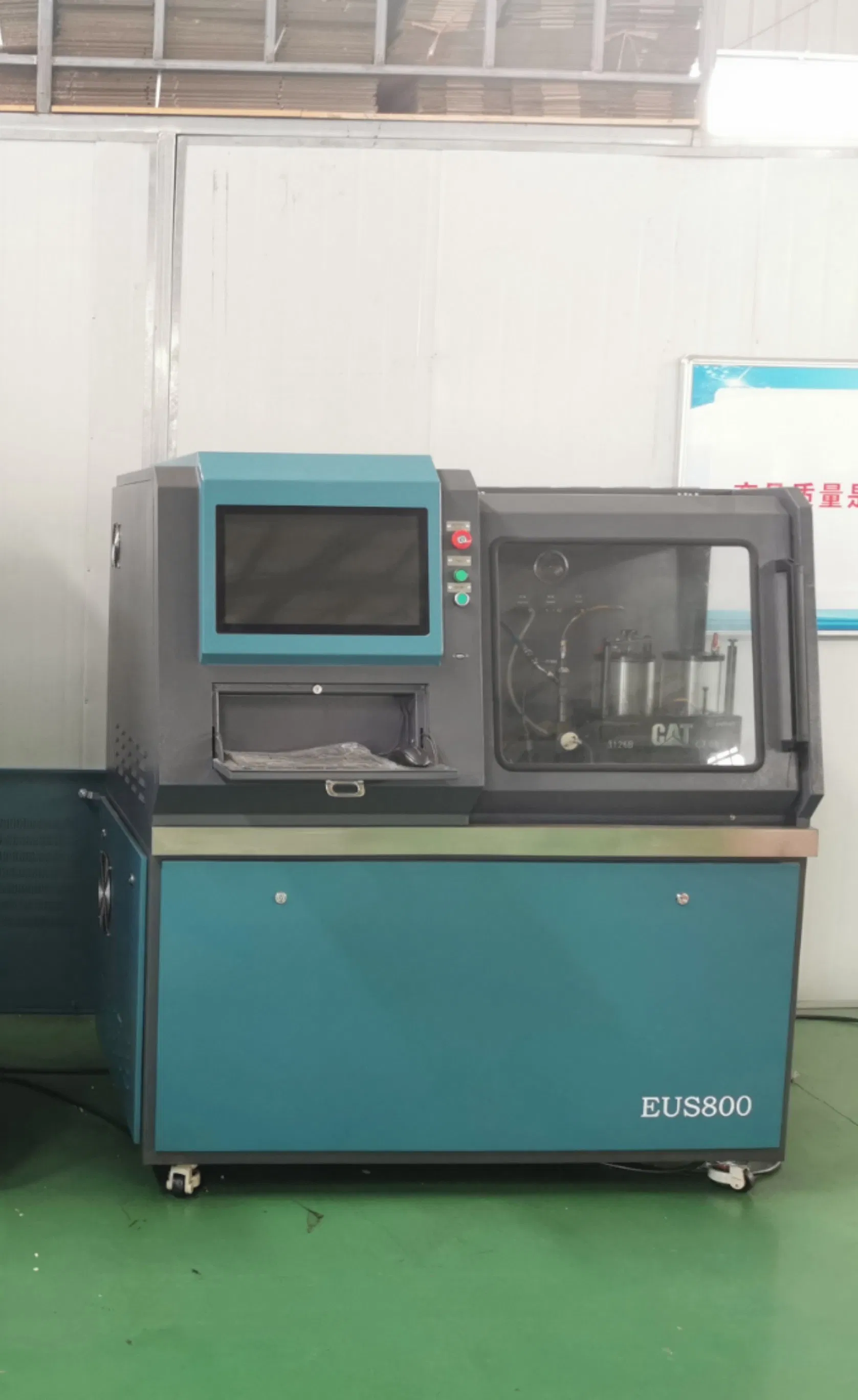

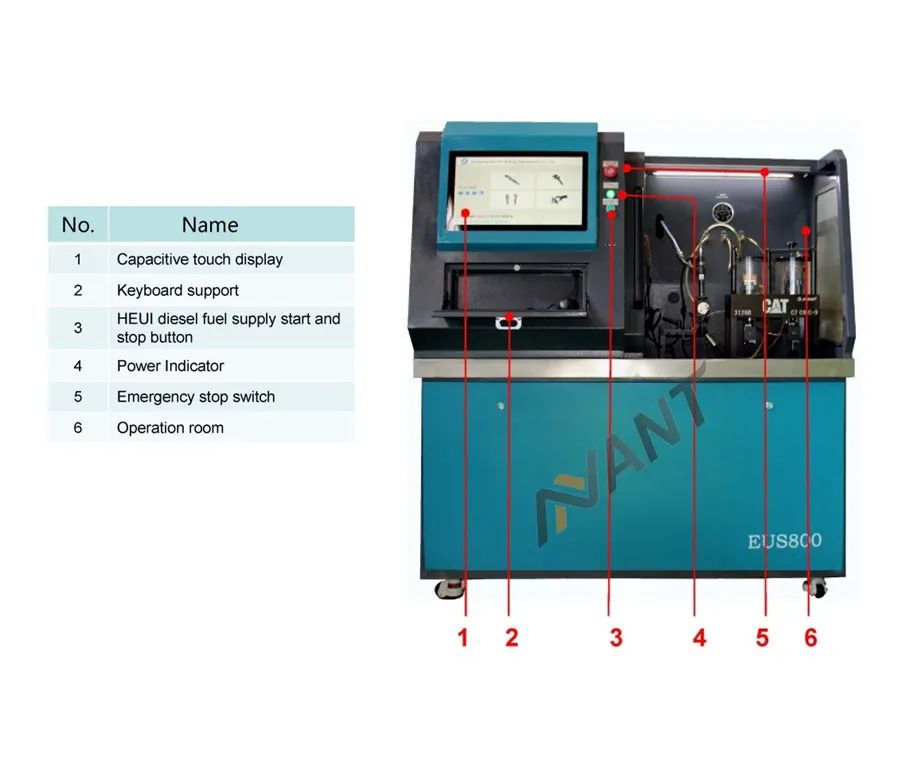

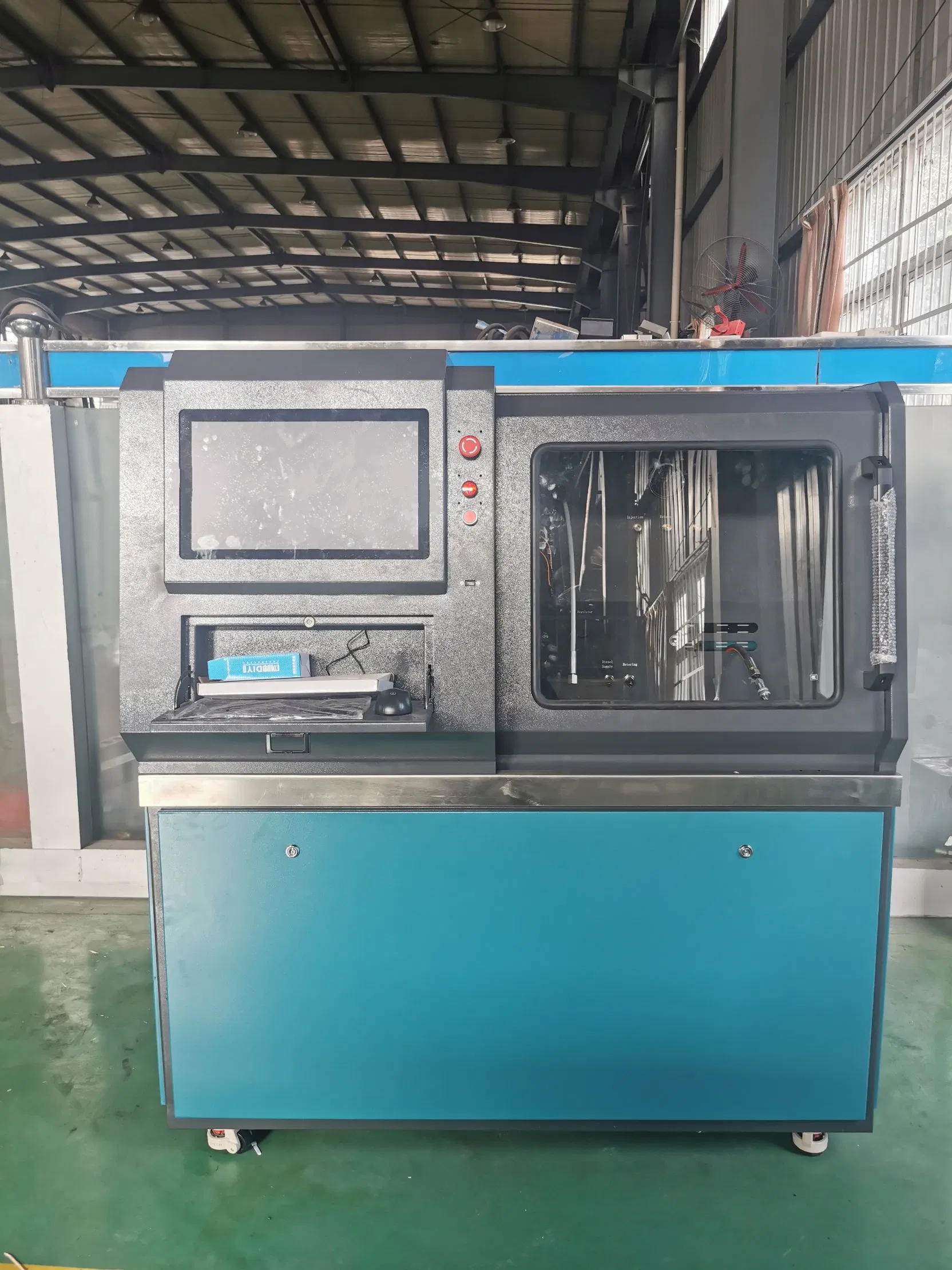

              Detailed Photos

              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408
              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408
              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408
              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              Packaging & Shipping

              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              Company Profile

              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              SALES AND SERVICE NETWORK



              Eus800 Heui CRI Common Rail Injector Test Bench Coding Injector C7 C9 3126 3408

              FAQ



              Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?

              A: We are test bench assembling factory. We have had test bench for 20 years.

              Q: HOW LONG IS YOUR DELIVERY TIME?

              A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

              Q: WHAT IS YOUR TERMS OF PAYMENT ?

              A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.

              Q: How about the use of maintenance technology and equipment ?

              A:We have free training about test bench,injector and pump maintenance.

              Q: Why should I choose your product?

              A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements
              you can contact us directly.
