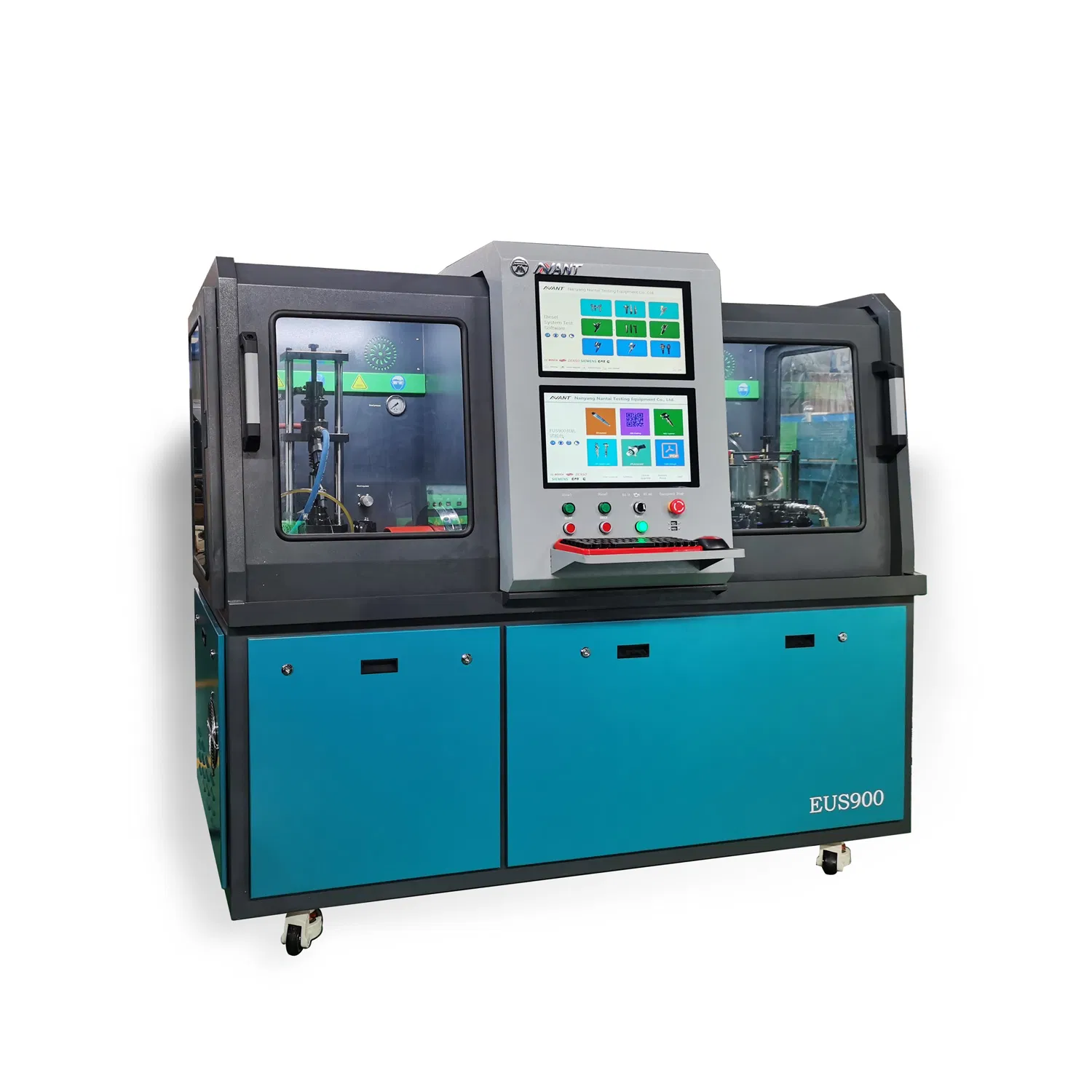

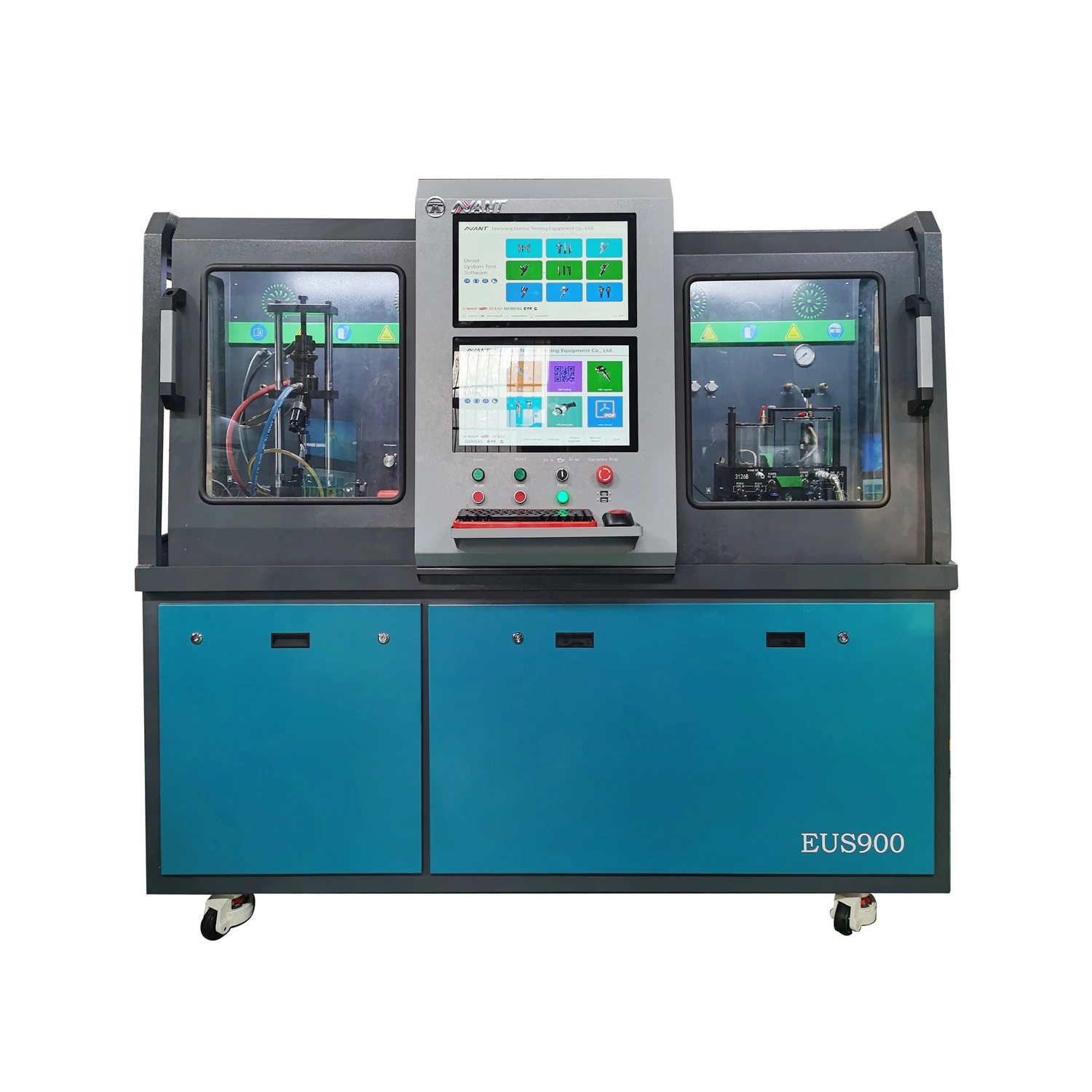

Eui Eup Testing and Cam Box, Cummins Hpi X15 Q60 Volvo 4 Pins Injector Testing Caterpillar Hydraulic Heui Injector Heui Pump Tester Machine New Eus900

Features:

The world's first EUI/EUP, HEUI test special comprehensive test bench, with dual touch screen and two operating systems.Can test EUI/EUP and HEUI at the same time,save labor and time, comprehensive performance superior.

Include diesel hydraulic implementation, consistent with the fuel injection to prevent the mixture of diesel and lube oil, cause test conditions change and then affect the test accuracy.

Fuel injection response time (BIP) test function can judge the overall performance of EUI EUP quickly and accurately.(optional function)

Embedded industrial computer systems and user-friendly operation design to ensure the control system stability and accuracy.

Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.

Functions and characteristics :

Automatically test C7/C9/C-9,C3126/3408,Ford Power Stroke  6.0  and so on middle pressure common rail product.

Automatically test the injector seal, actuation point, pilot injection, medium speed, maximum load, the maximum test pressure is 2400 bar

Automatically test Bosch, Carter, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo, EUI/EUP and dual-valve E3,CUMMINS ISX and other special products

Automatically test oil return function of HEUI.

Support Fuel injector response time(BIP)function, can judge the EUI/EUP performance quickly and accurately.(optional function)
Cummins HPI(Cummins X15,Q60 injector) system test.(optional function)

Main configurations:

NT1400 High-precision cam drive

Different lift special cam and injector adapters for many kind products

Middle pressure common rail special bracket.

Special high - pressure piston pump

Industrial air-conditioner refrigeration, dual temperature control fuel tank

Output power 15kw, optional three phase four wire 380V/50HZ, three phase four wire 220V/60H, two phase three wire 220V/60H, different power control.
