Home > Products > Automotive Test Equipment > EPS916c Complete Functional Test Bench Multifunctional Common Rail Test Bench 1 Injectors Test Full Functional Test Bench HP0 Pumps Test Bench.

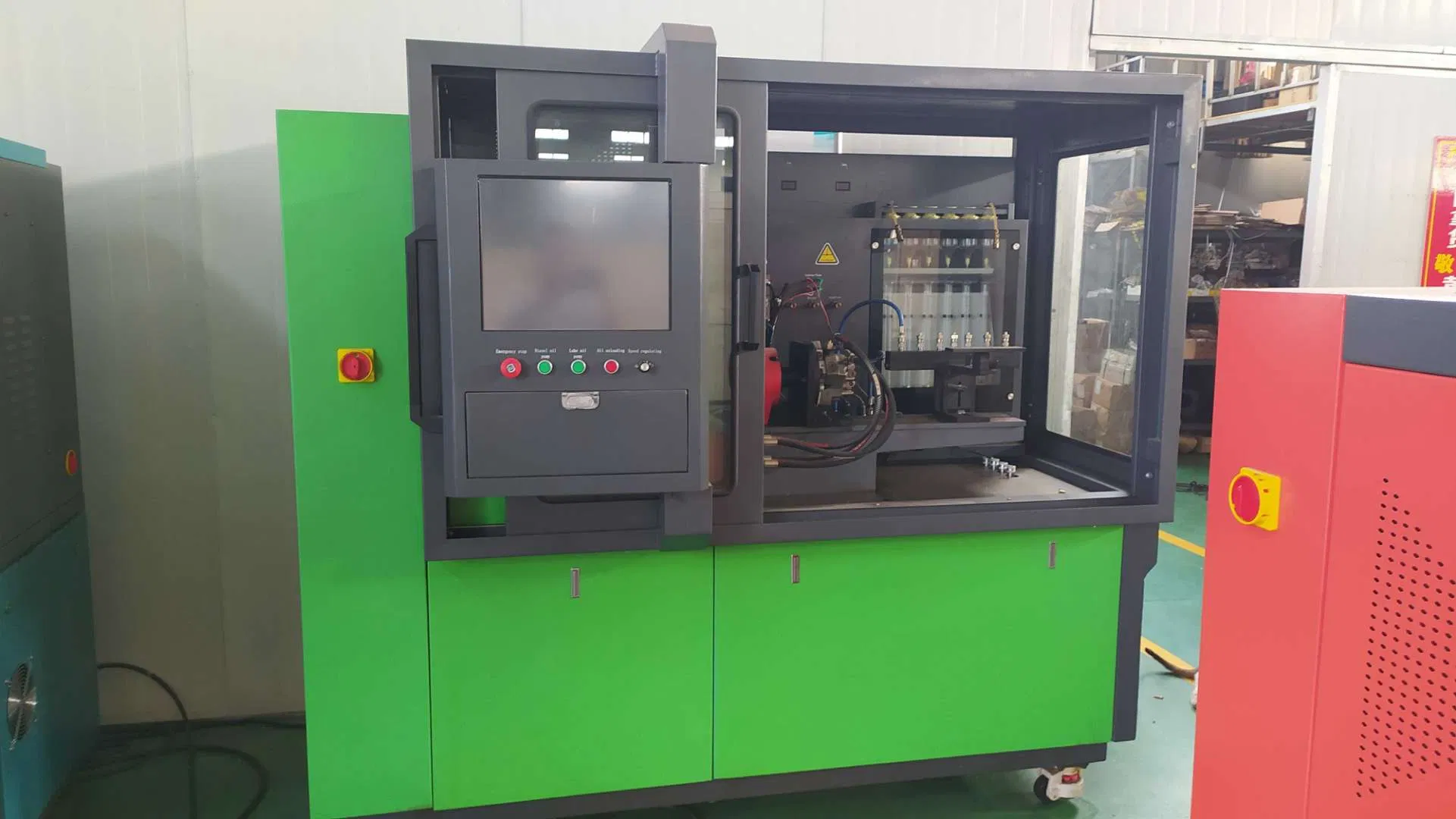

EPS916c Complete Functional Test Bench Multifunctional Common Rail Test Bench 1 Injectors Test Full Functional Test Bench HP0 Pumps Test Bench.
EPS916C complete functional test bench multifunctional common rail test bench 1 injectors test full functional test bench HP0 pumps test bench.Single main motor, 1 common rail injector test at same time. Functions and characteristics:The test bench software system contains all testing functions. ......
Send Inquiry
Product Description
EPS916C complete functional test bench multifunctional common rail test bench 1 injectors test full functional test bench HP0 pumps test bench.
Single main motor, 1 common rail injector test at same time.
Functions and characteristics:
The test bench software system contains all testing functions. Including all the standard functions and Selection function. Standard functions has free accessories. Selection functions just need paid Mechanical hardware. Then the optional functions will open.
Standard function:
Automatically test various solenoid valve injector and Piezo injector.
Automatically test the performance of injector solenoid valve.
Automatically test voltage-current curve of the injector.
Compact universal stand can test 6 solenoid valve injectors or Piezo injectors successively at one time.
Generate IMA code for Bosch injector
Generate Denso and Delphi QR code for free cost on previous 300 times
Automatically test all common rail pump
Automatically test Denso HPO pumps with 2 pins double magneto electric sensor or 3 pins single magneto electric Hall sensor
Main configuration:
EPS916 Full function common rail test bench use industrial capacitive touch screen and Rotary operation interface.
Use movable sliding door and side door. Double door design make the work space bigger and convenient.
With movable casters,It can rotate at 360 degrees and move freely.
Wireless network card provides remote technical service
With BOSCH original CP3.3 new oil pump
With testing voltage monitor
Industrial Air-conditioner, Double temperature control stainless steel diesel tank and hydraulic oil tank. .
Equipped with original BOSCH original DRV and ZME, Germany BOSCH EPS815 special temperature control rail tube, the rail pressure controlled at ±0.5Mpa,temperature control rail pipes, the rail pressure range at 0-2800Bar.
Equipped with four Germany high precision flow sensor. Test Fuel injection, pump oil supply,pump oil back oil and engine oil injection. The flow range is 0.008-4L/Min, the test precision is 0.3%.
Oil circuit pressure and temperature detection and protection device
Main motor 15KW/18.5KW/22KW, we can make different power supply for different countries and markets.
System advantage:
Embedded industrial computer system: high speed operation,high test precision and retest precision
Original Bosch test bench database .Current curve can be set. Test accuracy similar with the world-leading test bench.
The equipment has high reliability and stable performance. Small noise and No vibration
Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
Database remote one click upgrade
Selection function
Automatically test VP37 and VE37 ,VP44 pump
Denso, Delphi QR code;
Fuel injection response time test;
Automatically test Bosch, CAT, CUMMINS, DDC, Delphi, Mercedes-Benz,Volvo EUI/EUP and dual-valve E3, series of electronic unit pump system, electronic unit injector system (EUI/EUP).
Delphi E3 and Cummins ISX series test.
Test RED4 pump
Add measuring cup to test mechanical pump
Test Cummins PT pump and PT injector
Automatically test C7/C9/C-9,C3126/3408, Ford Power Stroke 6.0L, 3412E/ISUZU and so on HEUI products.
Automatically test all HEUI actuating pump.
Automatically test Cat 320D pump.
Single main motor, 1 common rail injector test at same time.
Functions and characteristics:
The test bench software system contains all testing functions. Including all the standard functions and Selection function. Standard functions has free accessories. Selection functions just need paid Mechanical hardware. Then the optional functions will open.
Standard function:
Automatically test various solenoid valve injector and Piezo injector.
Automatically test the performance of injector solenoid valve.
Automatically test voltage-current curve of the injector.
Compact universal stand can test 6 solenoid valve injectors or Piezo injectors successively at one time.
Generate IMA code for Bosch injector
Generate Denso and Delphi QR code for free cost on previous 300 times
Automatically test all common rail pump
Automatically test Denso HPO pumps with 2 pins double magneto electric sensor or 3 pins single magneto electric Hall sensor
Main configuration:
EPS916 Full function common rail test bench use industrial capacitive touch screen and Rotary operation interface.
Use movable sliding door and side door. Double door design make the work space bigger and convenient.
With movable casters,It can rotate at 360 degrees and move freely.
Wireless network card provides remote technical service
With BOSCH original CP3.3 new oil pump
With testing voltage monitor
Industrial Air-conditioner, Double temperature control stainless steel diesel tank and hydraulic oil tank. .
Equipped with original BOSCH original DRV and ZME, Germany BOSCH EPS815 special temperature control rail tube, the rail pressure controlled at ±0.5Mpa,temperature control rail pipes, the rail pressure range at 0-2800Bar.
Equipped with four Germany high precision flow sensor. Test Fuel injection, pump oil supply,pump oil back oil and engine oil injection. The flow range is 0.008-4L/Min, the test precision is 0.3%.
Oil circuit pressure and temperature detection and protection device
Main motor 15KW/18.5KW/22KW, we can make different power supply for different countries and markets.
System advantage:
Embedded industrial computer system: high speed operation,high test precision and retest precision
Original Bosch test bench database .Current curve can be set. Test accuracy similar with the world-leading test bench.
The equipment has high reliability and stable performance. Small noise and No vibration
Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
Database remote one click upgrade
Selection function
Automatically test VP37 and VE37 ,VP44 pump
Denso, Delphi QR code;
Fuel injection response time test;
Automatically test Bosch, CAT, CUMMINS, DDC, Delphi, Mercedes-Benz,Volvo EUI/EUP and dual-valve E3, series of electronic unit pump system, electronic unit injector system (EUI/EUP).
Delphi E3 and Cummins ISX series test.
Test RED4 pump
Add measuring cup to test mechanical pump
Test Cummins PT pump and PT injector
Automatically test C7/C9/C-9,C3126/3408, Ford Power Stroke 6.0L, 3412E/ISUZU and so on HEUI products.
Automatically test all HEUI actuating pump.
Automatically test Cat 320D pump.
| Place of Origin | Henan, China (Mainland) |
| Brand Name | NANT |
| Power | Electronic |
| Usage | Auto Injector & Pump Testing Machine |
| Product name | EPS916C |
| Function | Test injector and pump |
| Motor Power | 15KW/22KW |
| Weight | 1500KG |
| Warranty | 12 Months |
| Certificate | CE ISO |
| Dimensions | 8CBM |
| Color | Blue Green or Request |
| Length | 200CM |
| Width | 105CM |
| Height | 185CM |
| Gross weight | 1500KG |
| Net weight | 1400KG |
| Diesel fuel tank capacity | 51L |
