Diesel Test Equipment for Common Rail Injector Pump and Heui/Eui/Eup/Vp37/Vp44
EPS916 comprehensive test benchFunctions and characteristics:The test bench software system contains all testing functions. Including all the standard functions and Selection function. Standard functions has free accessories. Selection functions just need paid Mechanical hardware. Then the optional ......
Send Inquiry
Product Description
Functions and characteristics:
The test bench software system contains all testing functions. Including all the standard functions and Selection function. Standard functions has free accessories. Selection functions just need paid Mechanical hardware. Then the optional functions will open.
| Place of Origin | Henan, China (Mainland) |
| Brand Name | NANT |
| Power | Electronic |
| Usage | Auto Injector & Pump Testing Machine |

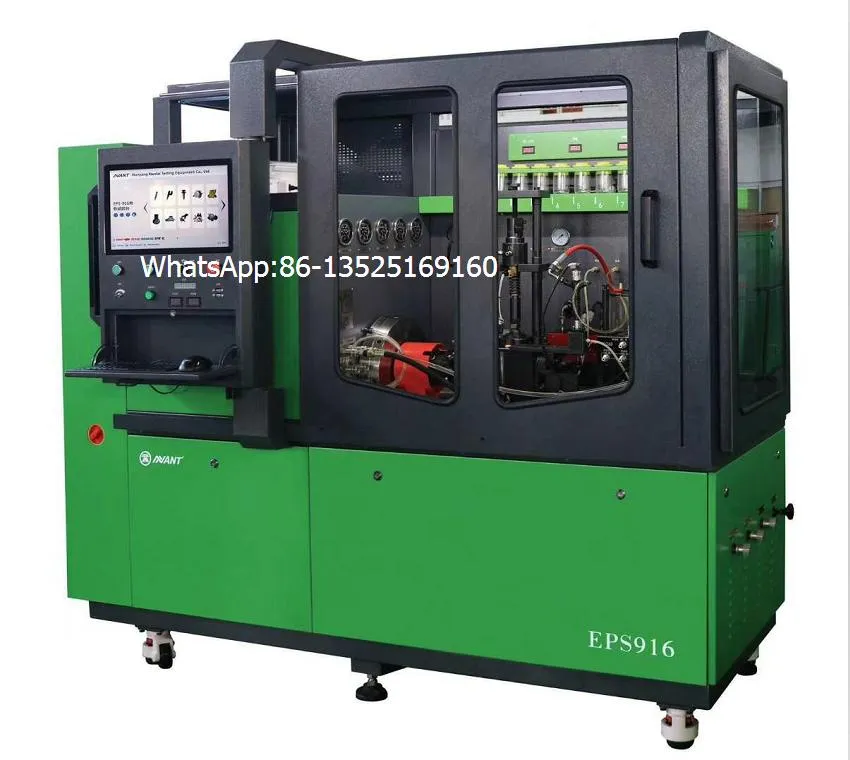

| Product name | EPS916 |
| Function | Test injector and pump |
| Motor Power | 15KW/22KW |
| Weight | 1500KG |
| Warranty | 12 Months |
| Certificate | CE ISO |
| Dimensions | 6CBM |
| Color | Blue Green or Request |
| Length | 214CM |
| Width | 125CM |
| Height | 195CM |
| Net weight | 1400KG |
| Gross weight | 1500KG |
| Diesel fuel tank capacity | 51L |
| Engine oil tank capacity | 32L |
| Rail pressure test range | 0-2500Bar |
| Pump rotational speed | 0-3000RPM |
| Noise level | ≤ 80DB |
STANDARD FUNCTION:
Automatically test various solenoid valve injector and piezo injector.
Automatically test the performance of injector solenoid valve.
Automatically test voltage-current curve of the injector.
Compact universal stand can test 6 solenoid valve injectors or Piezo injectors successively at one time.
Generate IMA code for Bosch injector
Automatically test all common rail pump
Automatically test Denso HPO pumps with 2 pins double magneto electric sensor or 3 pins single magneto electric Hall sensor
Automatically test C7/C9/C-9,C3126/3408, Ford Power Stroke 6.0L, 3412E/ISUZU and so on HEUI products.
Automatically test all HEUI actuating pump.
Automatically test Cat 320D pump.
Automatically test Bosch, CAT, CUMMINS, DDC, Delphi, Mercedes-Benz,Volvo EUI/EUP and dual-valve E3, series of electronic unit pump system, electronic unit injector system (EUI/EUP).
MAIN CONFIGURATION:

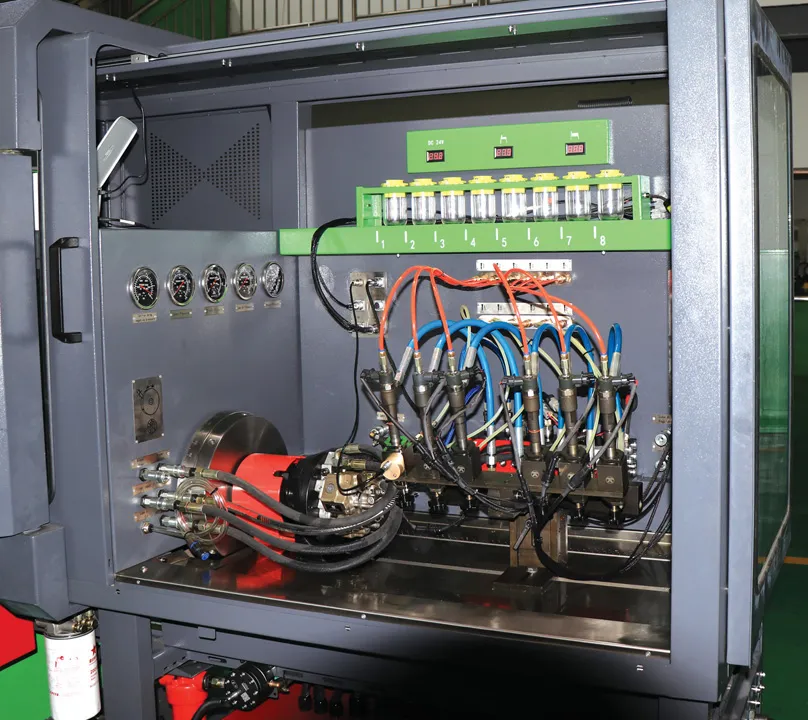

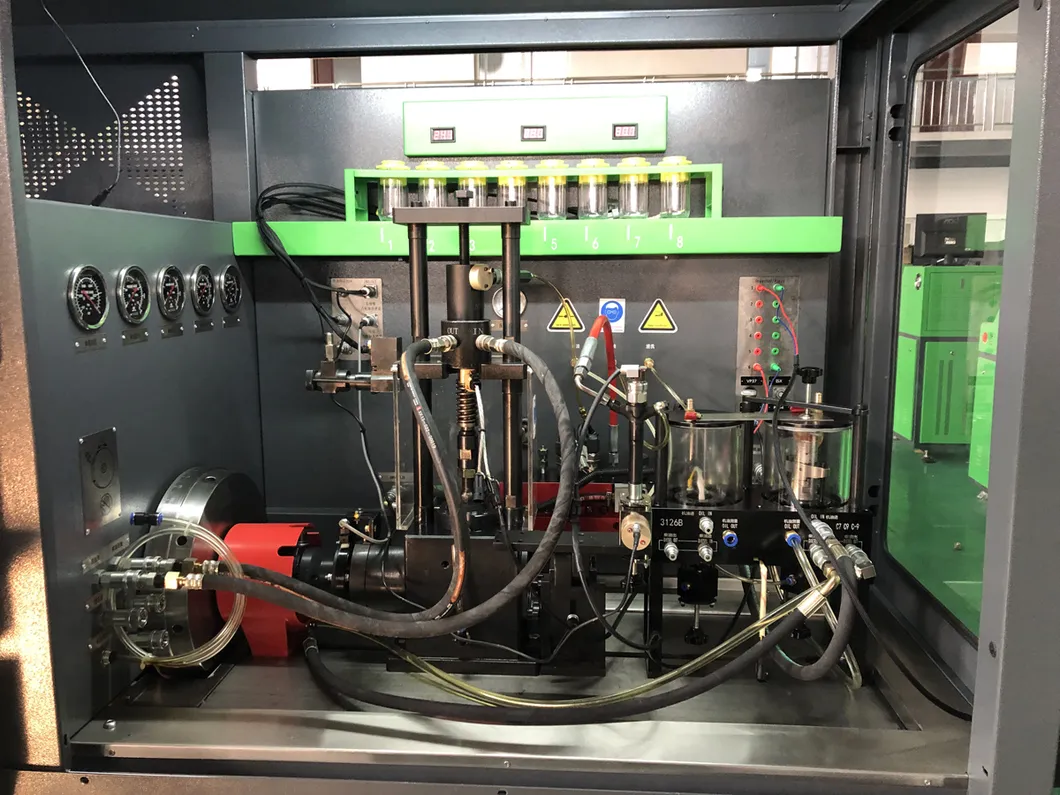

EPS916 Full function common rail test bench use industrial capacitive touch screen and Rotary operation interface.
Use movable sliding door and side door. Double door design make the work space bigger and convenient.
With movable casters,It can rotate at 360 degrees and move freely.
Wireless network card provides remote technical service
With BOSCH original CP3.3 new oil pump
With testing voltage monitor
Industrial Air-conditioner, Double temperature control stainless steel diesel tank and hydraulic oil tank. .
Equipped with original BOSCH original DRV and ZME, Germany BOSCH EPS815 special temperature control rail tube, the rail pressure controlled at ±0.5Mpa,temperature control rail pipes, the rail pressure range at 0-2800Bar.
Equipped with four Germany high precision flow sensor. Test Fuel injection, pump oil supply,pump oil back oil and engine oil injection. The flow range is 0.008-4L/Min, the test precision is 0.3%.
Oil circuit pressure and temperature detection and protection device
Main motor 15KW/18.5KW/22KW, we can make different power supply for different countries and markets.
SYSTEM ADVANTAGE:
Embedded industrial computer system: high speed operation,high test precision and retest precision
Original Bosch test bench database .Current curve can be set. Test accuracy similar with the world-leading test bench.
The equipment has high reliability and stable performance. Small noise and No vibration
Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
Database remote one click upgrade.
SELECTION FUNCTION
Automatically test VP37 and VE37 ,VP44 pump
Denso, Delphi QR code;
Fuel injection response time test;
Cummins X15 Q60 HPI system test
Delphi E3 and Cummins ISX series test.
Test RED4 pump
Add measuring cup to test mechanical pump
Six injectors can be test at the same time
Test Cummins PT pump and PT injector

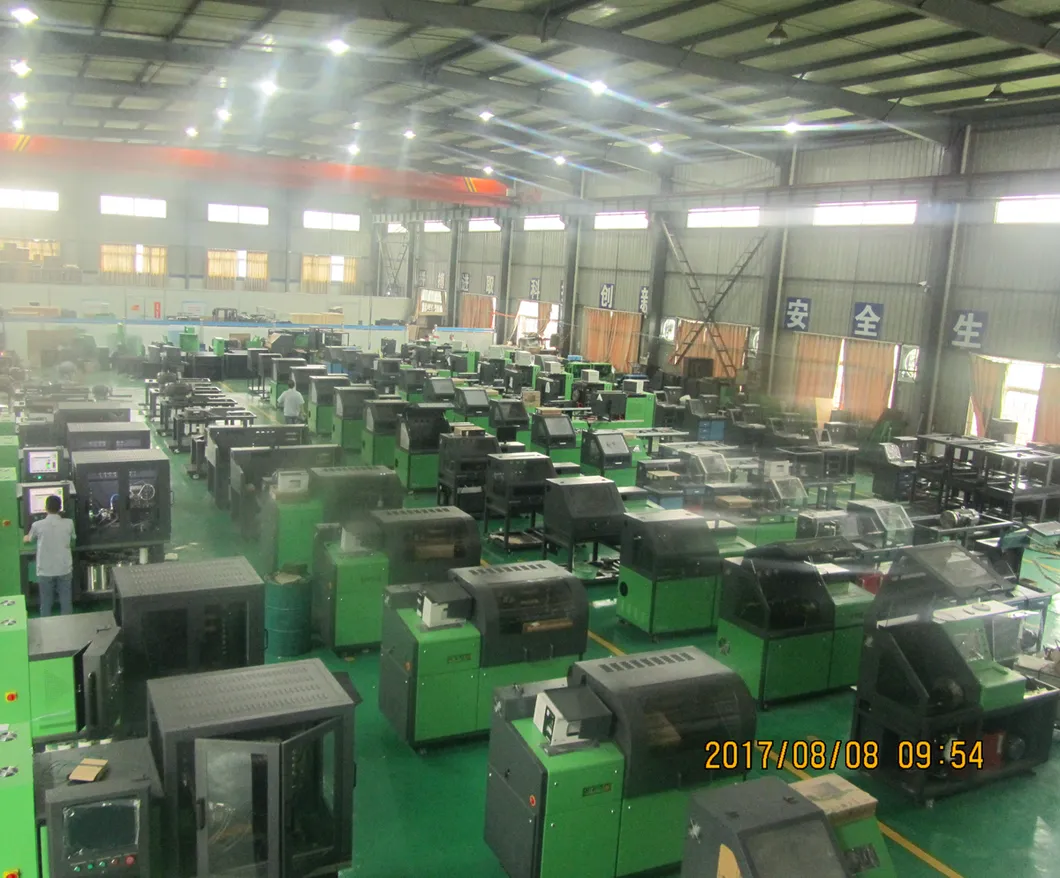

Nanyang NanTai Test Equipments Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
Our city Nanyang is famous as a maintenance base, factory hold maintenance training every month, many person learn repair skill to go to different city to work,we not only train in our factory, but also go to many cities to train, such as Xian city. Kunming city. Guizhou city and so on,we also provide training for foreign customers.
Questions
Q: How about your raw materials of the test bench?
A: Machine frame and mechanical parts are made of stainless steel. The precise test parts is made in Germany
Q:What is the advantage of your product technology than other manufacturers?
A: We develop the BOSCH compensation (IMA) code generation, Denso compensation code generation and Delphi compensation code generation. This technology in China is unique.
Q: What are the benefits of becoming a dealer?
A: 1. Dealers enjoy some free product accessories and parts.
2. Dealers will enjoy free the expenditures on to-and-fro traffic for training and learning to manufactory.
3. Dealers enjoy our free door-to-door service and upgrading.
4. We will cooperate with distributors to participate in some large-scale exhibitions and assist dealers in publicity.
5. We provide product customization services to distributors.
Q:I want different product style and appearance.
A: No problem,the color of the test bench is request. And the flow calculation method depend on you.
Q: What is the quality of your products?
A:Our products through Europe CE, and have passed the ISO quality system authentication. We have the standard of self-examination in mechanical aspects and software. All products are100% qualified factory test.
Q: How is the after-sale service?
A: Our product warranty is one year. Within the warranty period, We are responsible for the quality of the product parts. After it, we provide the spare parts at the cost price.
Q: How to install and use the machine after receiving the machine?
A: The test bench has been installed 90%. We have the instructions and technical service personnel to guide.
