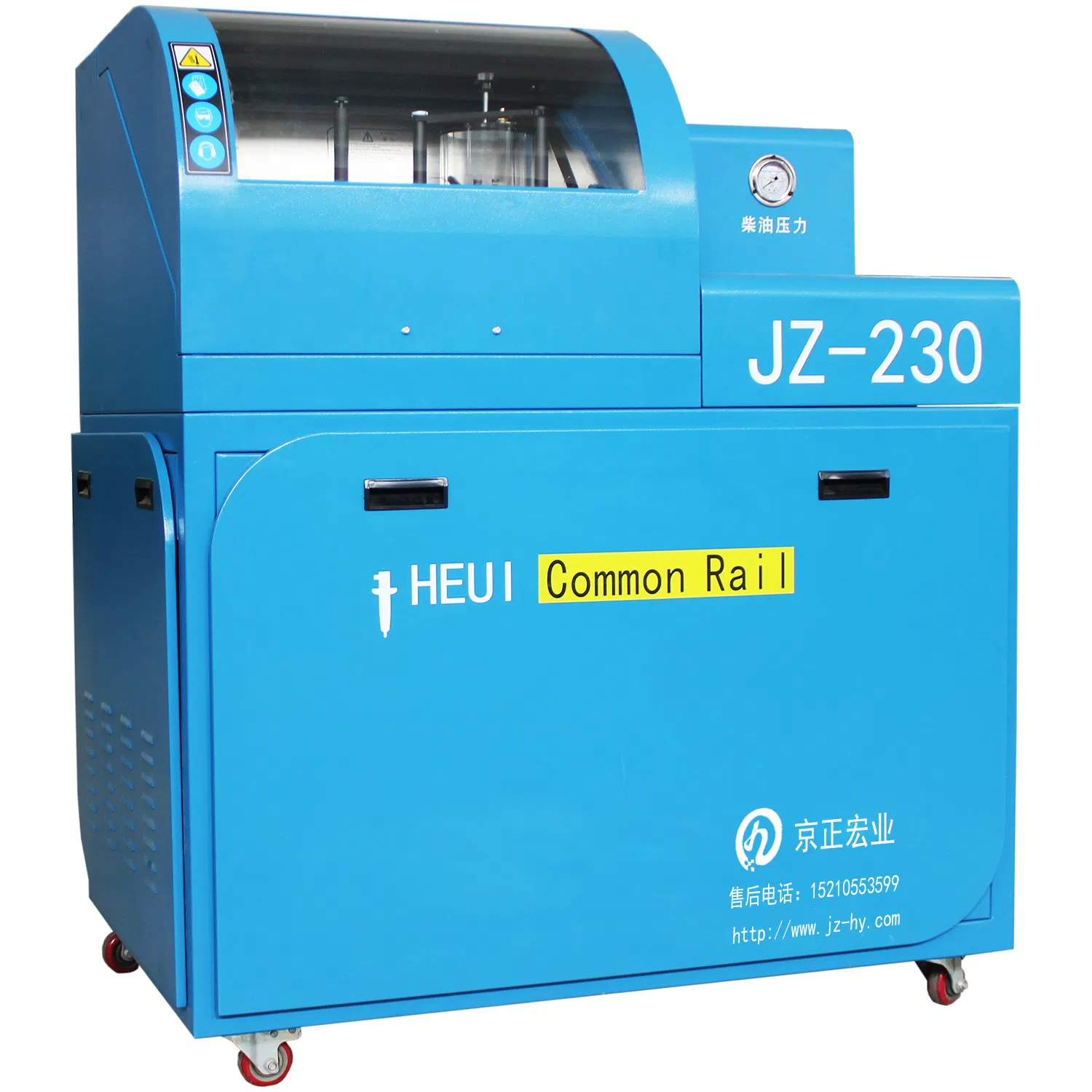

Diesel Heui Injector Common Rail Test Bench
Product IntroductionJZ-230 HEUI injector test bench is a medium-pressure common rail injector test bench, adopts full automatic control, can conveniently repair and test Euro-3, Euro-4 injectors. It can test Caterpillar injector of 3126, 3126B, unit injectors, and other medium-pressure common rail i......
Send Inquiry
Product Description
Product Introduction

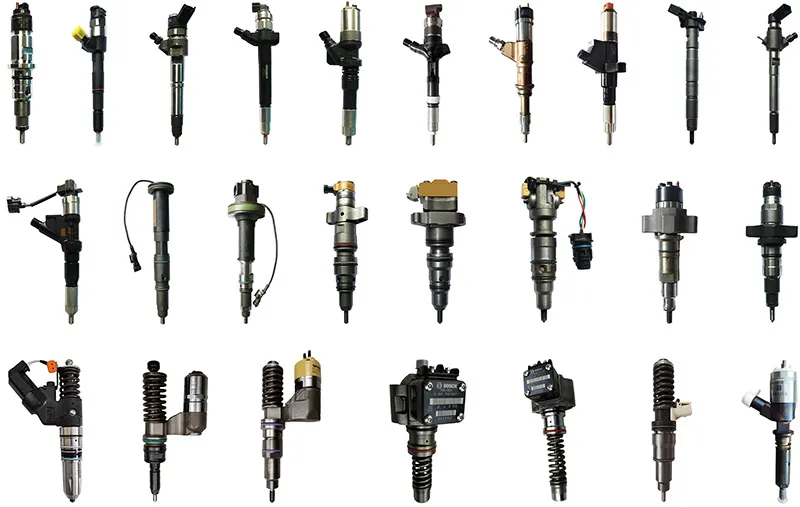

JZ-230 HEUI injector test bench is a medium-pressure common rail injector test bench, adopts full automatic control, can conveniently repair and test Euro-3, Euro-4 injectors. It can test Caterpillar injector of 3126, 3126B, unit injectors, and other medium-pressure common rail injectors. The experimental data are complete.
Functions Description
JZ-230 HEUI injector test bench is a medium-pressure common rail injector test bench, adopts full automatic control, can conveniently repair and test Euro-3, Euro-4 injectors. It can test Caterpillar injector of 3126, 3126B, unit injectors, and other medium-pressure common rail injectors. The experimental data are complete.
Functions Description
| 1. Integrated flow sensor | 12. Can test piezo injectors |
| 2. With electronic measuring system | 13. Can test common rail injectors |
| 3. Accurate data Multiple protection | 14. Can test mid-pressure injectors |
| 4. Intelligent algorithm Automatic calibration | 15. Can test the tightness of the injector |
| 5. Automatically heating/cooling control for test oil | 16. Detect engine oil leakage, diesel leakage |
| 6. Automatically measure different working conditions and analyze results | 17. Oil level lower limit alarm |
| 7. Bosch data from original equipment of EPS708 | 18. Engine oil heating control |
| 8. Denso, Delphi, Siemens data are calibrated by the latest injectors | 19. Linear calibration of flow sensor |
| 9. Bosch CP3 pump and high pressure oil rail with DRV | 20. Diesel oil and engine oil separation |
| 10. Data backup, software update and cloud upgradable functions | 21. Real-time display the fuel delivery graph |
| 11. Function debugging can be realized under different speed conditions | 22. Solenoid valve drive pulse width and frequency can be adjusted |
Our Advantage
| Hardware advantage |
| 1. Motor power is 11 KW |
| 2. Air-cooled heat dissipation kit |
| 3. Metering valve detect the fuel flow |
| 4. Imported flow sensor from Germany |
| 5. Equipped with Bosch genuine DRV |
| 6. Equipped with Bosch genuine CP3 pump |
| 7. Equipped with Bosch genuine common rail tube |
| 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection) |
| 9. Short-circuit protection, ground protection, over-pressure protection during the testing |
| 10. Equipped frequency converter to achieve testing function under different speed conditions |
| 11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life |
| Software advantage |
| 1. Many language interfaces can be switched |
| 2. Bosch datas are from the orginal equipment of EPS708 |
| 3. Denso, Delphi, Siemens data are calibrated from by the latest injectors |
| 4. More than 3000 test data used for different brands injectors calibrations |
| 5. Data backup, system software and database upgrade free charge all the time |
| 6. Automatic testing the fuel quantity of all working conditions, automatic generate report after testing |
| 7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing |
| 8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing |

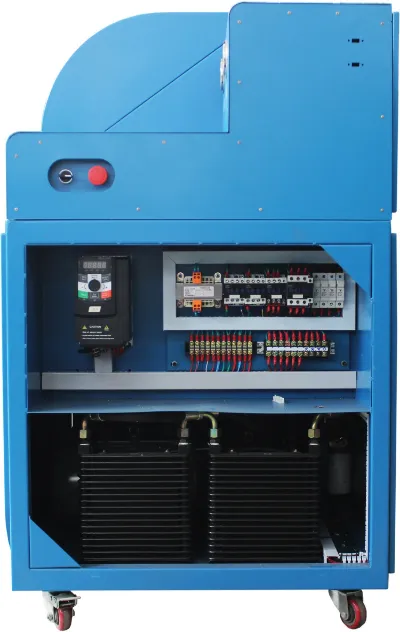

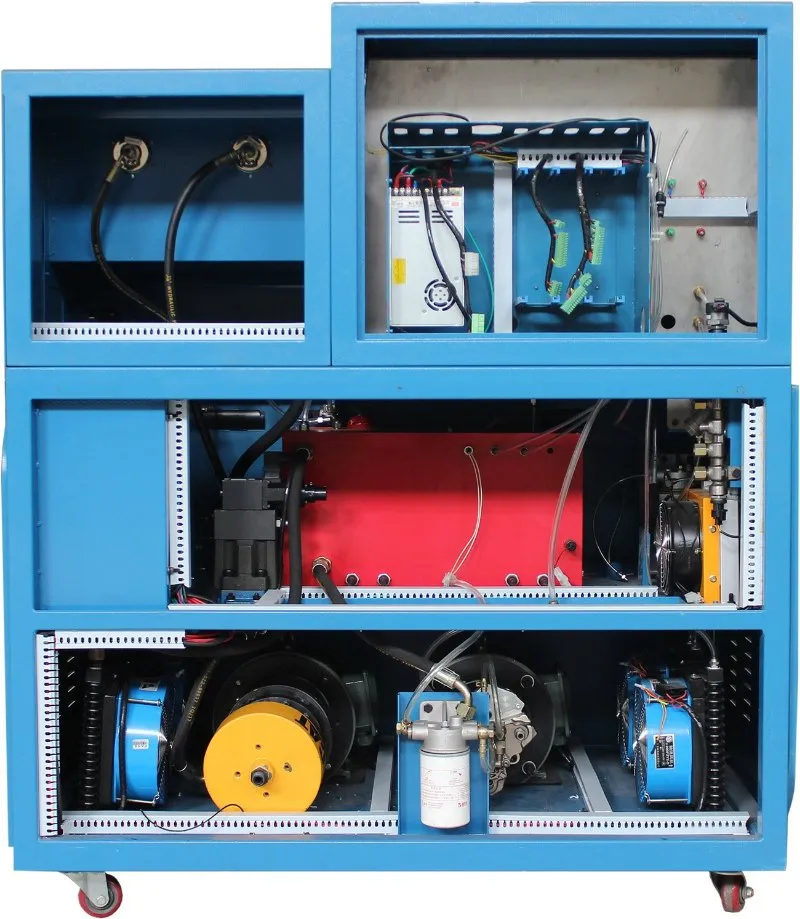

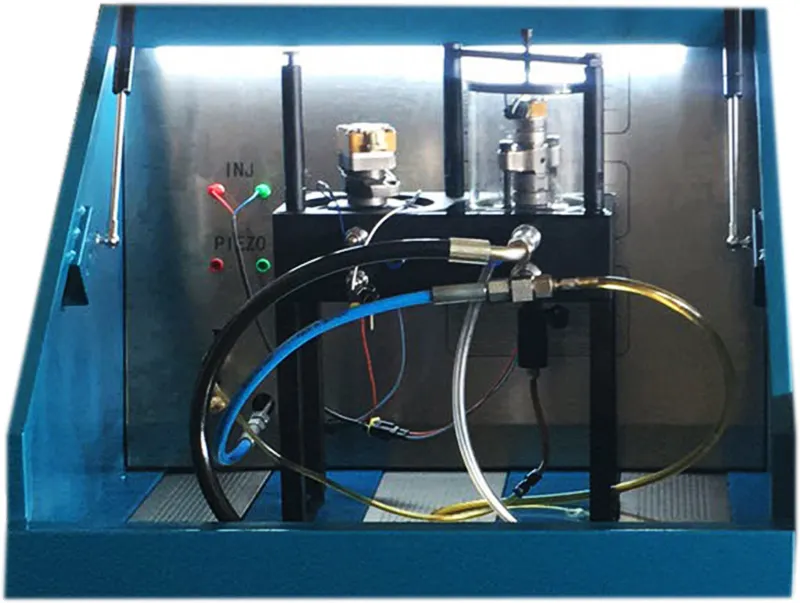

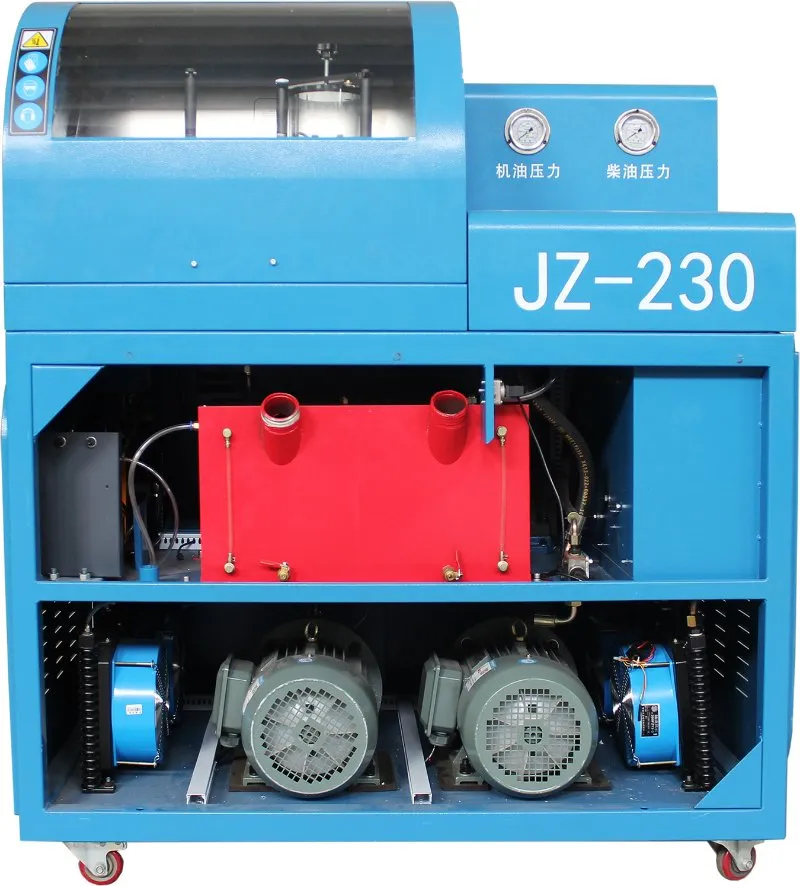

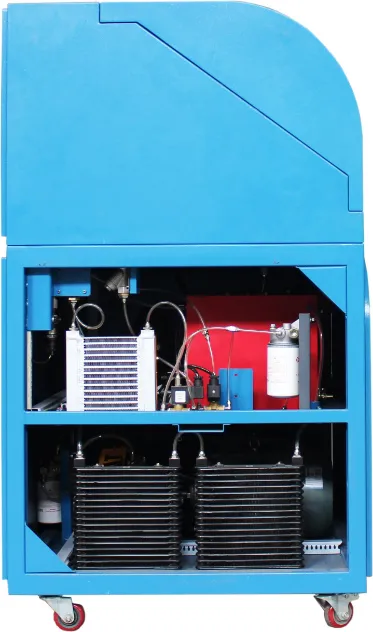

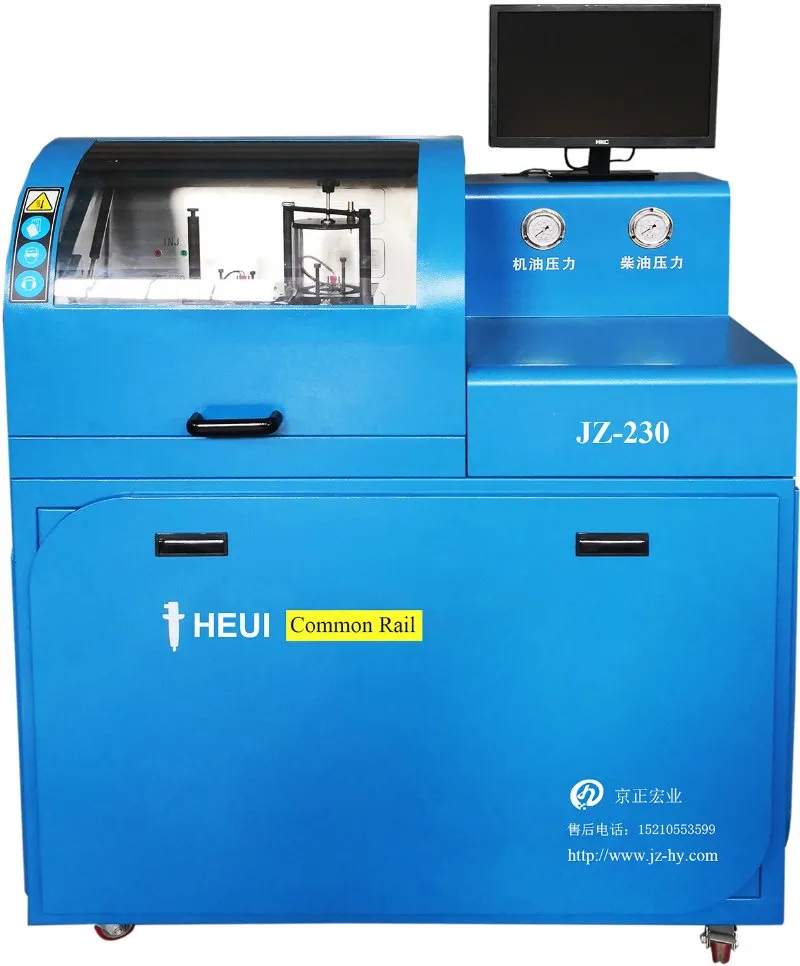

Product Details
Technical Parameters
| Technical Parameters | |
| Output | 11 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Rail Pressure | 0~2200 Bar |
| Rail Pressure Precision | ±5 Bar |
| Diesel oil pressure range | 0~0.6 Bar |
| Engine oil pressure range | 0~250 Bar |
| Fuel Temperature | 40±2ºC |
| Tank Volume | 20 L, Filter Precision: 5μm |
| Tank Volume | 40 L, Filter Precision: 3μm |
| Gross Weight | 550 kg |
| Packing Size | 1450×1040×1650 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air-Cooled Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Dark Blue/ Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40%Deposit, the rest paid before delivery |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

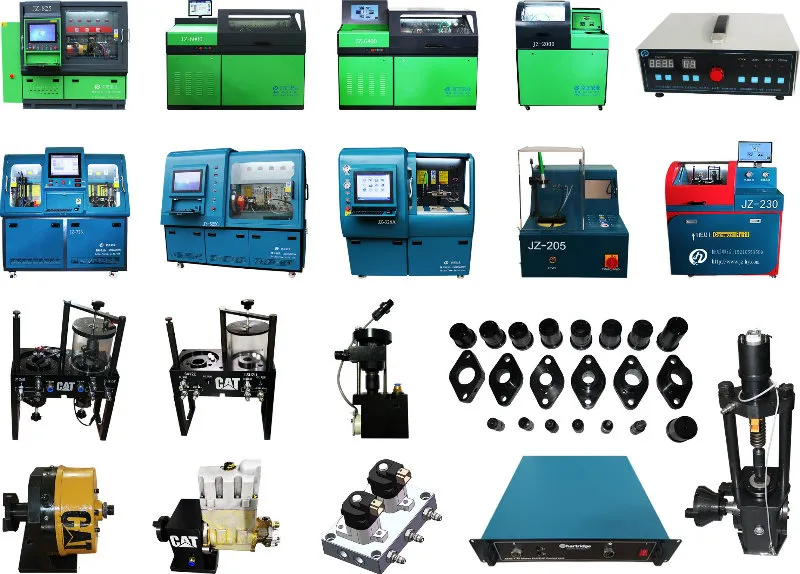

Related Products
Packing and Delivery

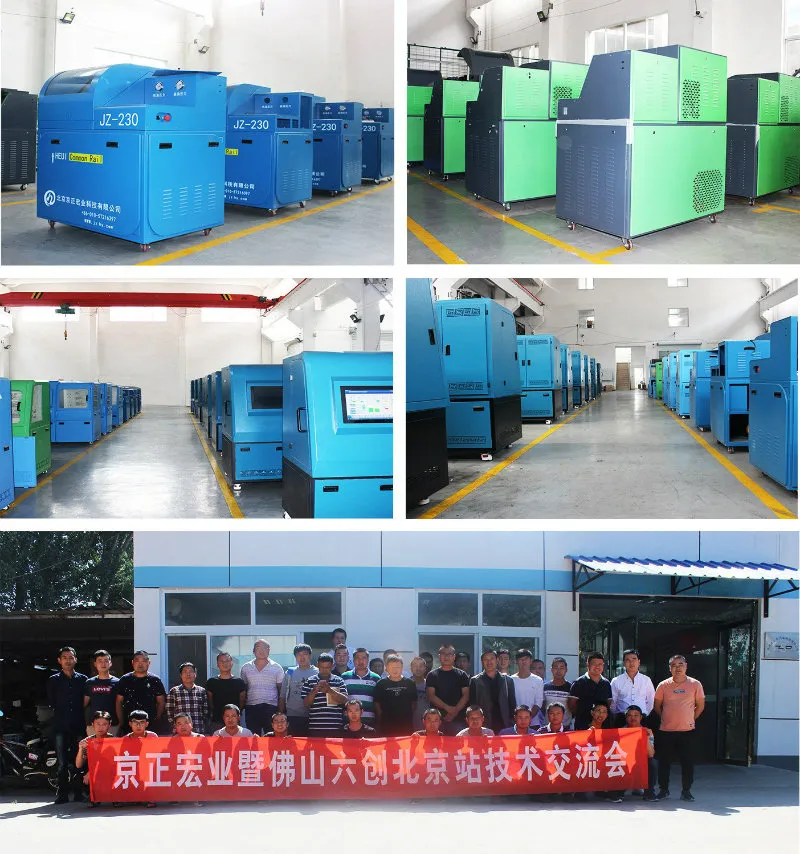

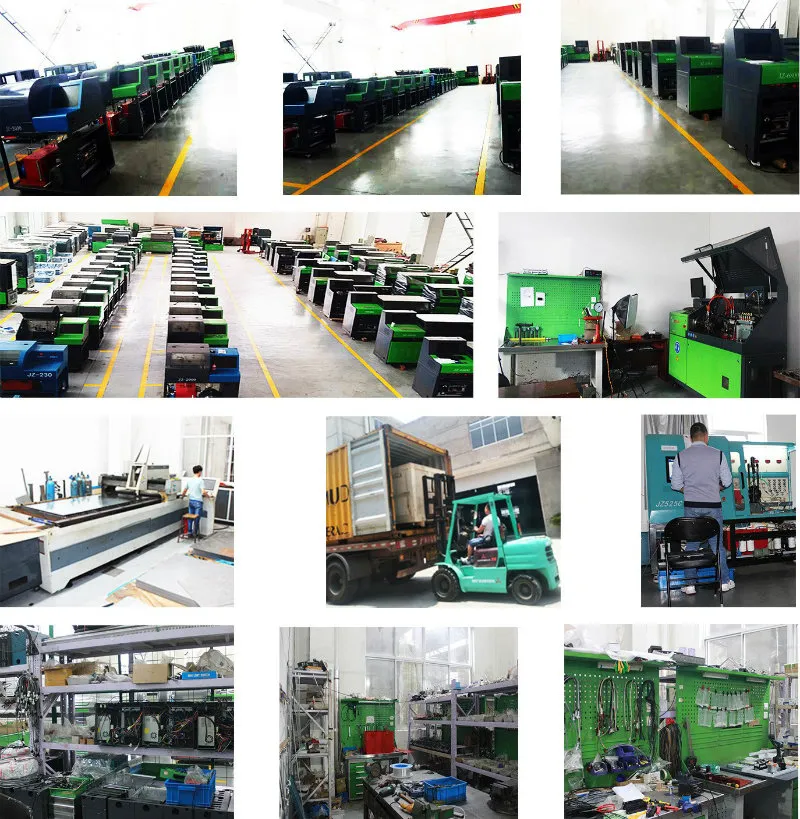

Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team, and rich produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
