Diesel Fuel Common Rail Pumps and Injectors Test Bench
Product IntroductionJZ-6800 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. T ......
Send Inquiry
Product Description
Product Introduction

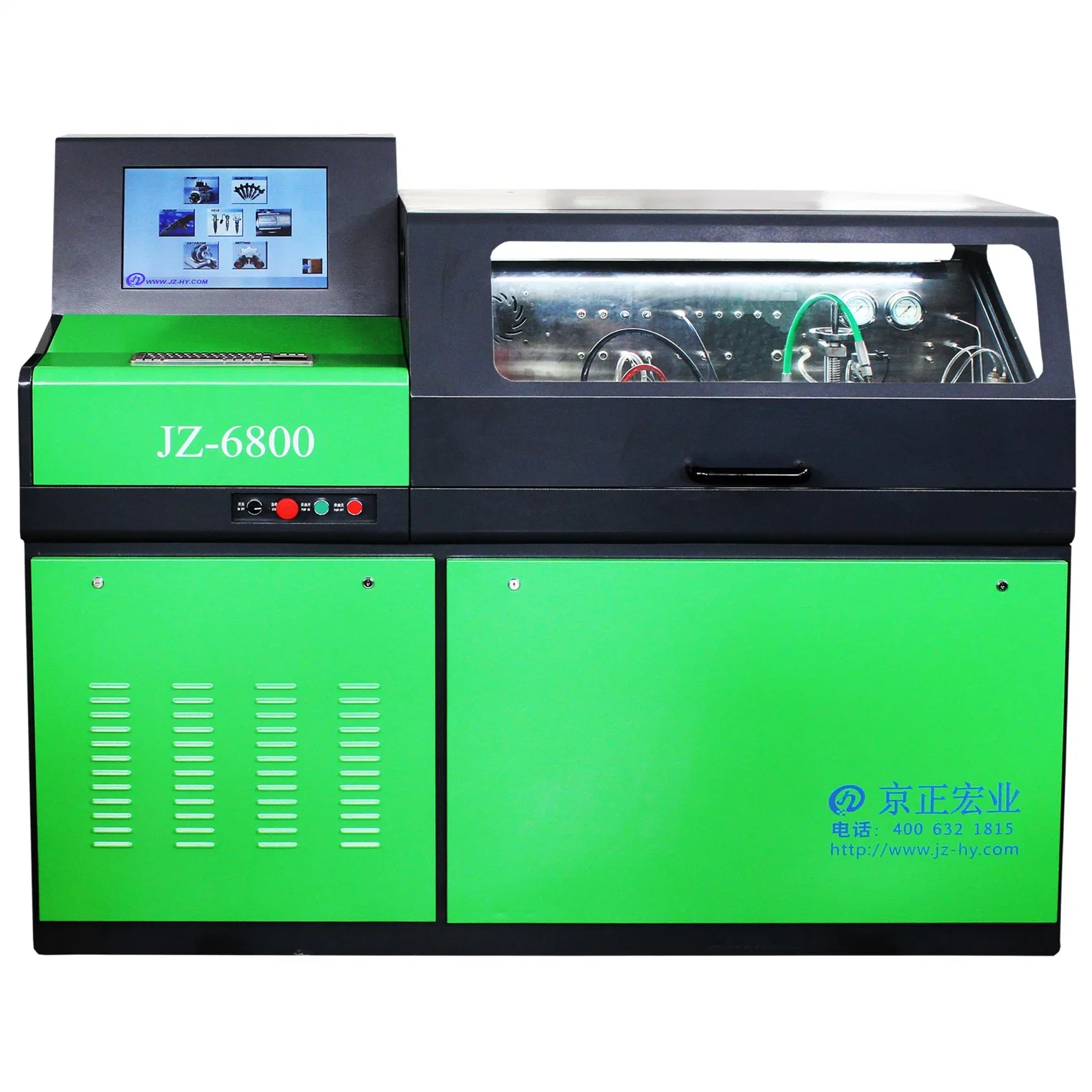

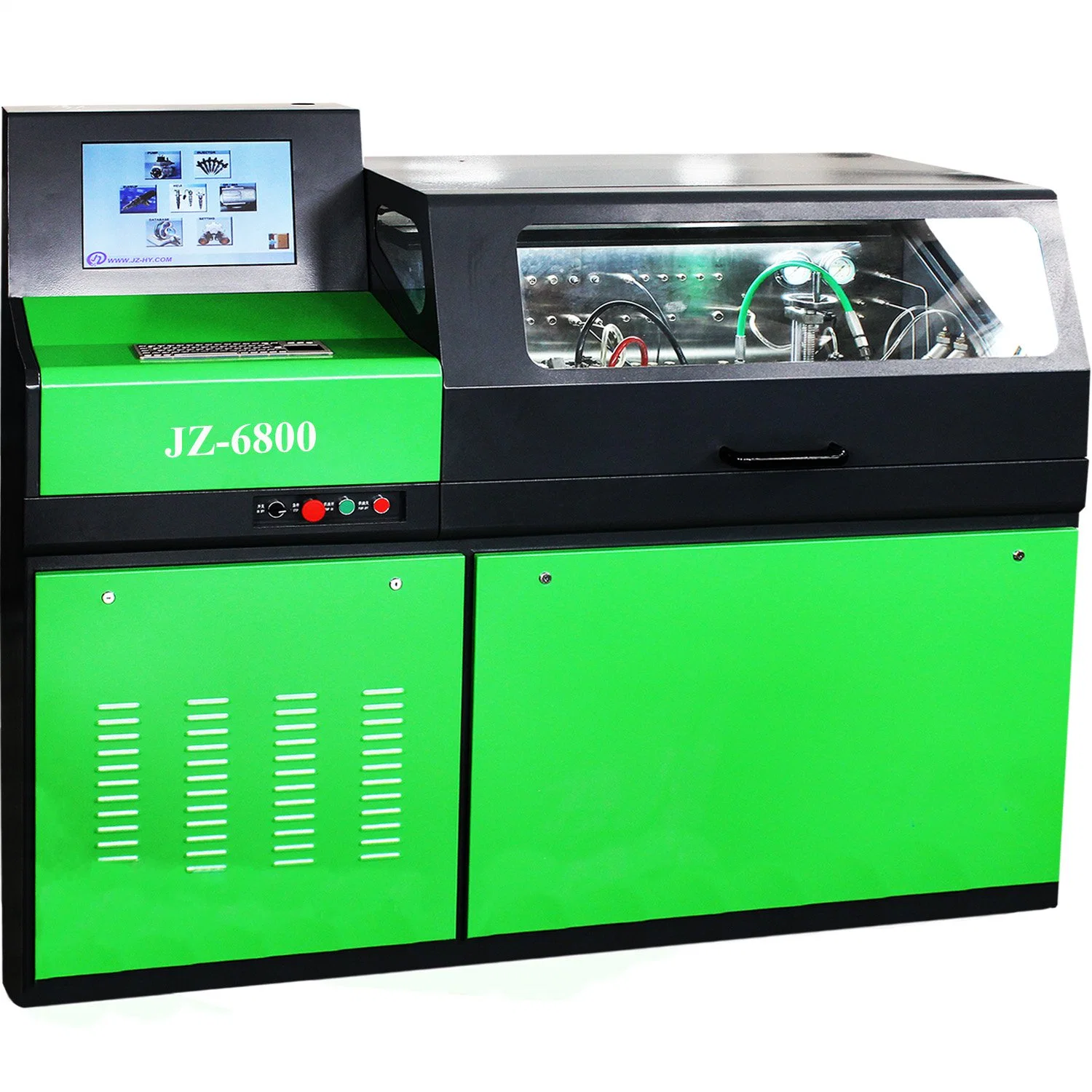

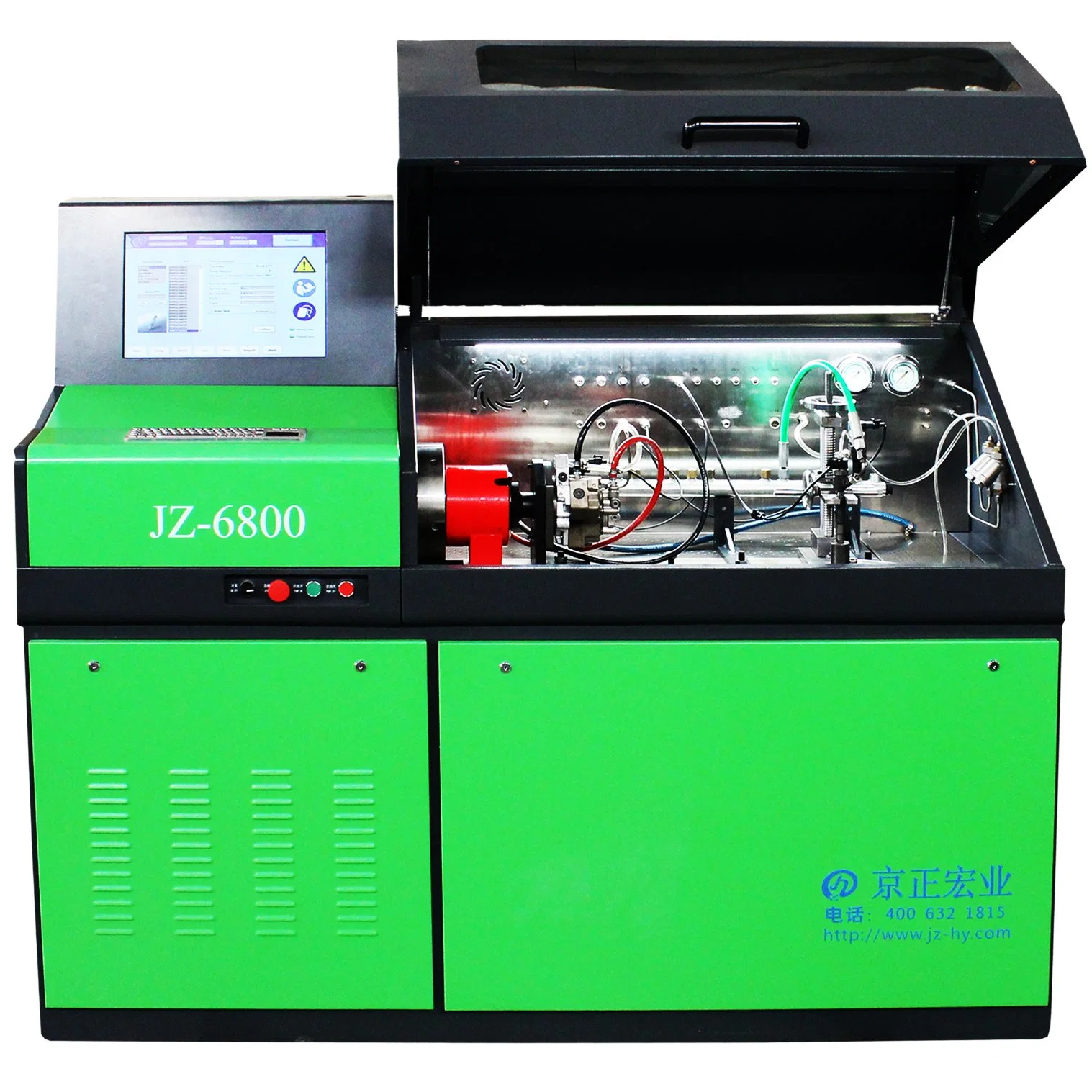

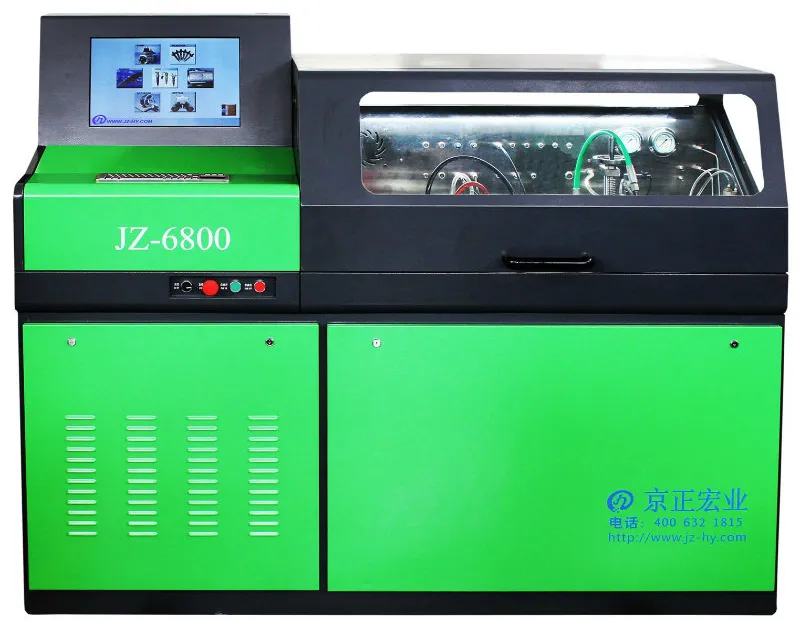

JZ-6800 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. T he experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
JZ-6800 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. T he experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
| 1. Integrated flow sensor | 13. Can test piezo injectors |
| 2. Full-automatic Fully function | 14. Can test common rail injectors |
| 3. With electronic measuring system | 15. Can test mid-pressure injectors |
| 4. Prepositioned precise filter for sensor | 16. Can test common rail pumps |
| 5. Intelligent algorithm Automatic calibration | 17. Can test actuatedpumps |
| 6. Real-time display the fuel delivery graph | 18. Can test unit injectors & pumps |
| 7. Many language interfaces can be switched | 19. Can test Siemens DCP pumps |
| 8. Automatically heating/cooling control for test oil | 20. Can test Delphi CRSP pumps |
| 9. Data backup, software update and cloud upgradable | 21. Can test Bosch CP1/CP2/CP3 pumps |
| 10. Bosch CP3 pump and high pressure oil rail with DRV | 22. Can test DENSO HP3/HP4,HP0 pumps |
| 11. Bosch datas are from the orginal equipment of EPS708 | 23. Oil level lower limit alarm |
| 12. Denso, Delphi, Siemens data are calibrated from the latest injectors | 24. Linear calibration of flow sensor |

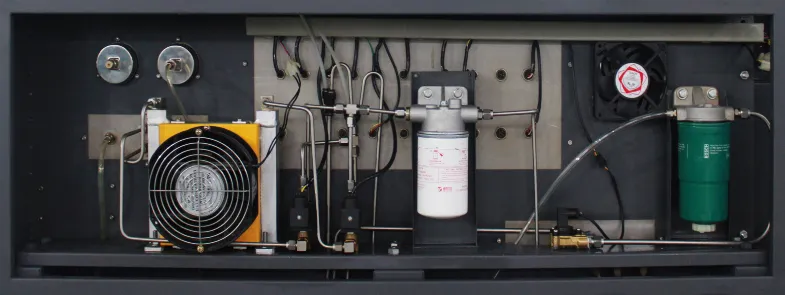

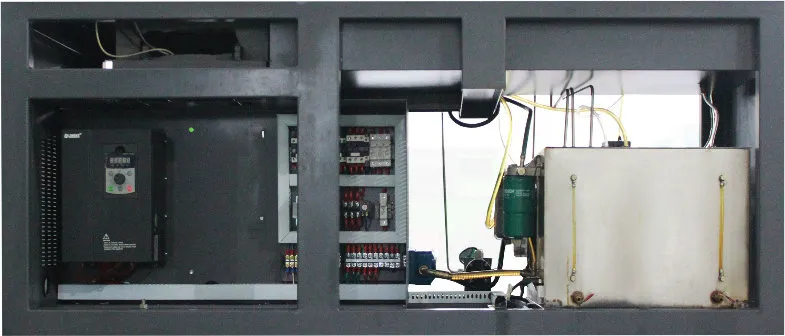

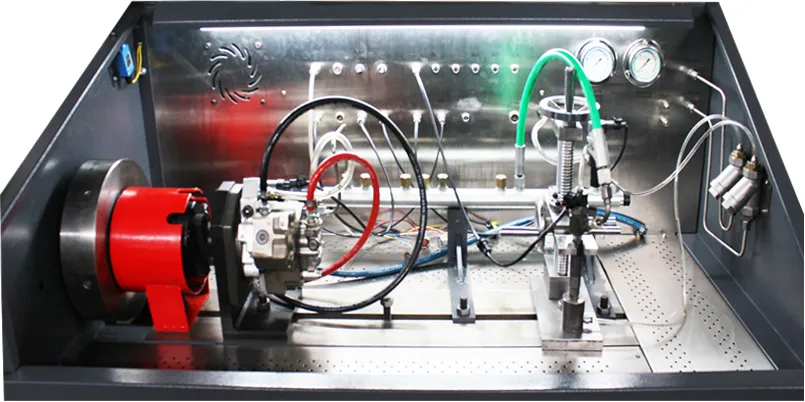

Product Details
Technical Parameters
| Technical Parameters | |
| Output | 11 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~4000 RPM |
| Rail Pressure | 0~2200 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 30 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Net Weight | 615 kg |
| Packing Size | 2065×1000×1770 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air-Cooled Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

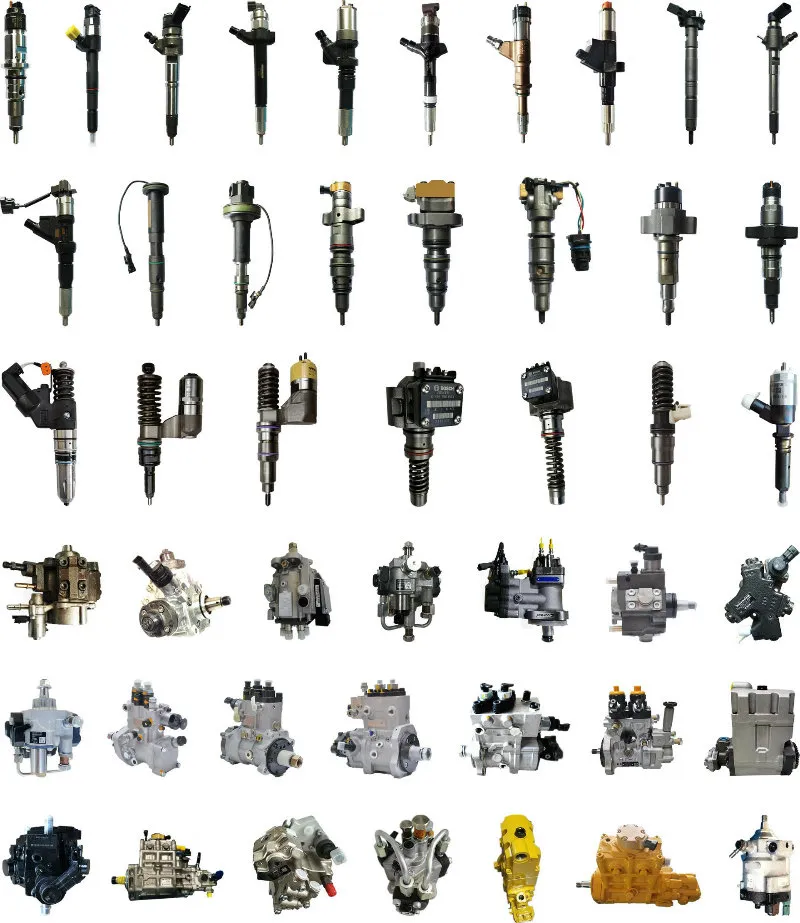

Testing Scope

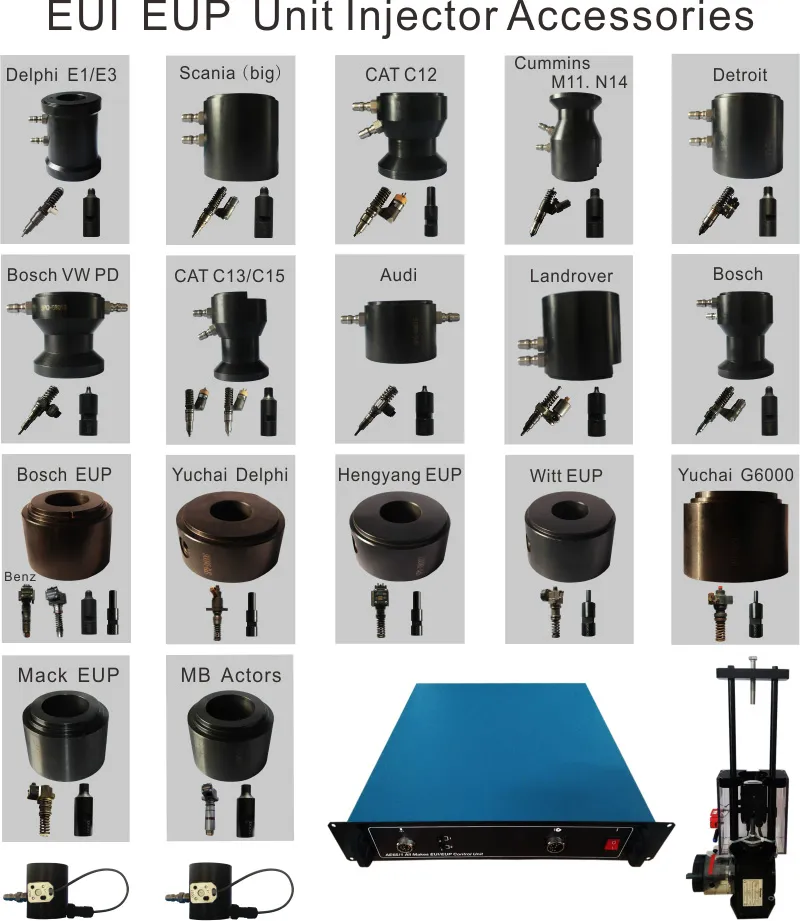

Related Products and Fixtures
Packing and Delivery

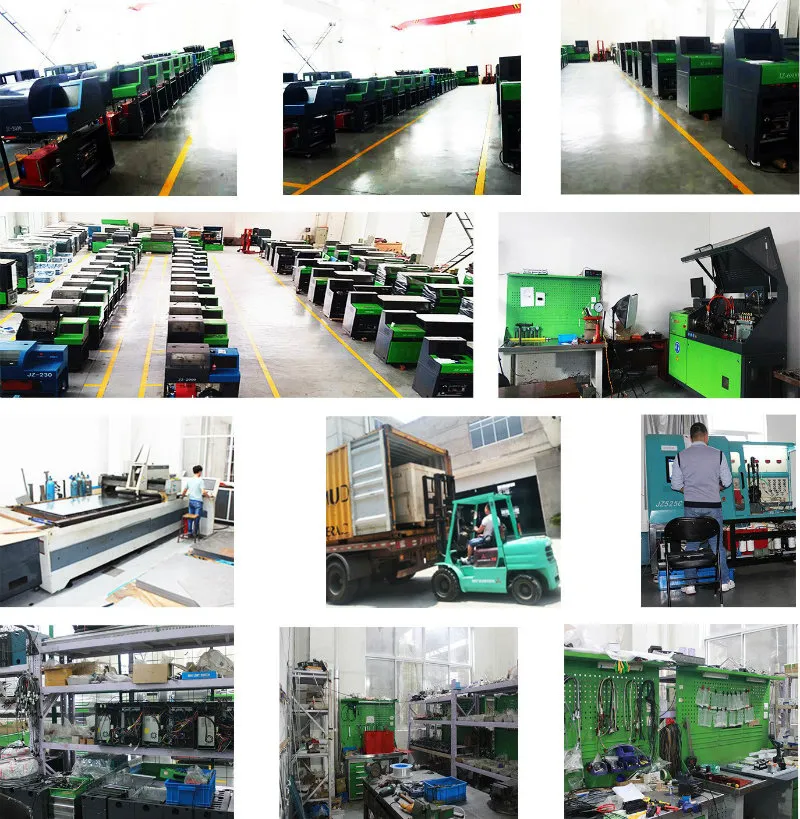

Our Company
Exhibition
Contact Us
