Product Description

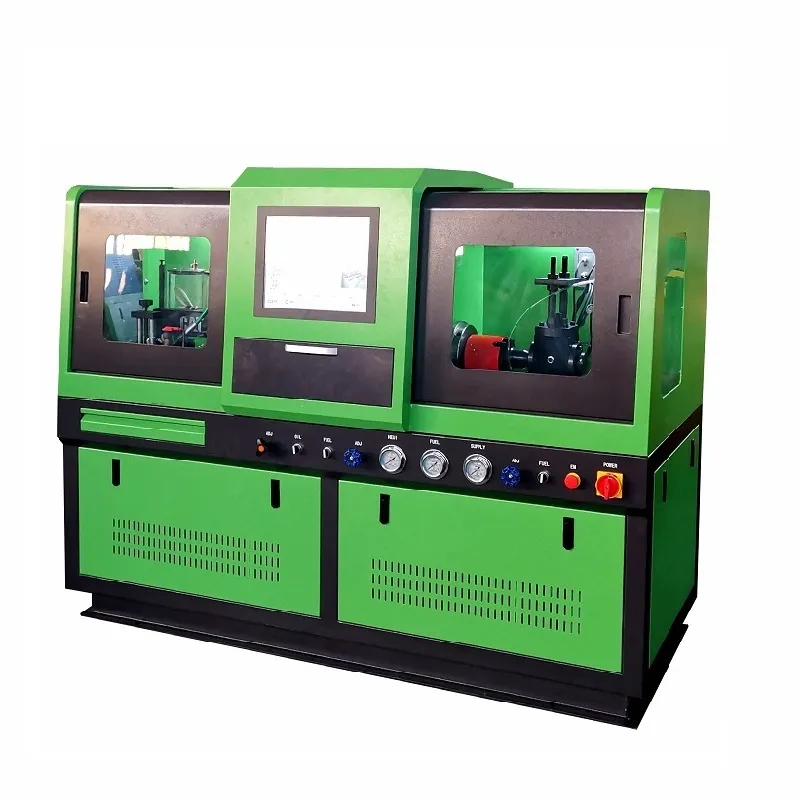

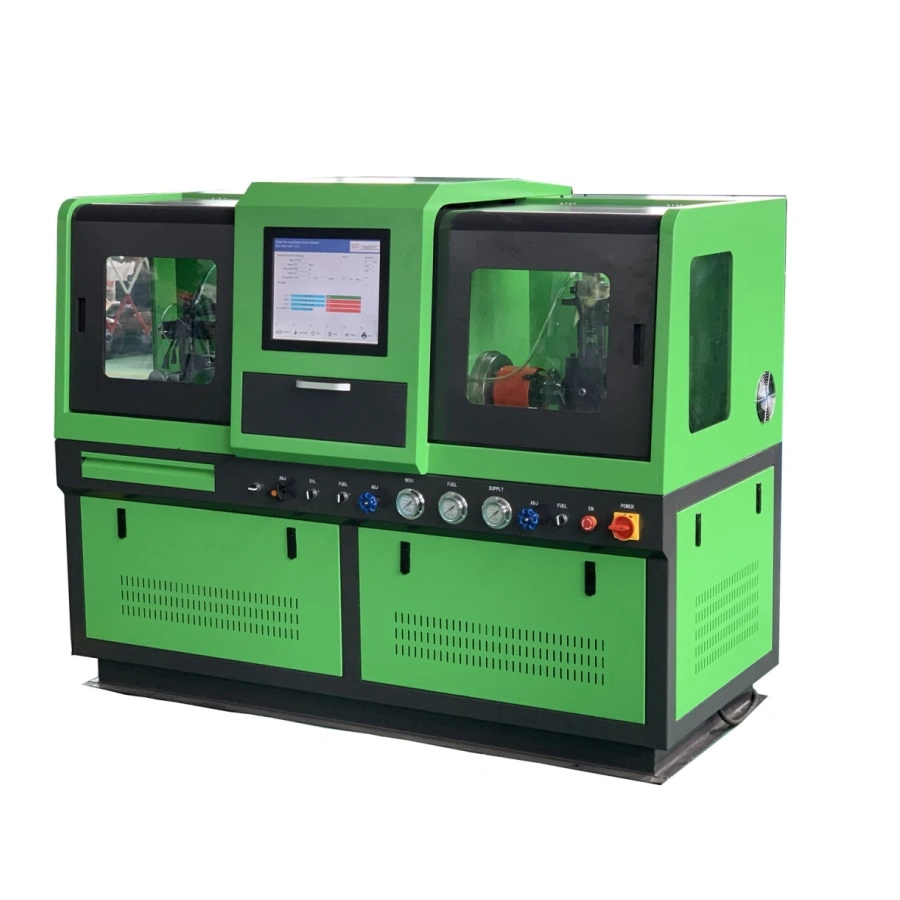

CRS966 Multi-function TEST BENCH
Suit for Testing------Common rail injectors&pumps, HEUI , EUI/EUP, CAT HPOP pump

Functions:
CRS966 Multi-function TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

Common rail Injectors & Common rail pumps

Cleaning high pressure for the impurities inside of the injectors.
Atomization test: to judge whether the injector is blocked through the atomization effect.
Sealing test: check whether nozzle, nozzle cap nut and solenoid valve leaks oil.
Testing the injection and return volume under: VL. TL. LL. VE status.
Test automatically and test 1 injector at one time.
Test common rail pumps( BOSCH CP1, CP2, CP3 , DENSO HP2, HP3, HP0, DELPHI, SISMENS)
Injector Inductance and Resistance
QR coding(BOSCH, DELPHI, DENSO SIEMENS)( Optional)
AHE testing ( Optional)

EUI EUP & HEUI &CR pumps:

Automatically test injection and return volume, pump chamber pressure, feeding pressure and sealing performance for BOSCH, SIEMENS DENSO , DELPHI

common rail pumps.
2.Automatically test BOSCH CUMMINS, DELPHI, DENSO, Mercedes-Benz, Volvo, EUI EUP and Dual-valve E3 etc..
3.Automatically test special DENSO HP0 double electromagnetic sensor, single electromagnetic sensor and so on DNESO Pumps.
4. HEUI C7 C9 , 3126 injectors testing
5. EUI EUP testing

CAT HPOP pump:

Cat HEUI C7/C9 engines.
Cat 3126B engines

System advantage:

Full automatic operation with Windows7 system.
Original Bosch testing database: current curve can be set. Test accuracy similar with world leading test bench.
It include more than 3000 types testing data of BOSCH, DENSO. DELPHI SIEMENS injectors and pumps. The database can be edited, modified and regularly updated.
Self-protection under overheat, oil mist , over pressure and low oil level.
Remote control is convenient for service and software upgrade.
Include CHINESE ENGLISH, SPANISH, RUSSIA language etc.. which are proper for global using.
it have two Motors and frequency inverter, it is more easily to divide testing for CR injectors and Pumps.

8.The Left zone, can test common rail injectors & HEUI injectors, The right zone, can test EUI/ EUP & Common Rail pumps. Convenient operation. No need for dismounting and install the test stand, save much time.

Technical parameters

1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW ,11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment
4, Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ
5, Fuel Injector Hold Time Control: 0-65535us
6 Delivery Oil Count Control: 0-1000 times Control accuracy: 1 times
7, Fuel pressure control Control: 0-2400bar Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V
