Product Description

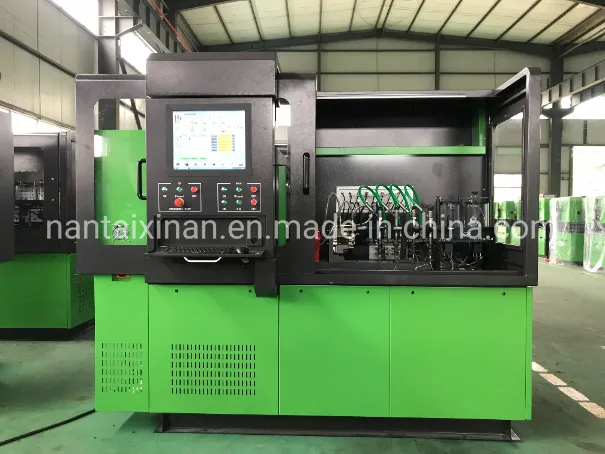

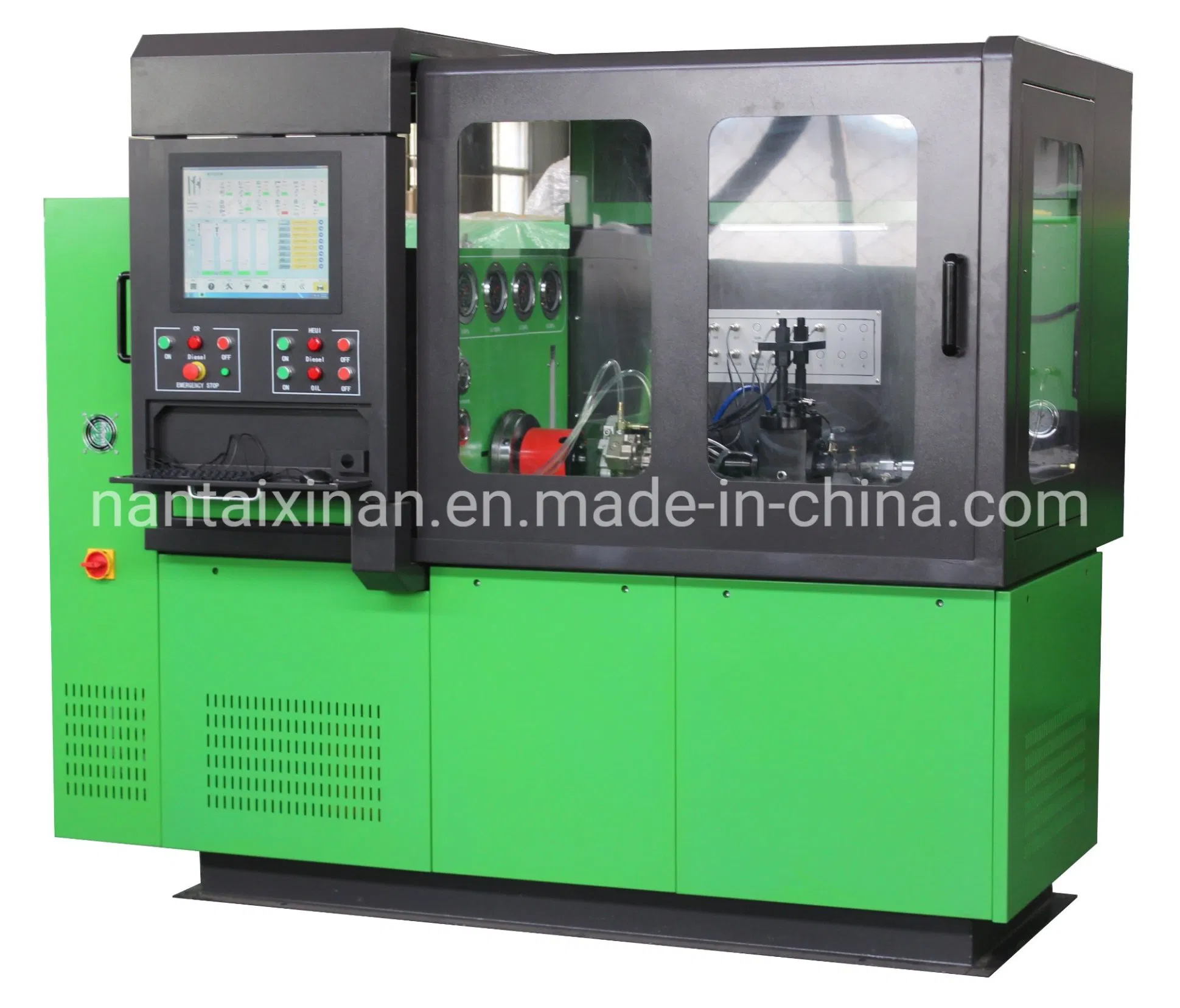

CR825 multi-purpose Diesel injector &pump CR TEST BENCH
Which can test :

All types of the Common rail injectors: Electromagnetic and Piezo injectors
All types of the Common rail pumps: include BOSCH, DENSO, SIEMENS and DELPHI pump.

DNESO HP0 pump testing
DRV testing
DELIVERY of the pump testing.

HEUI TESTING (optioanl functions)
EUI EUP TESTING (NT1400 cam box and accessories )(Optional function)
QR CODING ( BOSCH, DELPHI, DENSO, SIEMENS INJECTORS)
Testing data inside (Pump and Injector )

1) 3071 types CR injector testing plans
2) 1854 types QR coding
3) 862 types CR pump testing plans
4) 69 types DENSO HP0 pump testing plans
5) 63 types HEUI testing plans.( optional function)
6) 446 types EUI EUP testing plans.(optional function)
7) Injector inductance test.
Main functions

High pressure common rail system test function:

1. Fully automatic detection of BOSCH, DELPHI, DENSO, SIEMENS
and other brands of electromagnetic injectors in CLEAN, VE, VL, LL, EM,
LEAK and other conditions of pressure flow and other performance and parameters.
2. The computer system can automatically determine the quality of the injector.
3. The computer system can automatically produce BOSCH QR code according to the measurement results.
4. Fully automatic detection of BOSCH, CP1, CP2, CP3, DENSO HP1, HP2, HP3, HP4, DELPHI and other high pressure common rail pumps, flow and pressure under various working conditions, the system automatically judges the quality of the oil pump.
5. Fully automatic detection of DENSO HP0 pump flow and pressure under various working conditions, the system automatically judges the quality of the pump.
Cr825 Manufaturer for Common Rail Diesel Injector Fuel Injection Pump Calibration Test Bench Machine Cr815s Nts815A with Eui Eup

Technical Parameters:

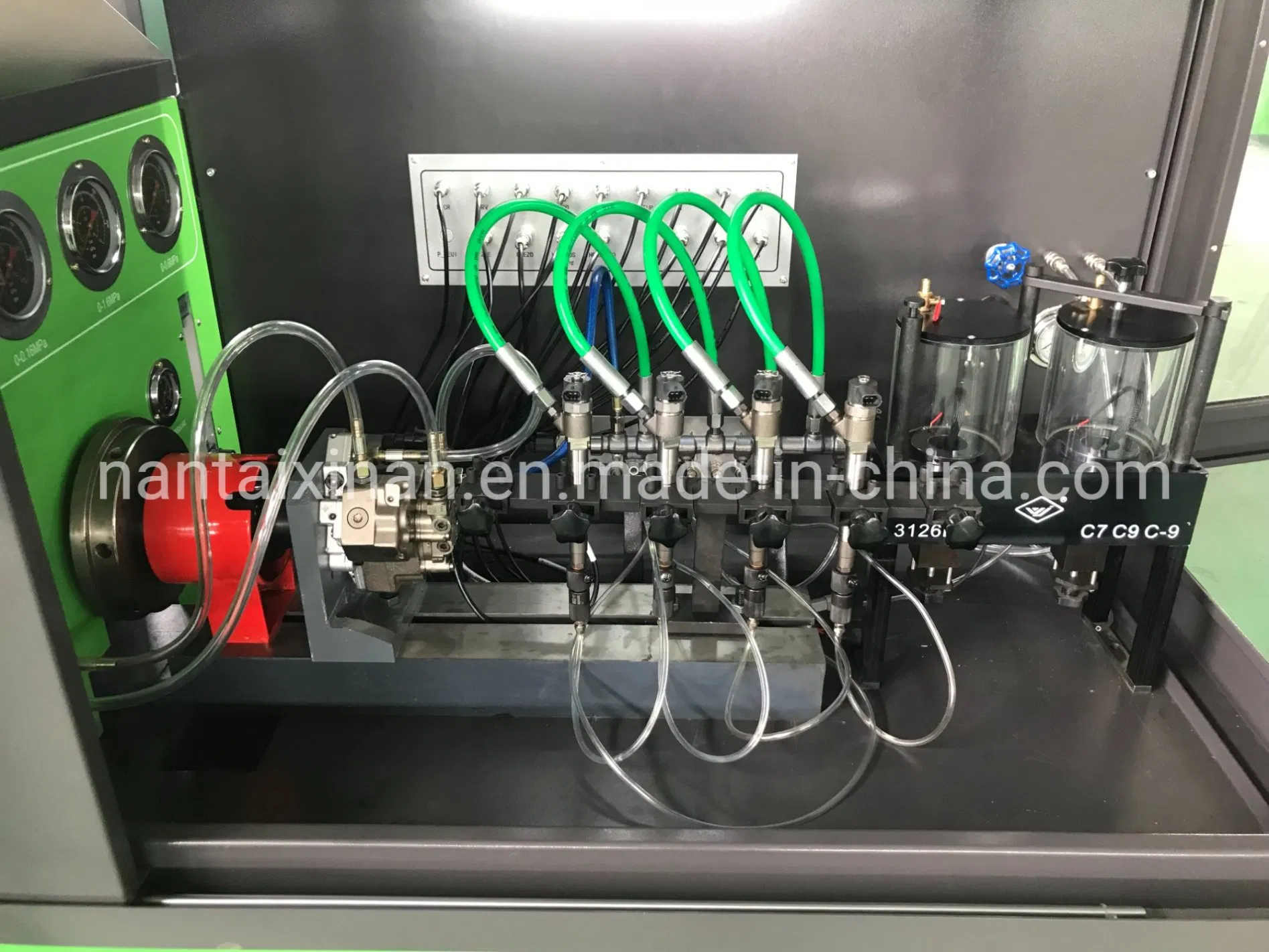

Number of Cylinder for common rail injectors- 6 cylinders( to test 6 injector continuously)
Common rail pump testing ( BOSCH, DELPHI, DENSO, SIEMENS)
Output power: 11KW
The input voltage: 3PHASE 380V,
Motor speed range: 0-4000RPM,
6. Working pressure adjustment range: 0-2500bar

7. Flow measurement range: 0-600ml/1000 times
8. Flow measurement accuracy: 0.1ml
9. Temperature control range: 40 +-2
10. Temperature cooling method: Fan Radiator Cooling

Main configuration

Embedded industrial computer system, color LCD touch screen control, easy to operate, stable performance.
Windows7 operating system.
Inside include more than 3000 types testing data.
System memory standard data of various injectors and oil pumps.
Randomly configure the BOSCH CP3.3 oil pump.
configure BOSCH DRV valve, pressure range 0-2500BAR. Rail pressure accuracy +, - 0,5bar.
high-precision flow sensor, flow range 0.008-4L / min. Accuracy 0.3%

System advantage:
1.Integrated automatic operation, including test bench speed, rail rail pressure, flow measurement, report analysis, etc., one-button operation, the measurement results can be obtained.
2.Test BOSCH, DELPHI, DENSO , SIEMENS ,CUMMINS solenoid valve or piezoelectric crystal injector, common rail high pressure pump and conventional pumps.
3.The test standard data is consistent with the original data, and the test accuracy reaches the original factory standard and similar with world leading test bench.The database can be edited, modified and regularly updated.
4.Automatic network upgrade, test data and functions are kept update;
5.The fuel injector compensation code can be generated;
6.Test injector resistance and inductance.
7.Self-protection under overheat, oil mist, over pressure and low oil level.
8.Remote control is convenient for service and software upgrade.
