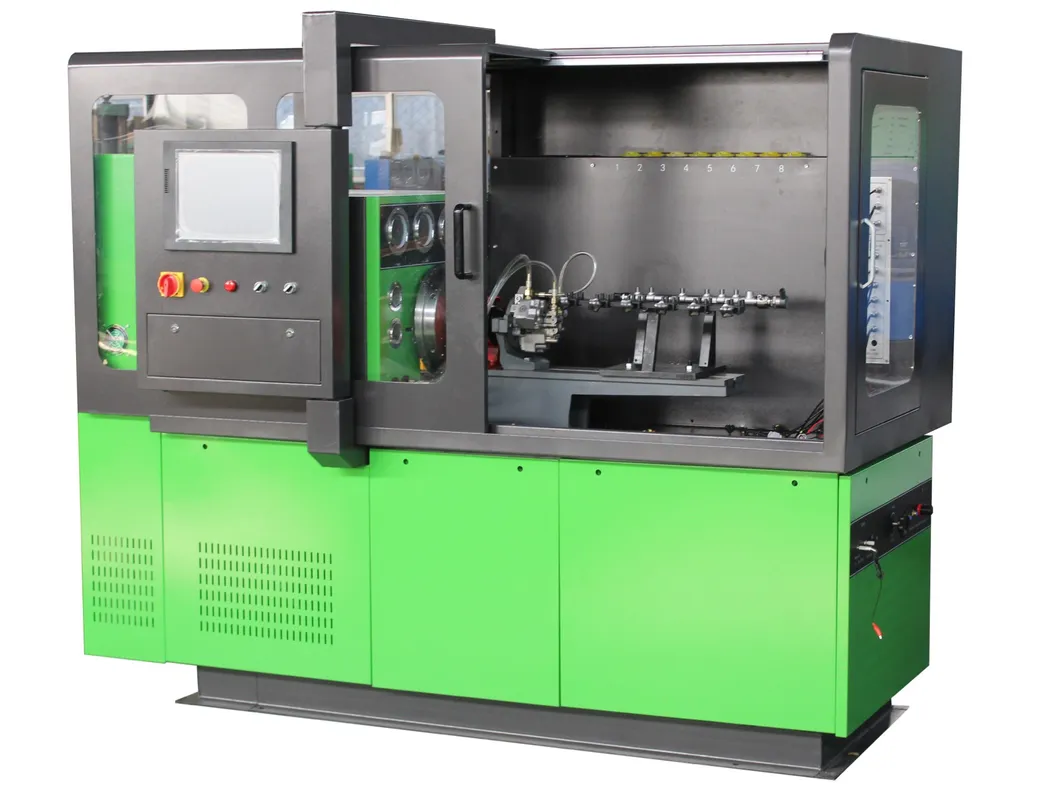

Cr825 Diesel Fuel Common Ail Injector and Pump Test Bench Heui Eui Eup
1.Test common rail injectors of all the manufacturers2.Test piezo injectors of all the manufacturers 3.Test common rail pumps of all the manufacturers 4. Test DENSO HP0 pump5.Test CAT common rail (HEUI) injector6.Test CAT common rail (HEUI) engine oil pump 7.Test CAT 320D common rail pump (the world......
Send Inquiry
Product Description
1.Test common rail injectors of all the manufacturers
2.Test piezo injectors of all the manufacturers
3.Test common rail pumps of all the manufacturers
4. Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world's first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump (optional function)
10.Test RED3 RED4 TICS ZEXEL electronic control pump (optional function)
11. Test mechanical spindle and electric parameters of solenoid valve efficiently, enhance, pull in and keep current and voltage time.
12.Accept stress wave ,sinusoid wave and encoder signal according to default setting, output 2 PWM drive signal and 2 solenoid valve drive signal. Among them, 1 PWM drive signal and 1 solenoid valve drive signal are programmable.
>>>Technical Parameter:
Main power | 380V AC / 220V AC(Optional) | Phase | Three / single(optional) |
| Frequency | 50Hz/60Hz | Current | 45A(MAX) |
| Main motor | 22KW | Main motor rotation | 0-4000 RPM/MIN |
| Oil motor HP/ Flow | 0.19KW / 13L/MIN | Diesel motor HP /Flow | 0.19KW / 13L/MIN |
| Control circuit voltage | DC12V/24V 350W | ECU internal voltage | 0-200V DC(MAX) |
| Oil tank volume | 30L | Diesel Tank volume | 52L |
| Temperature control | Heating/Forced cooling | Max rail pressure | 180MPa / 240MPa(Optional) |
| Flowmeter(injection) | 4-550ml/min 4-550ml/min | Flowmeter(fuel supplying) | 1-400L/H |
| Flowmeter(fuel flow back) | 1-400L/H | Flowmeter(Oil) | 5-600L/H |
| Center distance between motor and working bench | 125mm | Net Weight | 1100KG |
| Dimension | (L*W*H)2250*1260*1920mm | Wooden cage | (L*W*H)2350*1500*2100mm |
Product Application
All CR injectors testing
All CR pumps testing
All solenoid EUI testing
Piezo EUI testing
Twin solenoid E3 EUI testing
All HEUI injectors testing
All HEUI actuated pump testing
With all functions of CR300, CR305,CR308 and CR318
Configuration
★4 pcs Imported flow meters
★Temperature and pressure sensors equiped
★Oil tank and fuel tank integrated with powerful compressor cooling system
★Motor power 22KW
★Injection driver and system voltage control monitor
★Common rail with filter
★Twin DRV configuration
★High pressure filter alarm
★waste oil overflow warning
★Big working space with modularization updating
Software functions
Common rail system testing software
F1 Common rail injector
F2 Common rail pump
F3 HP0 pump
F4 EUP/EUI
F5 HEUI Injector
F6 HEUI pump
F7 CAT pump
F8 Common rail unipump
F9 VP37
F10 VP44
F11 TICS pump
F12 Zander CR pump
F13 Mechanical VE pump
F14 Mechanical pump
F15 ZME
F16 AHE
