Cr718 Heui Eui Eup 320d Pump, Qr Coding Diesel Pump Test Bench

Product Description

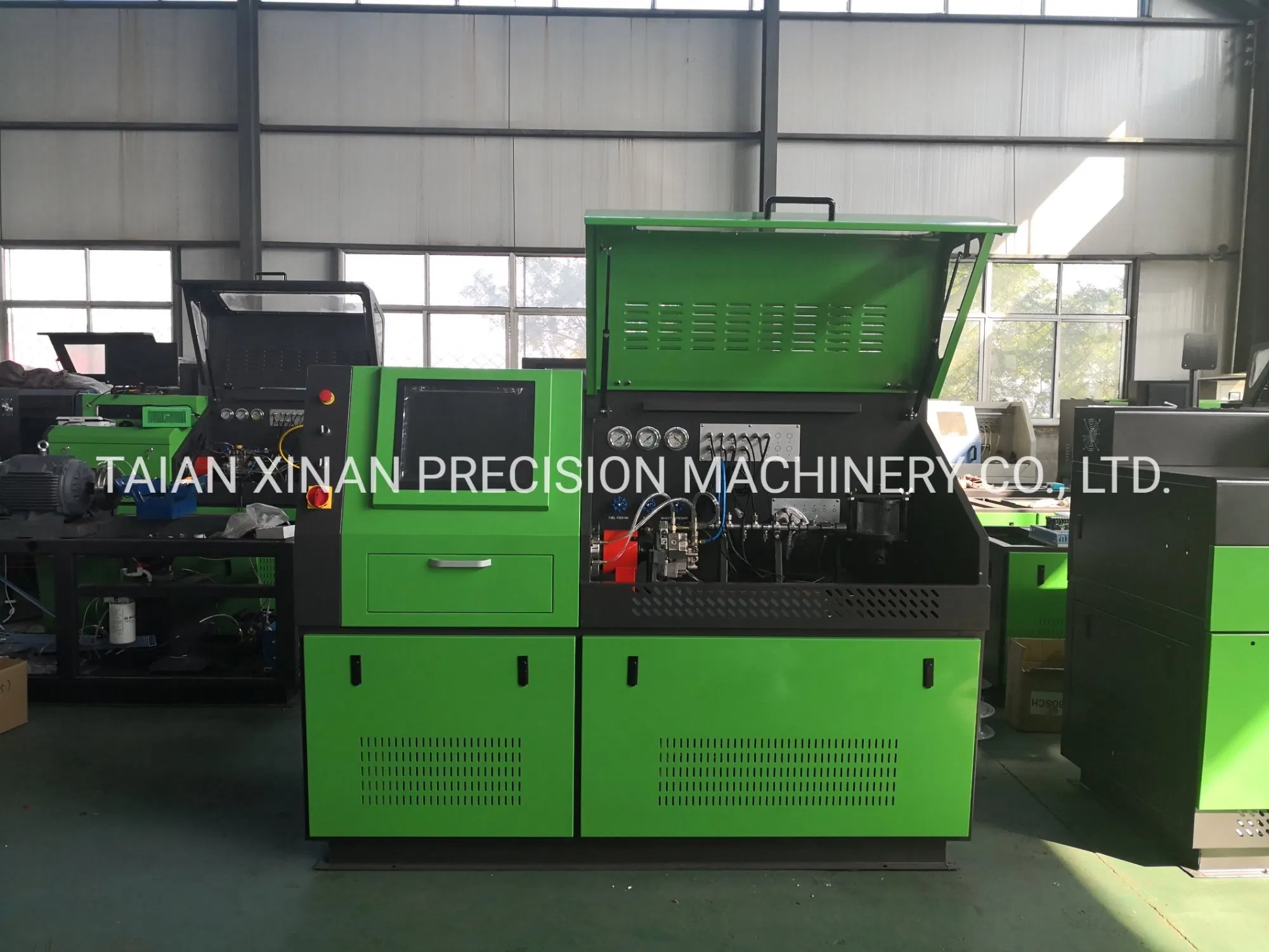

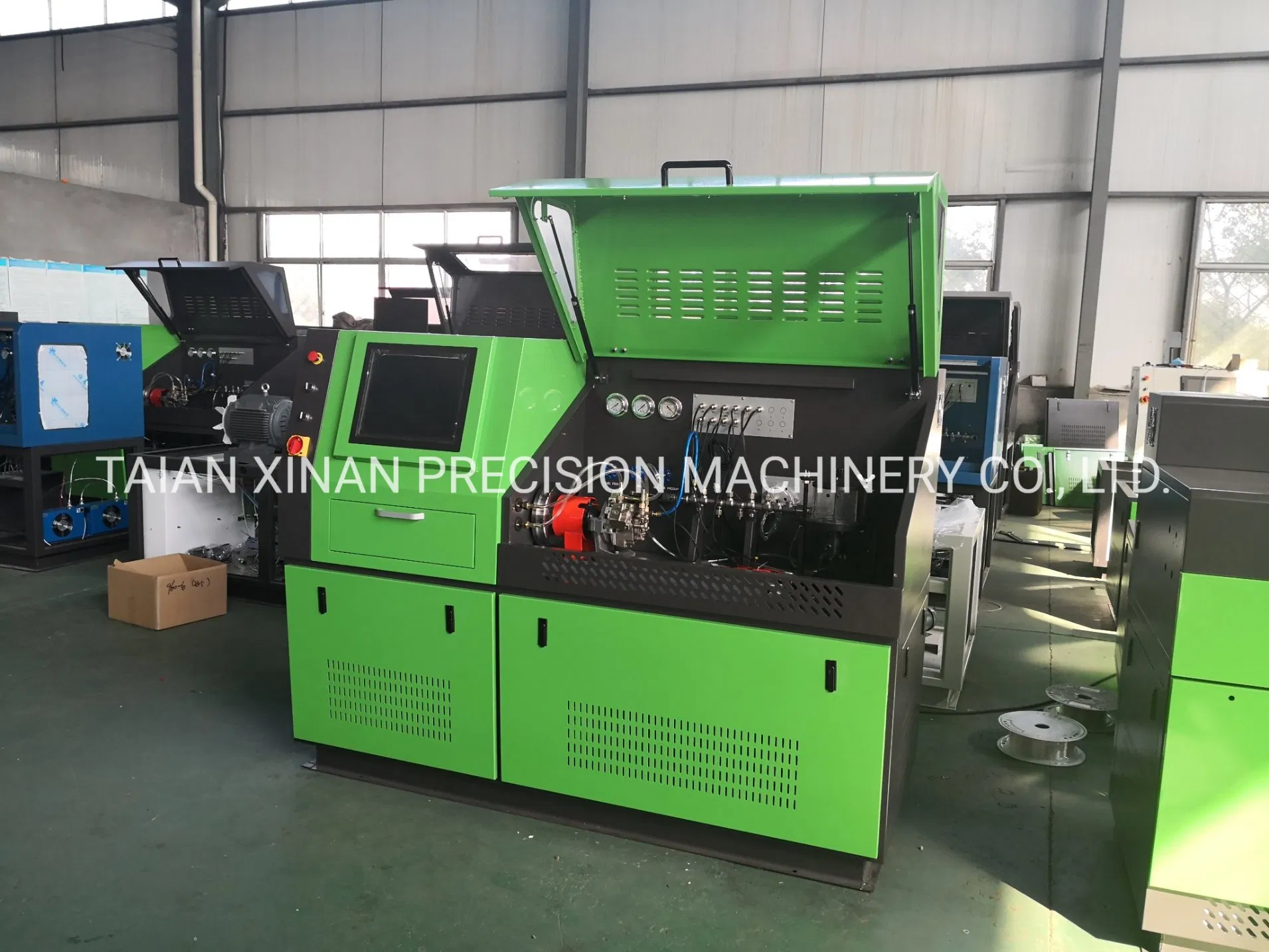

CR718 COMMON RAIL SYSTEM TEST BENCH

Cr718 Heui Eui Eup 320d Pump, Qr Coding Diesel Pump Test Bench

A. Function & Features:
1. Testing all traditional mechanical inline pumps, VE pumps
2. Fully automatic detection of BOSCH, DELPHI, DENSO, SIEMENS and other brands of electromagnetic injectors.
3. Fully automatic detection of all piezoelectric injectors.
4. Fully automatic detection of all high pressure common rail pumps.
5. Fully automatic detection of DENSO HP0 pump.
6. Automatically generate BOSCH common rail injector QR code.
7. Online generation of DENSO common rail injector QR code.
8. Online generation of DELPHI common rail injector C21, C31 code.
9. Online generation of SIEMNS common rail injector (VDO) IIC code.
10.Fully automatic detection of all actuation pumps( HEUI pump).
11.Fully automatic detection of BOSCH, CAT, CUMIMINS, DELPHI, Benz, Volvo and other types of pump nozzles and single pump, as well as dual solenoid injectors.
12.Fully automatic detection of CAT C7/C9/C-9/C3126B HEUI.
13.Fully automatic detection CAT3408/3412/FORD 6.0 HEUI.
14.Fully automatic detection of BOSCH VP44 pump.
15.Fully automatic detection of DENSO V3, V4, V5 pumps.
16.Fully automatic detection BOSCH electronically controlled VE pump.
17.Fully automatic detection EDC-ZEXEL RED4 electronically controlled inline pump
18. System memory standard data of various injectors and oil pumps.
19. Online remote assistance and system upgrades.

B.Main configuration and technical parameters:
1.Industrial computer system, color LCD touch screen control, easy to operate, stable performance.
2. System memory standard data of various injectors and oil pumps.
3. The BOSCH CP3.3 oil pump is randomly configured.
4. Pressure range 0-2400BAR.
5. The flow range is 0.008-4L/min.
6. Power 7.5KW / 11KW / 15KW / 18.5KW / 22KW, you can choose.
7. Voltage three-phase 220V / 380V voltage, you can choose.
8. Motor speed range: 0-4000RPM.
9. Temperature control range: 40+-2
10. Temperature cooling method: air cooling, forced cooling(optional)

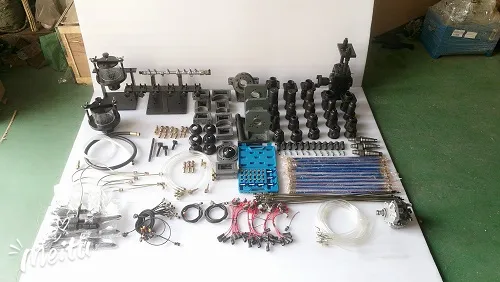

Common Rail Accessories

Cr718 Heui Eui Eup 320d Pump, Qr Coding Diesel Pump Test Bench

C. Function and configuration:

	NTS815	NTS815A	NTS825	CR708	CR718	CR817	CR925	CR926	CR816	CR916
Mechanical pump	optional	optional	optional	×	×	×	×	×	×	optional
Piezoelectric injector	√	√	√	√	√	√	√	√	√	√
BIP	optional	optional		optional	optional	optional	optional	optional	optional	optional
Common rail pump	√	√	√	√	√	√	√	√	√	√
CAT320D pump	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
HEUI	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
CAT Actuating pump	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
EUI/EUP	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
BOSCH QR	√	√	√	√	√	√	√	√	√	√
DENSO QR	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
DELPHI C21,C31	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
SIEMENS (VDO)IIC	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
Refrigeration unit	optional	optional	optional	optional	optional	optional	optional	optional	optional	optional
VP44	optional	optional	optional	×	×	×	×	×	×	optional
DENSO V3.V4,V5	optional	optional	optional	×	×	×	×	×	×	optional
BOSCH VP37	optional	optional	optional	×	×	×	×	×	×	optional
ZEXL RED4	optional	optional	optional	×	×	×	×	×	×	optional
