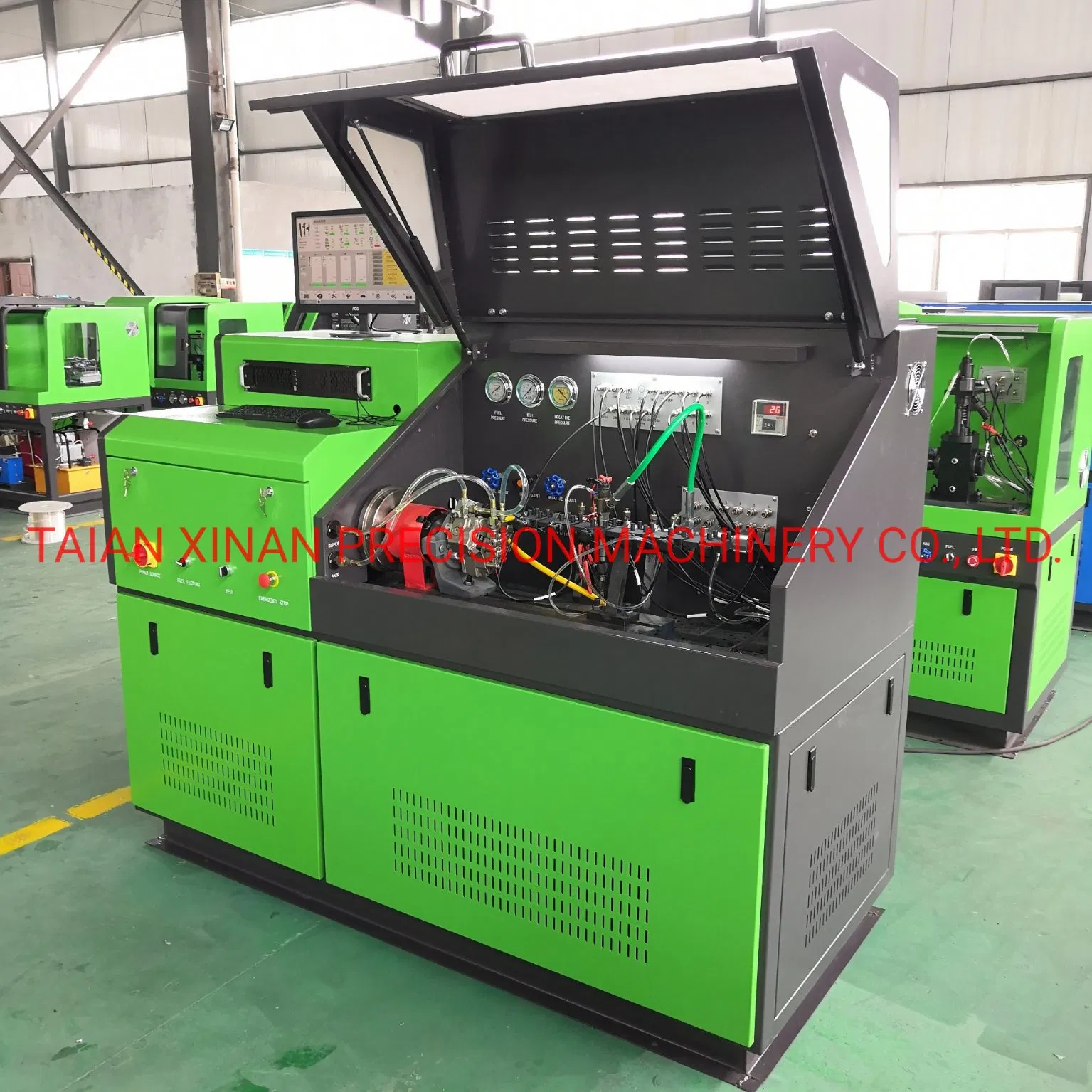

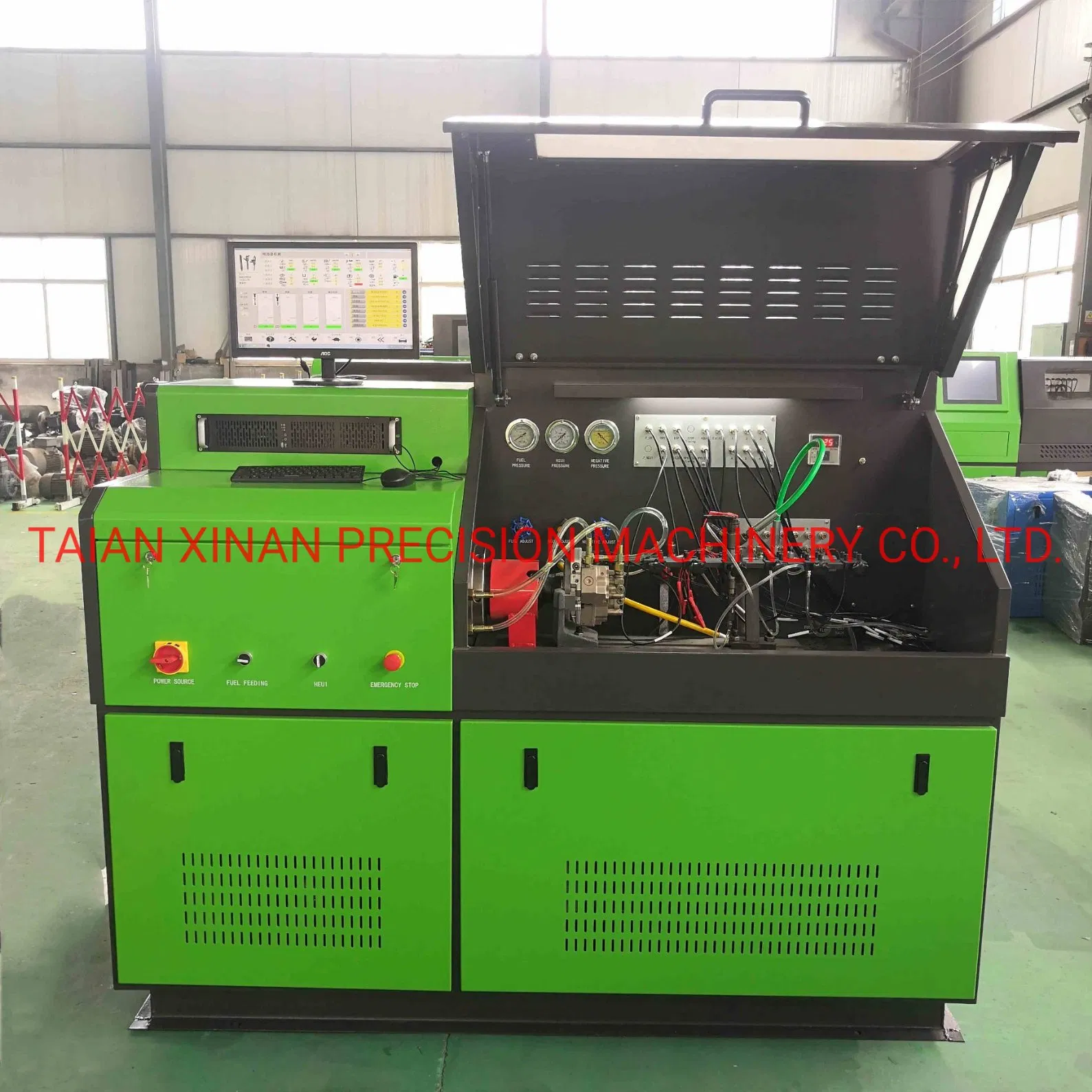

Cr3000A-708 Crs708 Common Rail Injector and Pump Test Bench Eui Eup Heui Cat 320d Qr Coding
Function:1, Common rail injector test2, Common rail pump test3, Piezo injector test4, HP0 pump test5, QR coding for Bosch, Denso, Delphi, Siemens...6, Injector inductance and resistance test7, CAT 320D pump test8, CAT C7 C9 HEUI pump test9, Forced cooling systemTechnical parameter:1. Out put power: ......
Send Inquiry
Product Description
Function:

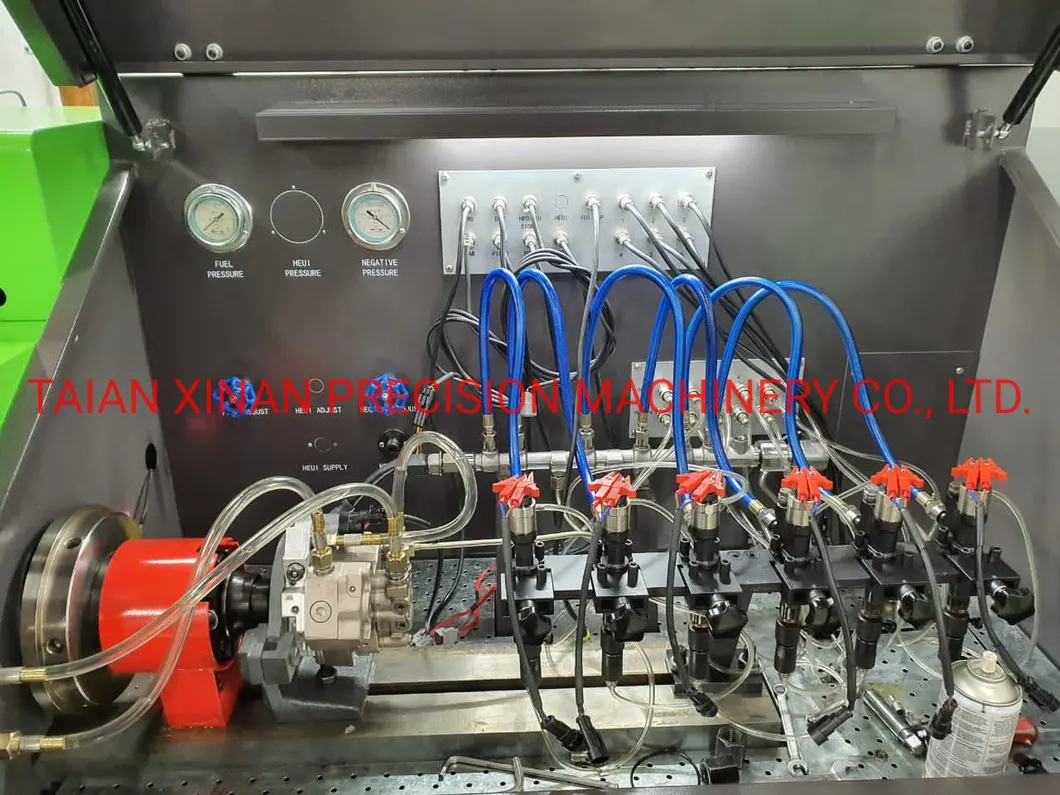

1, Common rail injector test

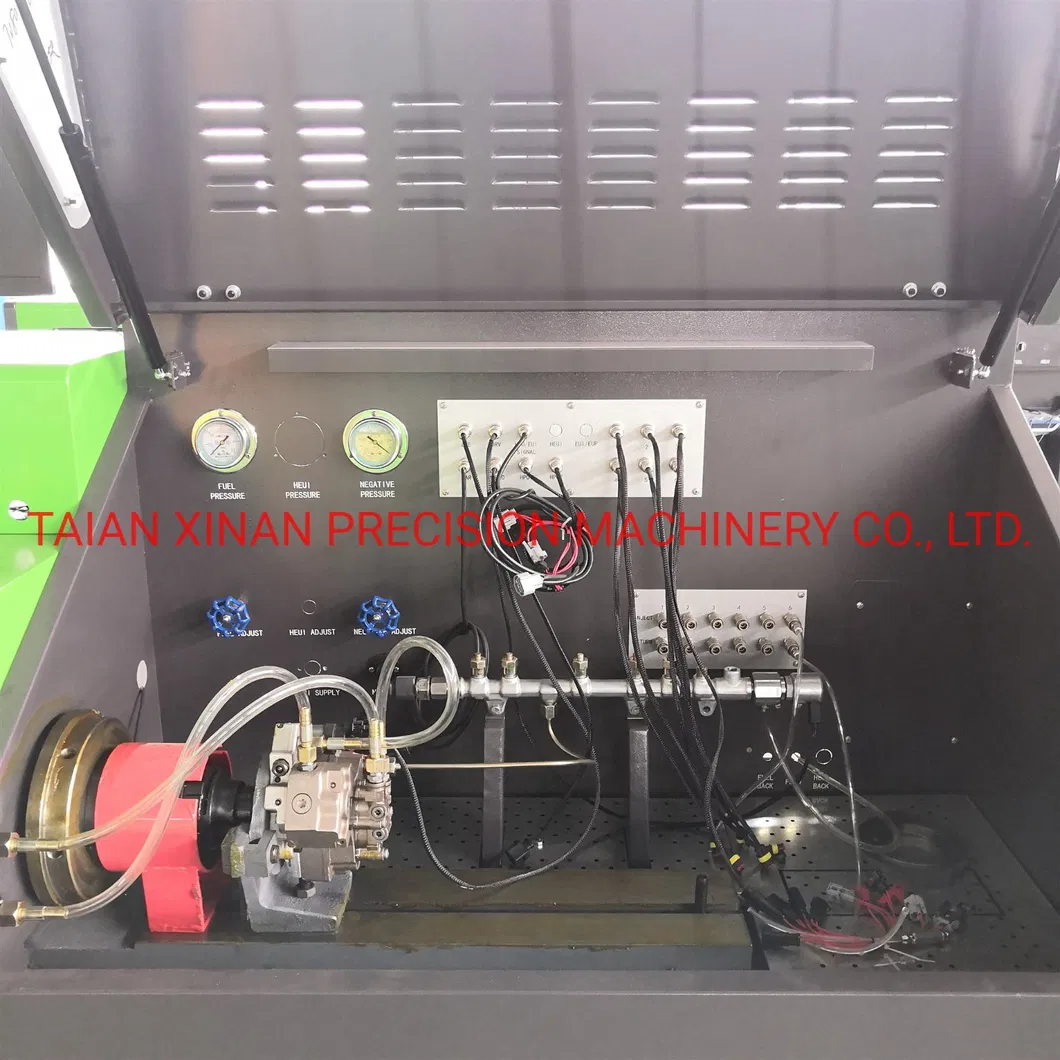

2, Common rail pump test
3, Piezo injector test
4, HP0 pump test
5, QR coding for Bosch, Denso, Delphi, Siemens...
6, Injector inductance and resistance test
7, CAT 320D pump test

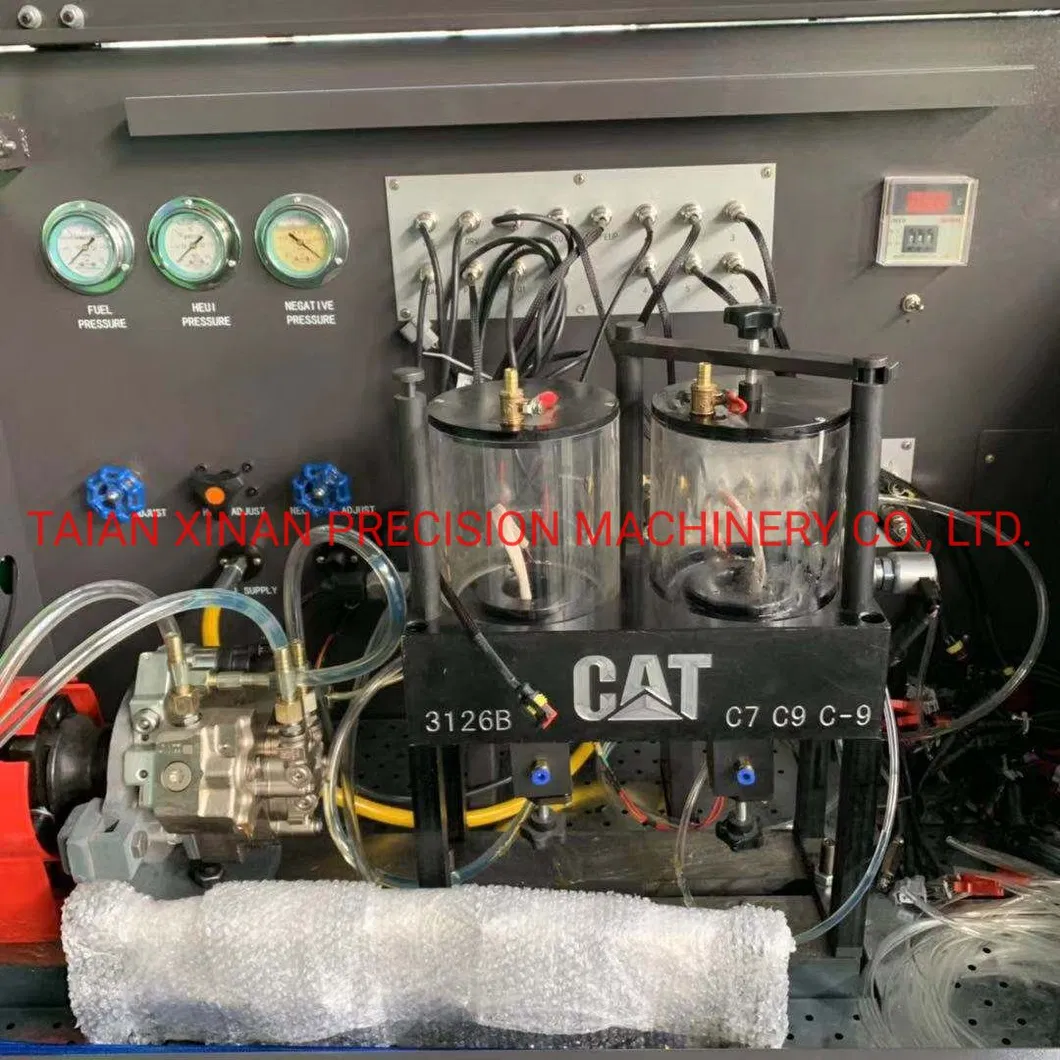

8, CAT C7 C9 HEUI pump test
9, Forced cooling system
Technical parameter:
1. Out put power: 7.5/11/15/18.5/22kw
2. Input power: 380V/50hz/3phase or 220V/60hz/3phase
3. Rotation speed: 0~3000RPM
4. Rail high pressure: 0~2600 bar
5. Test oil filtered precision: 5
6. Oil tank: 40L
7. Size: 1970*970*1650mm
8. Wight: 850kg
