Common Rail Testing Stand Test Rig Heui Test Bench

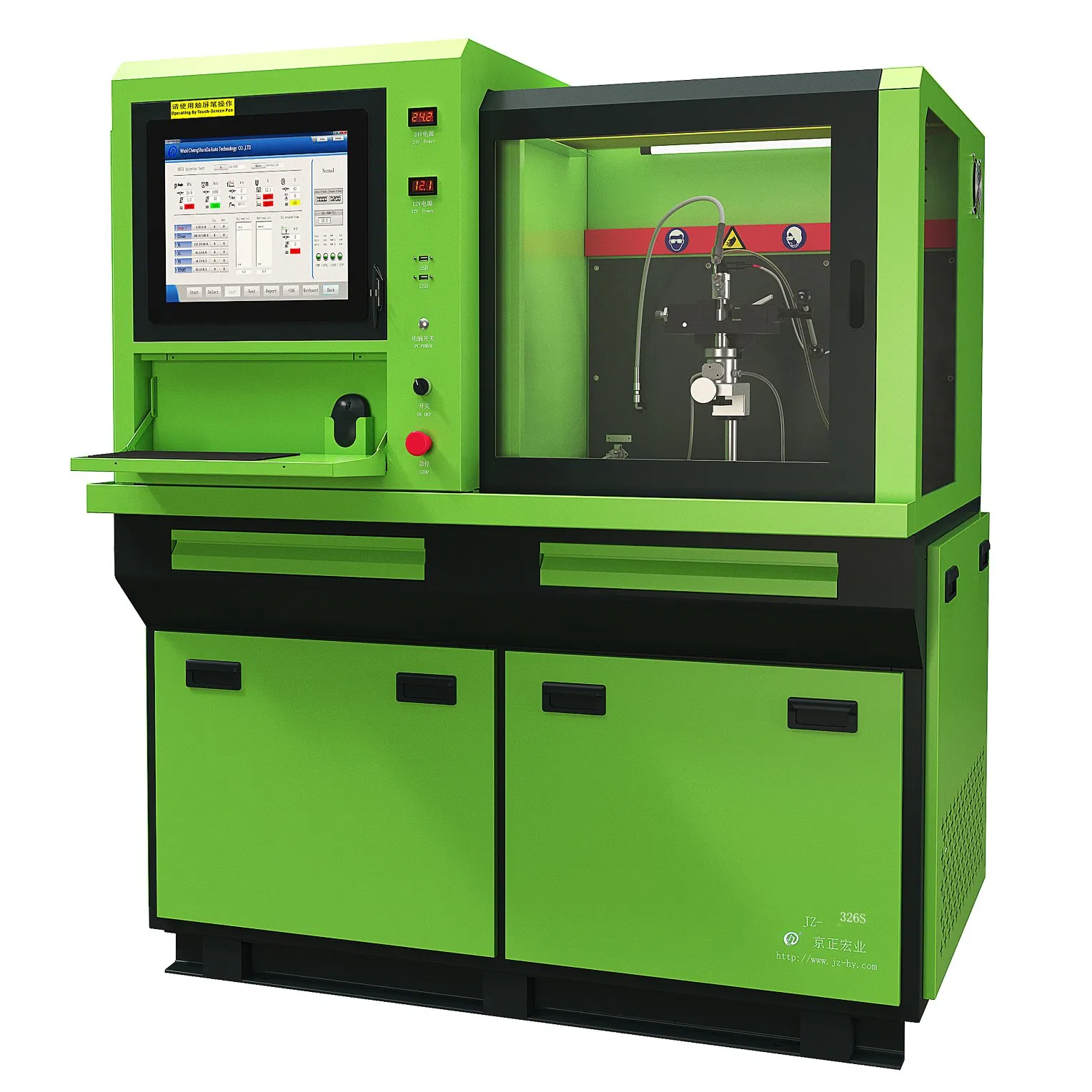

Product IntroductionJZ-326S common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.Functions ......
Send Inquiry
Product Description
Product Introduction

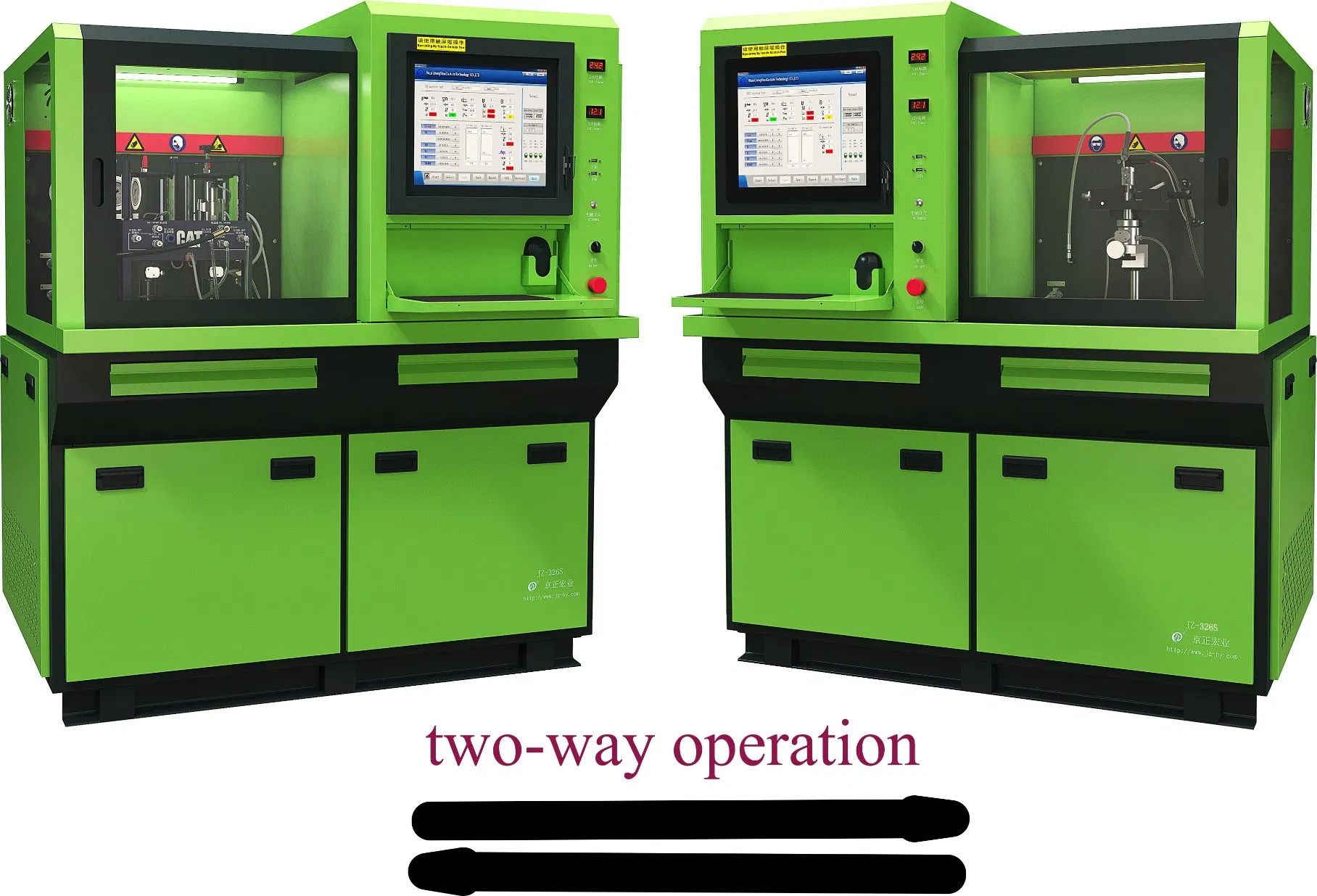

JZ-326S common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.

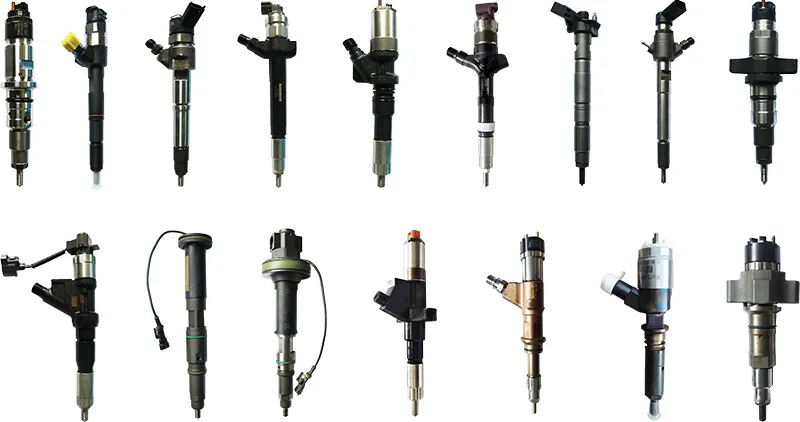

It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description
JZ-326S common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description
| 1. Integrated flow sensor | 15. BIP function |
| 2. Full-automatic Fully function | 16. Can test piezo injectors |
| 3. With electronic measuring system | 17. Can test common rail injectors |
| 4. Accurate data Multiple protection | 18. Can test HEUI common rail injectors |
| 5. Prepositioned precise filter for sensor | 19. Oil level lower limit alarm |
| 6. Real-time display the fuel delivery graph | 20. Opening pressure and flow rate of oil nozzle |

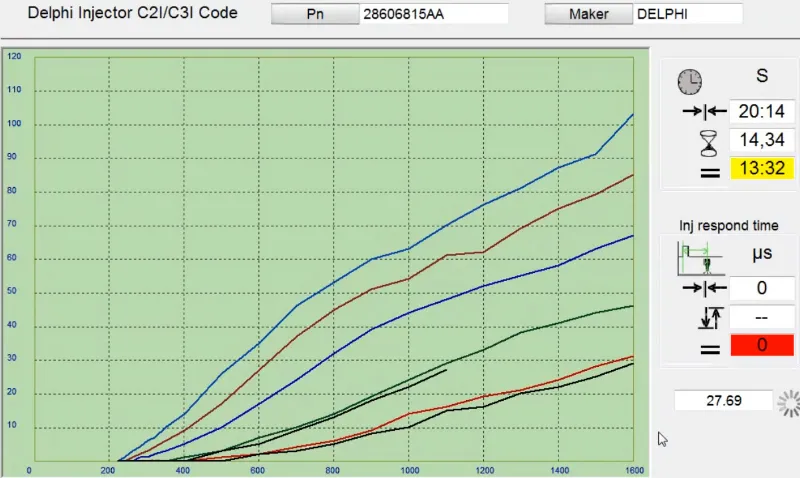

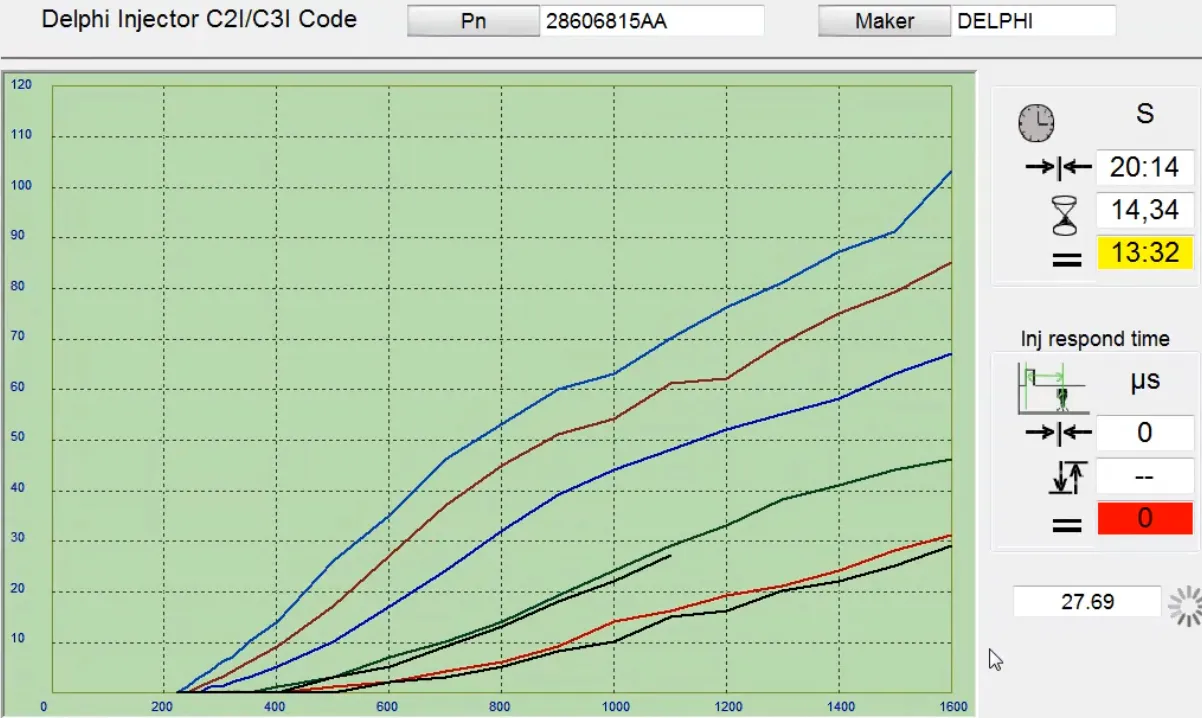

| 7. Intelligent algorithm Automatic calibration | 21. Coding code of Denso QR code |
| 8. Automatically heating/cooling control for test oil | 22. Coding code of Delphi C2i,C3i code |
| 9. Bosch CP3 pump and high pressure oil rail with DRV | 23. Coding code of Siemens VDO-IIC code |
| 10. Bosch datas are from the orginal equipment of EPS708 | 24. Coding code of Bosch piezo injectors |

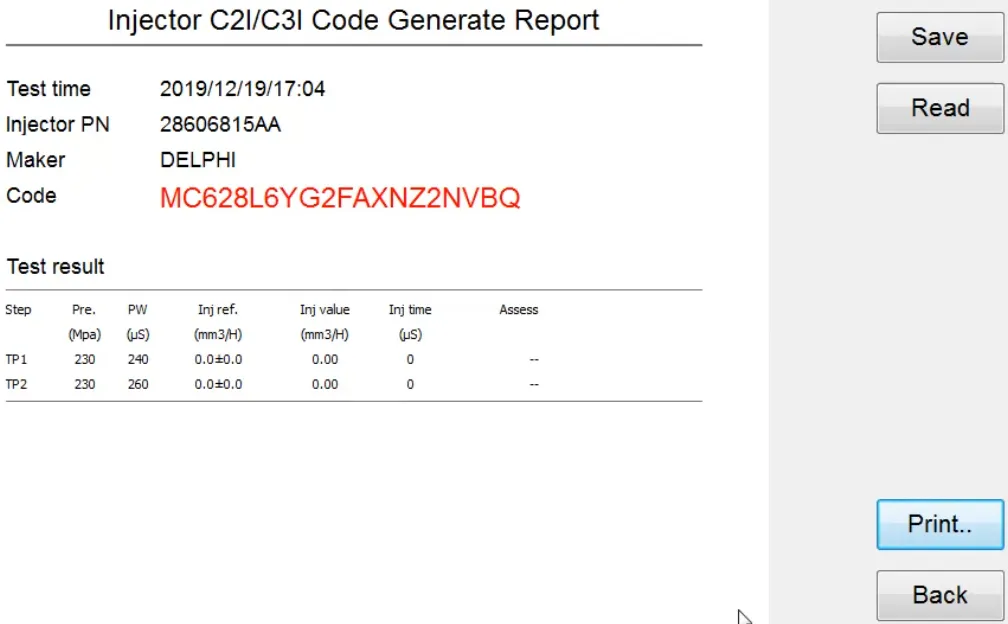

| 11. Denso, Delphi, Siemens data are calibrated by the latest injectors | 25. Coding IMA code of Bosch 110 injectors |
| 12. Data backup, software update and cloud upgradable functions | 26. Industrial computer with touch-screen |
| 13. Function debugging can be realized under different speed conditions | 27. Many language interfaces can be switched |
| 14. Measurement of resistance and inductance of injector's solenoid valve | 28. Test items: preheating emptying; tightness; full load; fuel return; discharge volume; pre-injection volume; idle oil volume |
Our Advantage
| Hardware advantage |
| 1. Motor power is 6.5 KW |
| 2. Air-cooled heat dissipation kit |
| 3. Metering valve detect the fuel flow |
| 4. Imported flow sensor from Germany |
| 5. Equipped with Bosch genuine DRV |
| 6. Equipped with Bosch genuine CP3 pump |
| 7. Equipped with Bosch genuine common rail tube |
| 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection) |
| 9. Short-circuit protection, ground protection, over-pressure protection during the testing |
| 10. Equipped frequency converter to achieve testing function under different speed conditions |
| 11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life |
| Software advantage |
| 1. Timing injection responding sensing system of the injectors |
| 2. Coding system, can generate different compensation codes and correction codes |
| 3. Measurement system of resistance and inductance of injector's solenoid valve |
| 4. More than 3000 test data used for different brands injectors and pumps calibrations |
| 5. Data backup, system software and database upgrade free charge all the time by remote |
| 6. Electronic measuring system, automatic testing the fuel quantity of all working conditions, and generate report after testing |
| 7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing |
| 8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing |

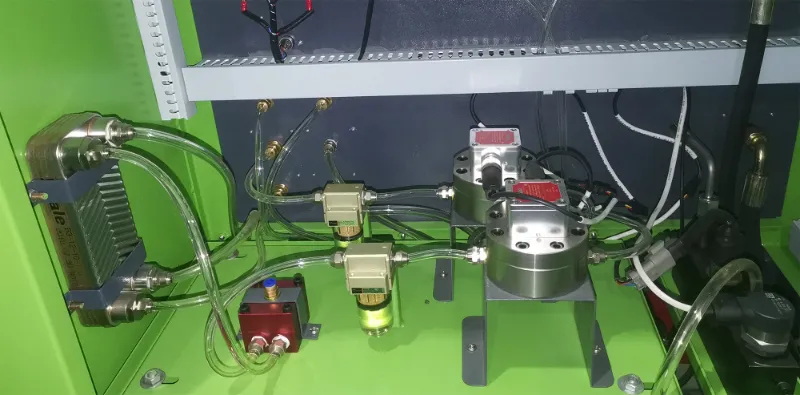

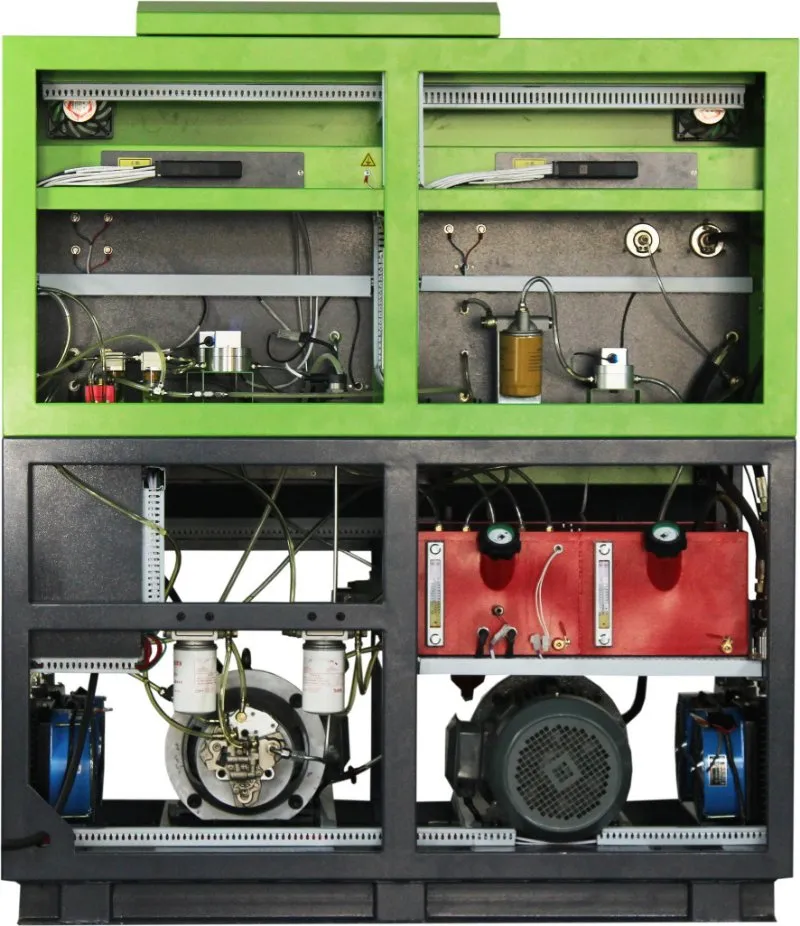

Testing Details
Technical Parameters
| Technical Parameters | |
| Output | 6.5 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Rail Pressure | 0~2700 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 20L/20L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 500 kg |
| Packing Size | 1450×1050×1650 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air-Cooled Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40%Deposit, the rest paid before delivery |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

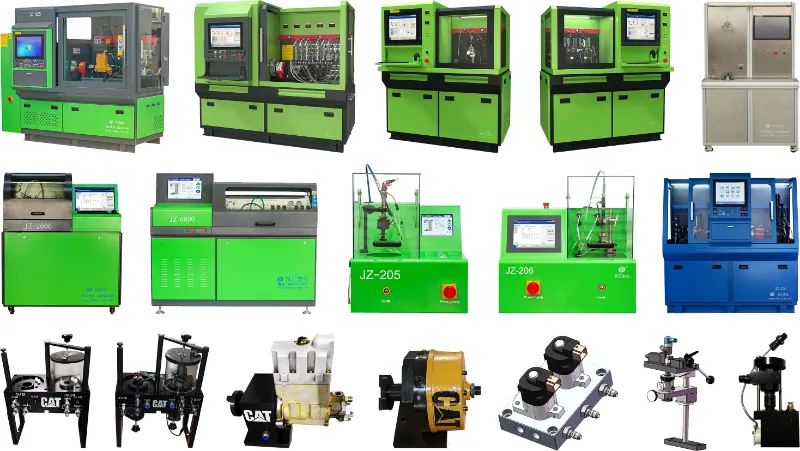

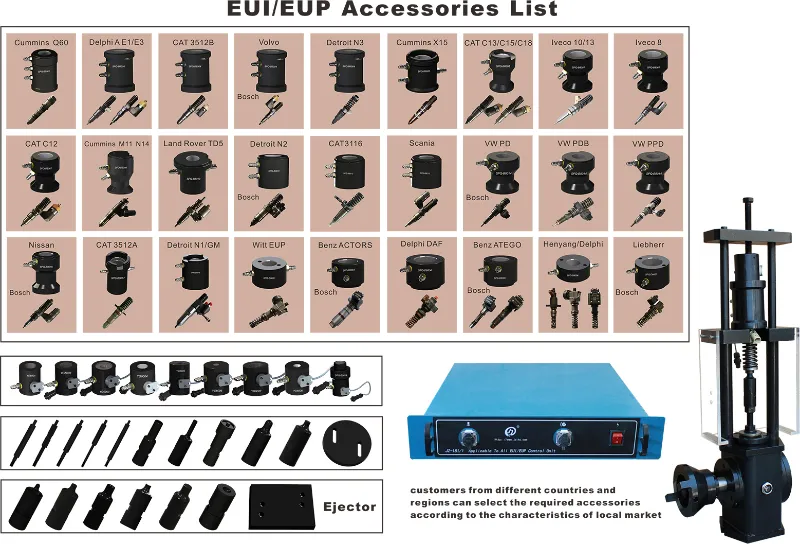

Related Products and Fixtures
