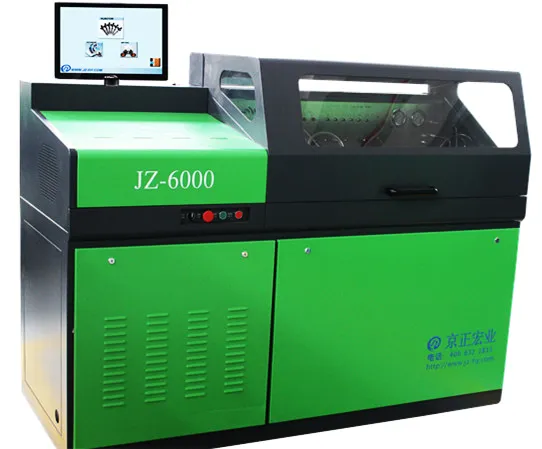

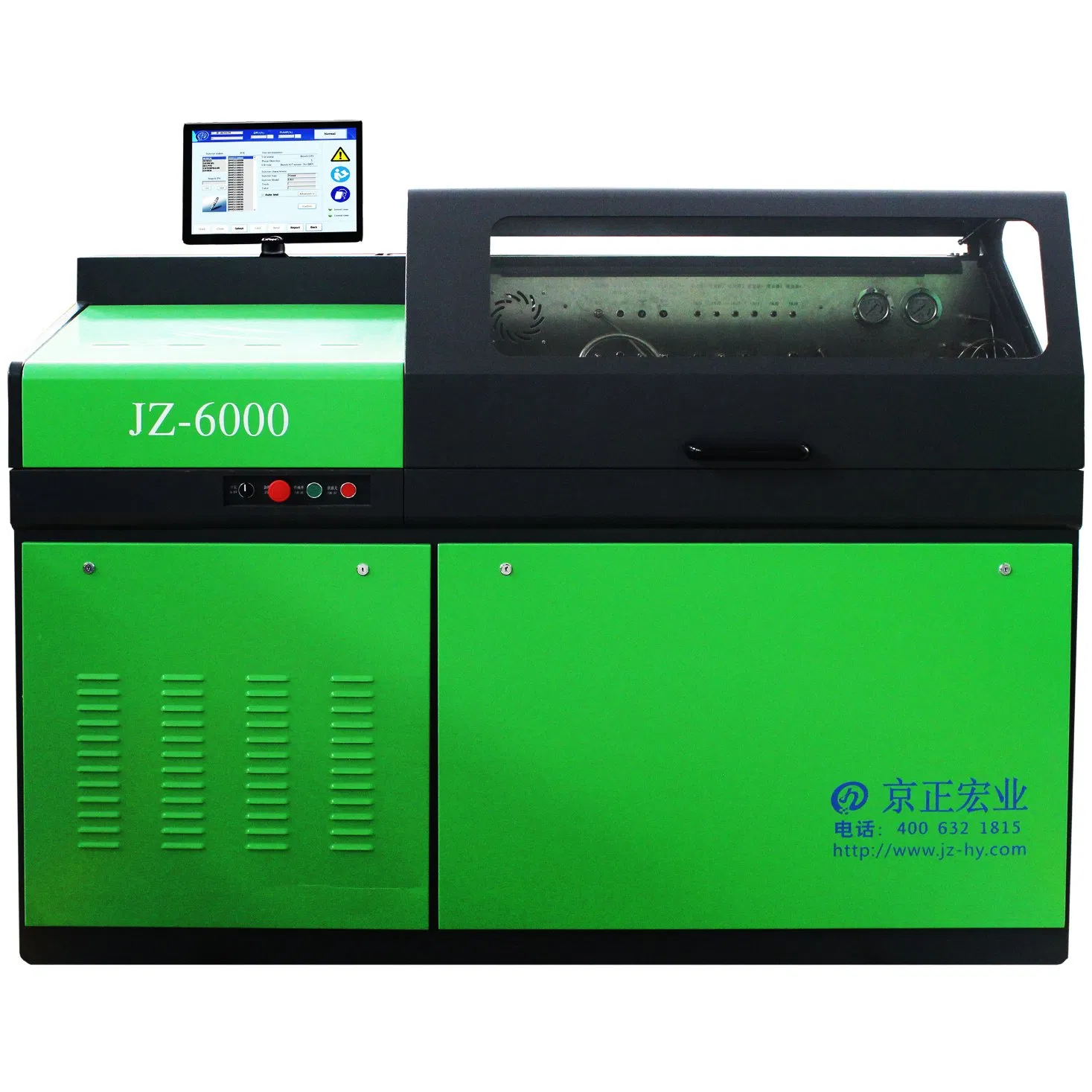

Common Rail Test Bench for Injector and Pump
Product IntroductionJZ-6000 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. Th......
Send Inquiry
Product Description
Product Introduction

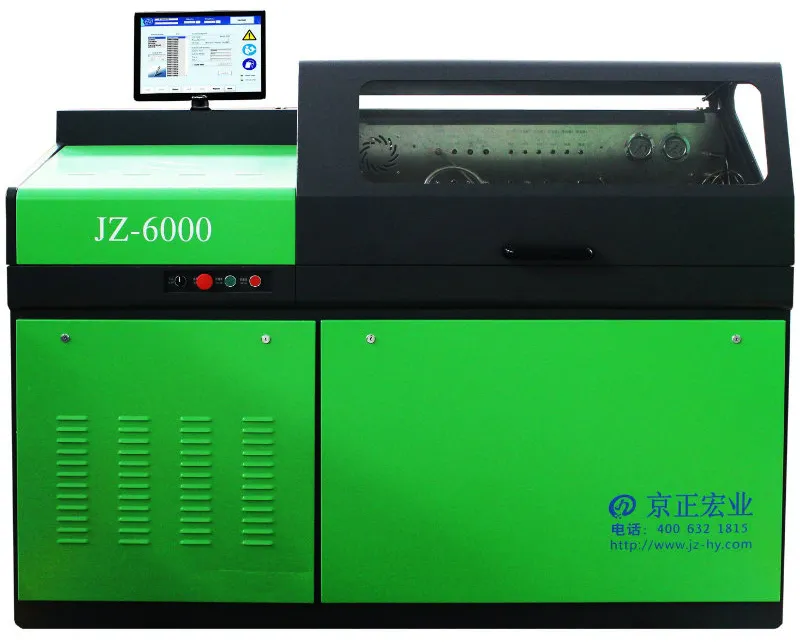

JZ-6000 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
1. Integrated flow sensor
2. Full-automatic Fully function
3. With electronic measuring system
4. Prepositioned precise filter for sensor
5. Intelligent algorithm Automatic calibration
6. Automatically heating/cooling control for test oil
7. Bosch datas are from the orginal equipment of EPS708
8. Denso, Delphi, Siemens data are calibrated from the latest injectors
9. Bosch CP3 pump and high pressure oil rail with DRV
10. Real-time display the curve of the injected fuel volume and returned fuel volume
11. Can test different kinds of solenoid valve injectors and piezo injectors
12. Can test different types of common rail high pressure pumps, including Bosch CP1
CP2/CP3 Delphi CRSP, DENSO HP3/HP4,HP0, Siemens DCP pumps ect
13. EUI, EUP test module can be added onto this test bench
14. Data backup, software update and cloud upgradable
15. Many language interfaces can be switched
JZ-6000 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
1. Integrated flow sensor
2. Full-automatic Fully function
3. With electronic measuring system
4. Prepositioned precise filter for sensor
5. Intelligent algorithm Automatic calibration
6. Automatically heating/cooling control for test oil
7. Bosch datas are from the orginal equipment of EPS708
8. Denso, Delphi, Siemens data are calibrated from the latest injectors
9. Bosch CP3 pump and high pressure oil rail with DRV
10. Real-time display the curve of the injected fuel volume and returned fuel volume
11. Can test different kinds of solenoid valve injectors and piezo injectors
12. Can test different types of common rail high pressure pumps, including Bosch CP1
CP2/CP3 Delphi CRSP, DENSO HP3/HP4,HP0, Siemens DCP pumps ect
13. EUI, EUP test module can be added onto this test bench
14. Data backup, software update and cloud upgradable
15. Many language interfaces can be switched

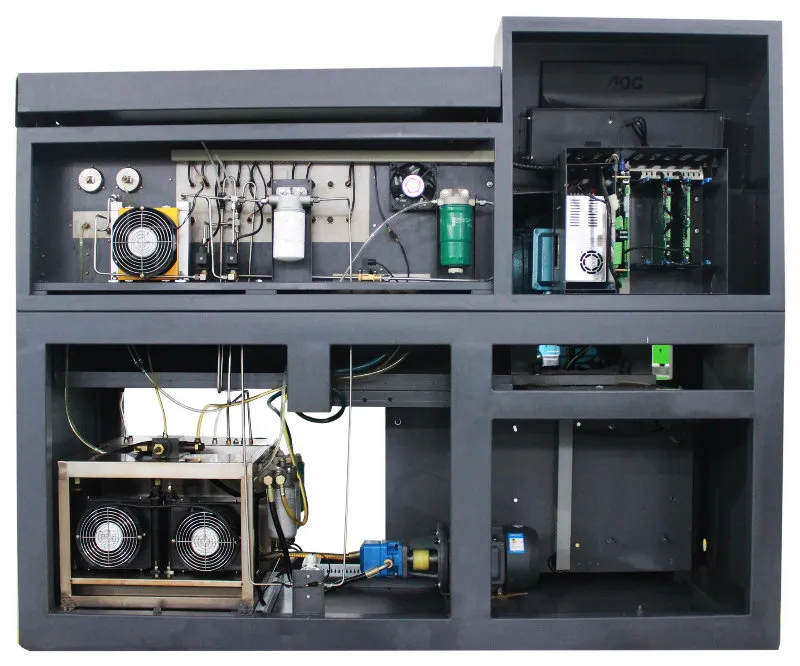

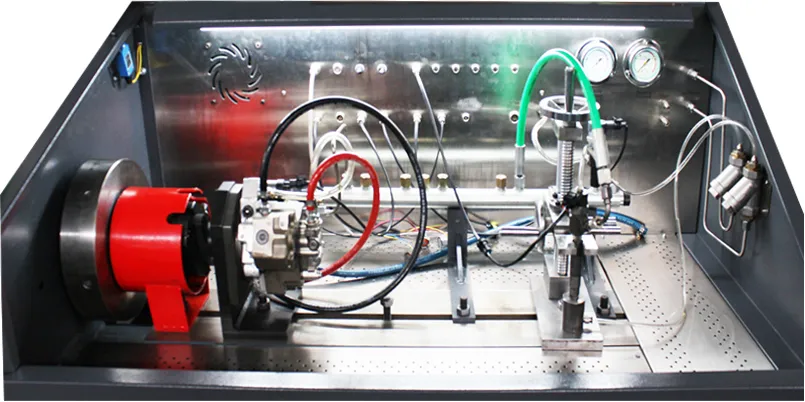

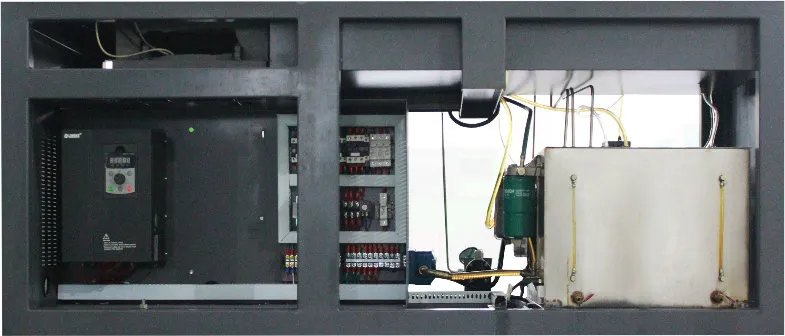

Product Details
Technical Parameters
| Technical Parameters | |
| Output | 22 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~4500 RPM |
| Rail Pressure | 0~2200 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 30 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Net Weight | 615 kg |
| Packing Size | 2065×1000×1770 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

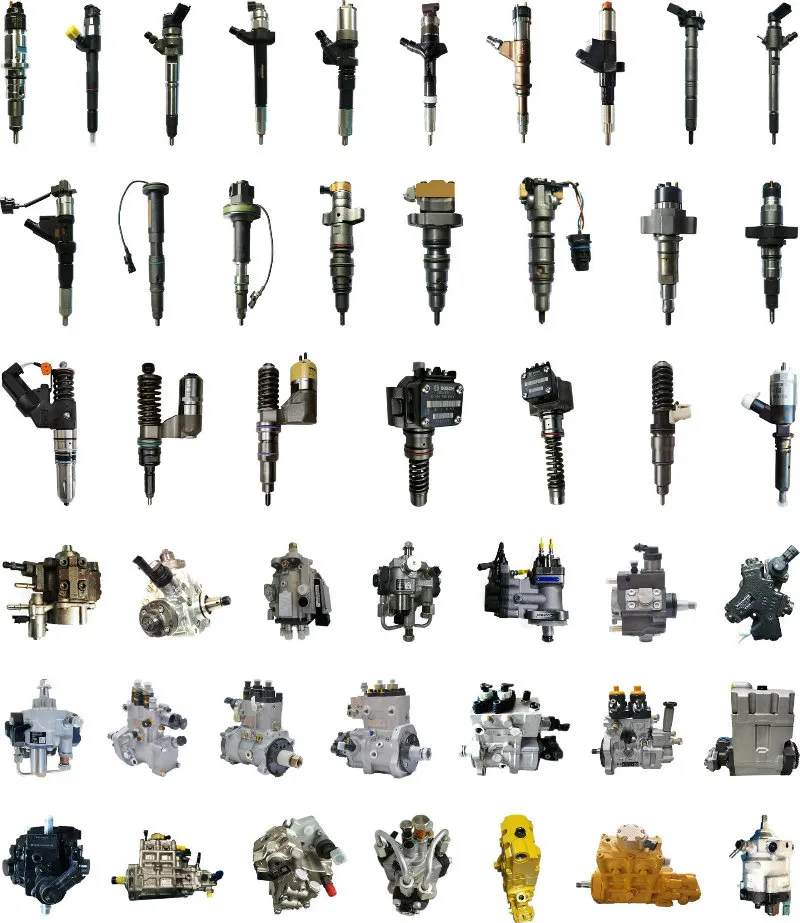

Testing Scope

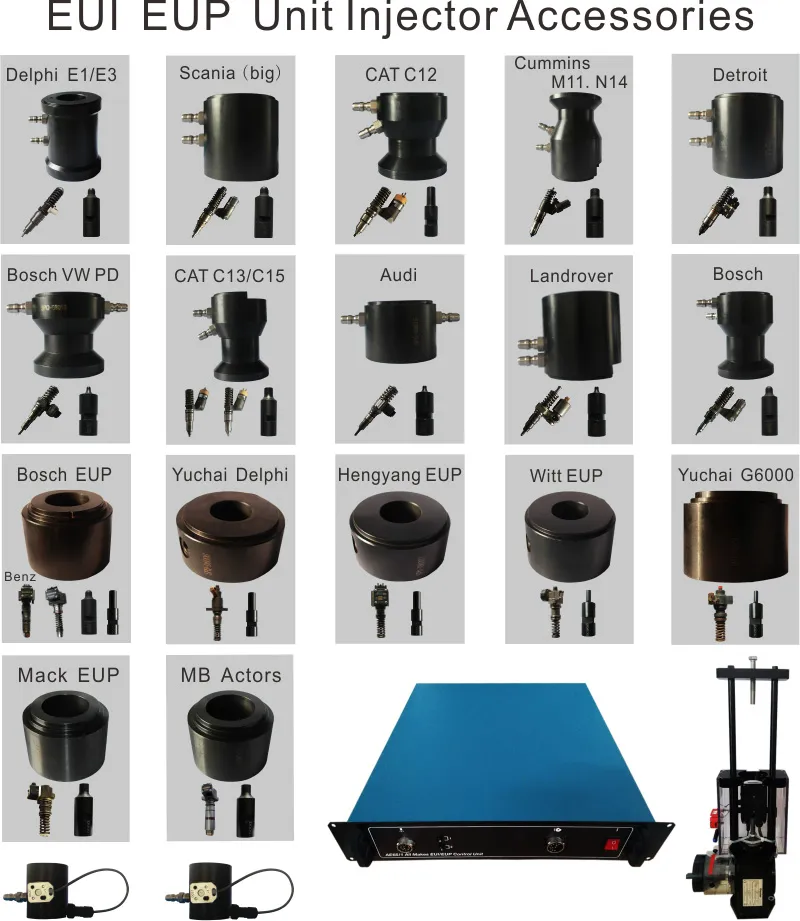

Related Products and Fixtures
Packing and Delivery

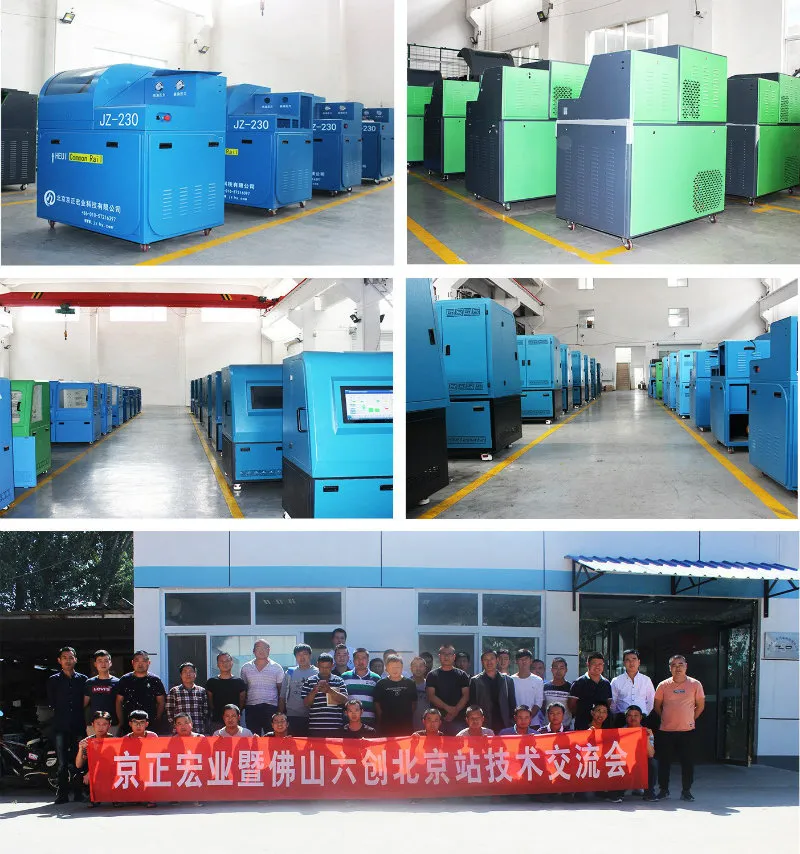

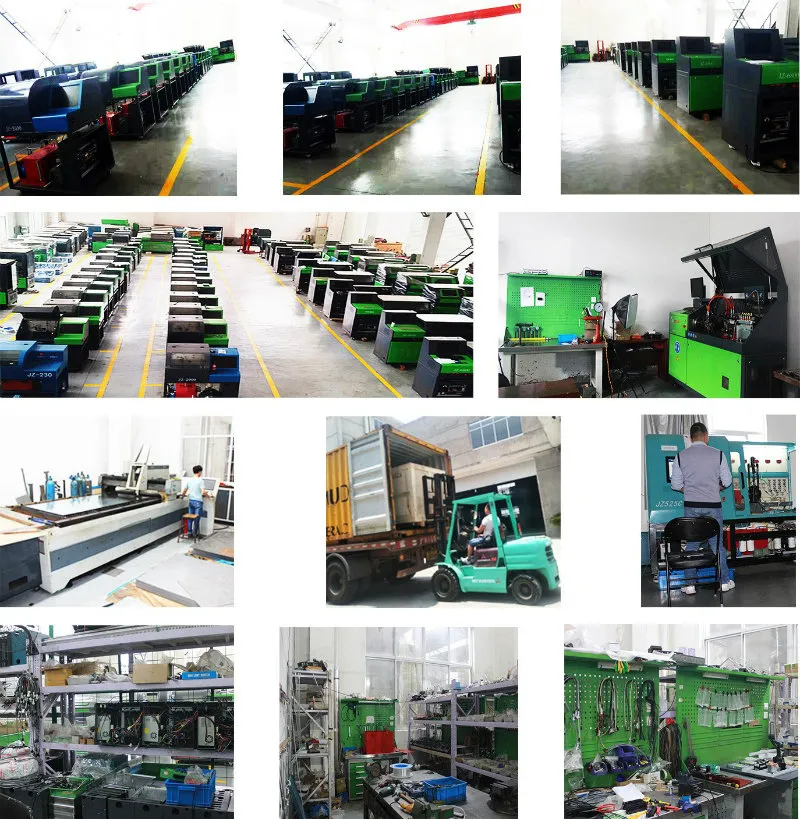

Our Company
Exhibition
Contact Us
