Common Rail Pump Injector Test Bench Diagnostic Equipment
Product IntroductionJZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors andhigh-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillarand so on. The e......
Send Inquiry
Product Description
Product Introduction

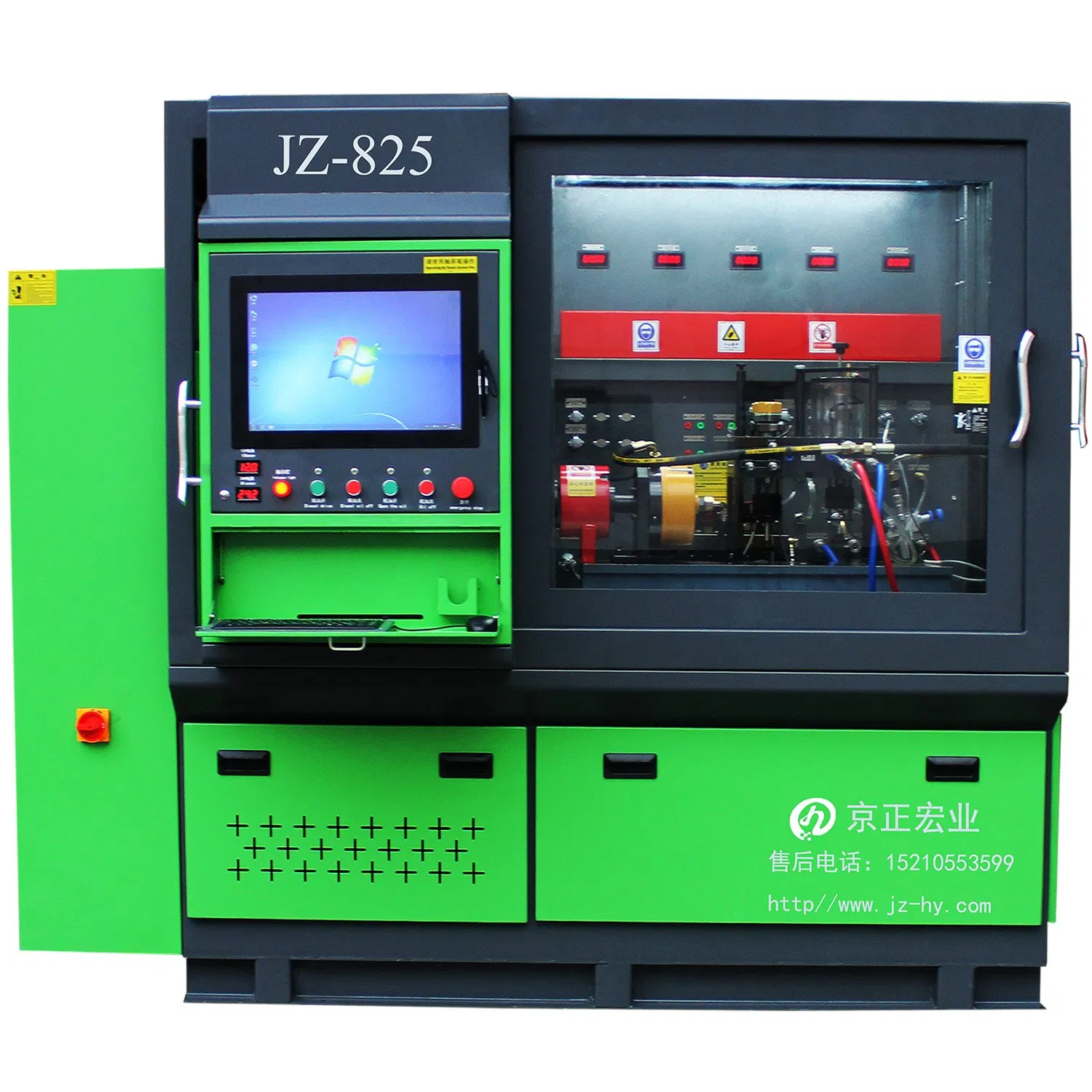

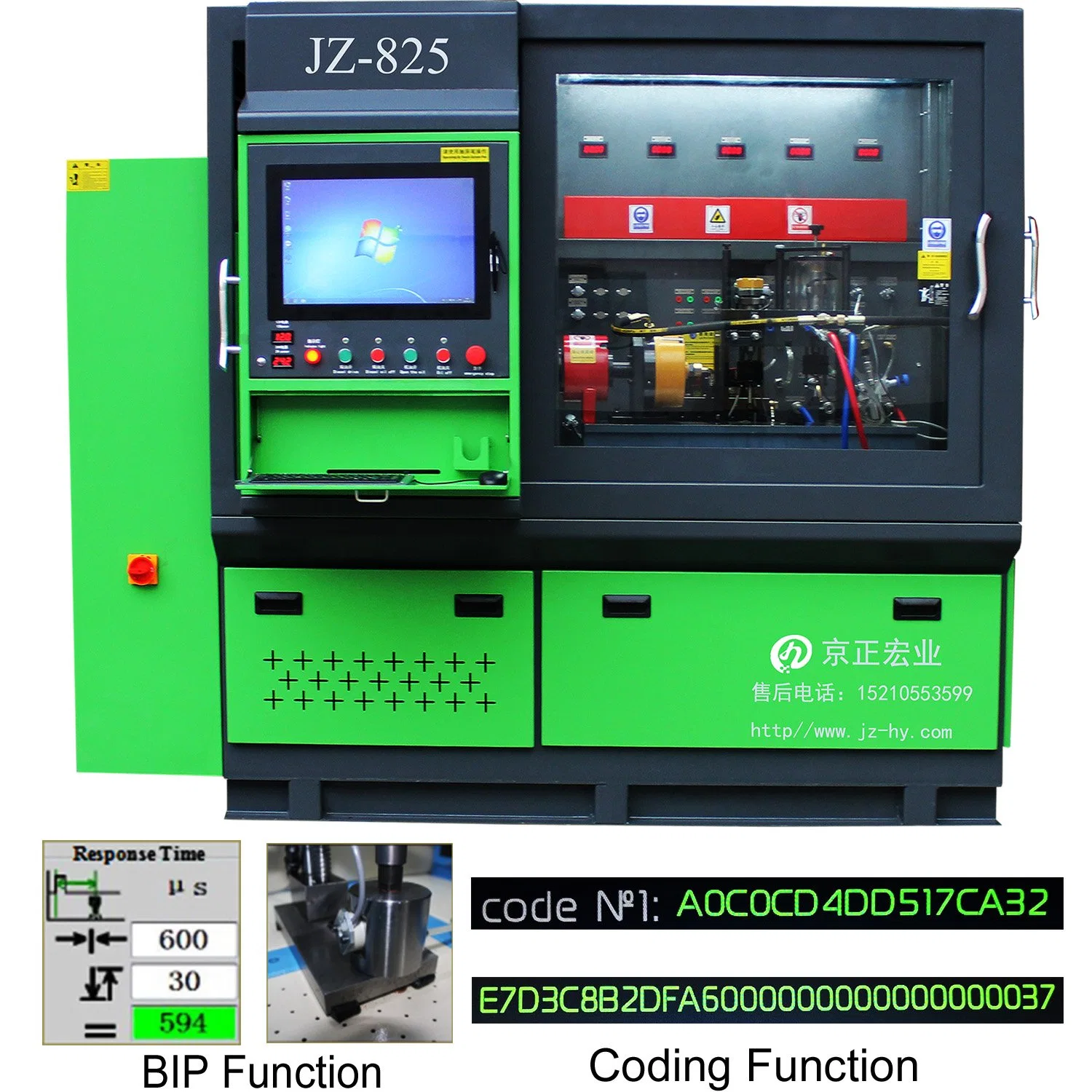

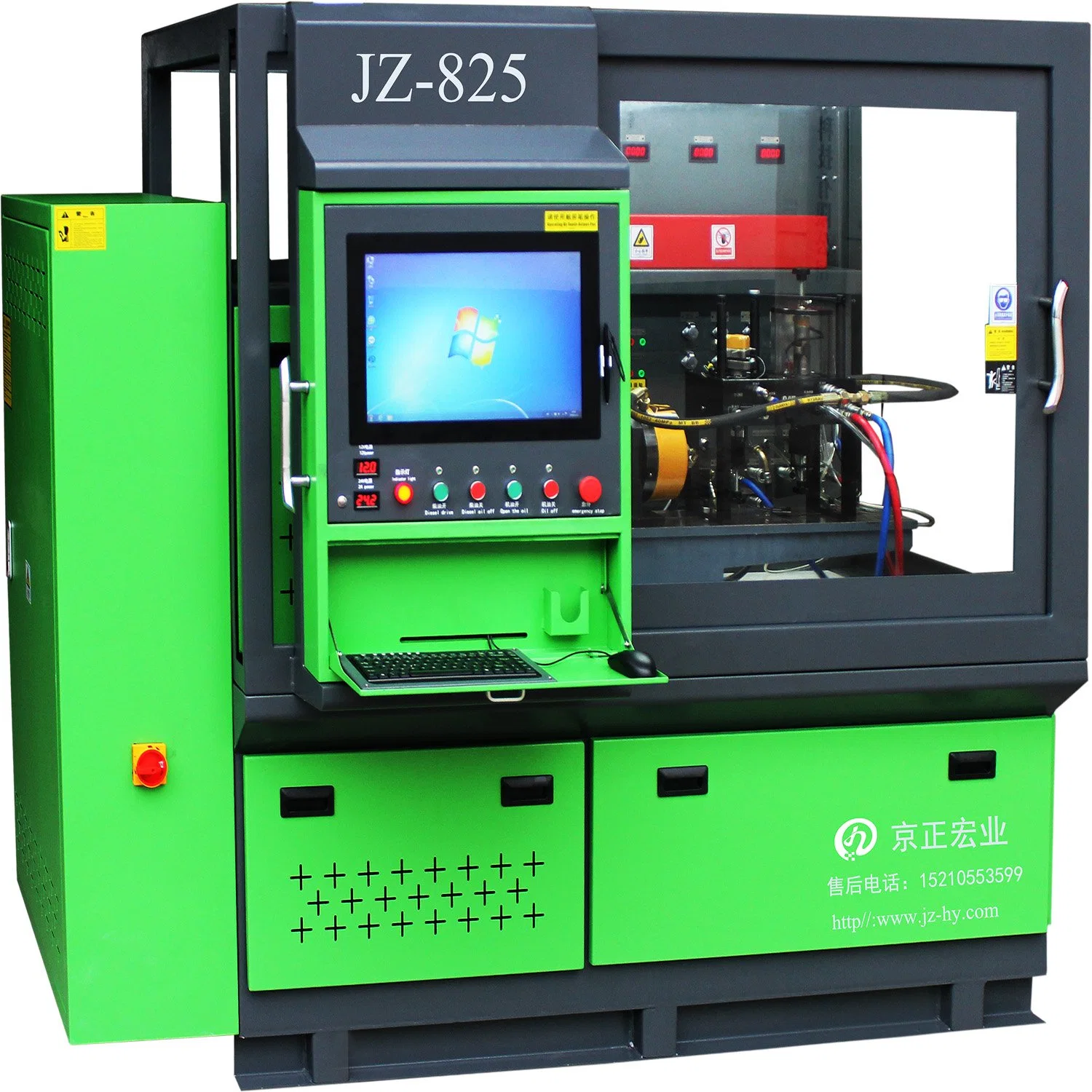

JZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and
high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar
and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
Product Details
JZ-825 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and
high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar
and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
| 1. Integrated flow sensor | 18. BIP function |
| 2. Full-automatic Fully function | 19. Can test piezo injectors |
| 3. With electronic measuring system | 20. Can test common rail injectors |
| 4. Prepositioned precise filter for sensor | 21. Can test mid-pressure injectors |
| 5. Intelligent algorithm Automatic calibration | 22. Can test common rail pumps |
| 6. Automatically heating/cooling control for test oil | 23. Can test actuated pumps |
| 7. Real-time display the fuel delivery graph | 24. Can test unit injectors & pumps (EUI & EUP) |
| 8. Bosch CP3 pump and high pressure oil rail with DRV (two-way DRV) | 25. Can test Delphi CRSP pumps |
| 9. Bosch datas are from the orginal equipment of EPS708 | 26. Can test Siemens DCP pumps |
| 10. Denso, Delphi, Siemens data are calibrated from the latest injectors | 27. Can test Bosch CP1/CP2/CP3 pumps |
| 11. Oil level lower limit alarm | 28. Can test DENSO HP3/HP4,HP0 pumps |
| 12. Linear calibration of flow sensor | 29. Can test testing X15,Q60 injectors |
| 13. Industrial computer with touch-scree | 30. Coding code of Denso QR code |
| 14. Many language interfaces can be switched | 31. Coding code of Delphi C2i,C3i code |
| 15. Opening pressure and flow rate of oil nozzle | 32. Coding code of Siemens VDO-IIC code |
| 16.Data backup, software update and cloud upgradable | 33. Coding code of Bosch piezo injectors |
| 17. Measurement of resistance and inductance of injector's solenoid valve | 34. Coding IMA code of Bosch 110 injectors |
Product Details
Technical Parameters
| Technical Parameters | |
| Output | 22 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~4000 RPM |
| Rail Pressure | 0~2600 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 30 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 1450 kg |
| Packing Size | 2400×1630×2100 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

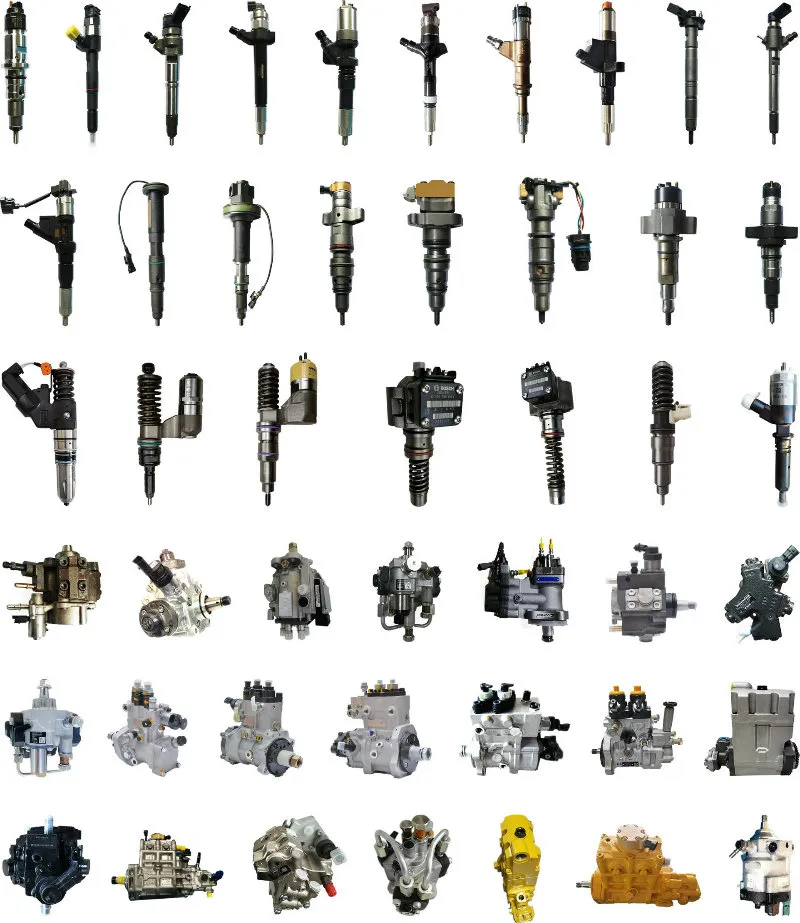

Testing Scope

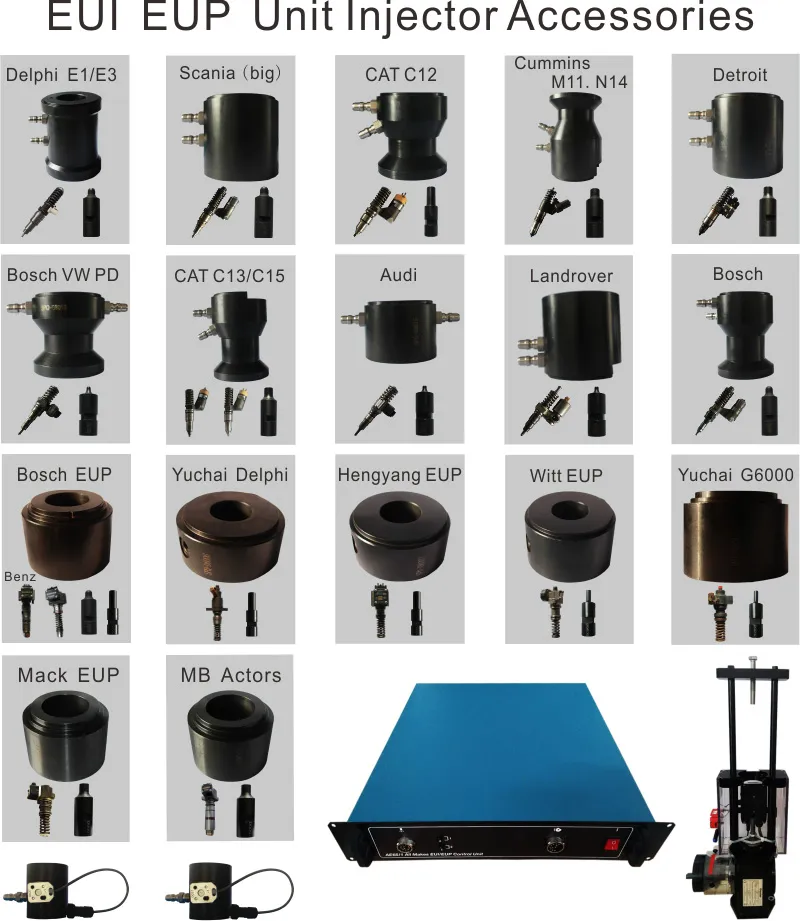

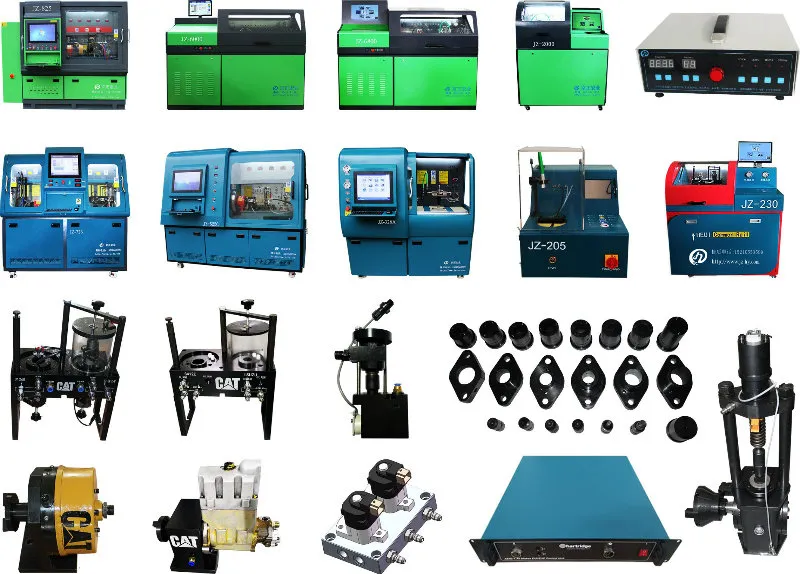

Related Products and Fixtures
Packing and Delivery

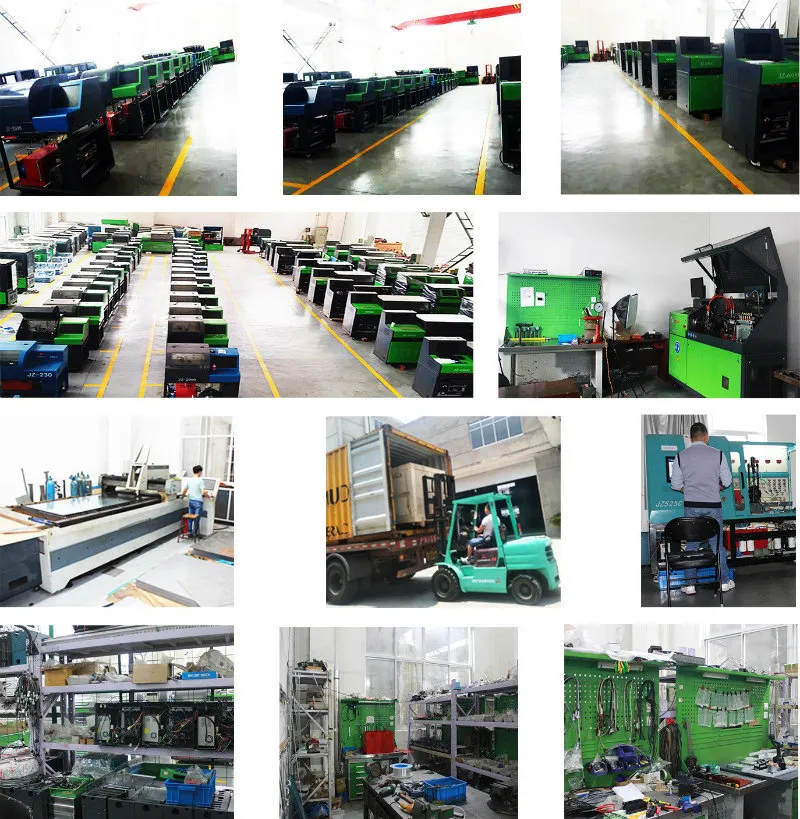

Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
